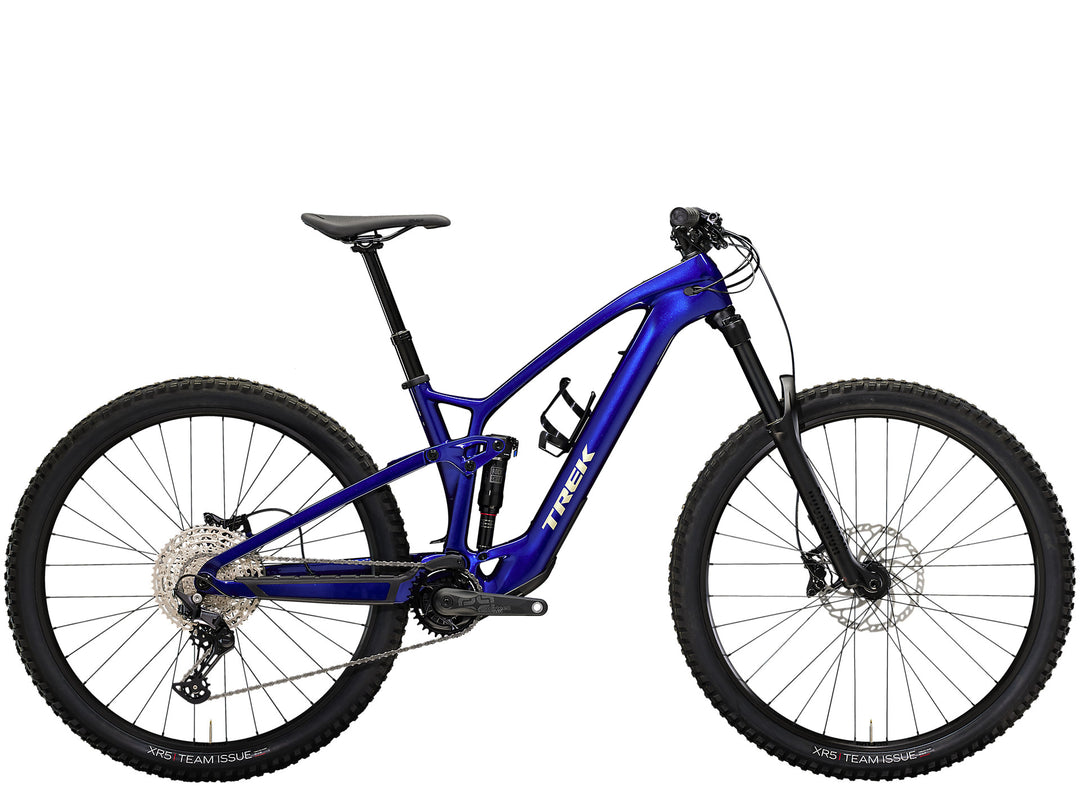

Trek Fuel EXe 9.5 2023
The Fuel EXe 9.5 Deore is a new kind of e-mountain bike that bridges the divide between pedal-assist and traditional bikes. It features a carbon frame and a compact motor that keeps the ride light, lively and quiet. Get the benefit of pedal assist on long climbs, and the playful feel of a traditional mountain bike on descents. It's built up with a 150 mm RockShox Gold RL fork that makes quick work of rock gardens, and 140 mm of plush RockShox Deluxe Select+ rear suspension for a smooth ride and small bump compliance.
It's right for you if...
You want a trail bike that's ready to ride everywhere, and gives you a little extra fuel on the ascents. You don't want to sacrifice the nimble feel of a traditional trail bike for a beefy motor, and prefer a refined assist that feels – and sounds – natural underneath you.
The tech you get
An OCLV Mountain Carbon frame with a fully encased 360 Wh battery, and TQ harmonic pin ring transmission with a smart charging port, integrated LED display and discreet handlebar remote. 150 mm RockShox 35 Gold RL fork with DebonAir spring and Motion Control damper, and 140 mm RockShox Deluxe Select+ rear suspension. Plus, tubeless-ready wheels and tyres, and 12-speed Shimano Deore drivetrain.
The final word
The Fuel EXe 9.5 is a lively trail bike that gives you extra boost on the climbs, and feels like a traditional bike on descents. It's packed with space-age technology of a TQ harmonic pin ring transmission, plenty of buttery-smooth suspension to gobble up rocks and roots, and a workhorse drivetrain that won't quit on you.
| Frame | OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel |
|---|---|
| Fork | RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel |
| Shock | RockShox Deluxe Select+ RT, 205 mm x 60 mm |
| Hub front | Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
|---|---|
| Hub rear | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve |
| Tyre | Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50" |
| Shifter | Shimano Deore M6100, 12-speed |
|---|---|
| Rear derailleur | Shimano Deore M6100, long cage |
| Crank | E*thirteen E*spec Plus, 34T, 165 mm length |
| Chainring | E*thirteen E*spec, 32T steel ring, 55 mm chain line |
| Cassette | SunRace CSMZ800 11-51, 12 speed |
| Chain | Shimano Deore M6100 |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
|---|---|
| *Seatpost |
Size: S TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length |
|
Size: M TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length |
|
|
Size: L, XL TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length |
|
| Handlebar | Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Stem | Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length |
| Brake | Tektro HD-M745 4-piston hydraulic disc |
| Brake rotor | Tektro, 6-bolt, 203 mm |
| *Controller |
Size: S, M, L, XL TQ LED display with Bluetooth & ANT+ connectivity |
|---|---|
|
Size: S, M, L, XL TQ handlebar-mounted |
|
| Motor | TQ-HPR50, 300 watt, 50 Nm |
| Weight | M - 19.93 kg / 43.94 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
