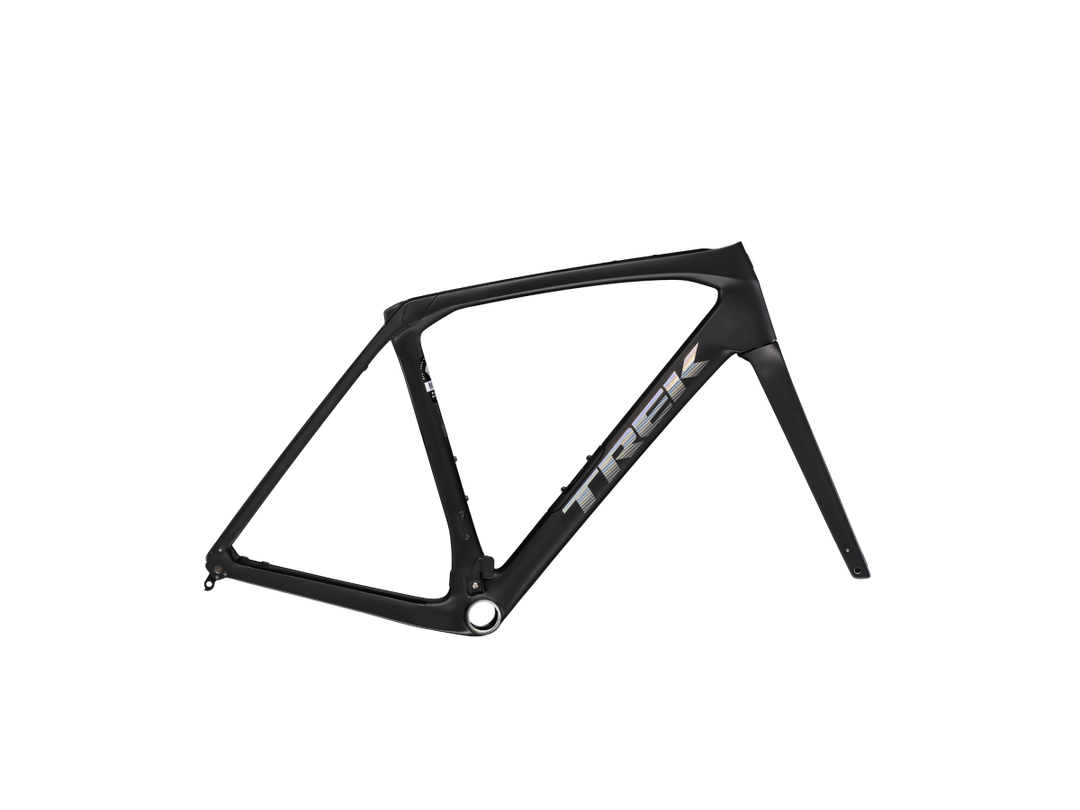

Trek Domane SLR Gen 4 Frame Set
The Domane SLR Disc Frame Set is built with ultra-light 700 Series OCLV Carbon and has rear IsoSpeed to soak up rough-terrain and a lightweight chassis. It's designed for flat-mount disc brakes, has an internal storage compartment, and includes a headset, 12 mm thru-axles and a Domane Disc full carbon fork. It features lofty clearance for up to 38c tyres to keep you floating on rough roads and light gravel.
It's right for you if...
You're building up your dream endurance road bike for quickness and comfort during your longest days in the saddle, and you want to start with a light, comfort-focused OCLV Carbon Domane frame to get it done.
The tech you get
An ultra-light and refined 800 Series OCLV Carbon frame with rear IsoSpeed, internal storage, internal cable routing and top tube mounts. Domane SLR Disc Frame Set is built for flat-mount disc brakes and includes a head set, 12 mm thru axles and a full carbon Domane Disc fork.
The final word
A no-holds-barred, comfort-focused road race bike that's ready for endurance. Not only is it built with our ultra-light 800 Series OCLV Carbon, but it has road-smoothing IsoSpeed tech that takes elevates comfort on rough roads and gravel.
Why you'll love it
- The Domane SLR Gen 3 brings both front and rear IsoSpeed together on a 700 Series OCLV frame for a smooth, light and ultra-comfortable ride on any road
- A convenient internal storage compartment gives you a versatile spot for stowing tools and gear, while top tube mounts let you cleanly bolt on a bag for day-long adventures
- The road-smoothing rear IsoSpeed absorbs fatiguing bumps in the road to keep you comfortable through the longest miles and hardest race days
- Includes a bearing top cap compatible with Trek RCS stems. Already have a stem you love? No problem – a traditional bearing top cap is available separately.
- Seat post (available in two lengths/two offsets) sold separately
| Frame | 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12 mm thru axle |
|---|---|
| *Fork |
Size: 47, 50, 52, 54 Domane SLR carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, carbon dropouts, 12x100 mm thru axle |
|
Size: 56, 58, 60, 62 Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle |
|
| Frame fit | Endurance |
| Skewer front | Bontrager Switch thru-axle, removable lever |
|---|---|
| Skewer rear | Bontrager Switch thru axle |
| Max tyre size | 38mm without mudguards, 35mm with mudguards |
| Max. chainring size | 1x: 48T, 2x: 52/36 |
|---|
| Rotor size | Max brake rotor sizes: 160mm front & rear |
|---|
| Weight | 1,193 g - 56 cm (frame-only, painted) 427g (fork-only, painted) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
