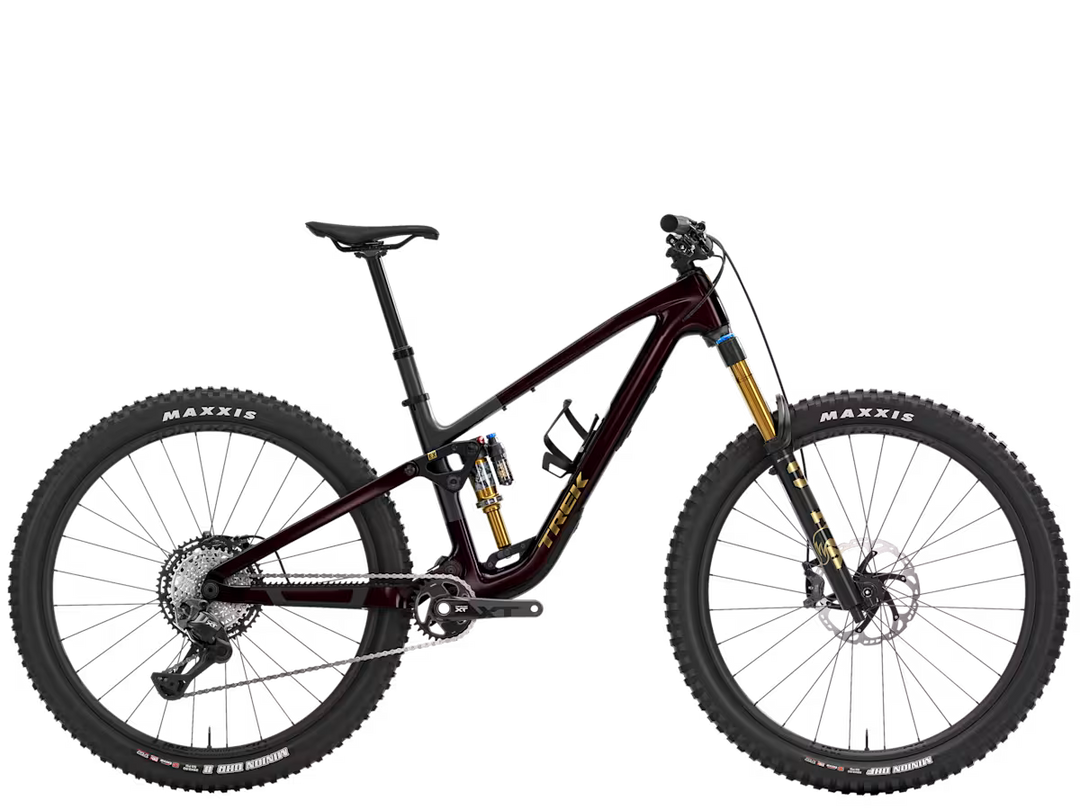

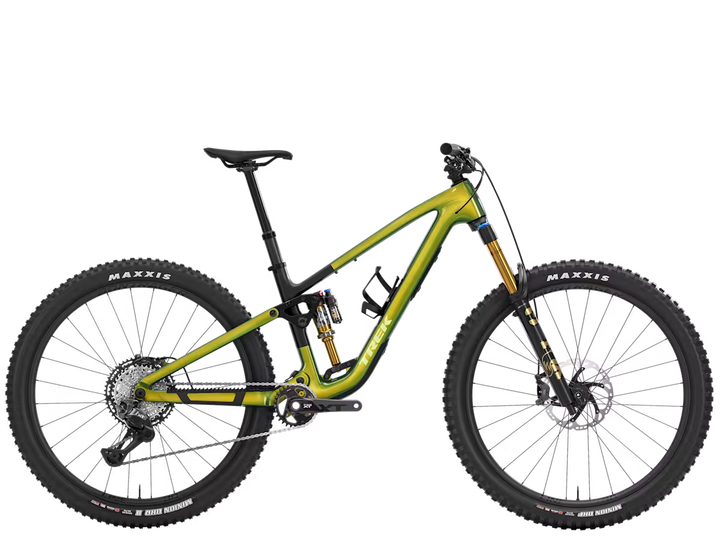

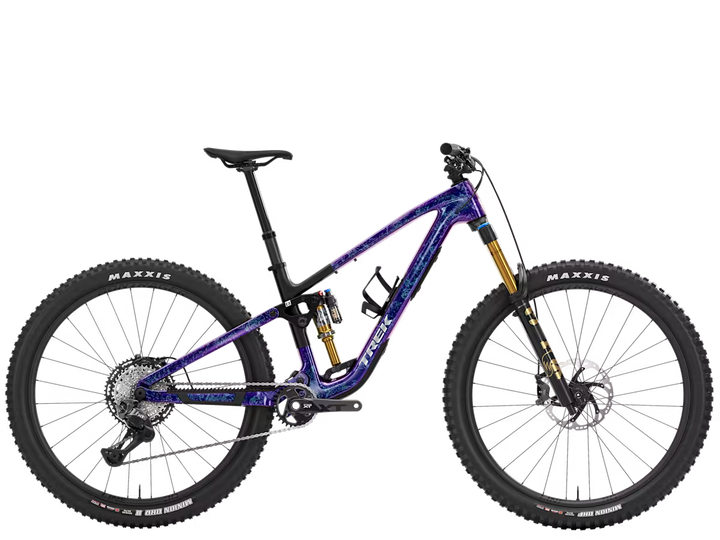

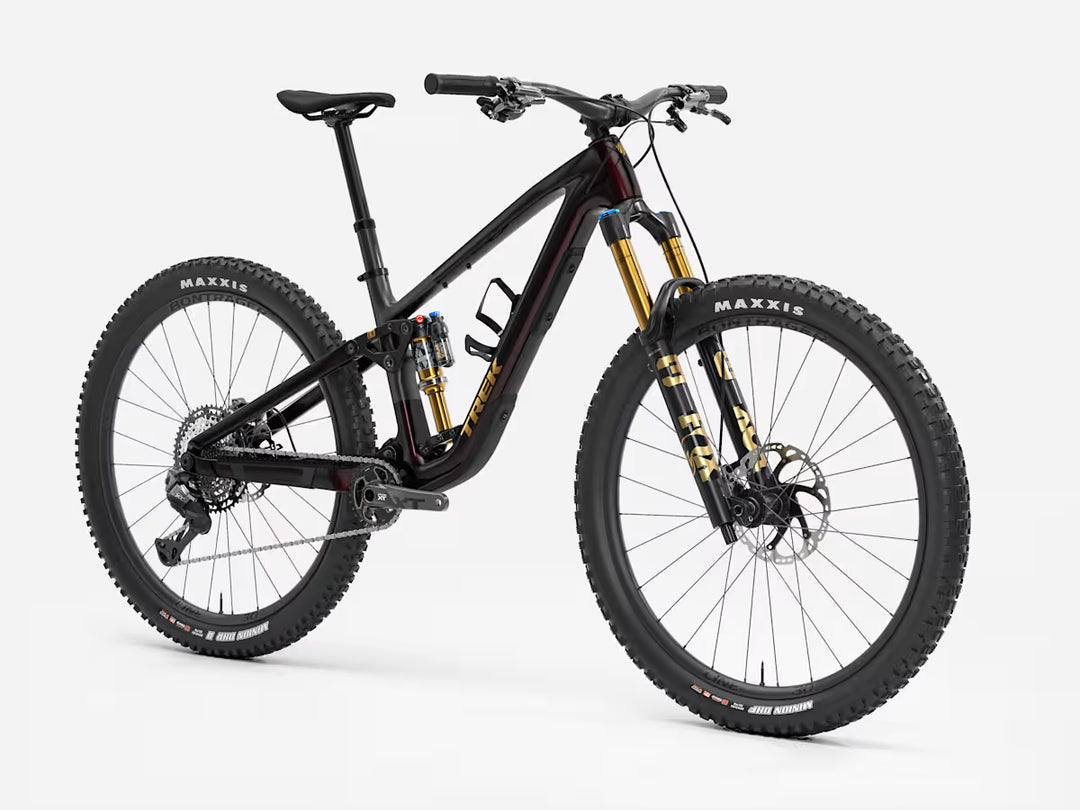

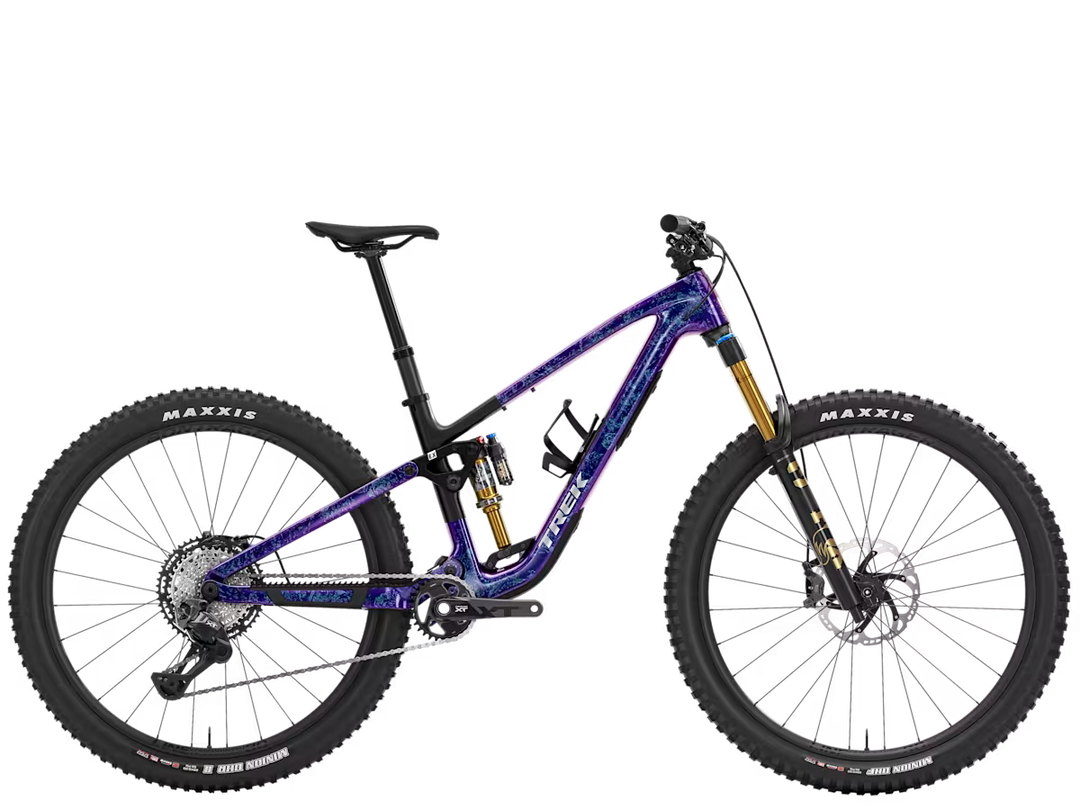

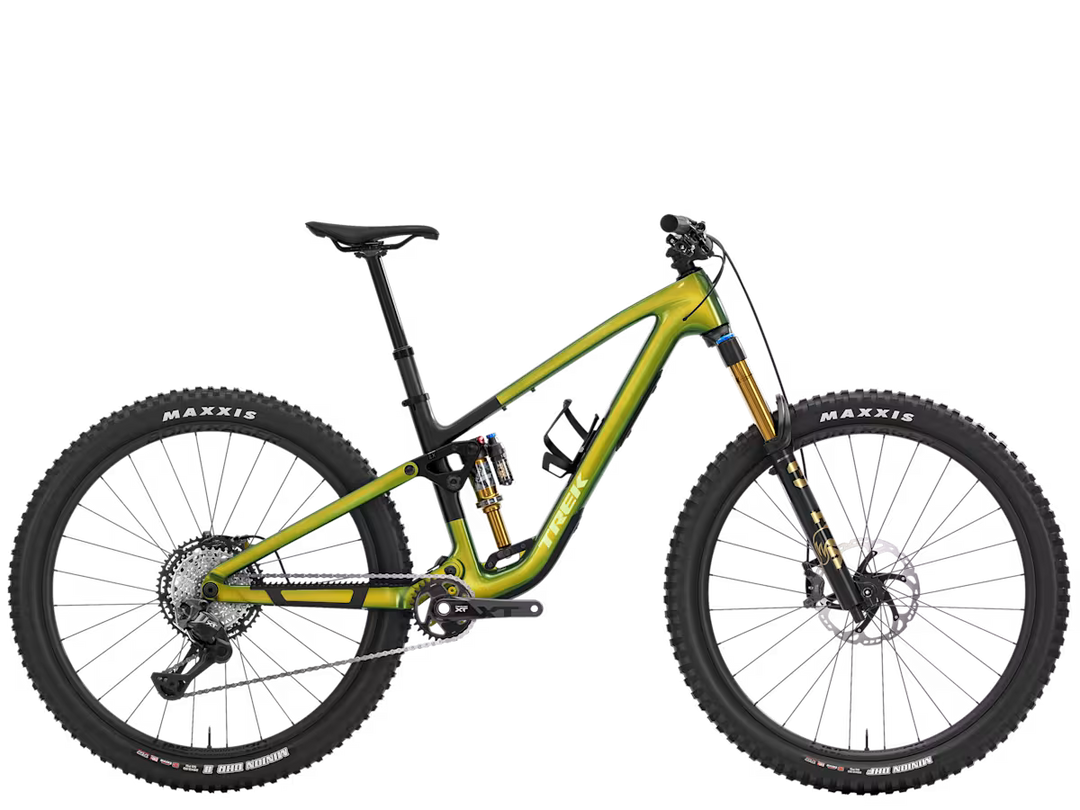

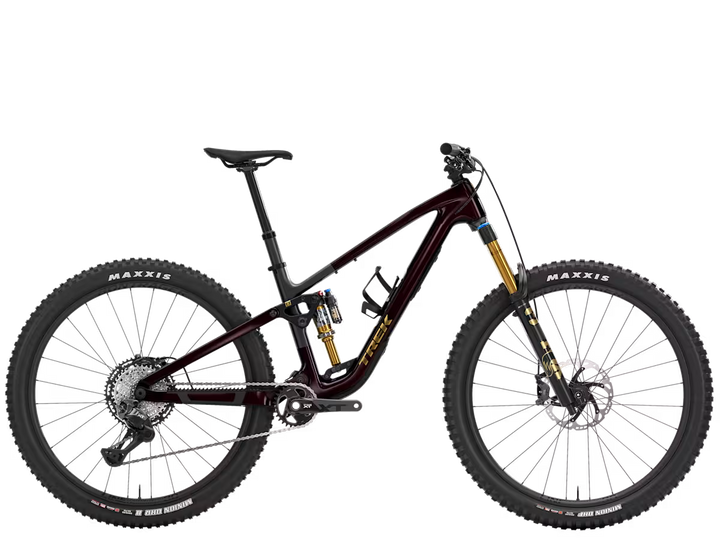

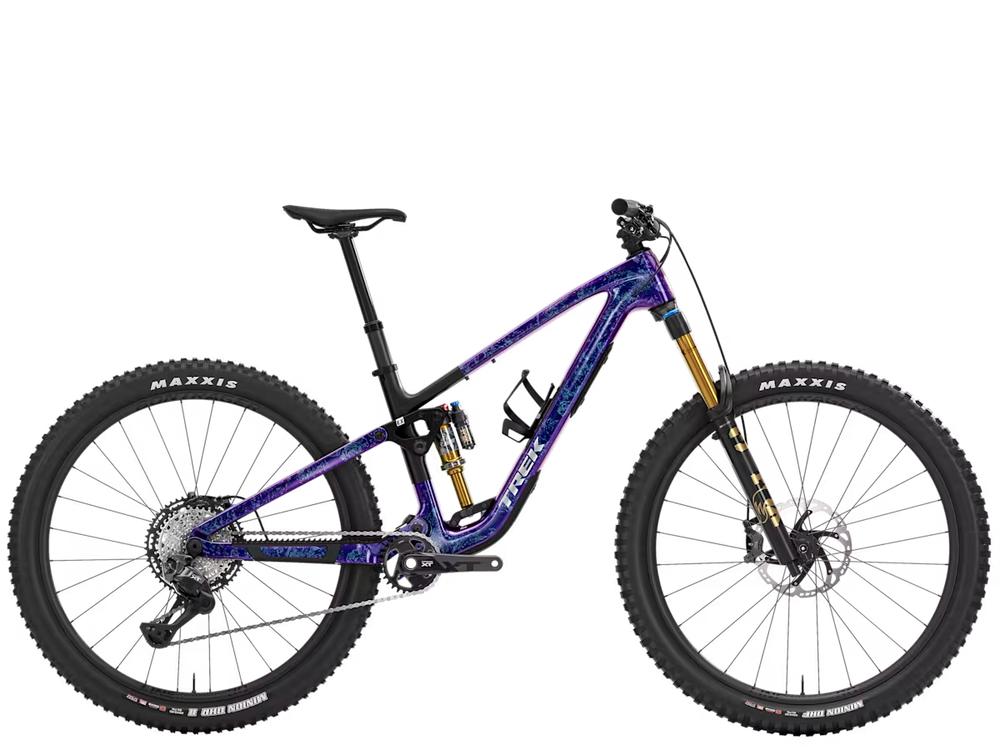

The Trek Fuel EX 9.8 XT Di2 Gen 7 2027 pairs the same OCLV Mountain Carbon frame as the range-topping 9.9 with Shimano's electronic XT Di2 drivetrain — precise, automatic shifting without the SRAM AXS price tag.
WHO THIS BIKE SUITS
- You want a carbon Fuel EX frame without going all the way to the 9.9's price point.
- You prefer Shimano's shift feel and want Di2's electronic precision.
- You're covering serious mileage and want a drivetrain that shifts consistently, ride after ride.
- You want Fox Factory-level suspension performance — this isn't a cut-down spec.
IF YOU'RE LOOKING FOR SOMETHING DIFFERENT
If you'd rather have SRAM's wireless AXS system, the 9.9 X0 AXS is the equivalent tier.
If mechanical shifting suits you fine and you want to spend less, the Fuel EX 9.8 XT (non-Di2) gets you the same frame and suspension for less money.
WHERE IT SITS IN THE RANGE
The Fuel EX 9.8 XT Di2 sits just below the 9.9, sharing the same full-carbon frame and Fox Factory 36 fork, with Shimano's electronic XT Di2 drivetrain in place of SRAM's wireless AXS.
Same tier, other Fuel platforms: Fuel LX 9.8 XT Di2 — Fuel MX 9.8 XT Di2
HOW IT RIDES
Suspension
Fox Factory 36 fork with GRIP X2 damper, paired with a matched Fox rear shock — top-tier suspension performance, well short of the 9.9's price.
Drivetrain

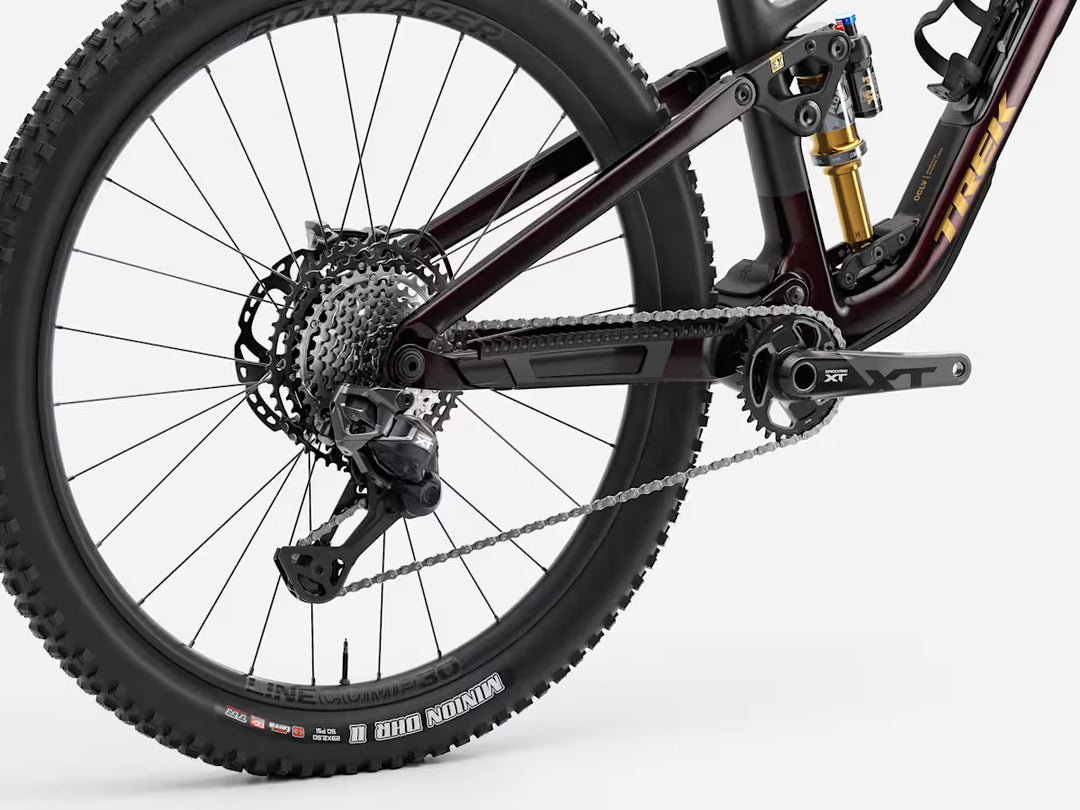

Shimano XT M8250 Di2 shifts electronically at the press of a button — consistent, precise, and low-maintenance.
Brakes
Shimano XT M8220 four-piston brakes give you strong, modulated stopping power.
THE FINAL WORD
The Fuel EX 9.8 XT Di2 is for riders who want carbon-frame performance and premium electronic shifting without stepping up to SRAM AXS pricing. Come in and we'll help you compare it against the 9.9 and the mechanical 9.8 XT.
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
Frame: OCLV Mountain Carbon, internal storage, adjustable leverage rate, BSA 73, Boost148, 145 mm-160 mm adaptable travel
Headset: (not published by Trek at this spec tier)
Bottom bracket: Shimano BB-MT501 BSA
Fork: Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost110, 15 mm Kabolt X axle, 150 mm travel

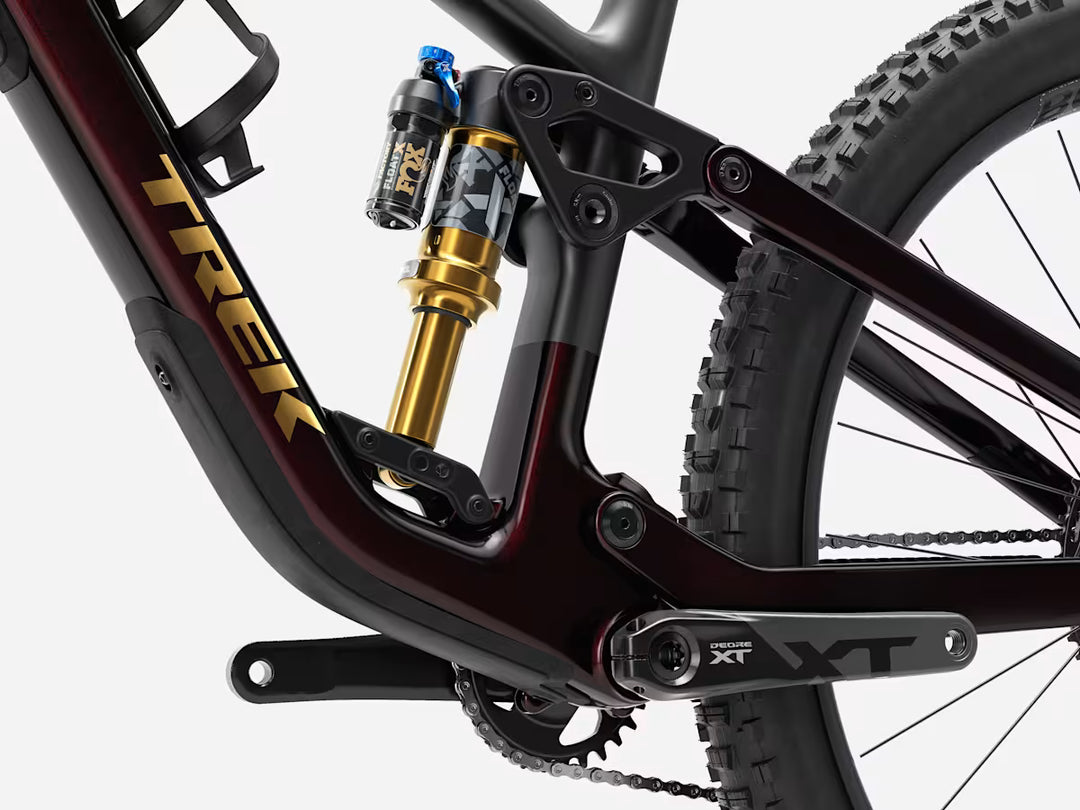

Rear shock: Fox Factory Float X, 205 mm x 60 mm
Rear derailleur: Shimano XT M8250, long cage
Crank: Shimano XT M8200, 30T, 55 mm chainline, 165-170 mm length
Cassette: Shimano XT M8200, 10-51, 12-speed
Chain: Shimano Ultegra/XT M8100, 12-speed
Brakeset: Shimano XT M8220, 4-piston hydraulic disc
Front rotor: Shimano RT86, 6-bolt, 180 mm
Rear rotor: Shimano RT86, 6-bolt, 203 mm
Rims: Bontrager Line Comp 30, Tubeless-Ready, 28-hole, Presta valve
Front hub: Bontrager alloy, sealed bearing, 6-bolt, Boost110, 15 mm thru axle
Rear hub: Bontrager alloy, Rapid Drive 108 freehub, 6-bolt, Boost148, 12 mm thru axle, MICRO SPLINE driver (Shimano)
Front tyre: Maxxis Minion DHF, 3C MAXXGRIP, EXO+ casing, folding bead, 29x2.5"
Rear tyre (M/L/XL/XXL): Maxxis Minion DHR II, 3C MAXXTERRA, EXO+ casing, folding bead, 29x2.5"
Rear tyre (S only): Maxxis Minion DHR II, 3C MAXXTERRA, EXO+ casing, folding bead, 27.5x2.5" (size S only — mixed-wheel/"mullet" setup)
Handlebar: Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width
Stem: Bontrager Elite, 35 mm, 0-degree, 45 mm length
Grips: Trek Line Elite, lock-on
Saddle: Verse Short Comp, steel rails, 145 mm width
Seatpost: Bontrager Line Dropper, MaxFlow, internal routing, 34.9 mm — 150 mm travel (S), 170 mm travel (M), 200 mm travel (L/XL/XXL)
