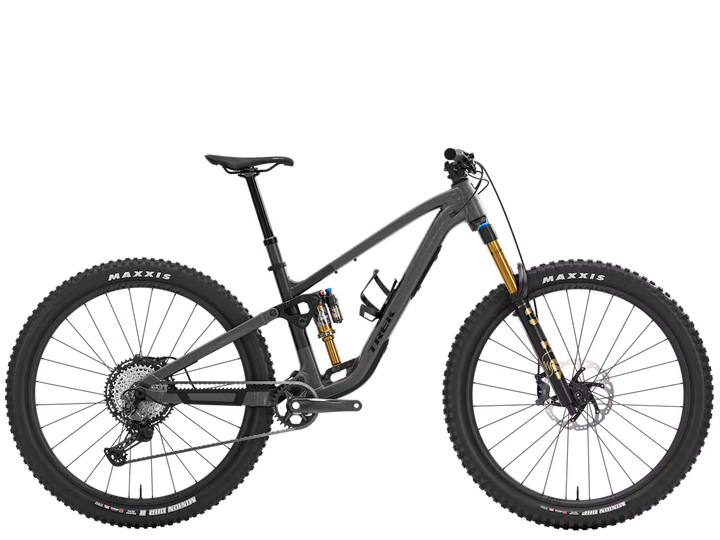

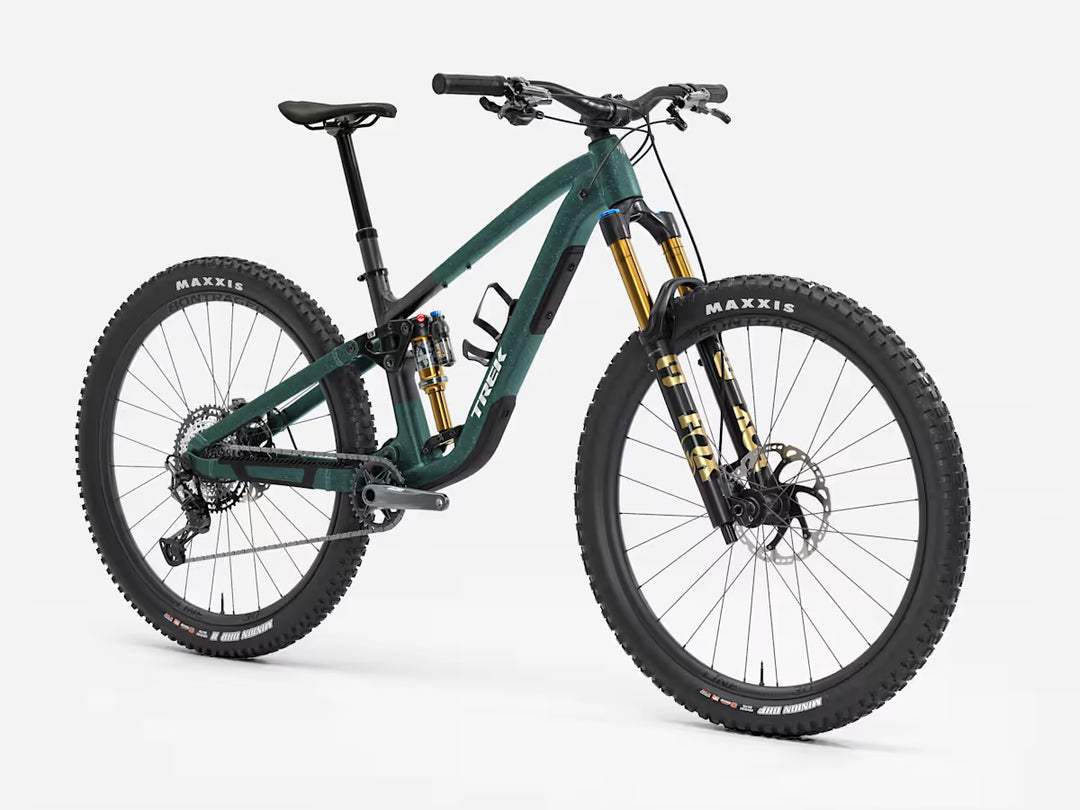

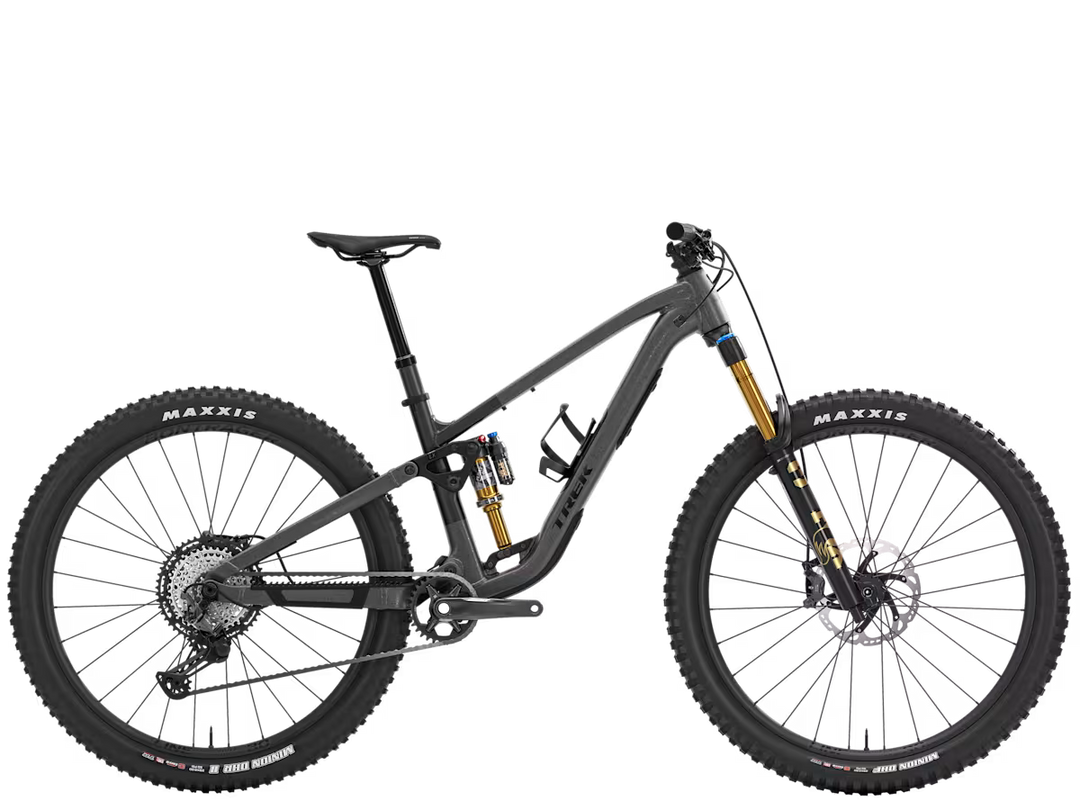

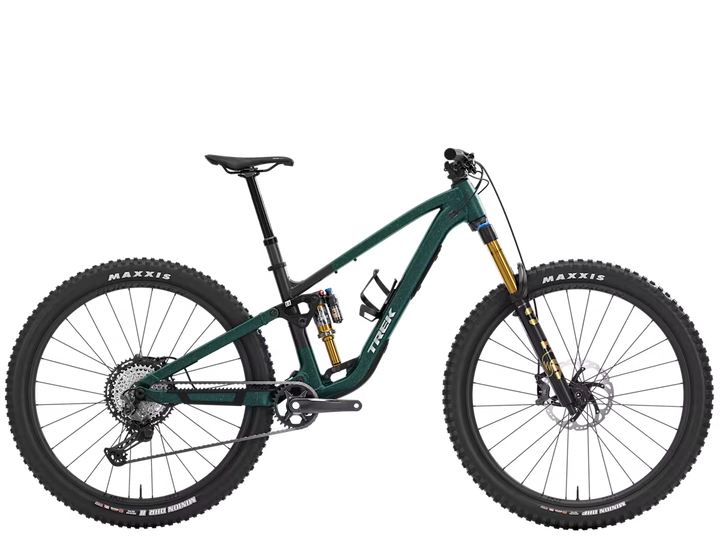

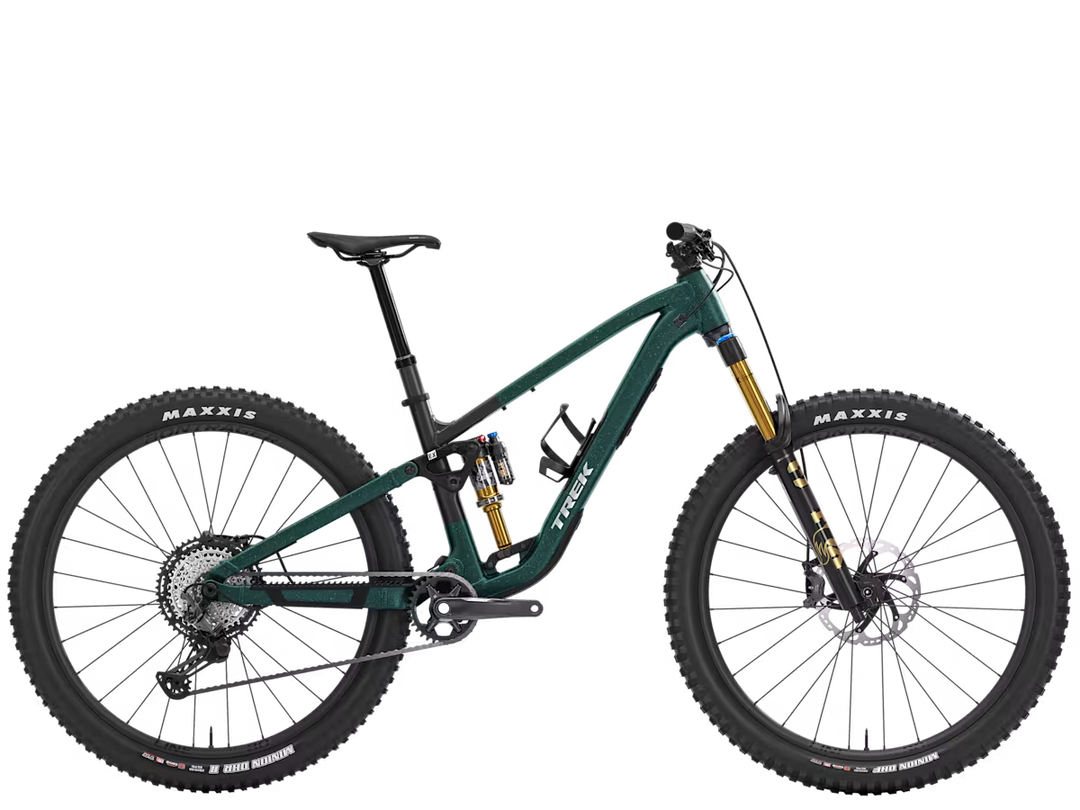

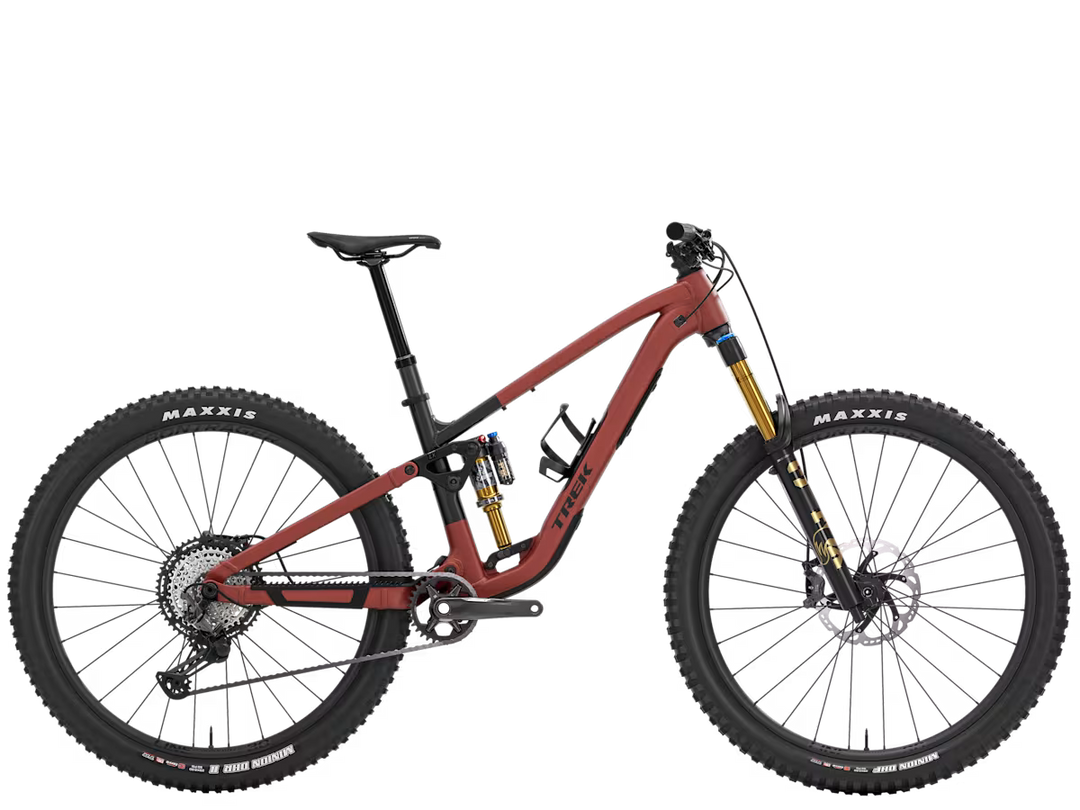

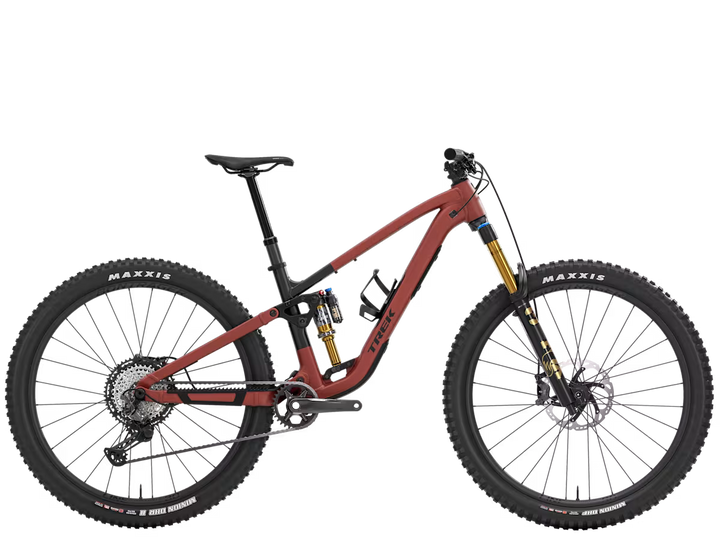

The Trek Fuel EX 9 XT Gen 7 2027 pairs Trek's Alpha NEXT Platinum aluminium frame with Shimano's dependable mechanical XT drivetrain and Fox Factory suspension — a genuinely capable trail bike at a more accessible price.
WHO THIS BIKE SUITS
- You want Fox Factory-level suspension and Shimano XT reliability without paying for carbon or electronic shifting.
- You're after a durable, easy-to-service aluminium frame that can take a few knocks.
- You want a trail bike that punches above its position in the range.
IF YOU'RE LOOKING FOR SOMETHING DIFFERENT
If you want a lighter, stiffer frame, the carbon Fuel EX 9.8 XT gets you the same drivetrain and comparable suspension.
If your budget's tighter, the Fuel EX 8 or Fuel EX 5 cover the same trail-bike character at a lower spec level.
WHERE IT SITS IN THE RANGE
The Fuel EX 9 XT sits above the Fuel EX 8 in the aluminium line-up, stepping up to Fox Factory suspension while keeping Shimano XT's proven mechanical drivetrain.
Same tier, other Fuel platforms: Fuel LX 9 XT — Fuel MX 9 XT
HOW IT RIDES
Suspension
Fox Factory 36 fork and matched Fox rear shock — genuinely premium suspension performance for an aluminium-frame trail bike.
Drivetrain

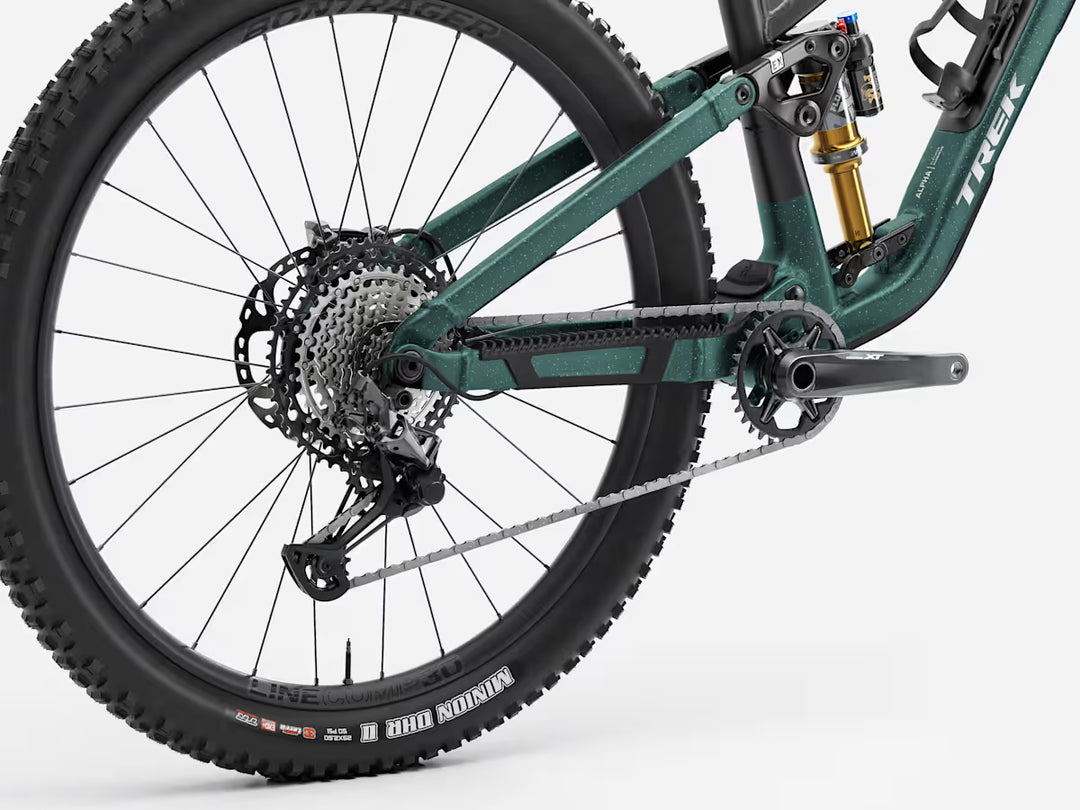

Shimano XT M8100 is a proven, easy-to-service 12-speed mechanical groupset.
Brakes
Shimano XT M8220 four-piston brakes give strong, consistent stopping power.
THE FINAL WORD
The Fuel EX 9 XT is a strong middle-ground choice — Fox Factory suspension and Shimano XT reliability without the carbon-frame premium. Come in and we'll help you compare it against the Fuel EX 8 below it and the carbon 9.8 above.
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
Frame: Alpha NEXT Platinum aluminium, internal storage, adjustable leverage rate, BSA 73, Boost148, 145 mm-160 mm adaptable travel
Headset: (not published by Trek at this spec tier)
Bottom bracket: Shimano BB-MT501 BSA
Fork: Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost110, 15 mm Kabolt X axle, 150 mm travel

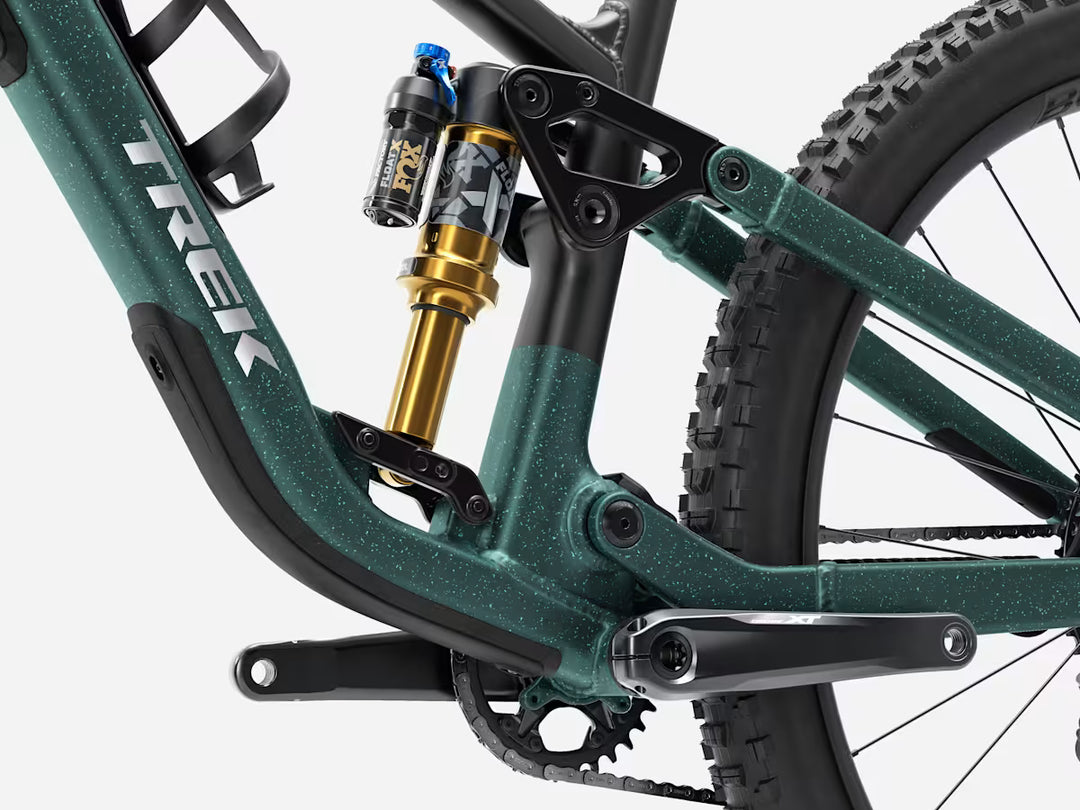

Rear shock: Fox Factory Float X, 205 mm x 60 mm
Rear derailleur: Shimano Deore M8200, long cage
Crank: Shimano XT M8200, 30T, 55 mm chainline, 165-170 mm length
Cassette: Shimano XT M8200, 10-51, 12-speed
Chain: Shimano XT M8100, 12-speed
Brakeset: Shimano XT M8220, 4-piston hydraulic disc
Front rotor: Shimano RT86, 6-bolt, 180 mm
Rear rotor: Shimano RT86, 6-bolt, 203 mm
Rims: (genuinely unpublished by Trek at this spec tier; also checked independent Gen 7 reviews and retailer spec sheets specifically for this search — no confirmed source found for the plain "9" tier specifically, as distinct from 9.8/9.9 which are now confirmed)
Front hub: (genuinely unpublished by Trek at this spec tier; also checked independent Gen 7 reviews and retailer spec sheets specifically for this search — no confirmed source found for the plain "9" tier specifically, as distinct from 9.8/9.9 which are now confirmed)
Rear hub: (genuinely unpublished by Trek at this spec tier; also checked independent Gen 7 reviews and retailer spec sheets specifically for this search — no confirmed source found for the plain "9" tier specifically, as distinct from 9.8/9.9 which are now confirmed)
Front tyre: Maxxis Minion DHF, 3C MAXXGRIP, EXO+ casing, folding bead, 29x2.5"
Rear tyre (M/L/XL/XXL): Maxxis Minion DHR II, 3C MAXXTERRA, EXO+ casing, folding bead, 29x2.5"
Rear tyre (S only): Maxxis Minion DHR II, 3C MAXXTERRA, EXO+ casing, folding bead, 27.5x2.5" (size S only — mixed-wheel/"mullet" setup)
Handlebar: Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width
Stem: Bontrager Elite, 35 mm, 0-degree, 45 mm length
Grips: Trek Line Elite, lock-on
Saddle: Verse Short Comp, steel rails, 145 mm width
Seatpost: Bontrager Line Dropper, MaxFlow, internal routing, 34.9 mm — 150 mm travel (S), 170 mm travel (M), 200 mm travel (L/XL)
