Trek Rail 9.5 Gen 4
Trek Rail 9.5 Gen 4
Trek Rail 9.5 Gen 4

Trek Rail 9.5 Gen 4

Regular price £5,850.00 Sale price £4,750.00 Save 19%
/

Only 51 available!

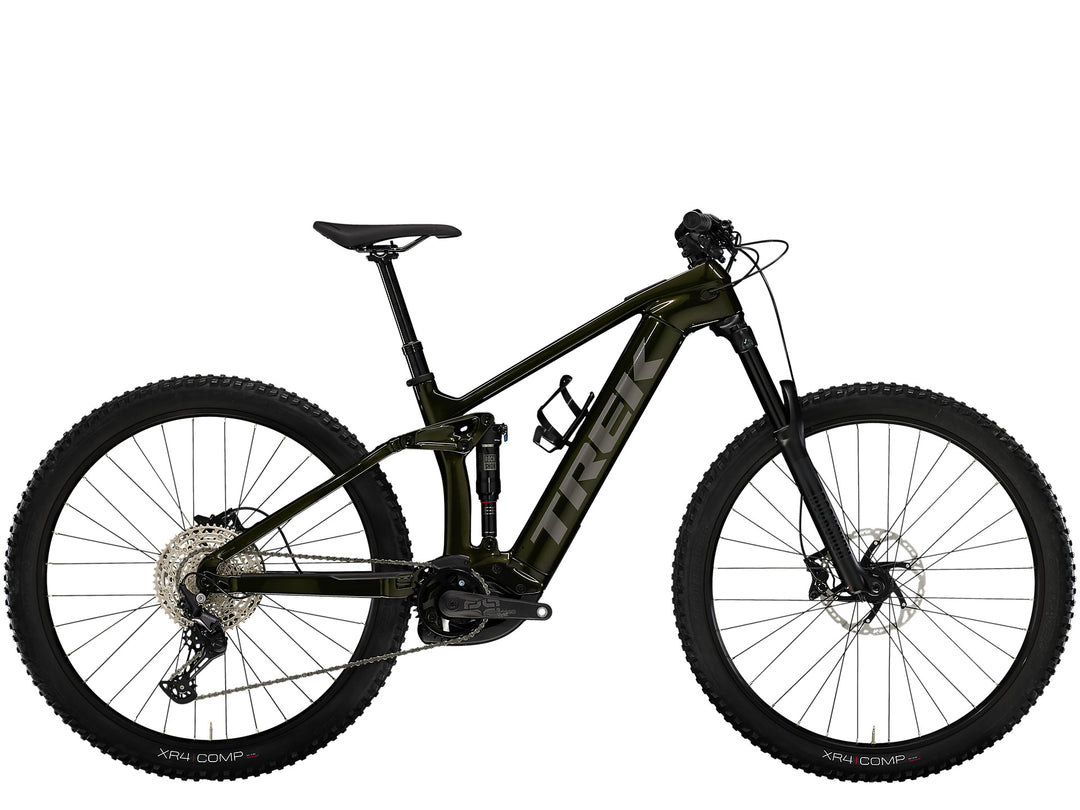

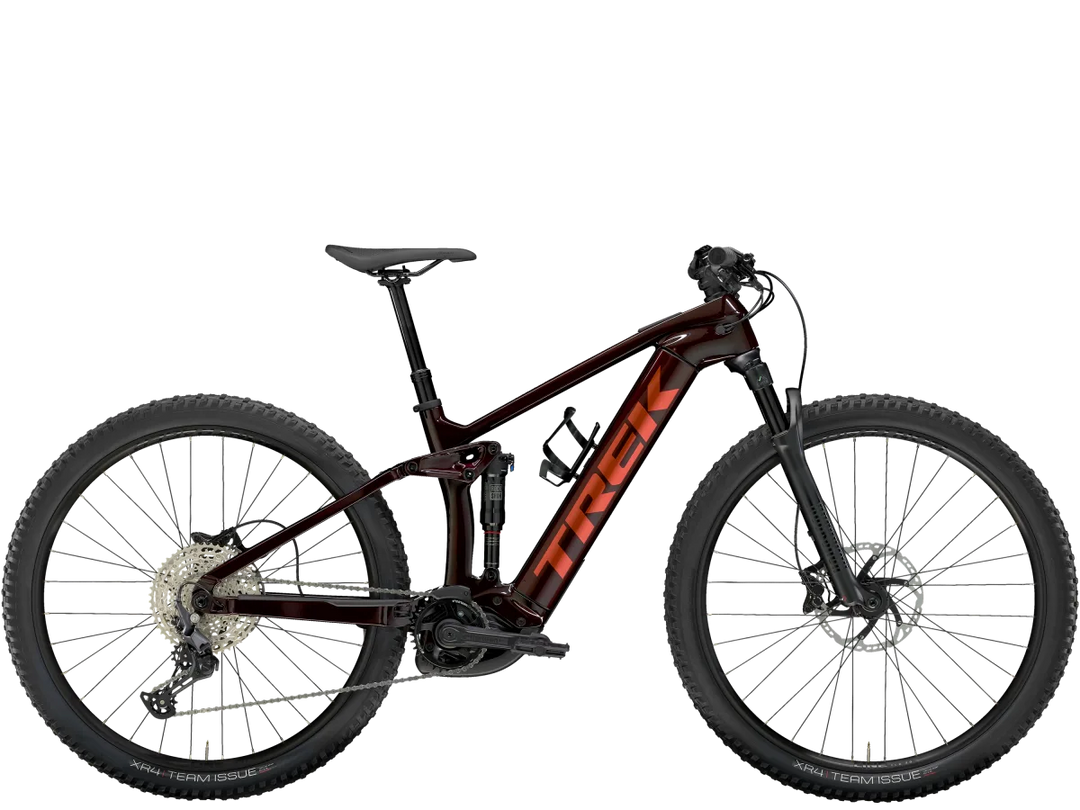

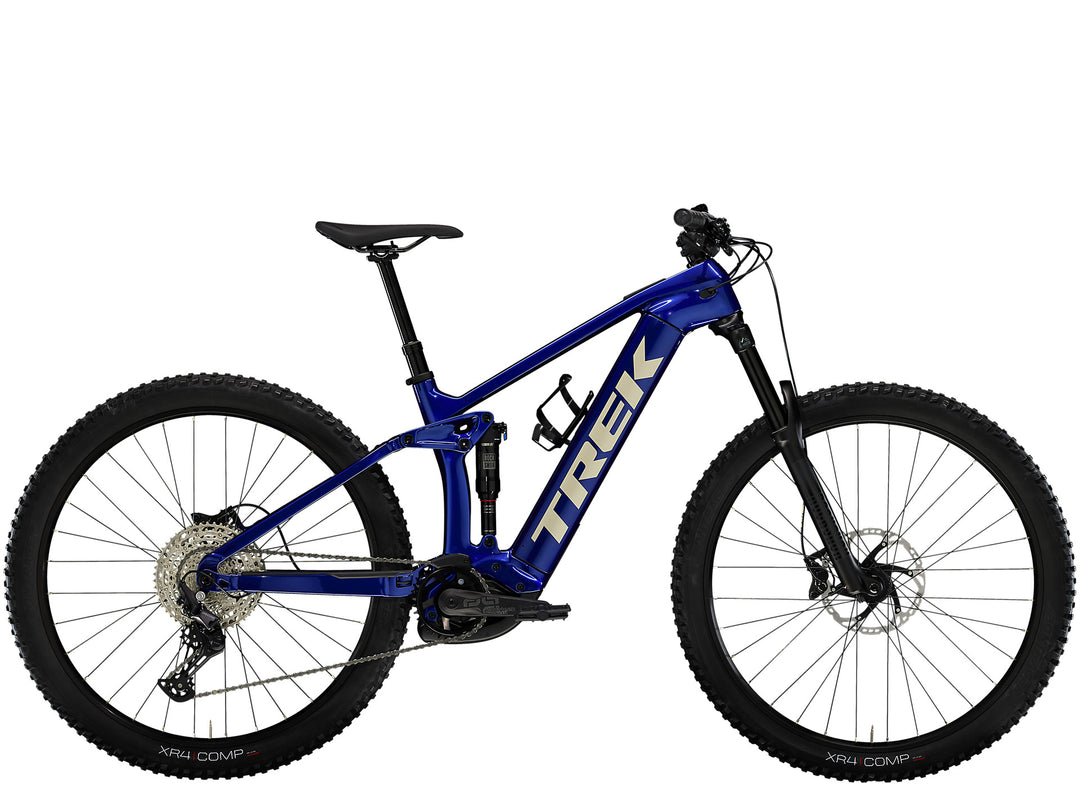

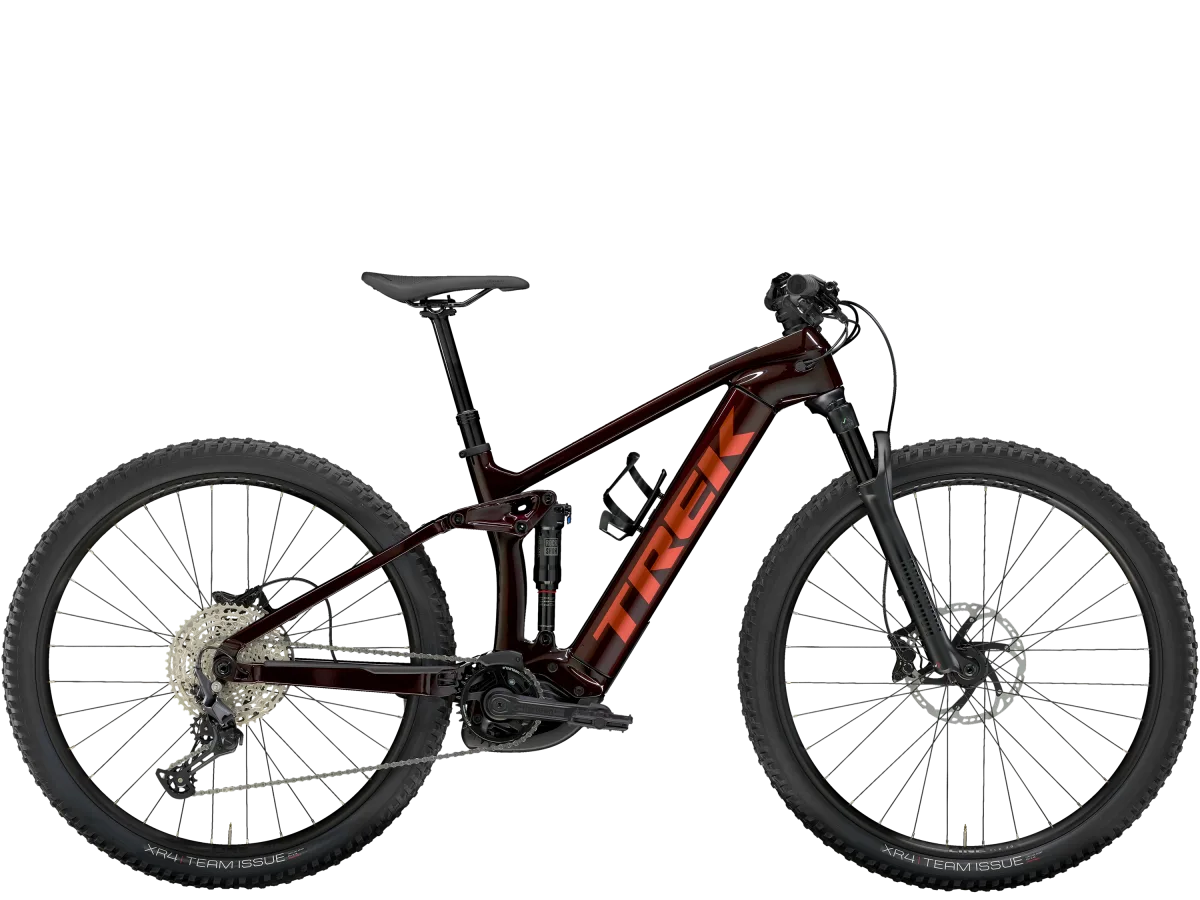

The Rail 9.5 is a carbon electric mountain bike with long-travel suspension. It features an upgraded frame with longer reach for serious stability on the trail, and a suspension set-up and parts worthy of the gnarliest enduro laps. The powerful Bosch smart system motor will get you back up the mountain faster than you ever thought possible, and the huge 750 Wh battery makes the laps feel endless.



It's right for you if...

You're looking for a long-travel e-MTB that gives you a serious power boost without holding you back from hitting the techy terrain and big drops you love. You want to spend your cash on a carbon frame and worry about upgrading components later.



The tech you get

An OCLV Mountain Carbon frame with a 750 Wh Removable Integrated Battery, a super-responsive 160 mm RockShox 35 Gold RL fork with DebonAir spring, Motion Control damper and lockouts, a 150 mm RockShox Deluxe+ Select shock, the latest from Bosch with smart system Performance Line CX capable of speeds up to 20 mph (25 km/h in Europe), including a Bluetooth® LED remote for easy connectivity and activity tracking through the eBike Flow app. A Shimano Deore 12-speed drivetrain with an extra-low 52-tooth climbing gear.



The final word

The Rail 9.5 is the go-to if you want a carbon ride, and are happy to upgrade the part as you go. It keeps the price down with a Shimano Deore drivetrain, but upgrades things that matter most, like a frame with longer reach and extra stability. If you're looking for an e-MTB built to rip and upgrade over time, look no further.

    Specifications

    Frame OCLV Mountain Carbon main frame, 1.8'' lower head tube, Bosch System Controller-compatible, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9 mm seat tube, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru-axle, 150 mm travel
    Fork RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel
    Shock RockShox Deluxe Select+ RT, 230 mm x 57.5 mm
    Max compatible fork travel 170 mm (580 mm axle-to-crown)
    Wheels
    Hub front Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
    Hub rear Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
    Skewer rear Bontrager Switch thru-axle, removable lever
    Rim Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
    Tyre Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
    Max tyre size Frame: 29x2.60" Fork: See manufacturer
    Drivetrain
    Shifter Shimano Deore M6100, 12-speed
    Rear derailleur Shimano Deore M6100, long cage
    Crank E*thirteen E*spec Plus, 165 mm length
    Chainring E*thirteen E*spec, 34T alloy, 55 mm chainline
    Cassette SunRace CSMZ800 11-51, 12 speed
    Chain Shimano Deore M6100
    Pedal Wellgo VPE-536
    Max. chainring size 34T
    Components
    Saddle Bontrager Arvada, steel rails, 138 mm width
    *Seatpost Size: S
    TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length
    Size: M
    TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length
    Size: L, XL
    TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length
    Handlebar Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
    Grips Bontrager XR Trail Comp, nylon lock-on
    Stem Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
    *Brake Size: S, M, L, XL
    Tektro HD-M745 hydraulic disc
    Size: S, M, L, XL
    Tektro HD-M745 4-piston hydraulic disc
    Brake rotor Tektro, 6-bolt, 203 mm
    Rotor size Max brake rotor sizes: Front see fork manufacturer, rear 200 mm
    Accessories
    *Battery Size: S
    Bosch PowerTube 625Wh, smart system
    Size: M, L, XL
    Bosch PowerTube 750Wh, smart system
    Charger Bosch standard 4A, 230V, smart system
    Motor Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
    Computer Bosch LED remote, smart system
    Weight
    Weight M – 25.35 kg/55.89 lb
