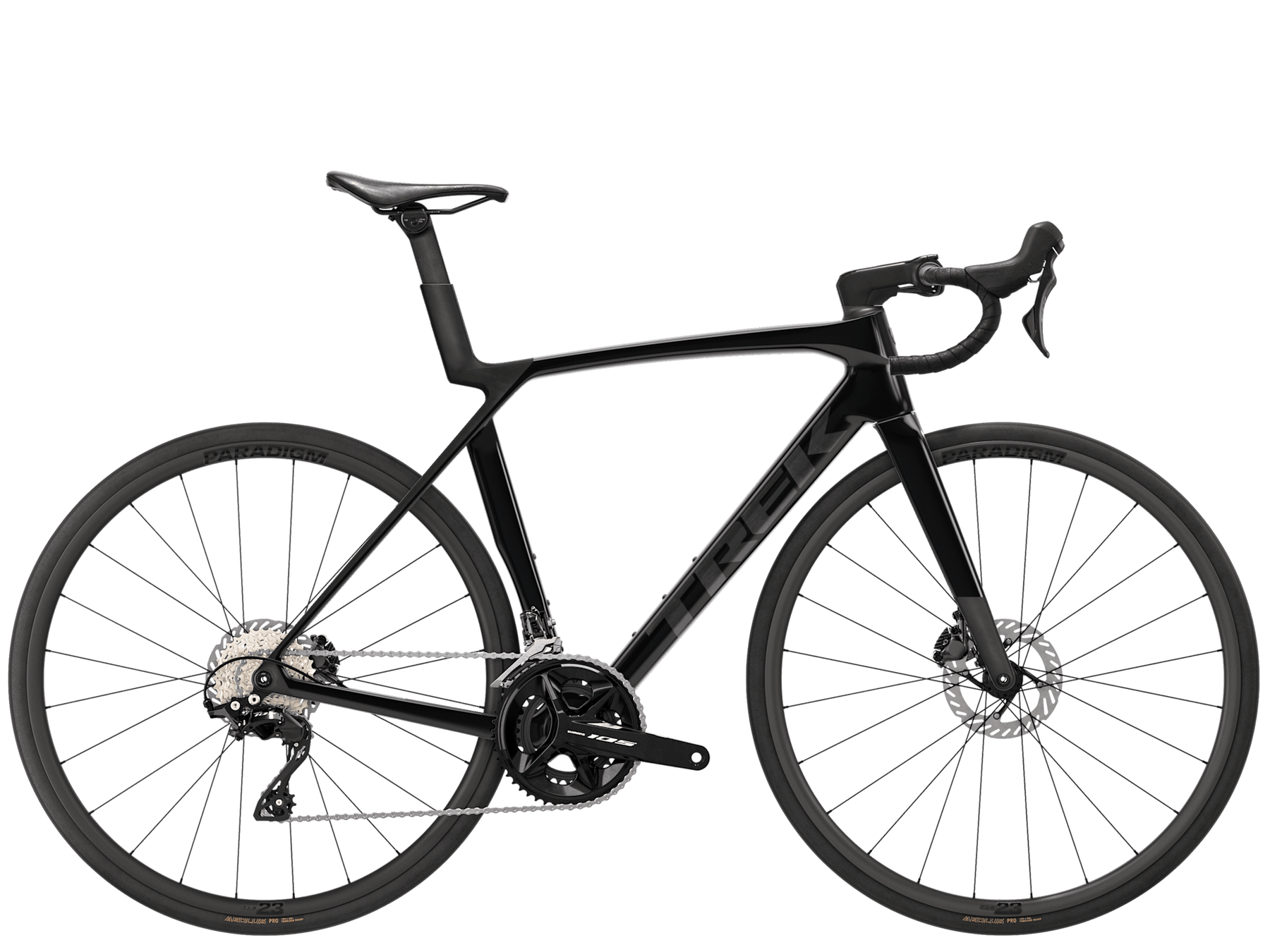

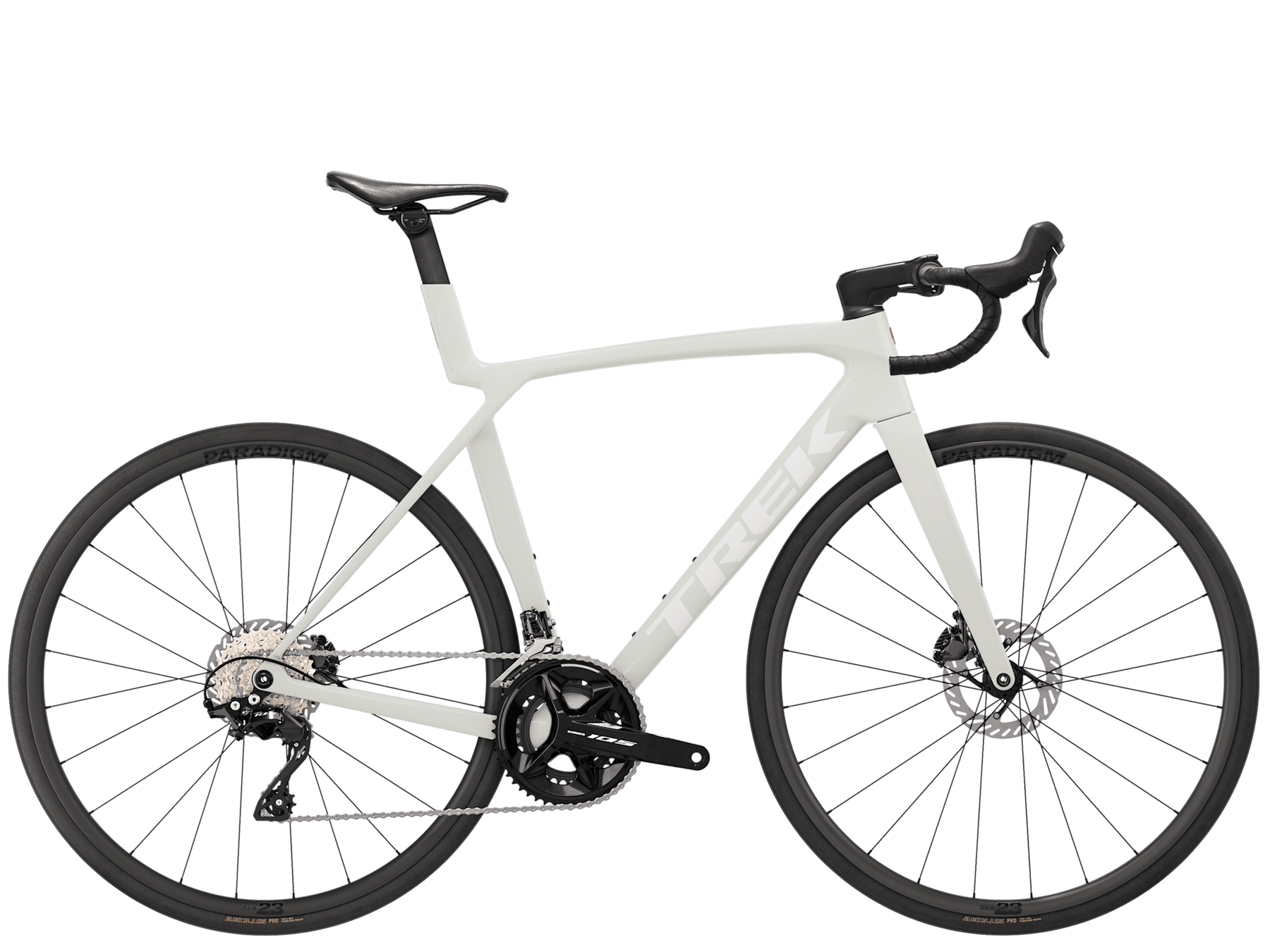

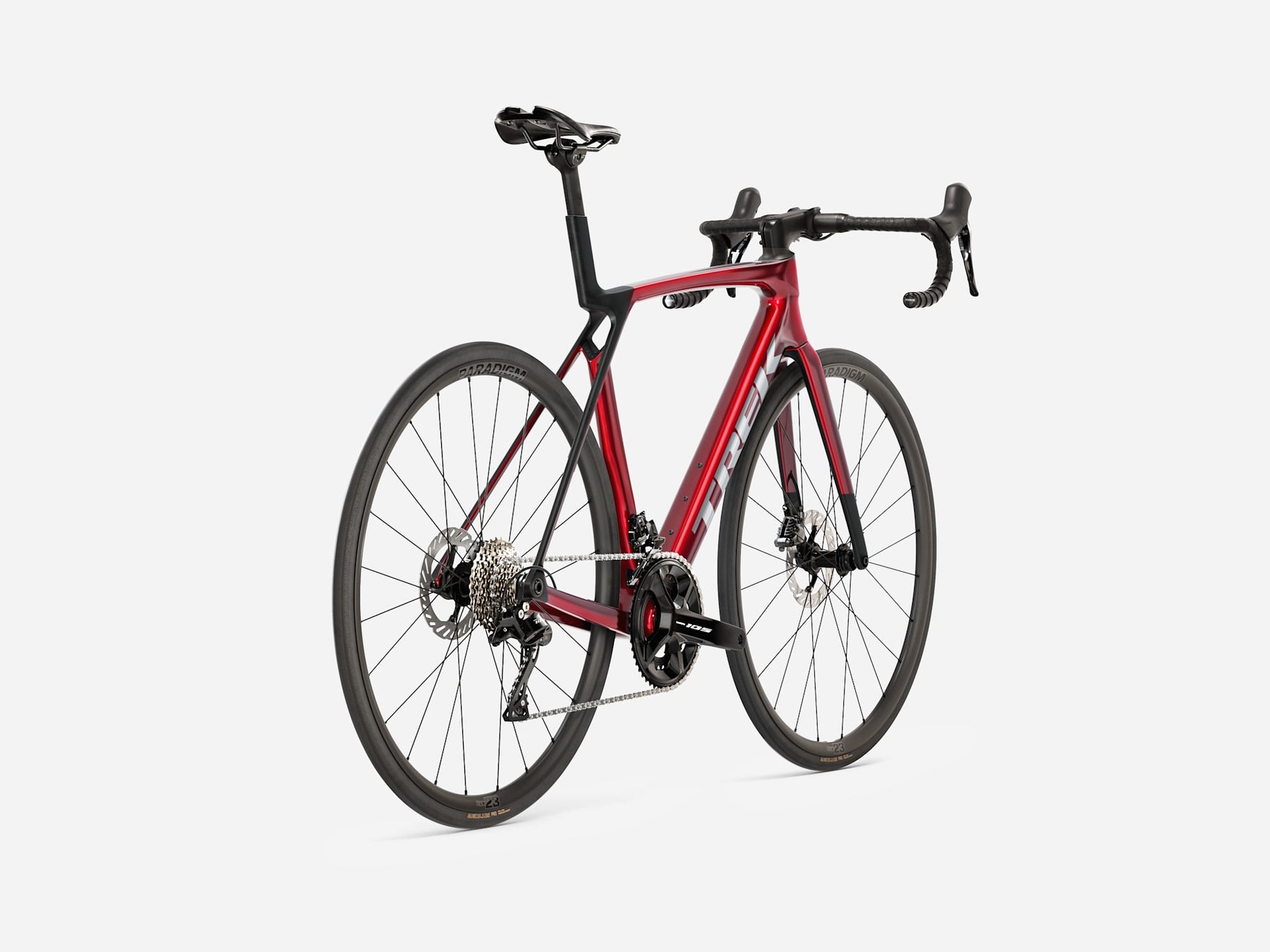

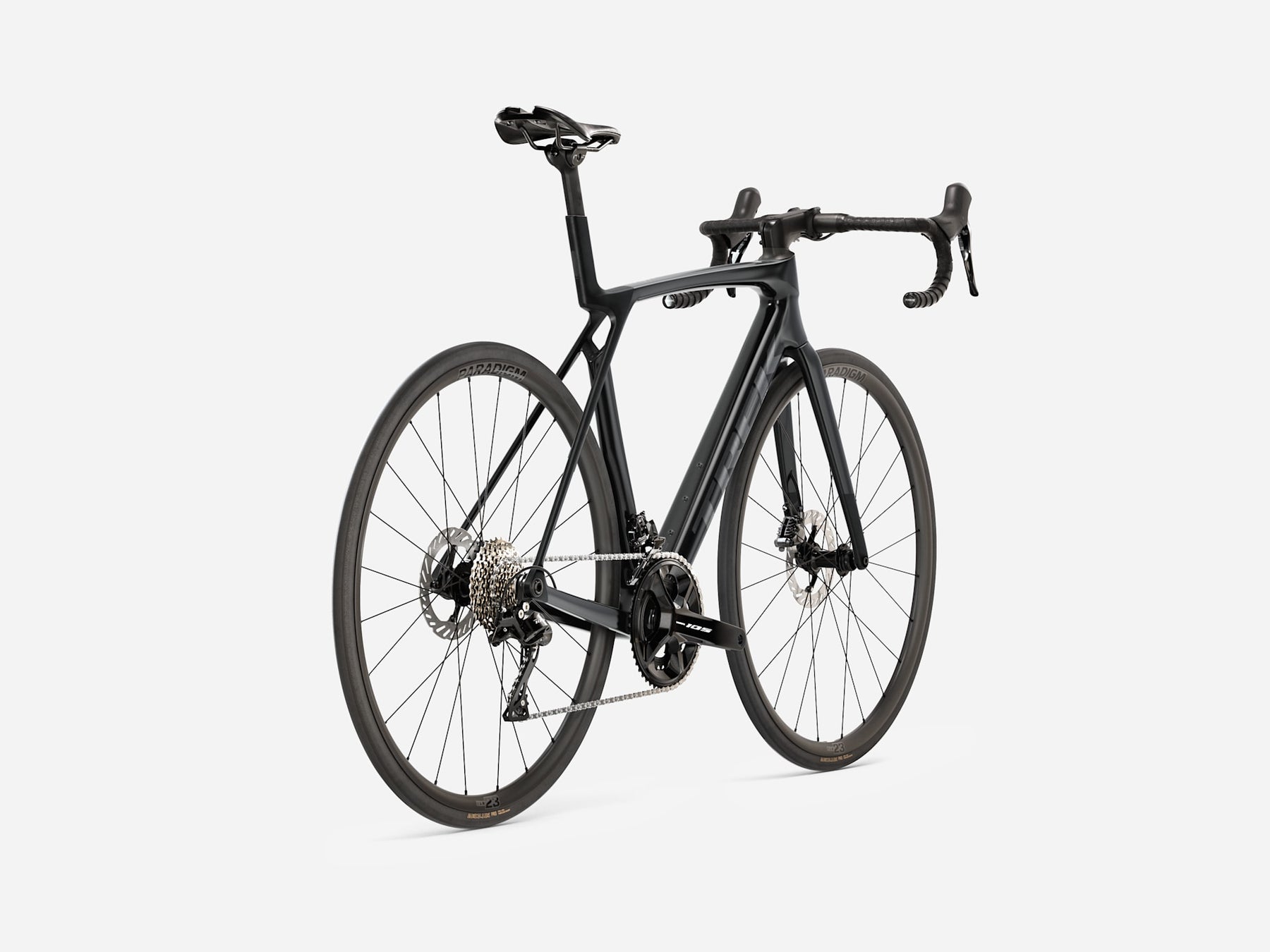

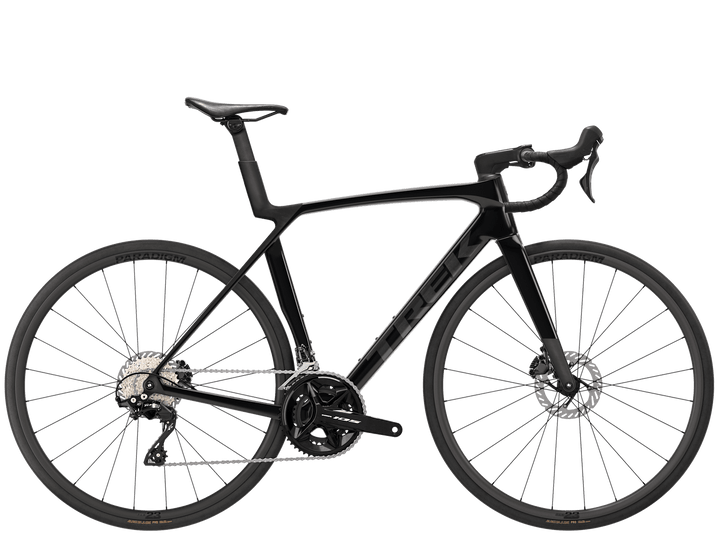

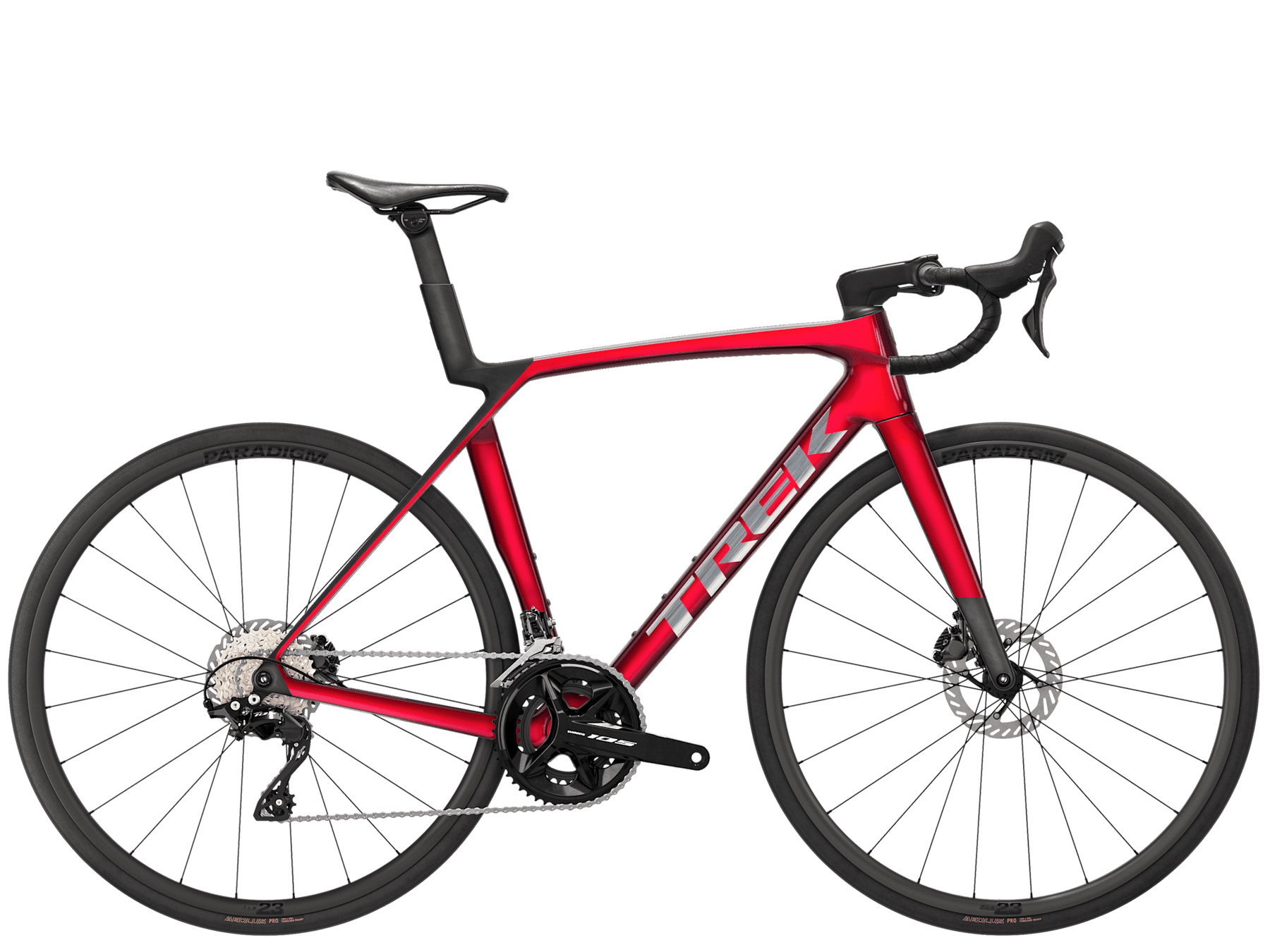

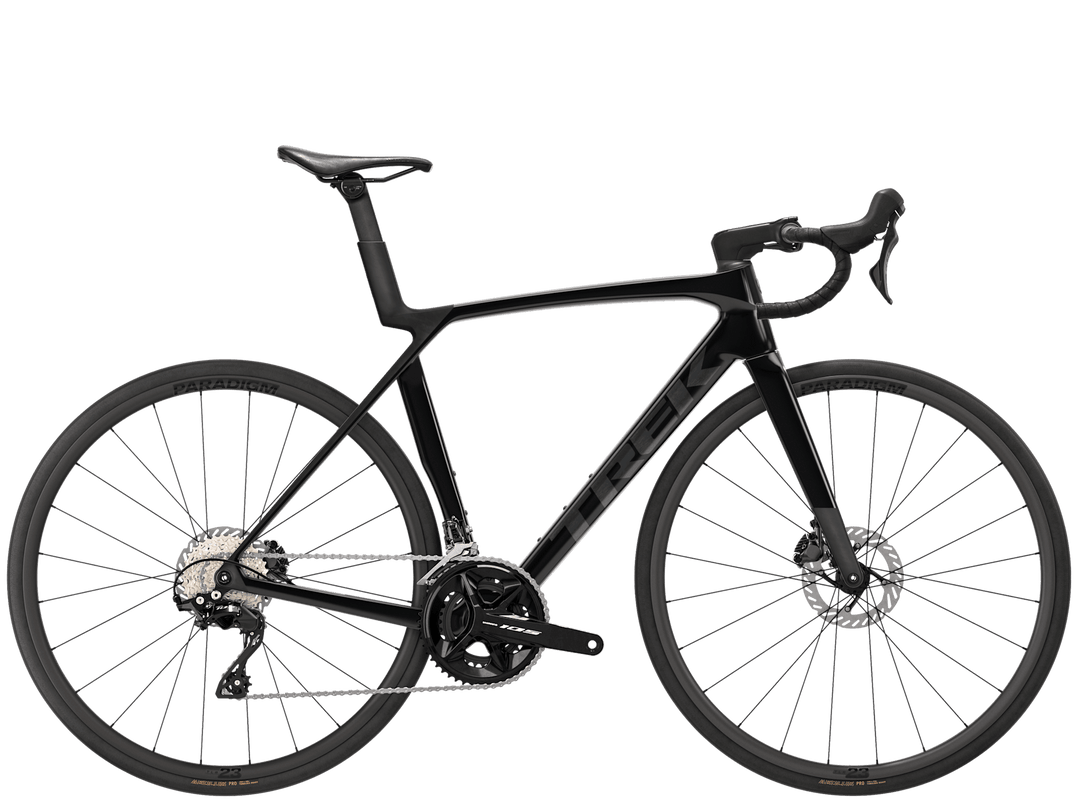

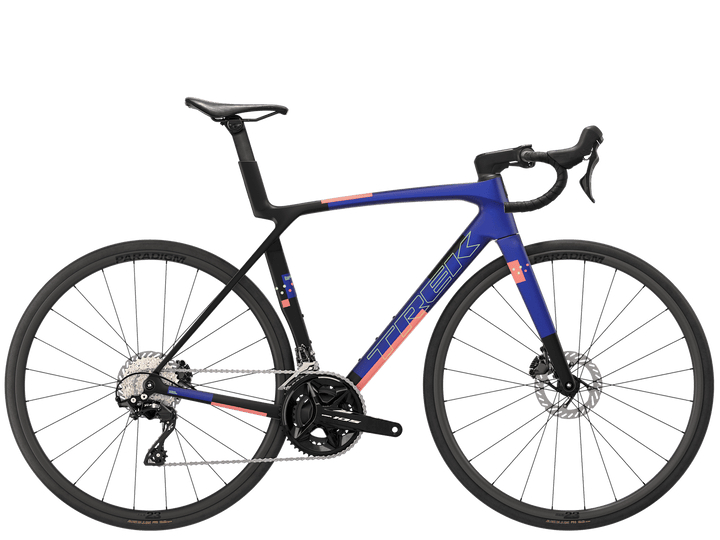

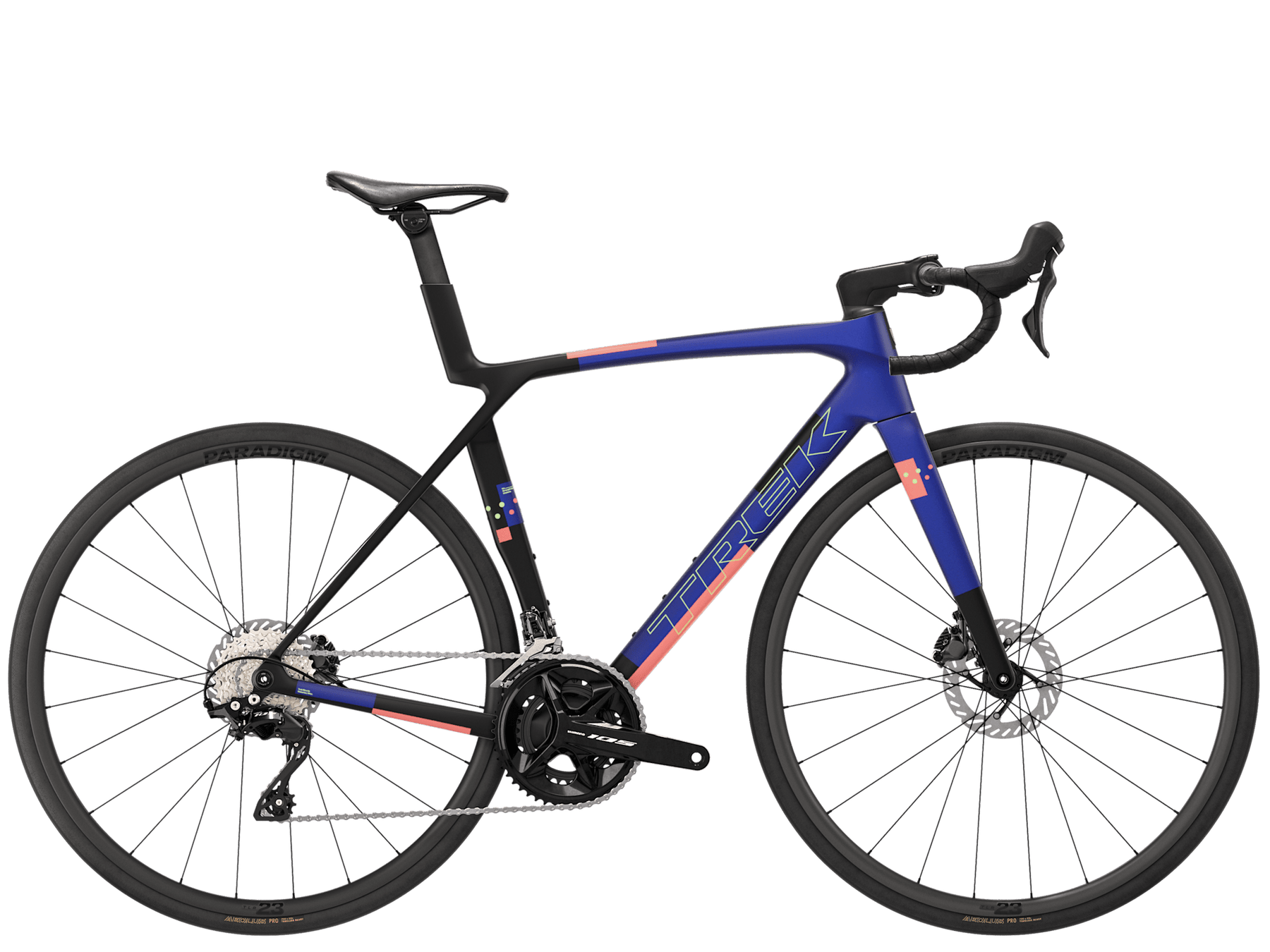

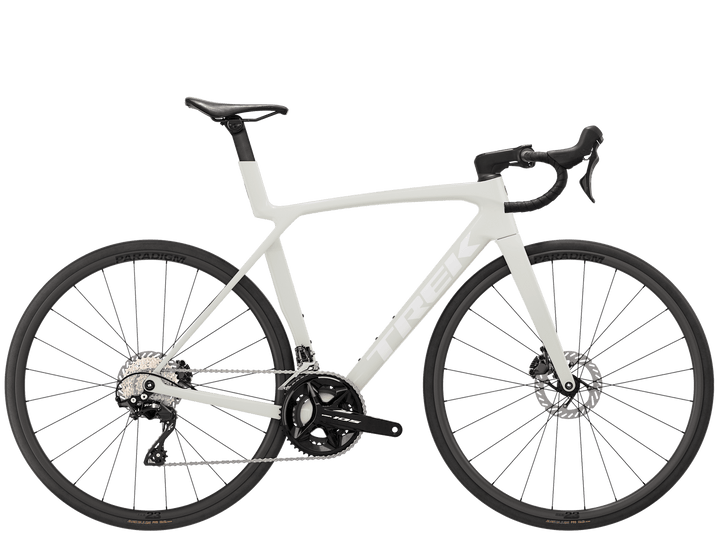

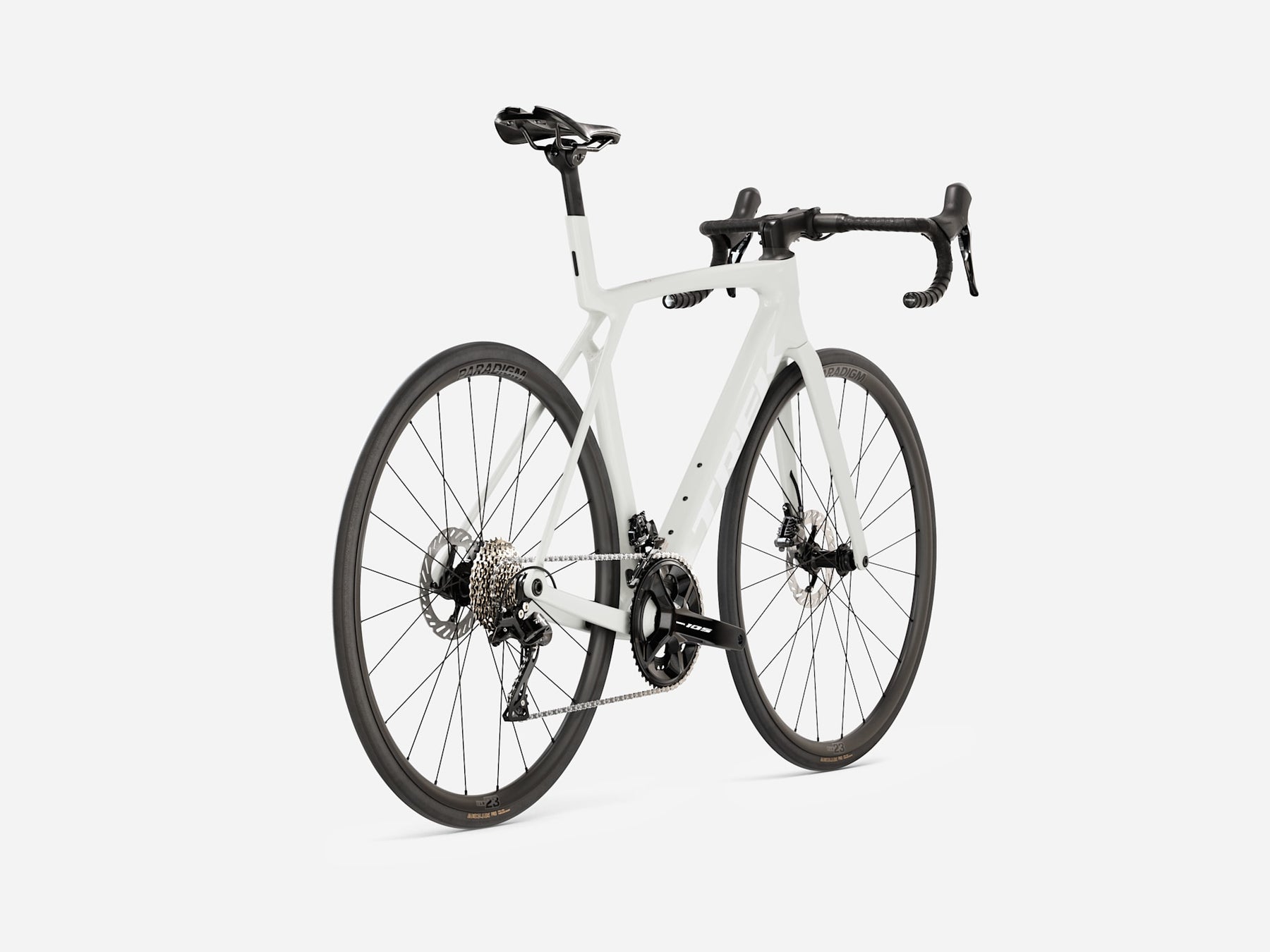

The Trek Madone SL 5 is the entry point into Trek's aero road platform — 500 Series OCLV Carbon and the Full System Foil tube shaping that made Madone famous, with a dependable Shimano 105 mechanical groupset.
WHO THIS BIKE SUITS
You want a genuine aero road bike without paying carbon flagship prices.
You're happy with mechanical Shimano 105 rather than electronic shifting.
IF YOU'RE LOOKING FOR SOMETHING DIFFERENT
If you want electronic shifting on the same frame, the SL 6 steps up to Shimano 105 Di2 or SRAM Rival AXS.
WHERE IT SITS IN THE RANGE
The SL 5 is the value entry point into the Madone range — same 500 Series OCLV Carbon aero frame as the bikes above it, with mechanical Shimano 105 keeping the price accessible.
THE FINAL WORD
If you want the Madone's aero pedigree without paying for electronic shifting, the SL 5 is where we'd start you. Come in and talk to us about sizing — aero road geometry rewards a proper fit more than most bikes.
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

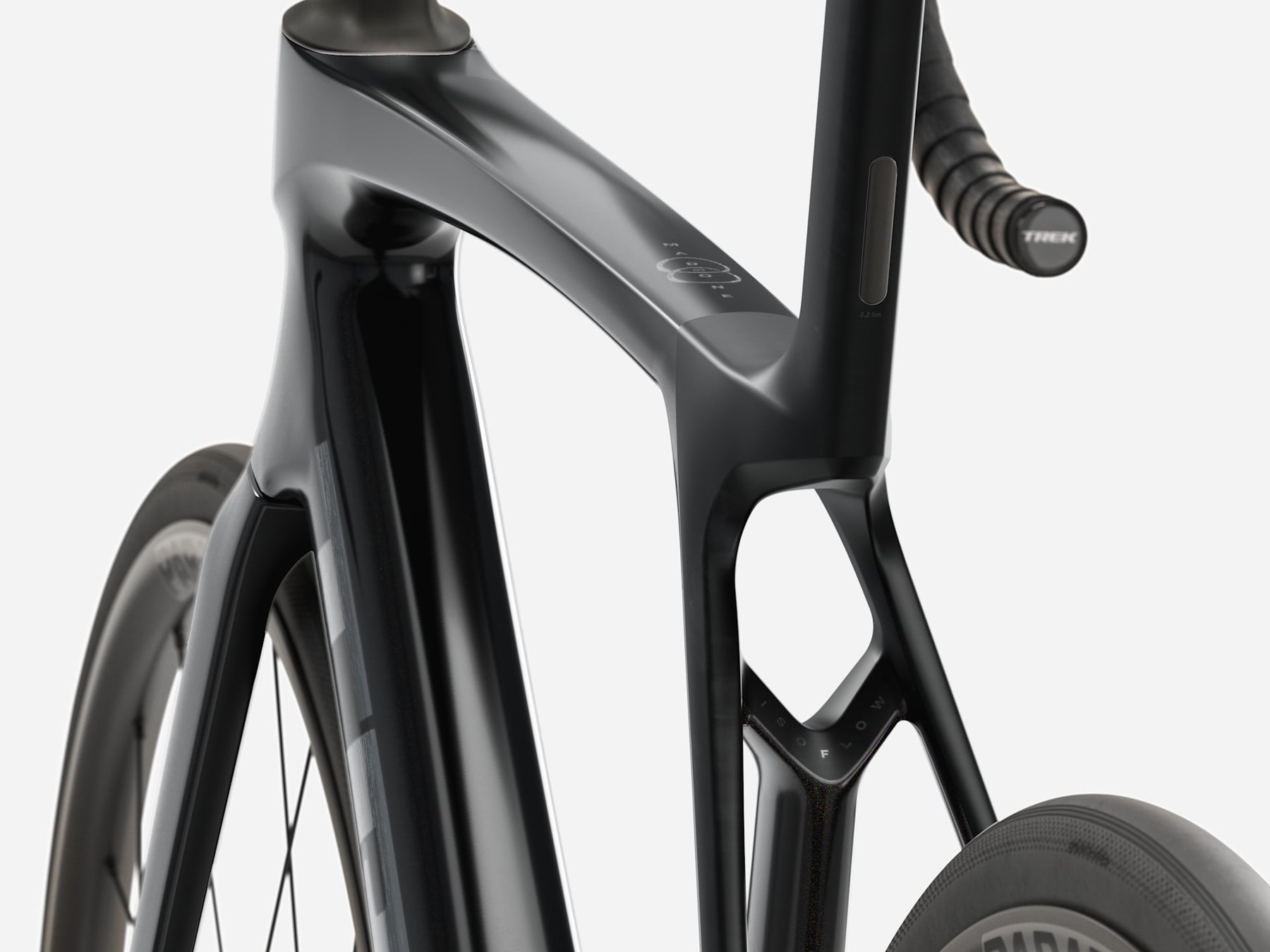

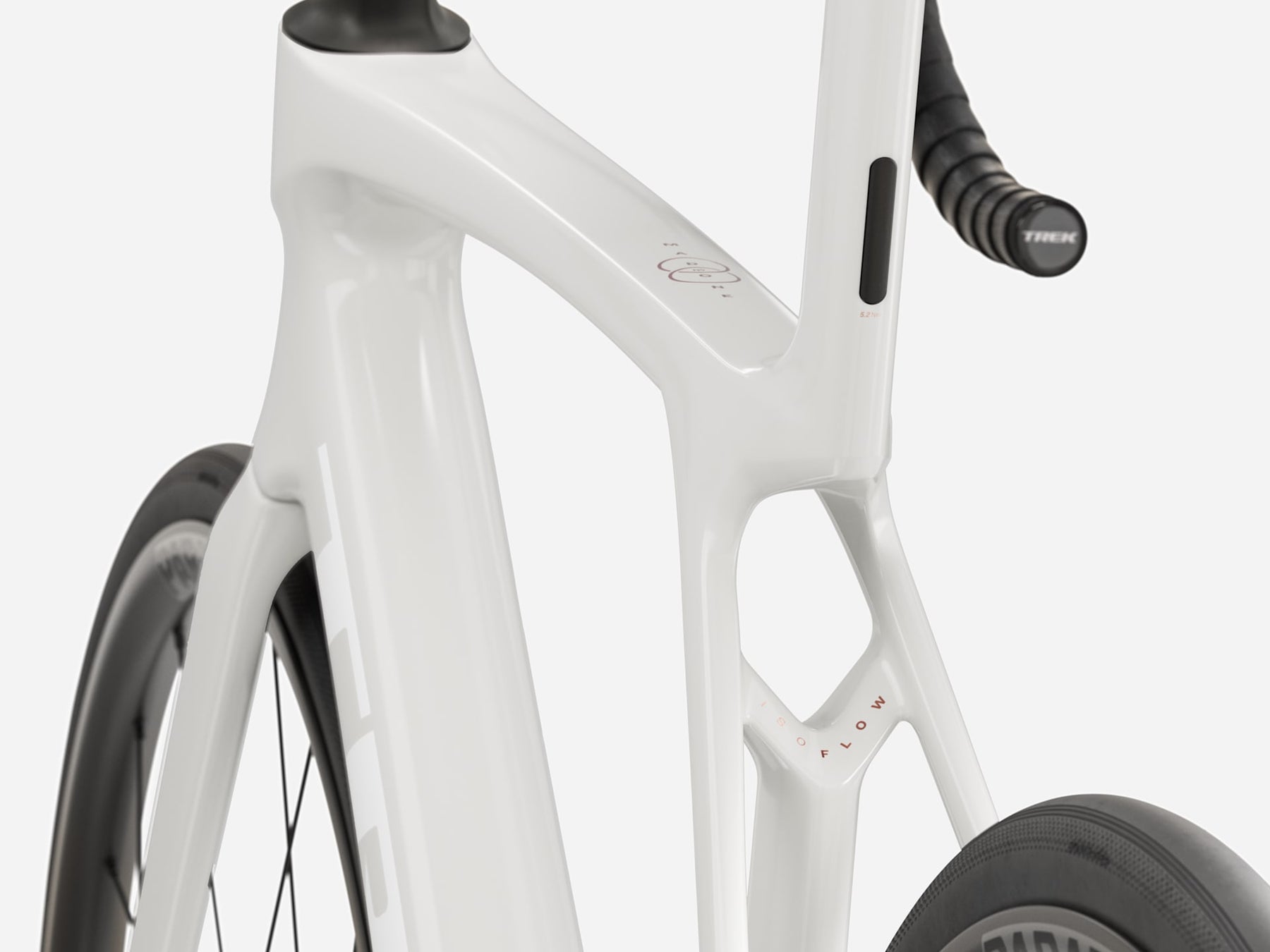

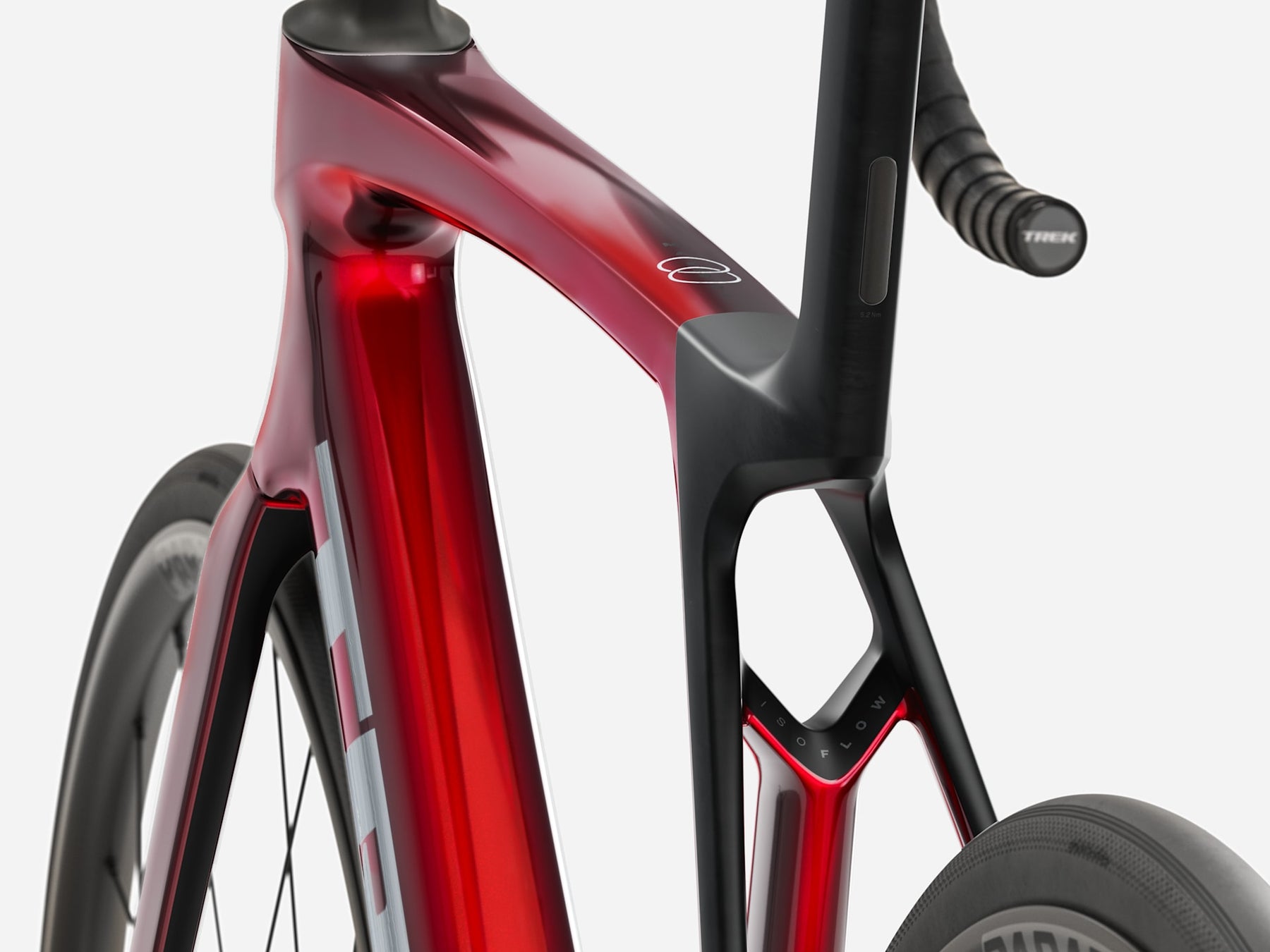

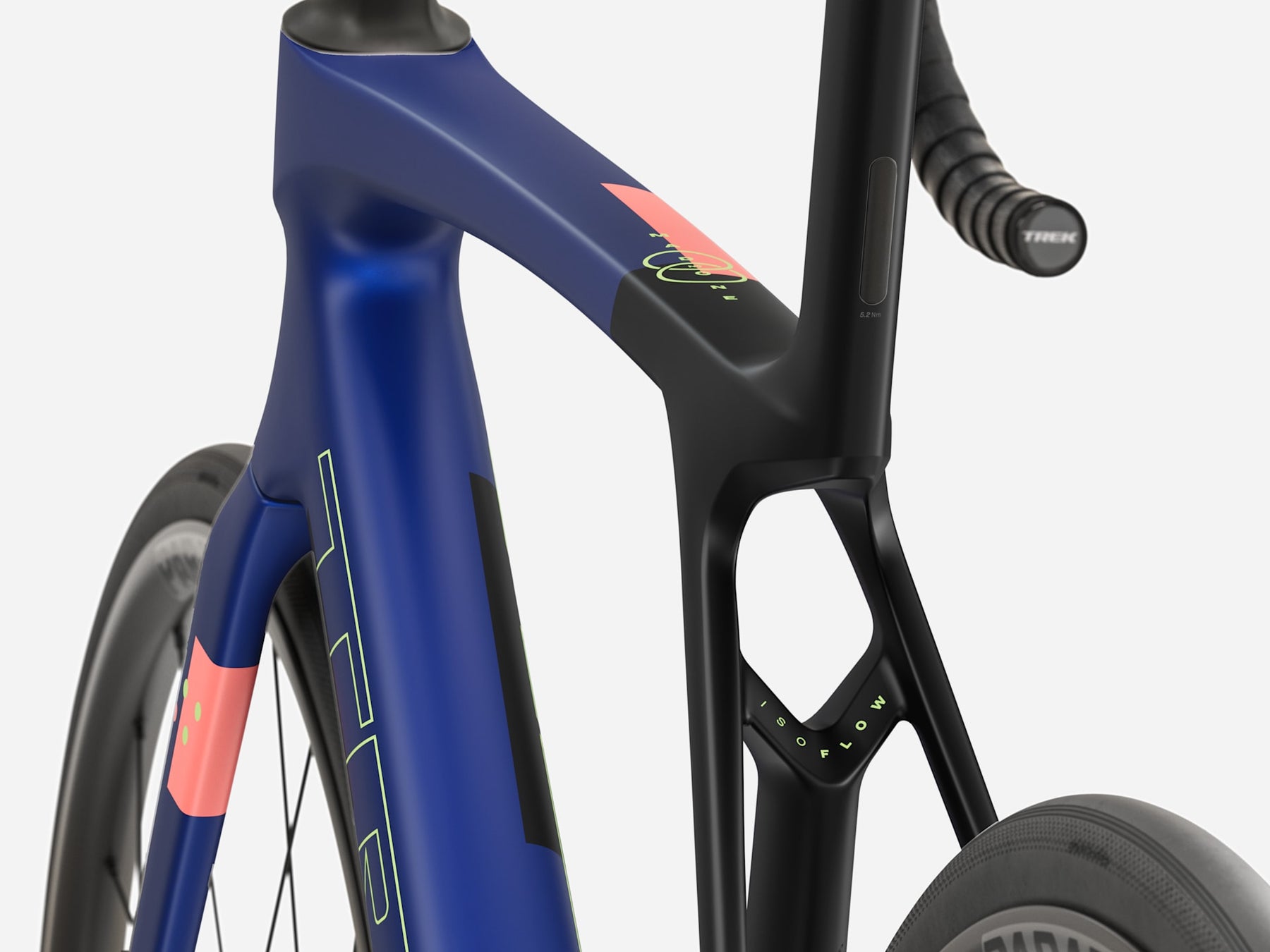

Frame: 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
Fork: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
Rear derailleur: Shimano 105 R7100, 36T max cog
Front derailleur: Shimano 105 R7100, braze-on, down swing
Crank: Shimano 105 R7100, 50/34, 165 mm length
Cassette: Shimano 105 7101, 11-34, 12-speed
Chain: Shimano SLX M7100, 12-speed
Rotor: Shimano CL700, CentreLock, 160 mm
Tyres: Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120 tpi, 700x28 mm
Seatpost: Madone aero carbon seat post, 0 mm offset, short length
Saddle: Bontrager Aeolus Elite, austenite rails, 145 mm width
