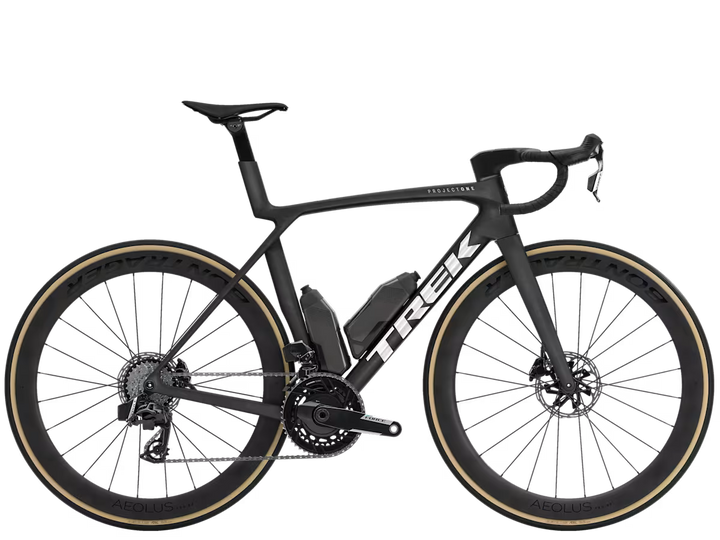

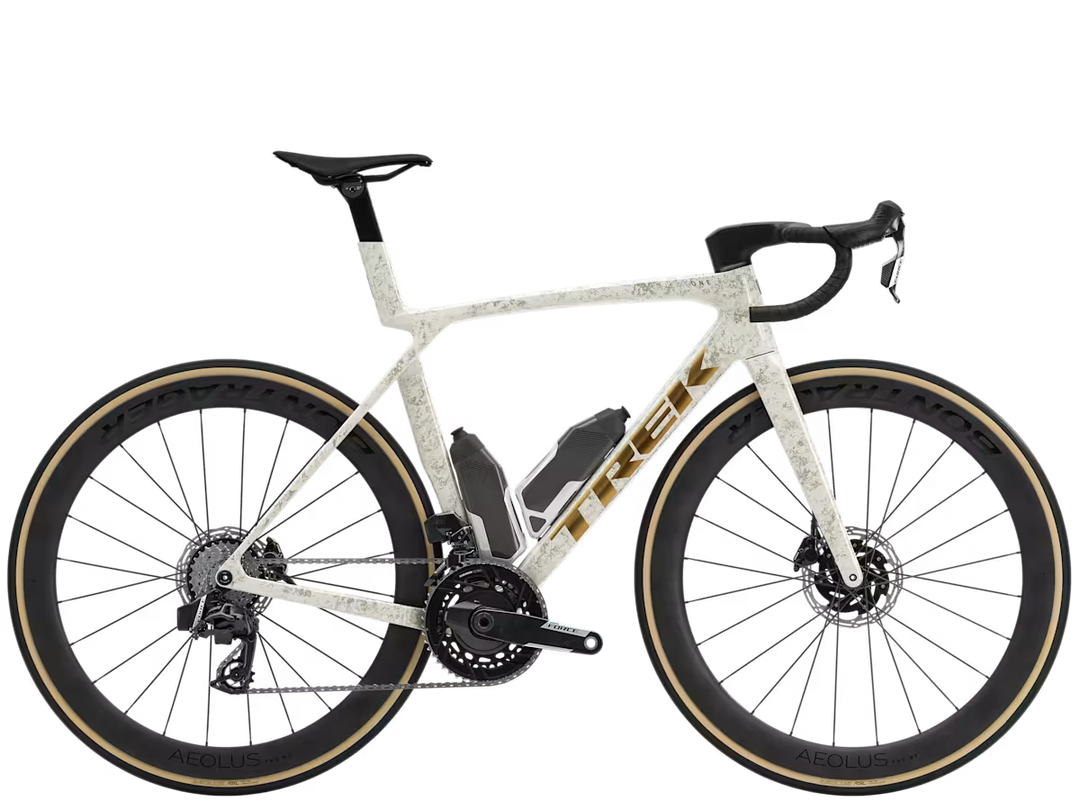

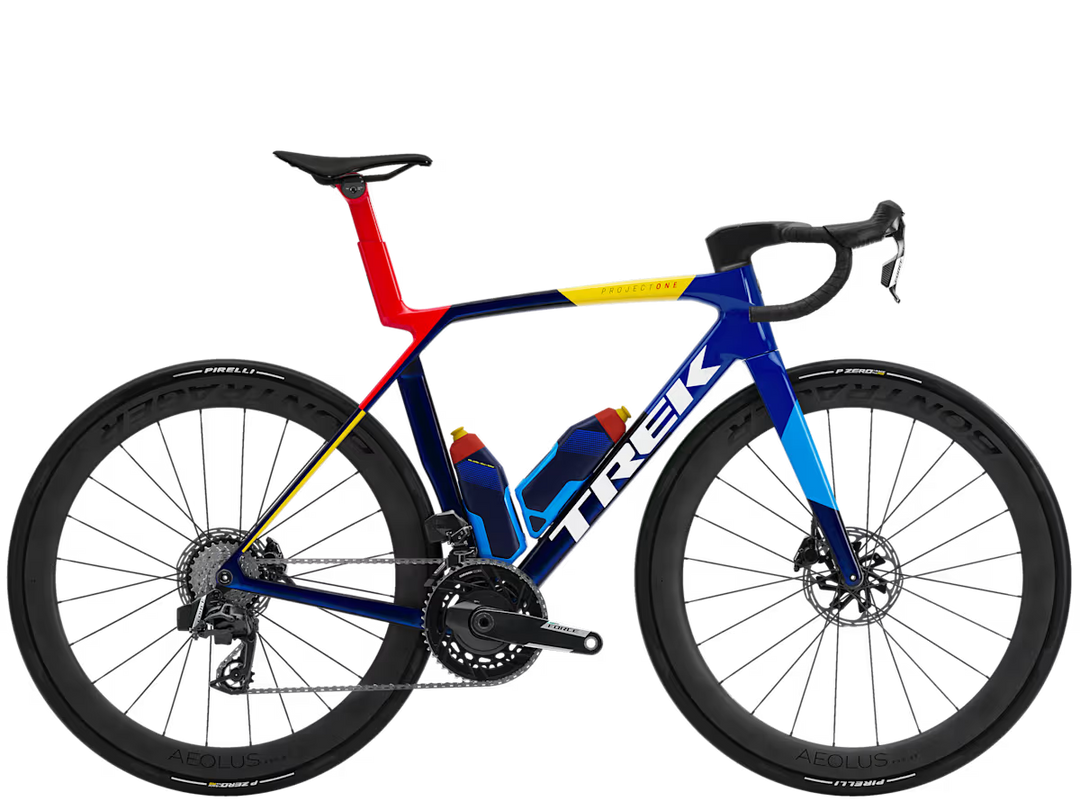

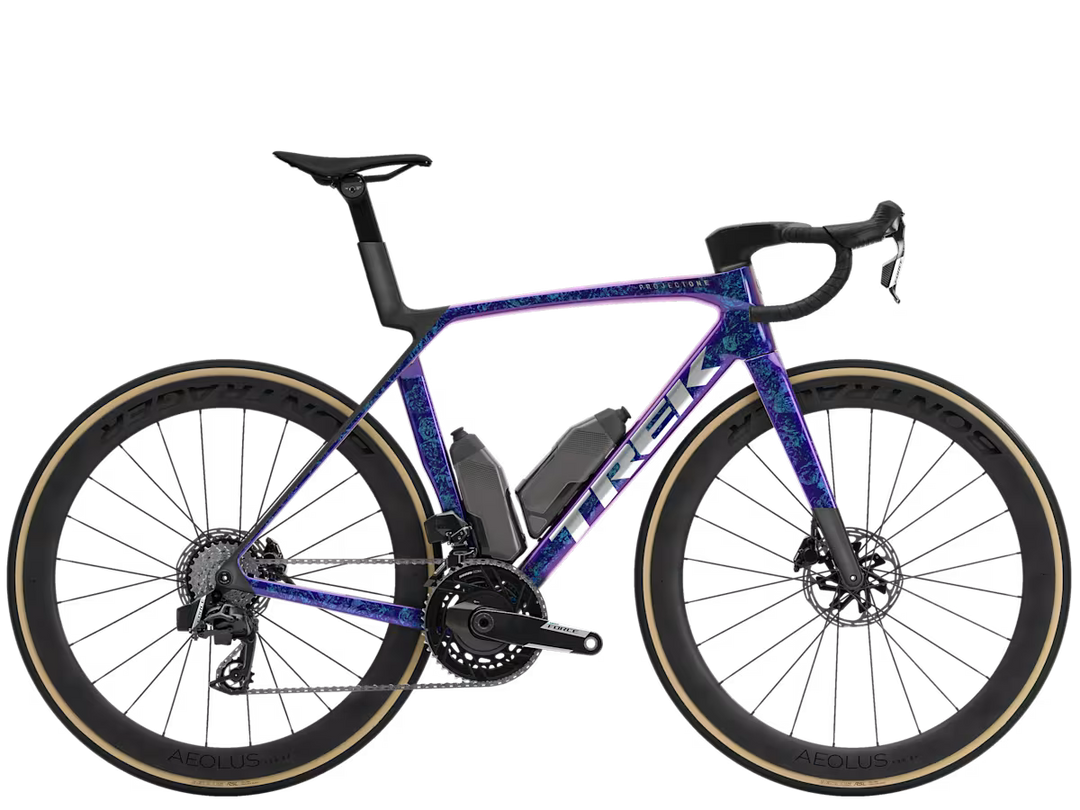

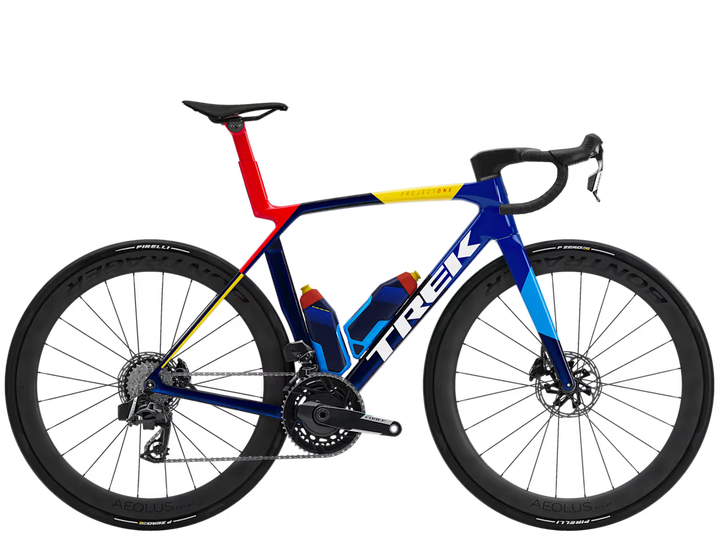

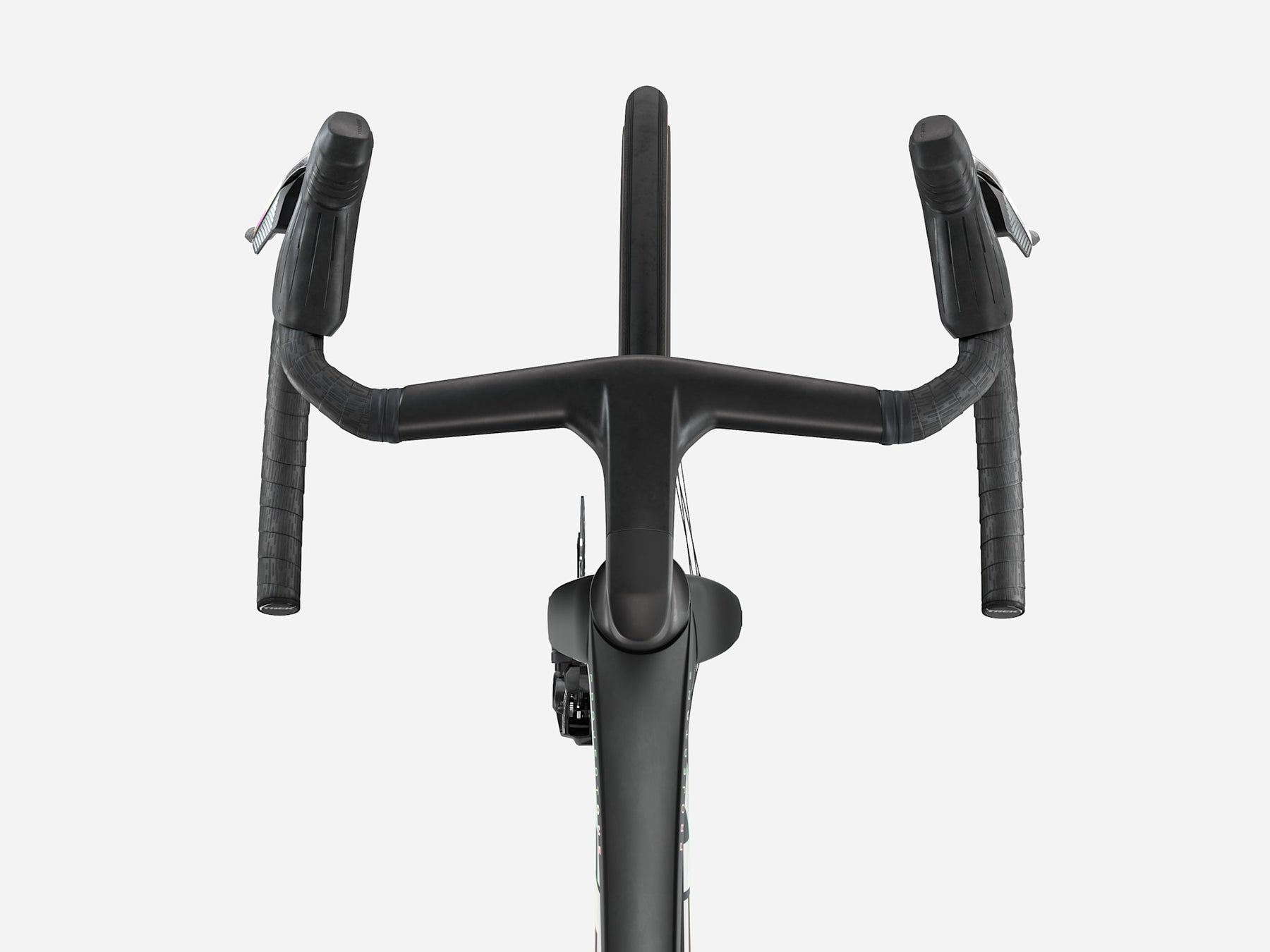

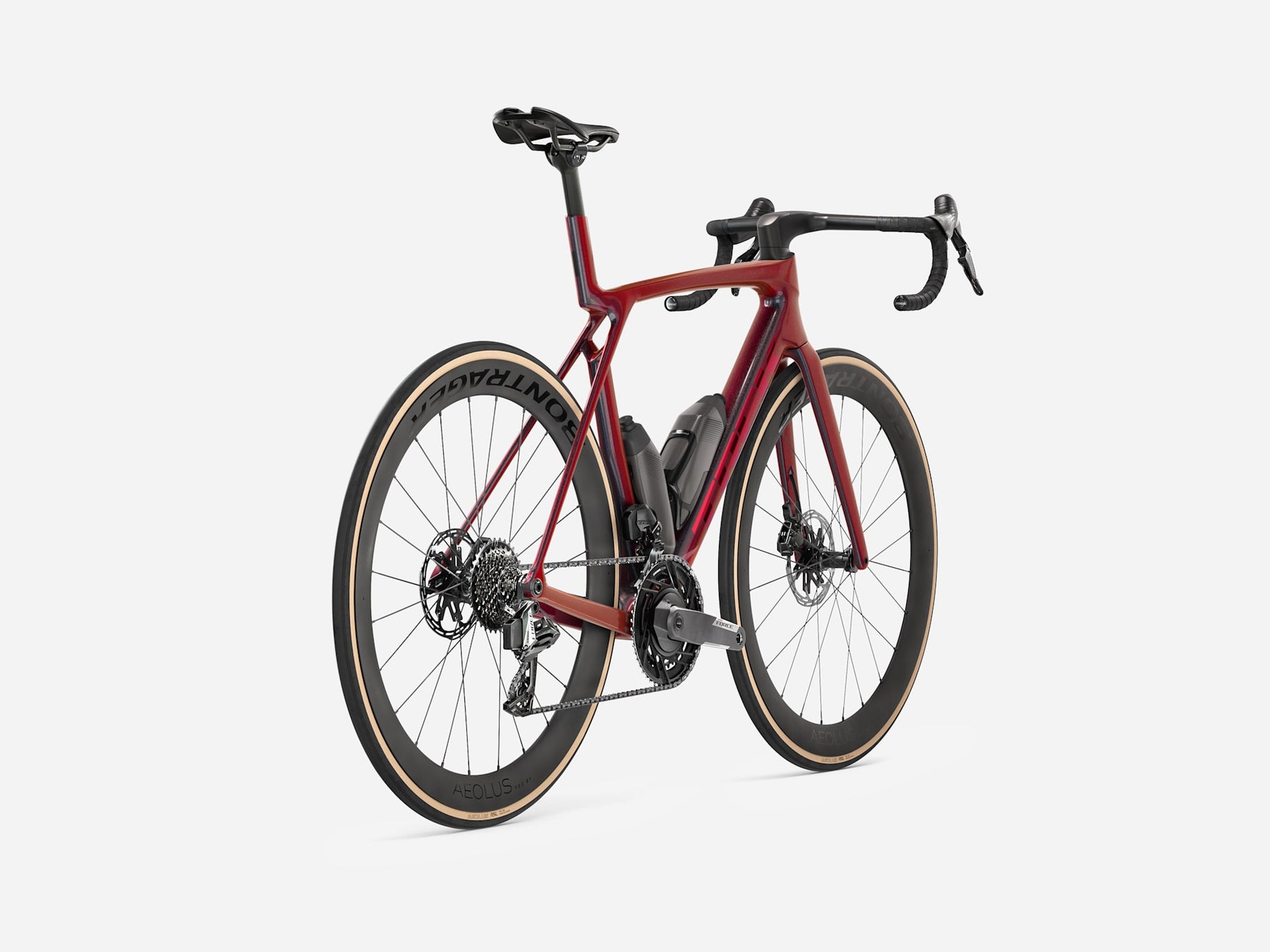

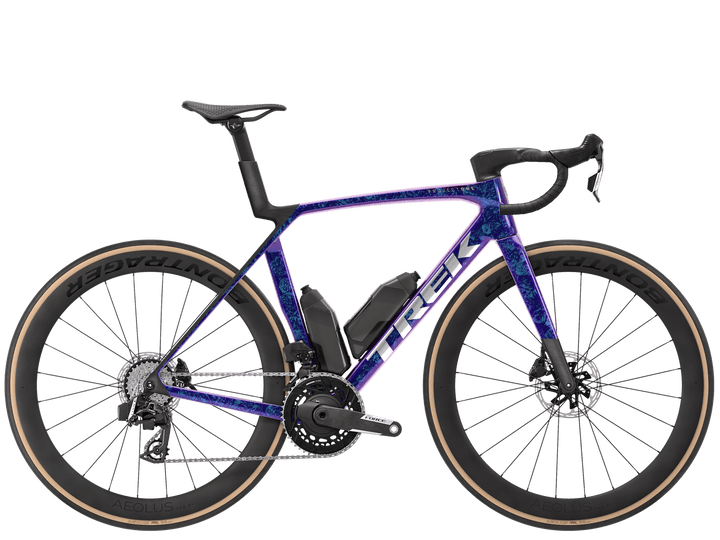

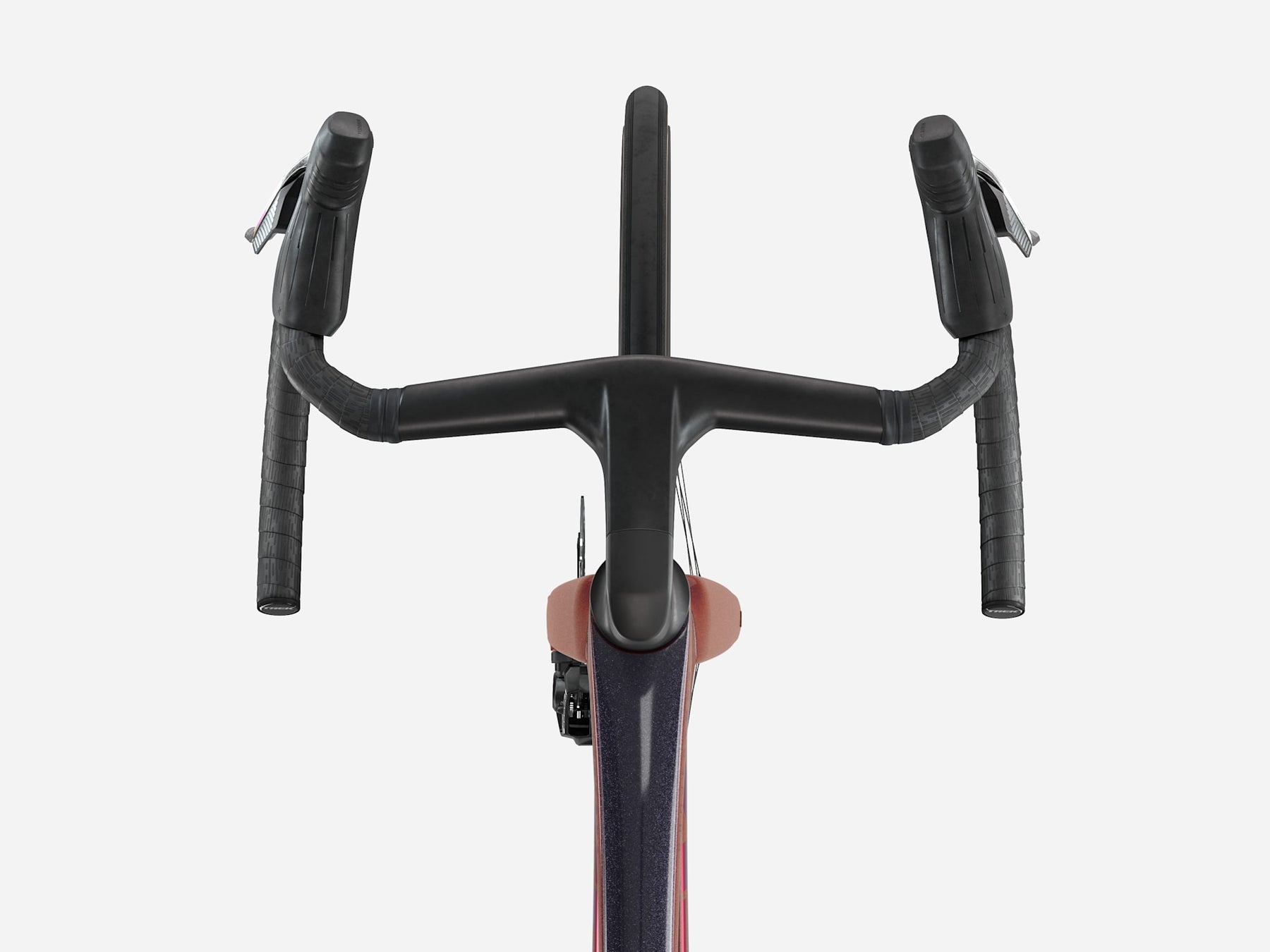

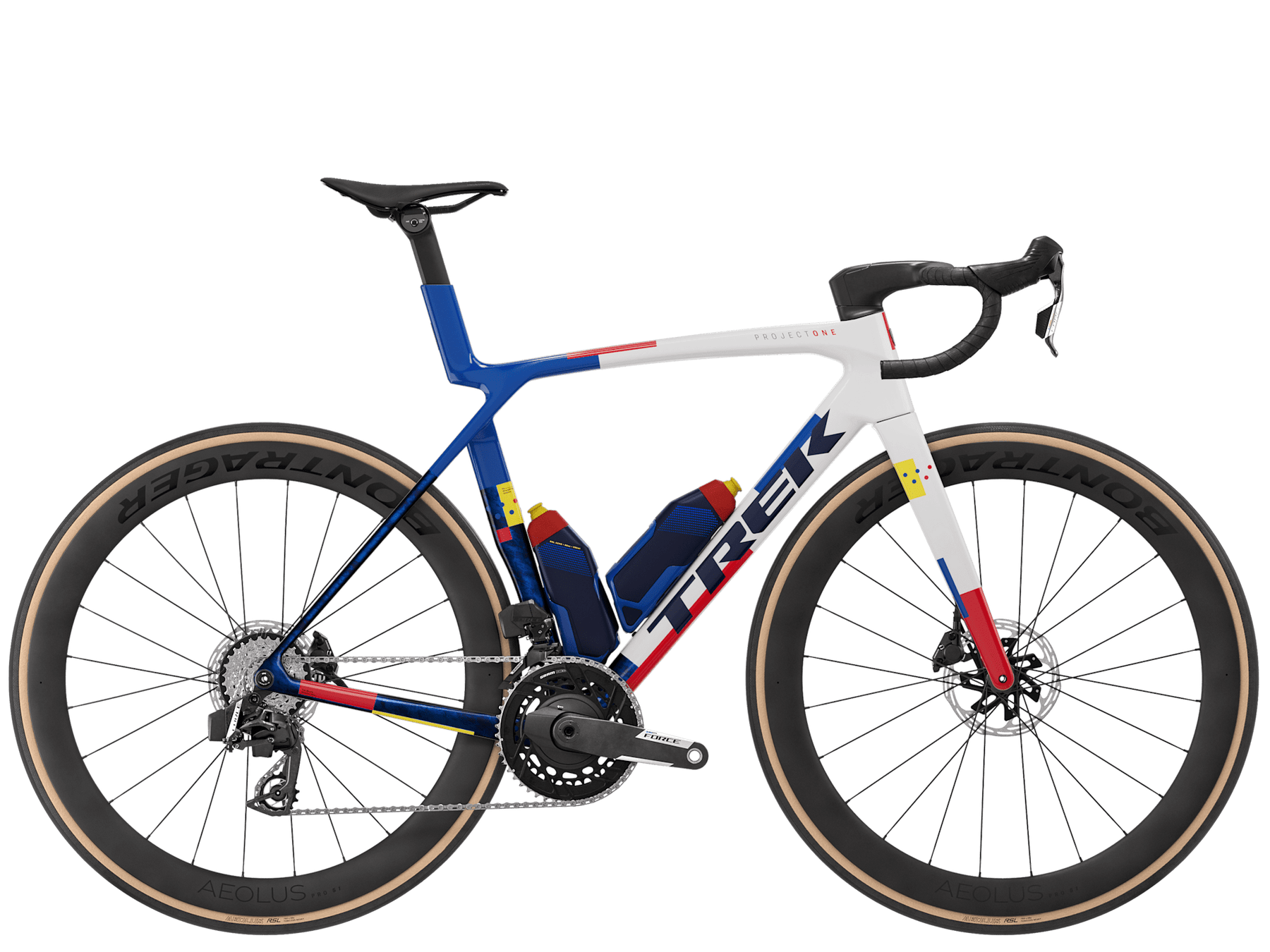

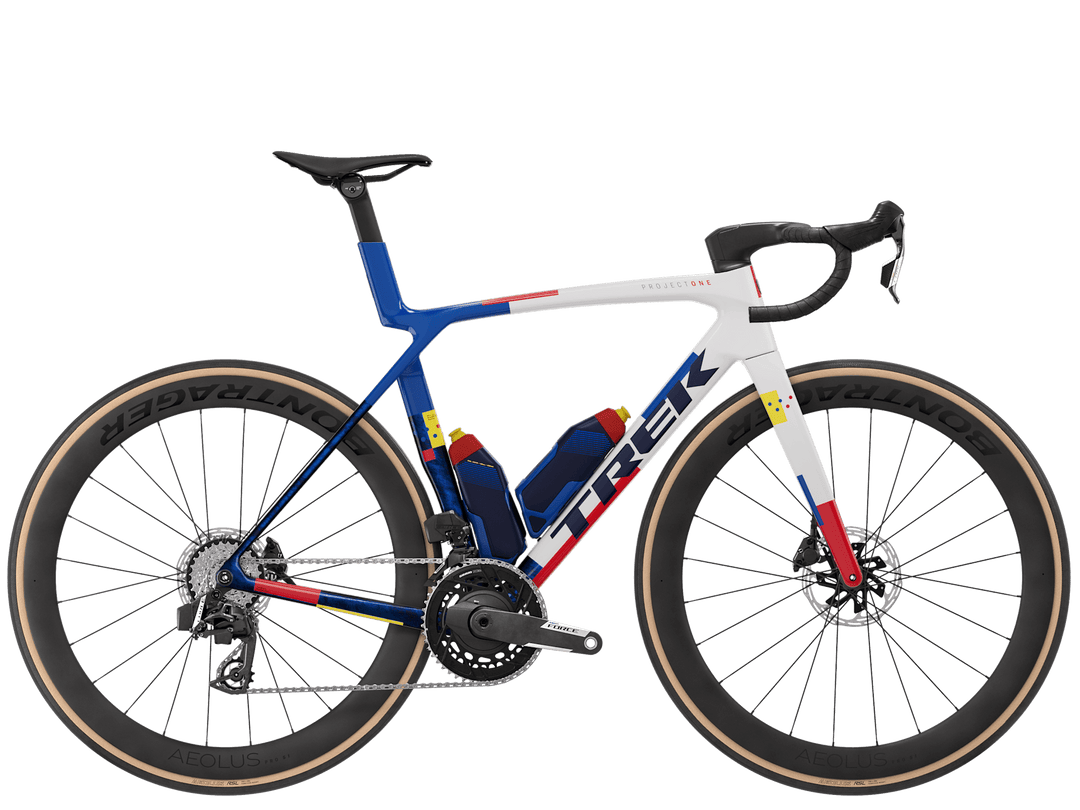

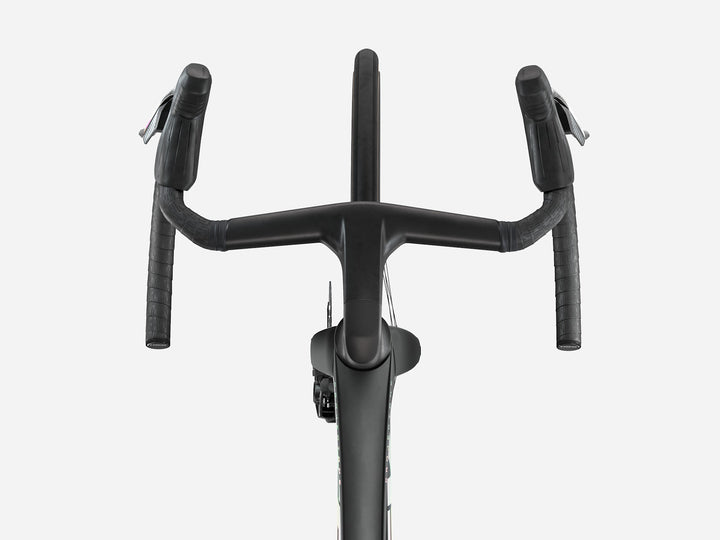

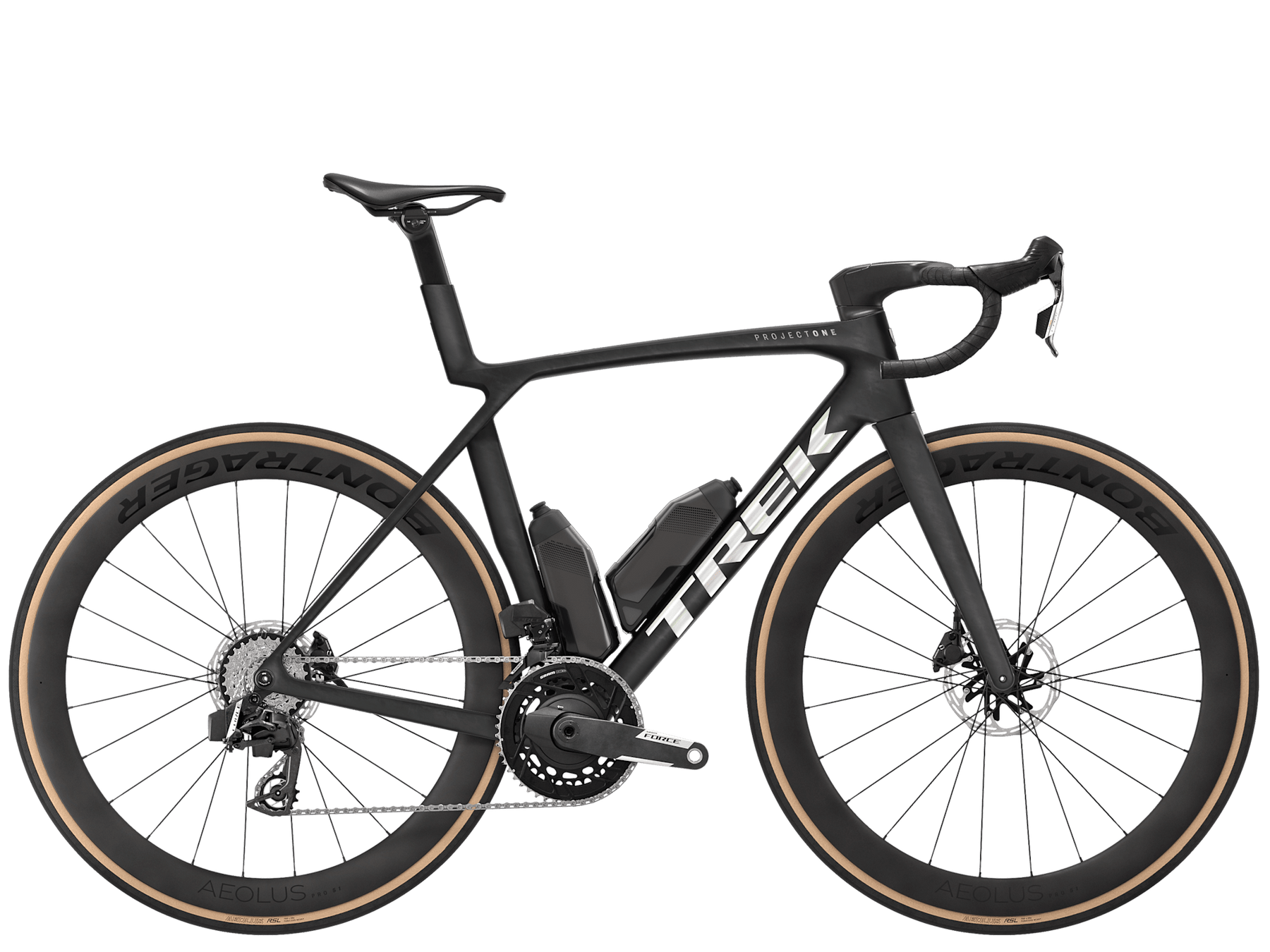

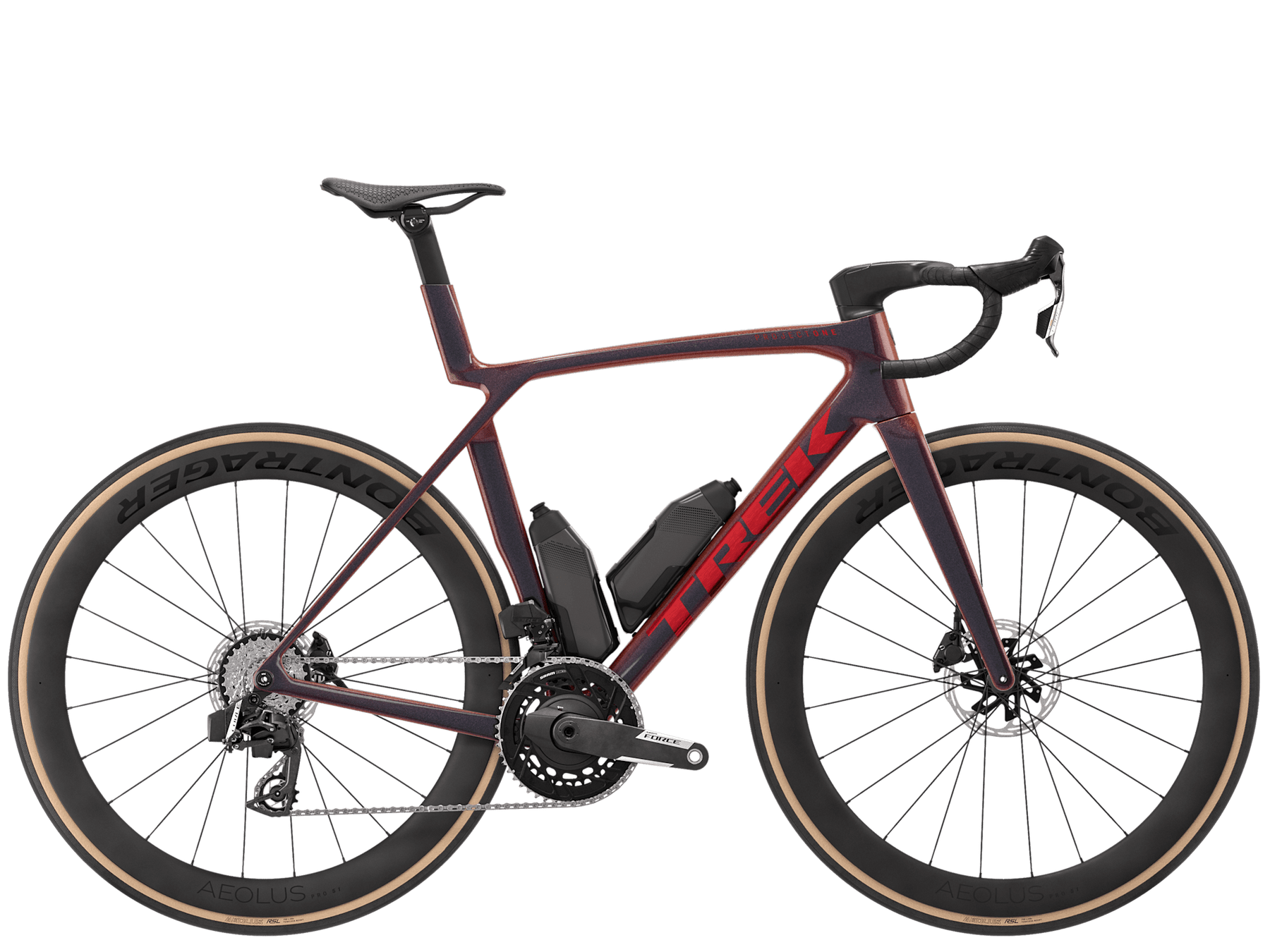

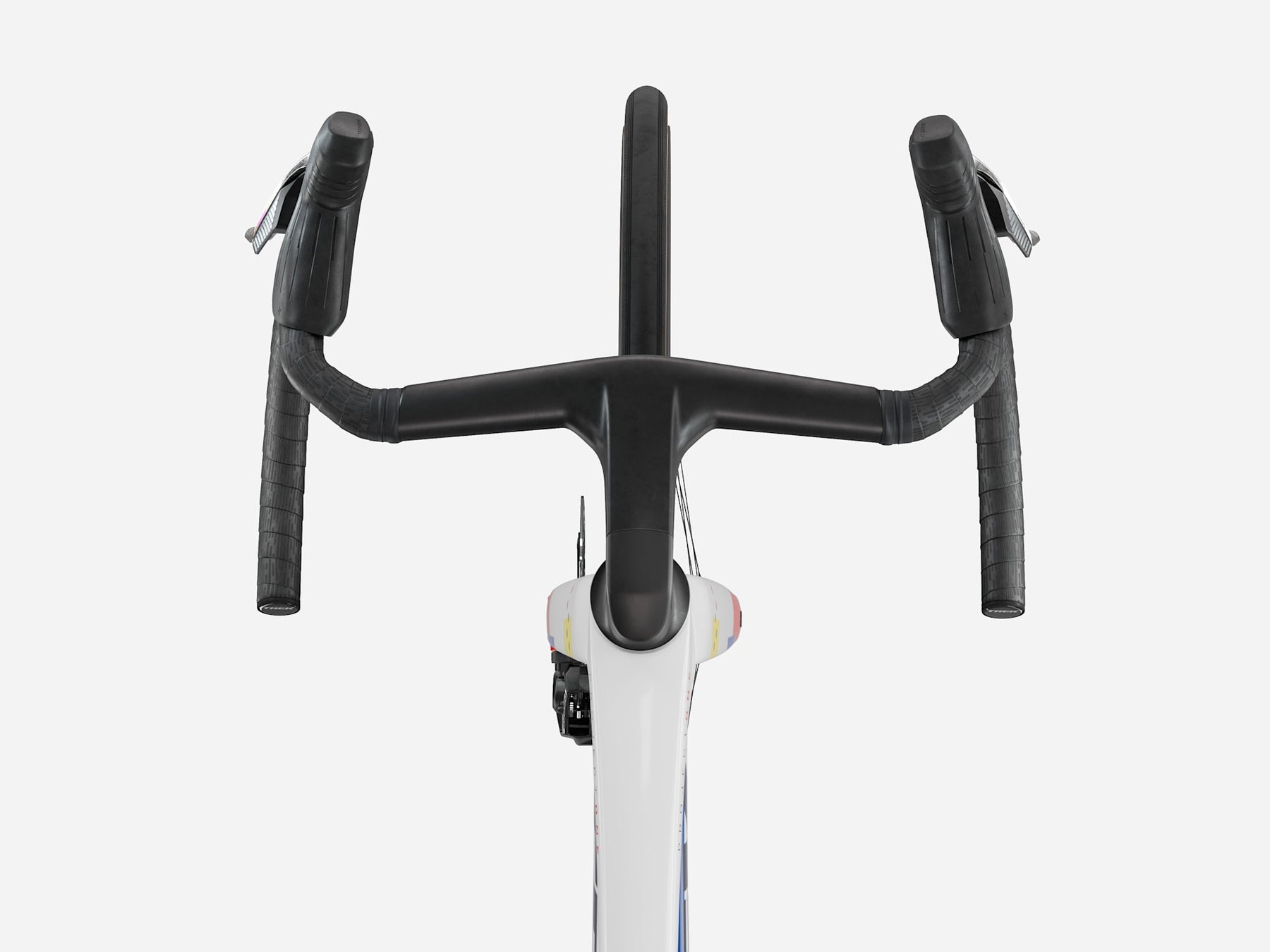

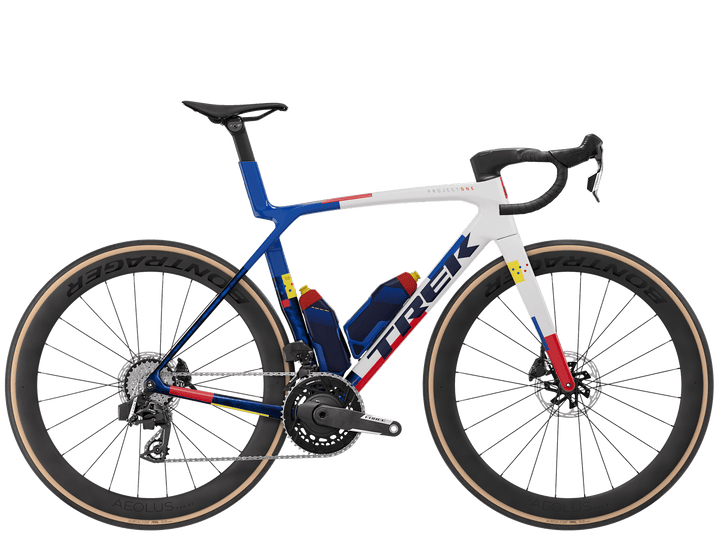

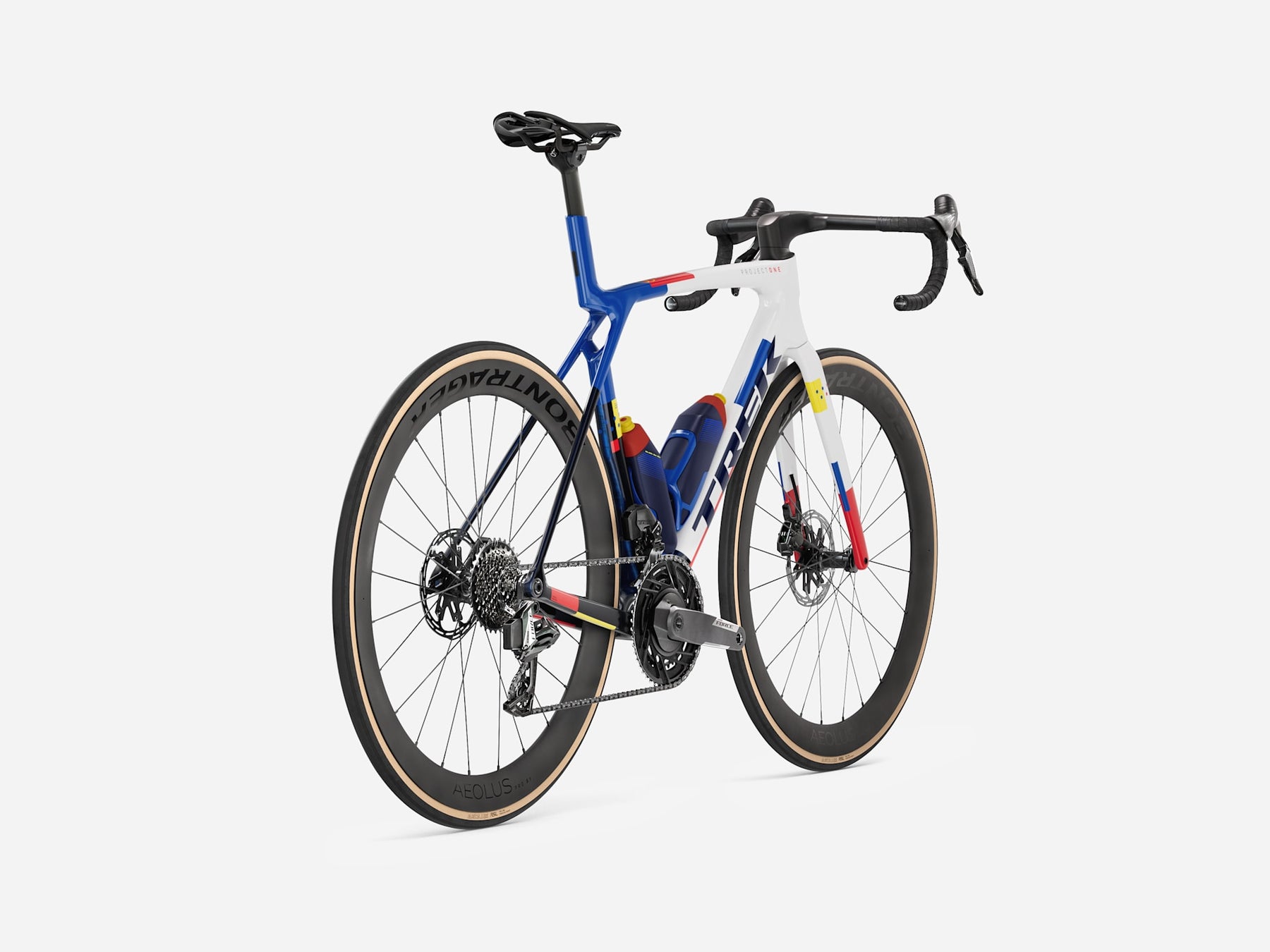

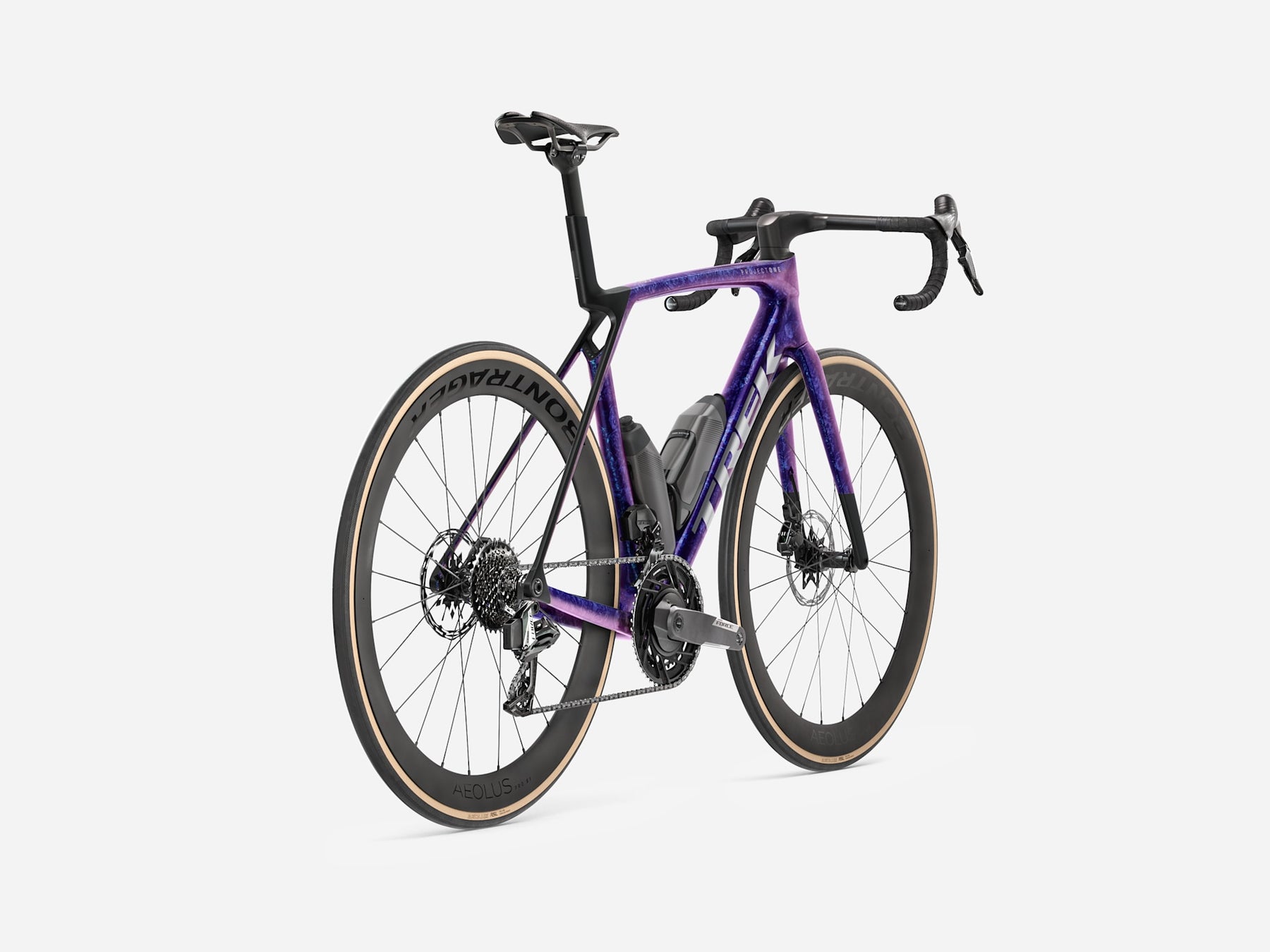

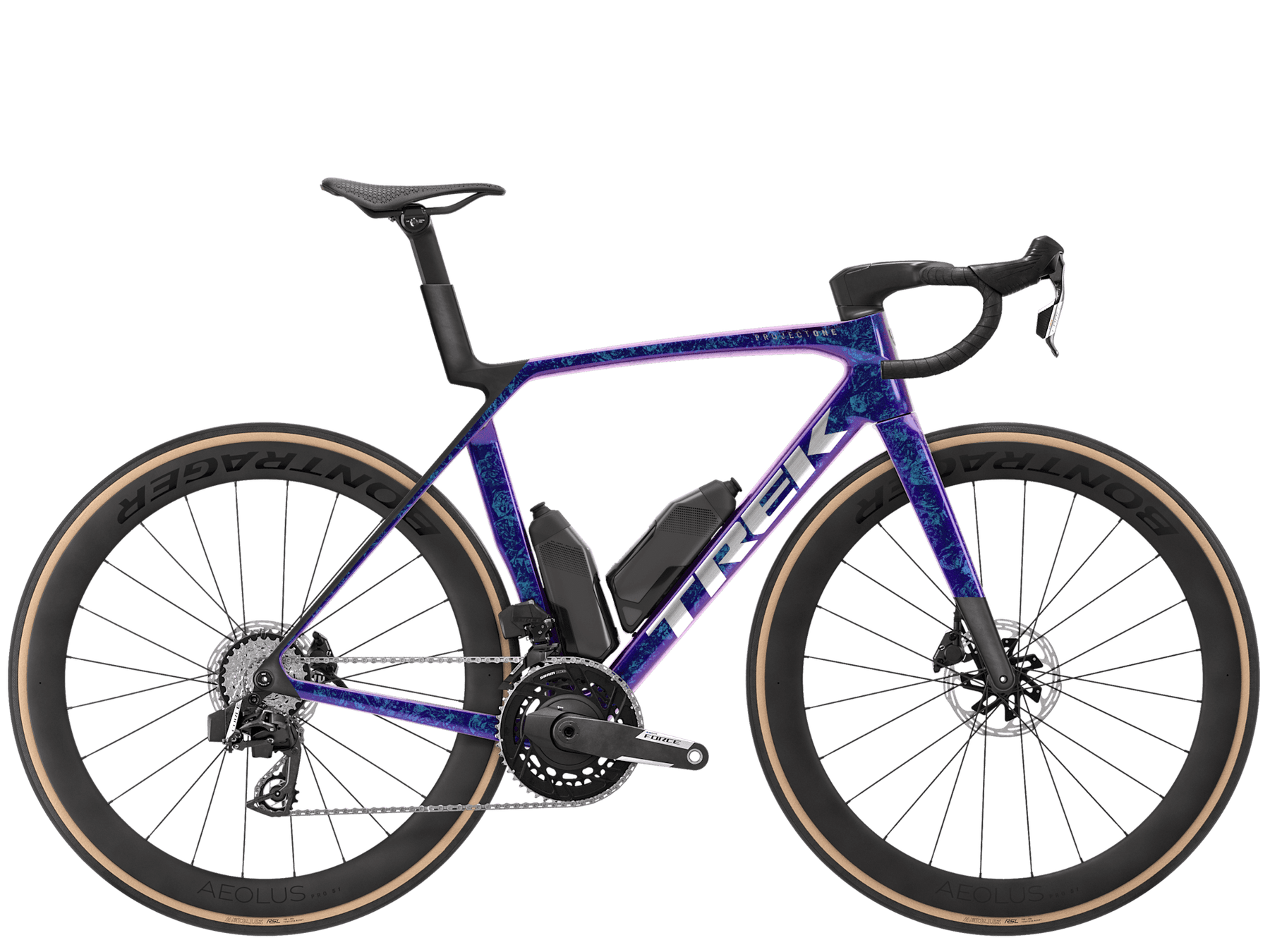

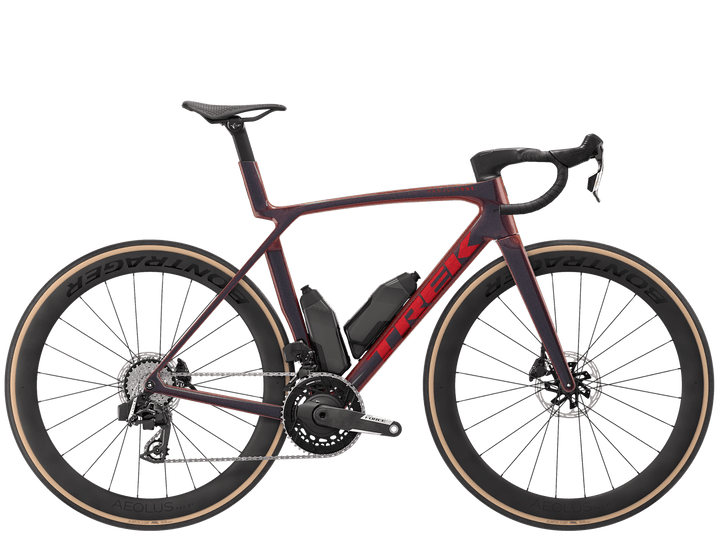

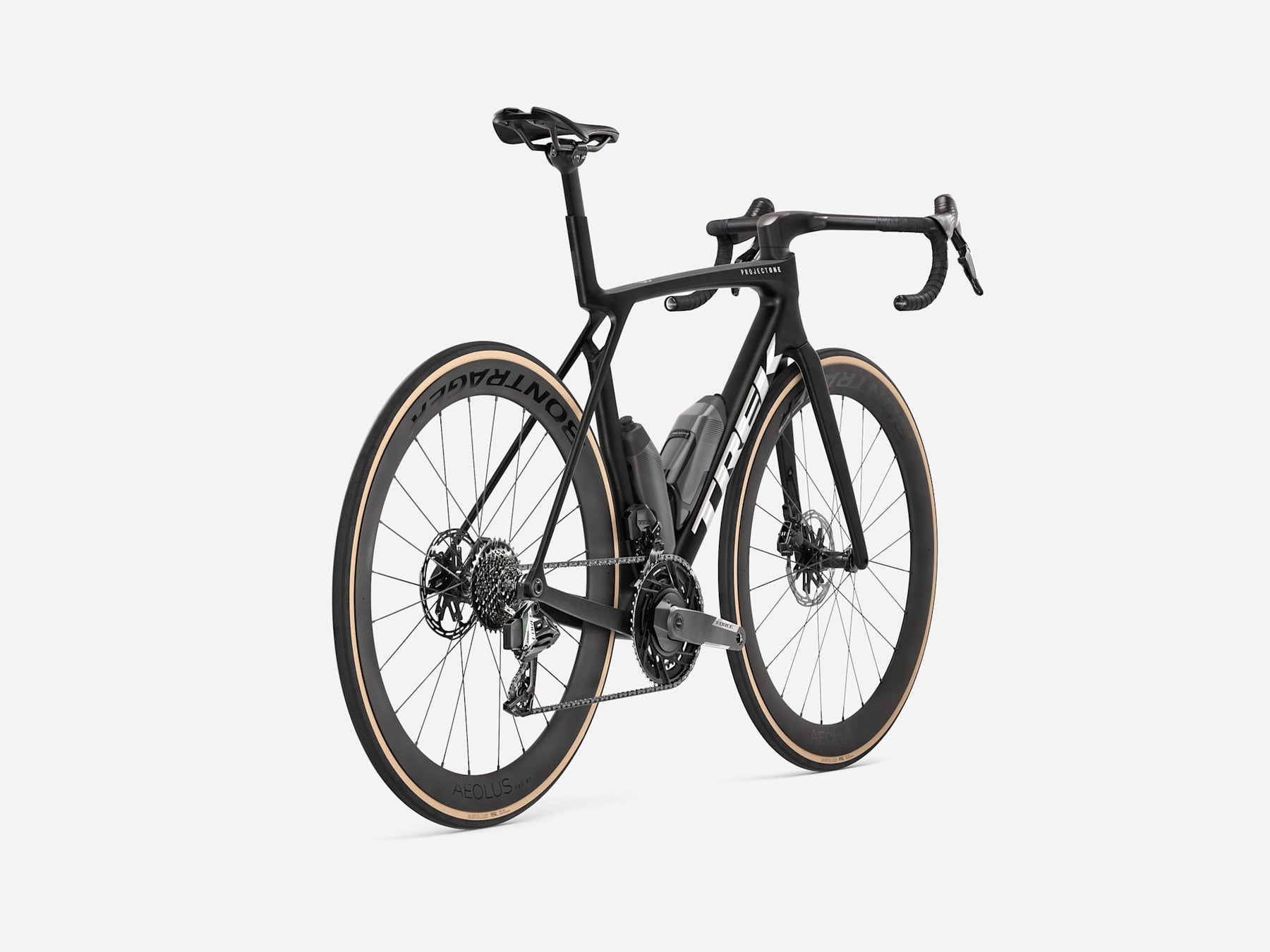

The Madone SLR 7 AXS Gen 8 is an aero, featherlight road bike that's built to race. Its 900 Series OCLV Carbon frame keeps the weight way down while delivering aerodynamic gains and IsoFlow technology means you don't have to sacrifice comfort for speed. It comes race-ready, with a wireless 2x12 SRAM Force AXS E1 group set with power meter cranks, Bontrager Aeolus Pro 51 carbon wheels, a Trek Aero RSL one-piece bar/stem and RSL Aero Bottles and Cages that further reduce drag.

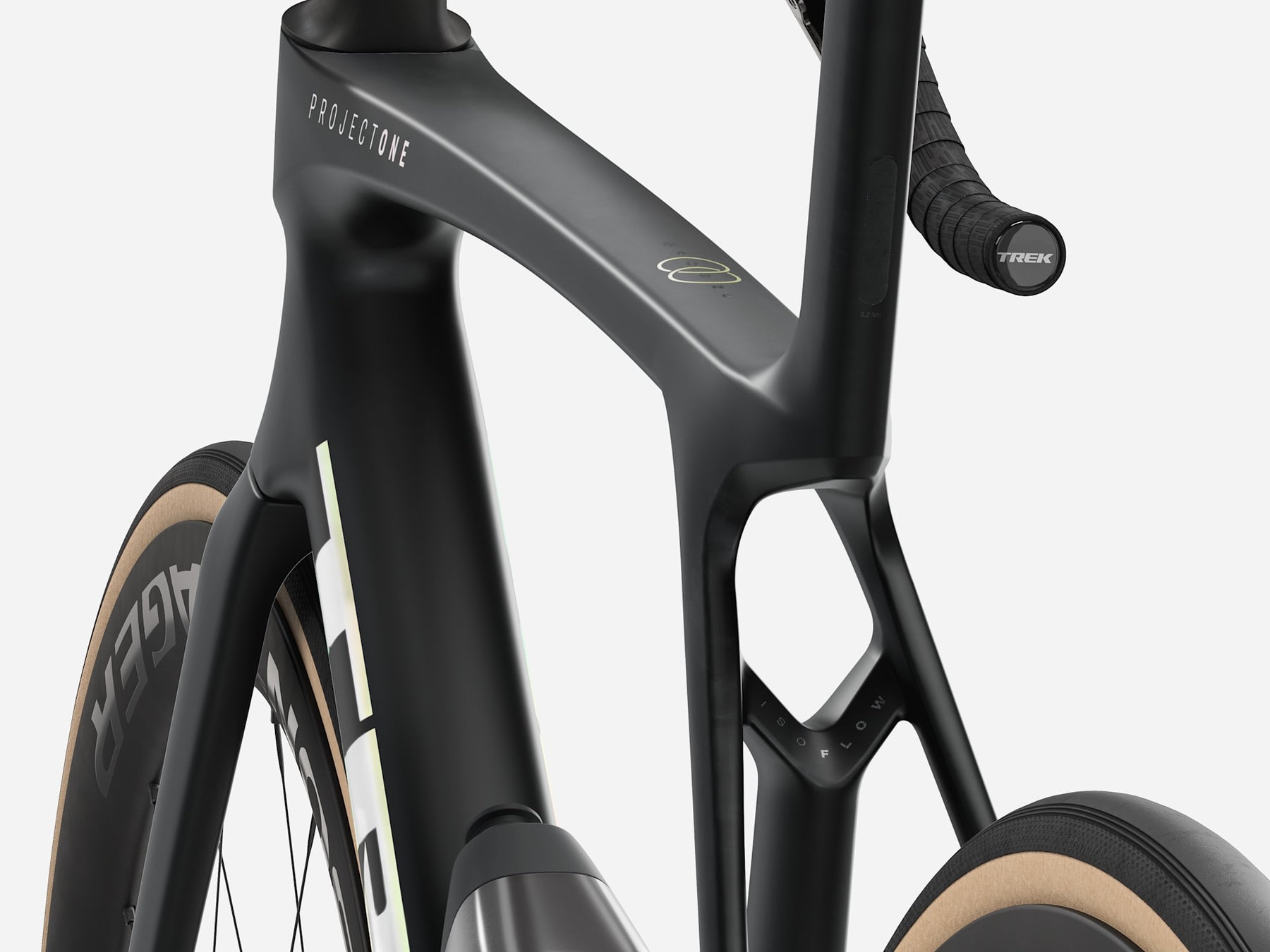

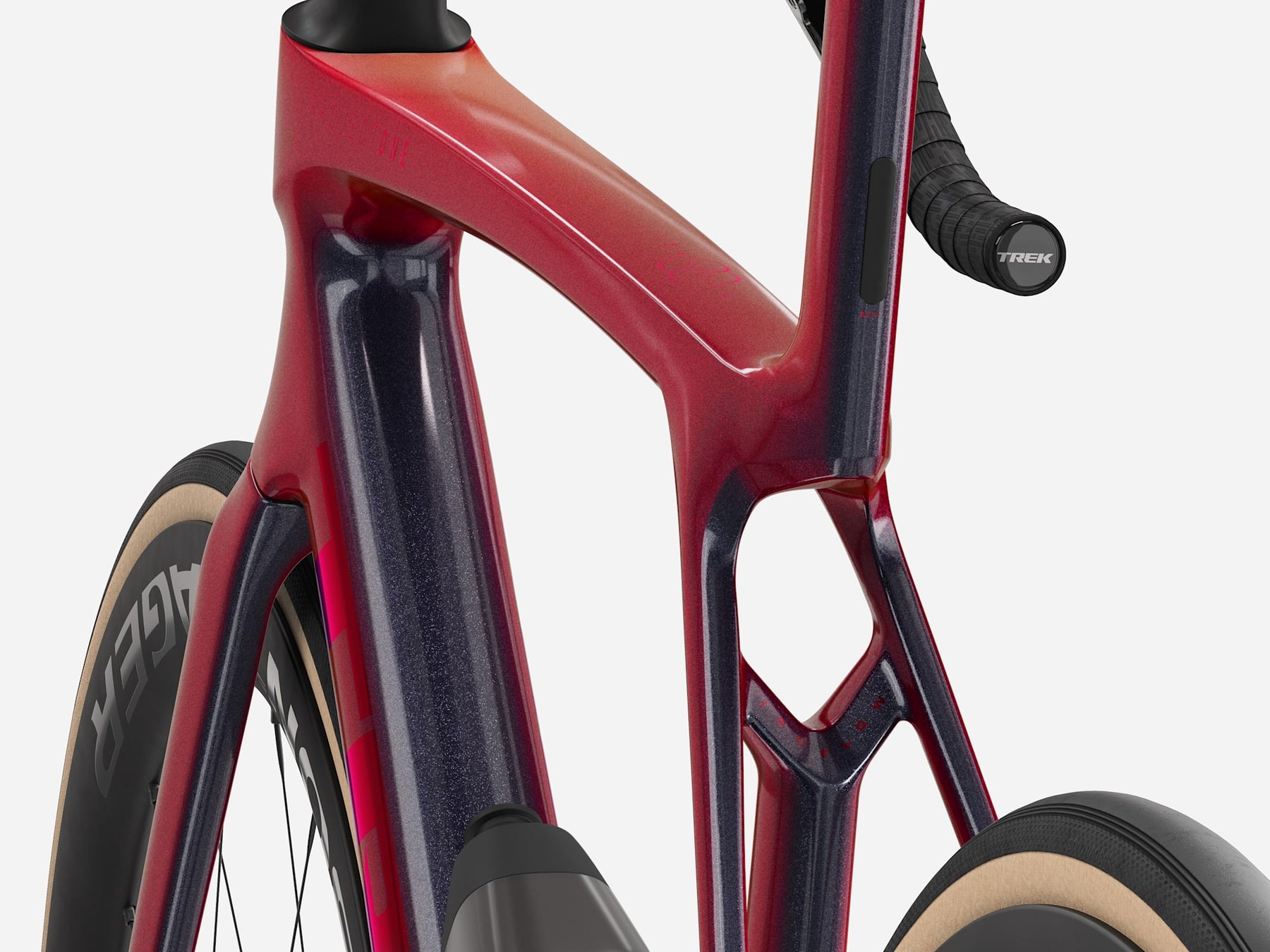

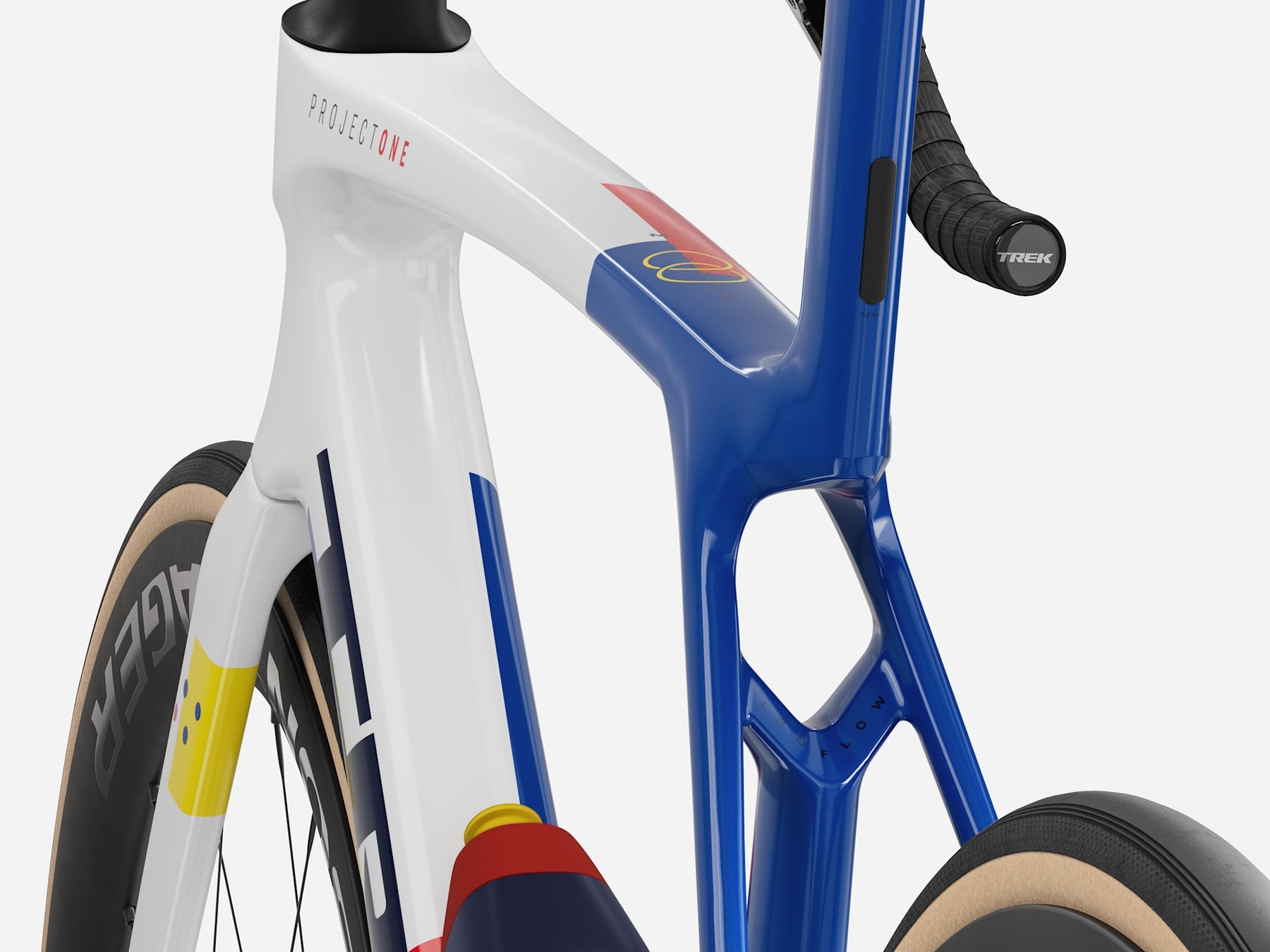

| Frame with Fork | 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle |
|---|---|
| Fork | Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle |
Weight
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
|---|
E-system
| Battery | SRAM eTap battery pack (with charger) |
|---|
Drivetrain
| Shifter | SRAM Force AXS, 12-speed |
|---|---|
| Front derailleur | SRAM Force AXS, braze-on |
| Rear derailleur | SRAM Force AXS, 36T max cog |
| *Crank |
Size: XS, S SRAM Force AXS with power meter, 48/35, DUB, 165 mm length |
|
Size: M, ML SRAM Force AXS with power meter, 48/35, DUB, 170 mm length |
|
|
Size: L, XL SRAM Force AXS with power meter, 48/35, DUB, 172.5 mm length |
|
| Bottom bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM Force XG-1270, 10-33, 12-speed |
| Chain | SRAM Force E1, 12/13-speed |
| Max. chainring size | 1x: 54T, 2x: 56/43 |
Wheels
| Wheel front | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle |
|---|---|
| Wheel rear | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12 mm thru axle |
| Skewer front | Bontrager Switch chamfered thru axle, removable lever |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| *Tyre |
Size: XS, S, M, ML, L, XL Bontrager Aeolus RSL RD, Tubeless-Ready, cotton construction, aramid bead, 170 tpi, 700x28 mm |
|
Size: XS, S, M, ML, L, XL Pirelli P Zero Race TLR RS, 120 tpi, tubeless-compatible, 700x28 mm |
|
| Tube | Pirelli P Zero SmarTube, TPU |
| Max tyre size | 32 mm (as measured, see manual for details) |
Components
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
