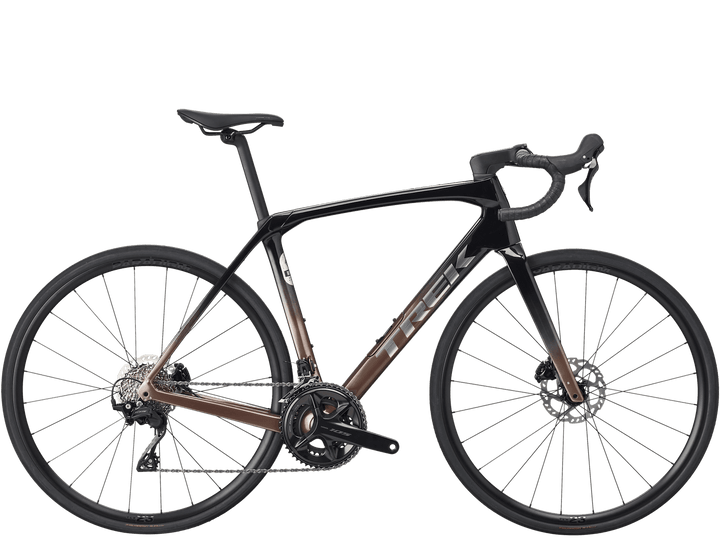

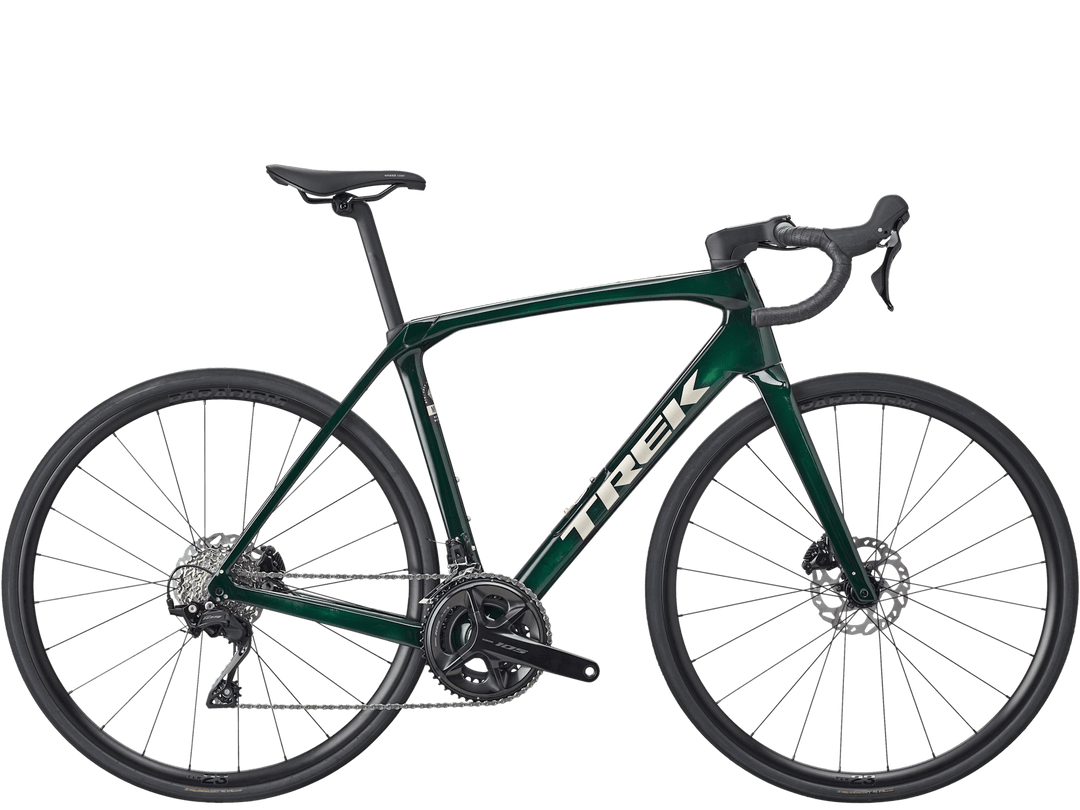

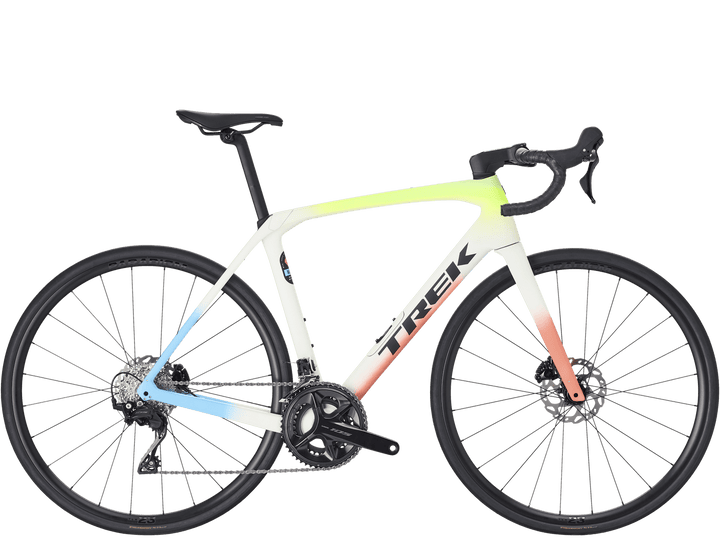

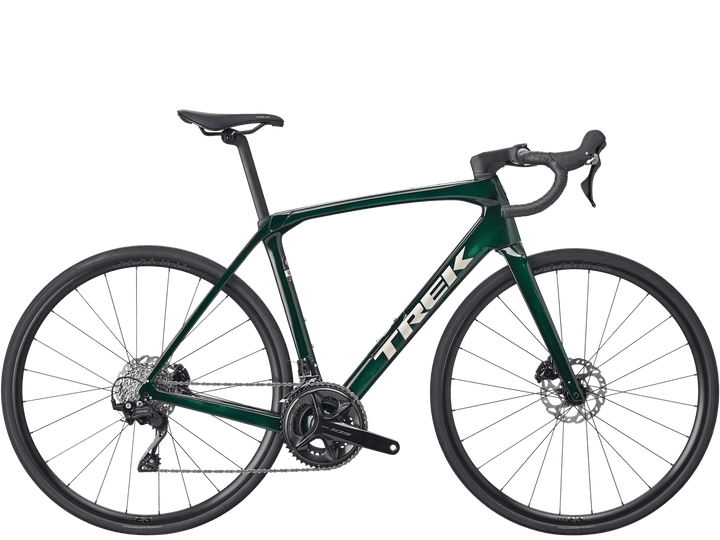

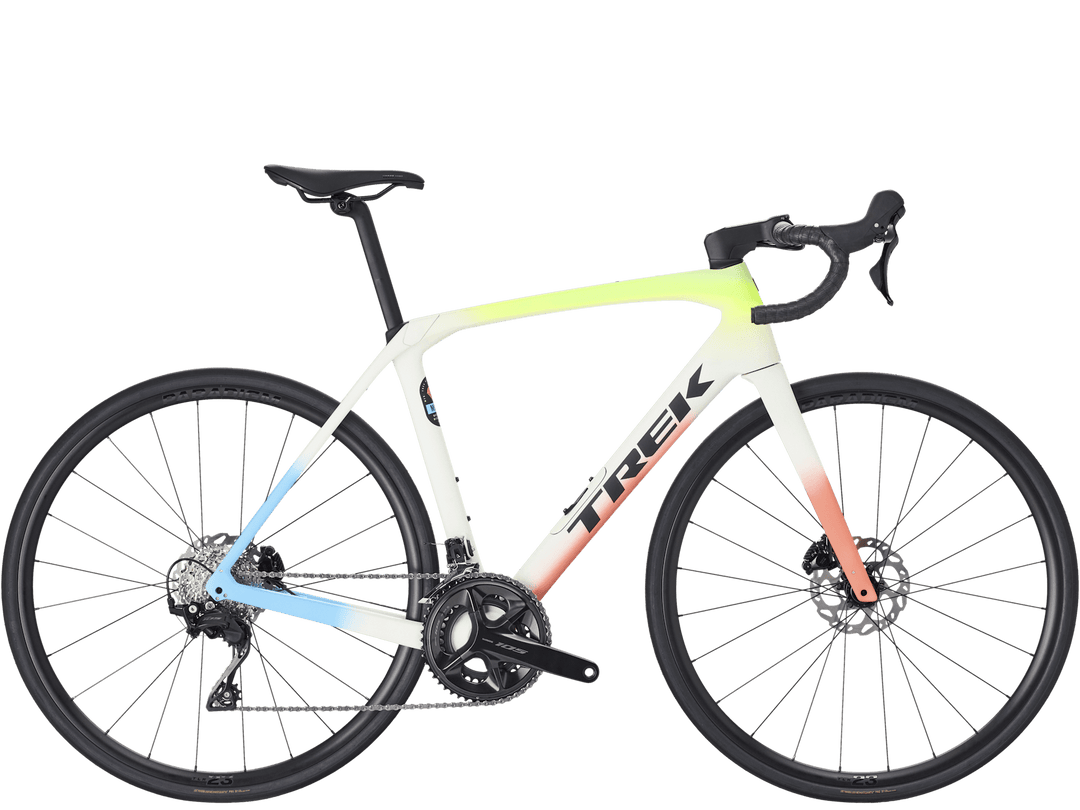

The Domane SL 5 is an endurance road bike ready to comfortably take on rough roads and long miles in comfort. It's crafted with a lightweight 500 Series OCLV Carbon frame speced with a reliable Shimano 105 drivetrain, and aluminium wheels and aluminium handlebars to balance performance and price.
| *Frame |
Size: 44, 56, 47, 58, 60, 50, 62, 52, 54

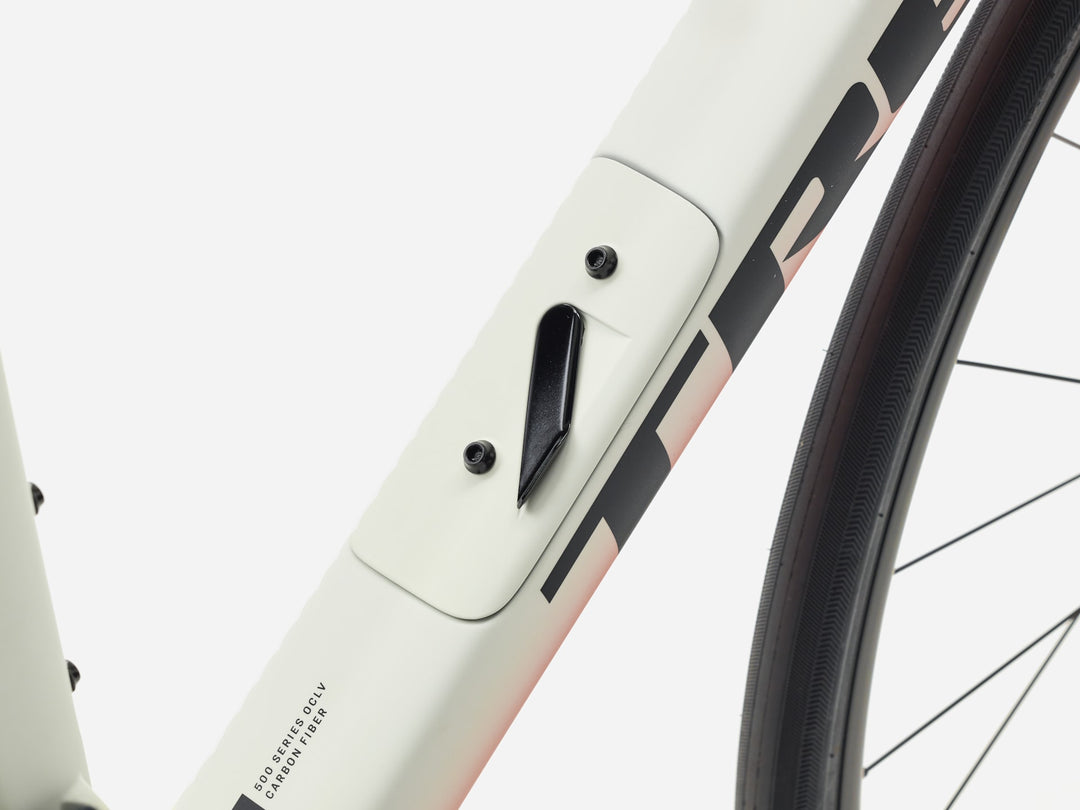

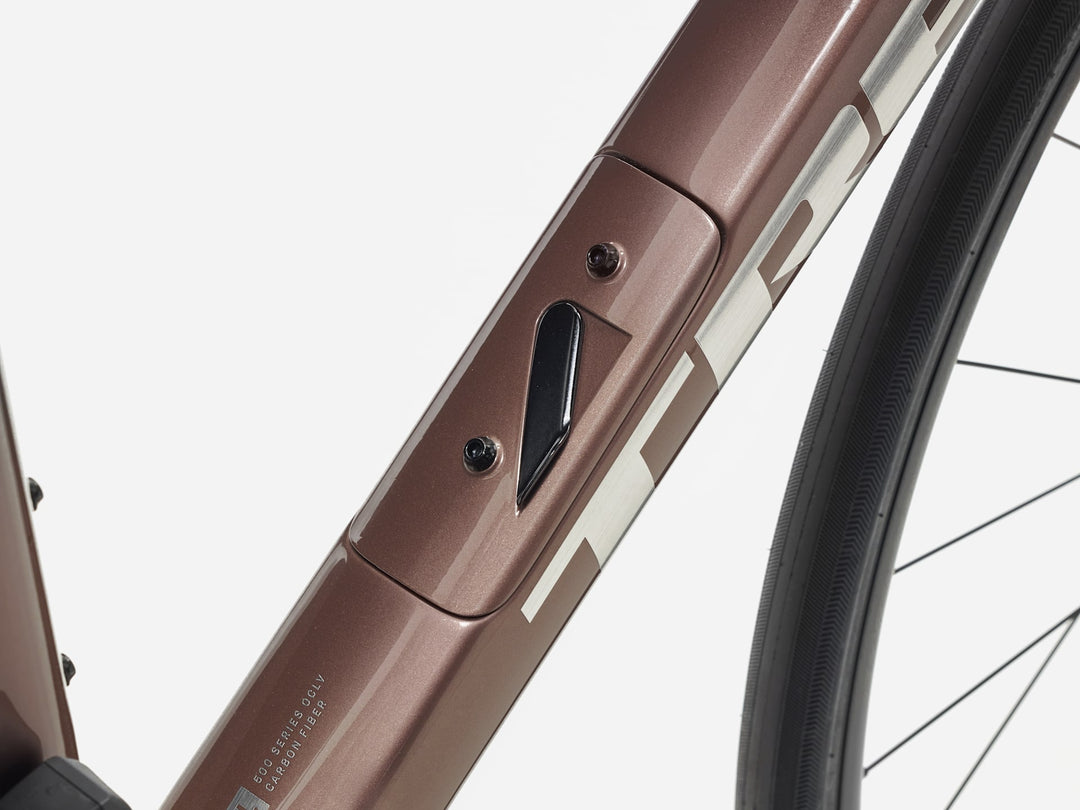

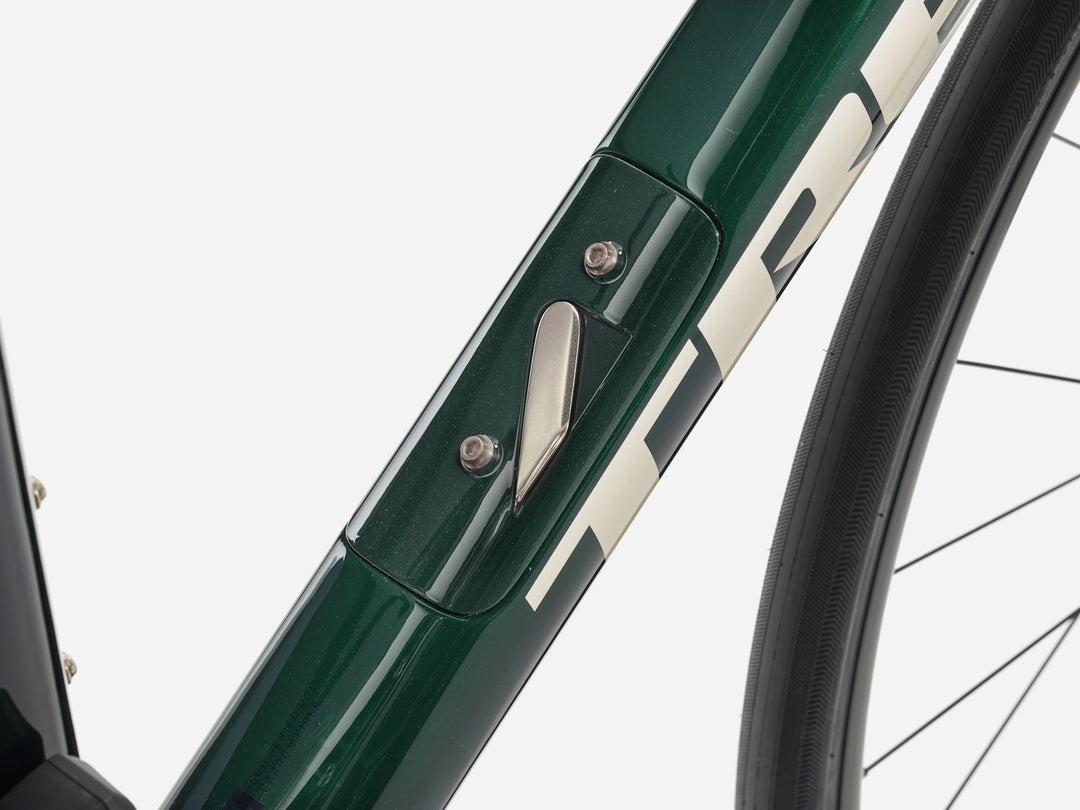

500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12 mm thru axle
|
|---|---|
| *Fork |
Size: 44, 56, 47, 58, 60, 50, 62, 52, 54
Domane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle
|
Weight
| Weight | 56 - 9.09 kg / 20.05 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
Drivetrain
| *Shifter |
Size: 44, 56, 47, 58, 60, 50, 62, 52, 54
Shimano 105 R7120, 12-speed
|
|---|---|
| *Front Derailleur |
Size: 44, 56, 47, 58, 60, 50, 62, 52, 54
Shimano 105 R7100, braze-on, down swing
|
| *Rear Derailleur |
Size: 44, 56, 47, 58, 60, 50, 62, 52, 54
Shimano 105 R7100, 36T max cog
|
| *Crank |
Size: 44, 47, 50
Shimano 105 R7100, 50/34, 165 mm length
|
|
Size: 56, 52, 54
Shimano 105 R7100, 50/34, 170 mm length
|
|
|
Size: 58, 60, 62
Shimano 105 R7100, 50/34, 172.5 mm length
|
|
| *Bottom Bracket | Size: 44, 56, 47, 58, 60, 50, 62, 52, 54Praxis, T47 threaded, internal bearing |
| *Cassette |
Size: 44, 56, 47, 58, 60, 50, 62, 52, 54
Shimano 105 7101, 11-34, 12-speed
|
| *Chain |
Size: 44, 56, 47, 58, 60, 50, 62, 52, 54
Shimano SLX M7100, 12-speed
|
| Max. chainring size | 1x: 48T, 2x: 52/36 |
Wheels
| *Front Hub |
Size: 44, 56, 47, 58, 60, 50, 62, 52, 54
Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
|
|---|---|
| *Front Skewer | Size: 44, 56, 47, 58, 60, 50, 62, 52, 54Bontrager Switch thru-axle |
| *Rear Hub |
Size: 44, 56, 47, 58, 60, 50, 62, 52, 54
Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
|
| *Rear Skewer | Size: 44, 56, 47, 58, 60, 50, 62, 52, 54Bontrager Switch thru-axle, removable lever |
| *Rim |
Size: 44, 56, 47, 58, 60, 50, 62, 52, 54
Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
|
| *Spokes |
Size: 44, 56, 47, 58, 60, 50, 62, 52, 54
14 g stainless steel, black
|
| *Tire Part |
Size: 44, 56, 47, 58, 60, 50, 62, 52, 54
Bontrager TLR sealant, 180 ml/6 oz
|
| Max tyre size | 38 mm without mudguards, 35 mm with mudguards (as measured, see manual for details) |
Components
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
