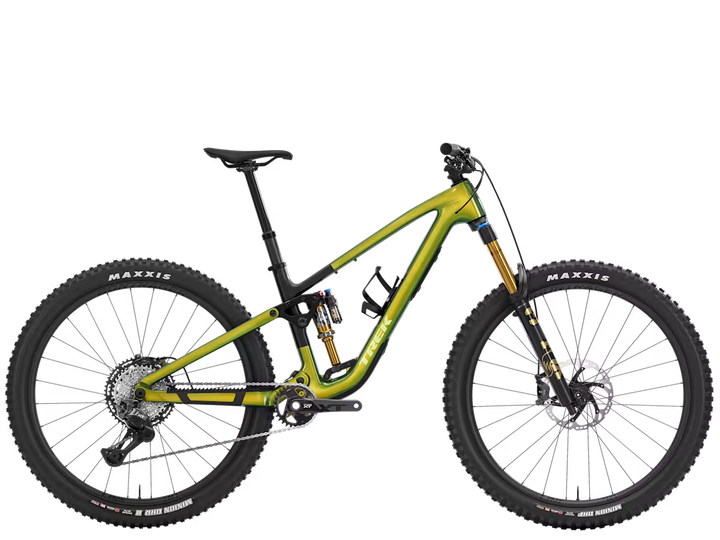

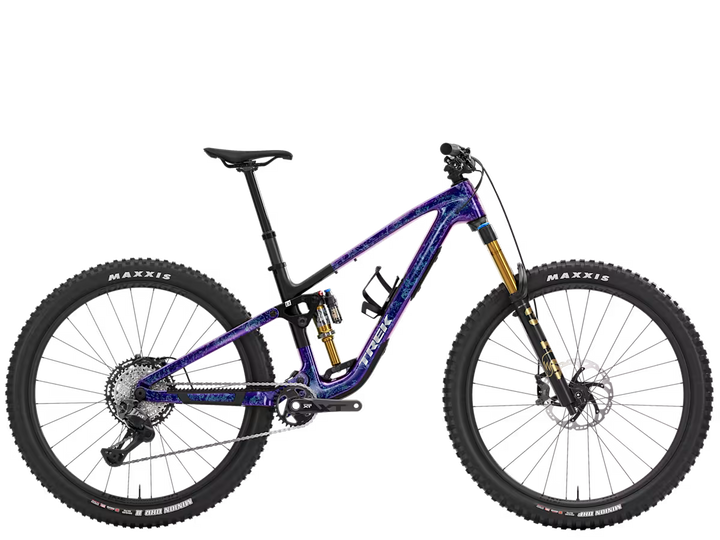

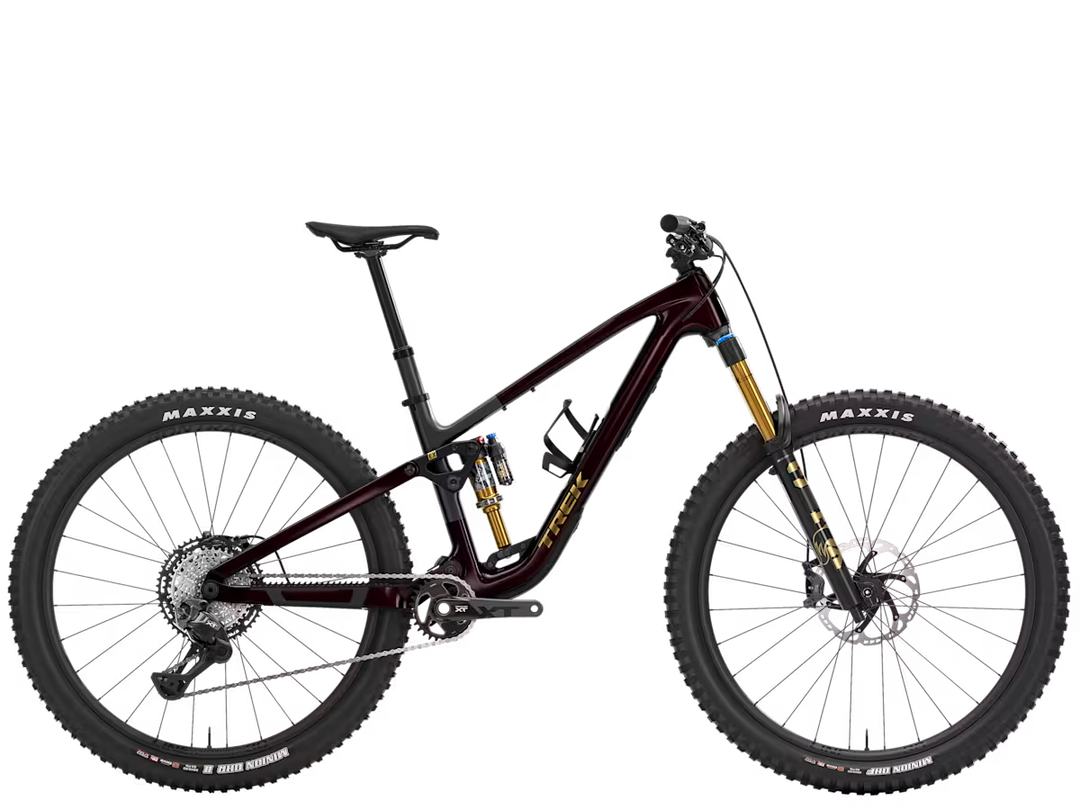

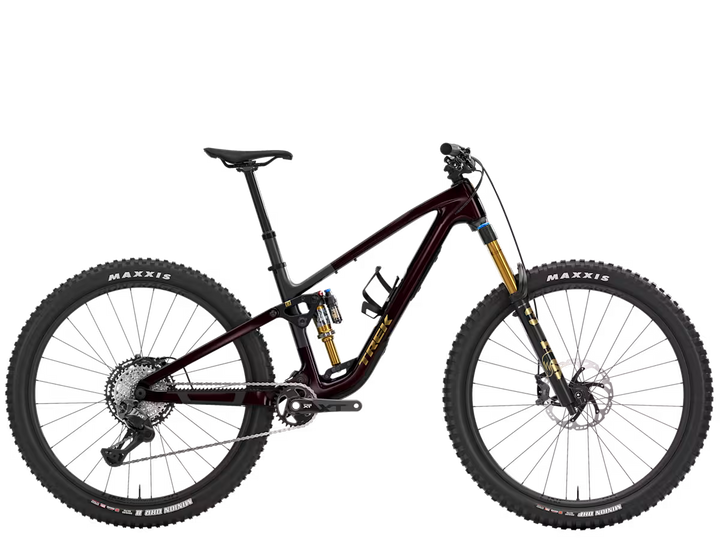

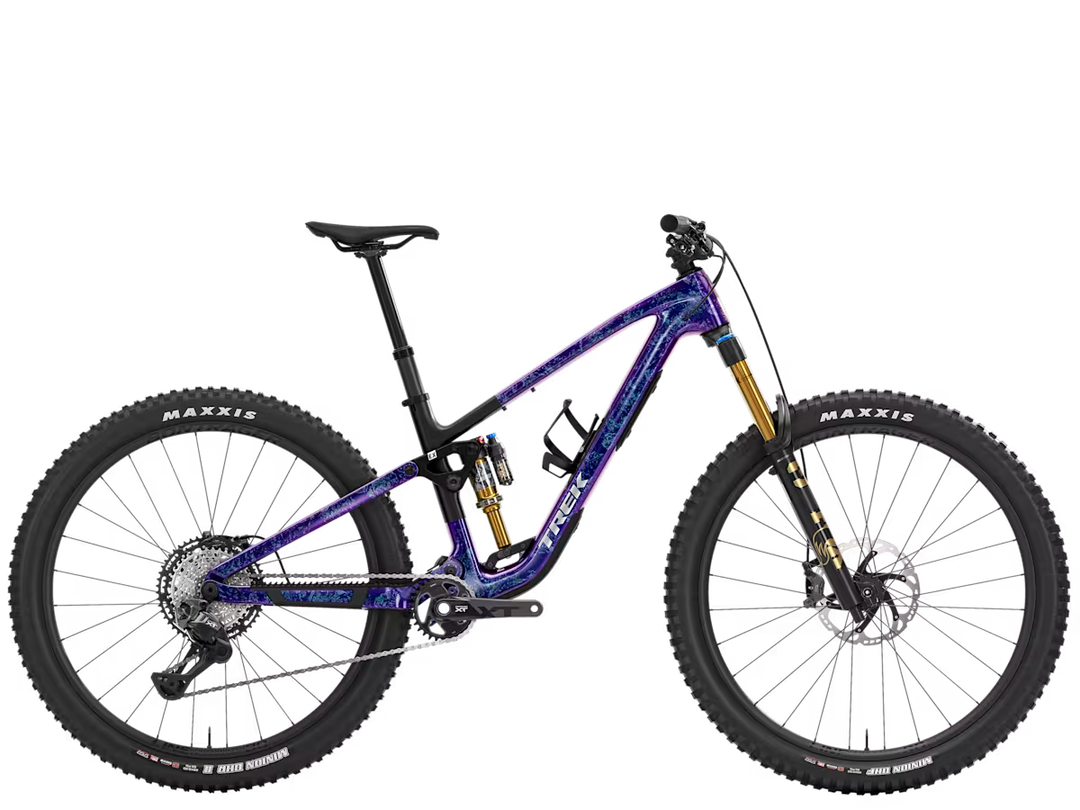

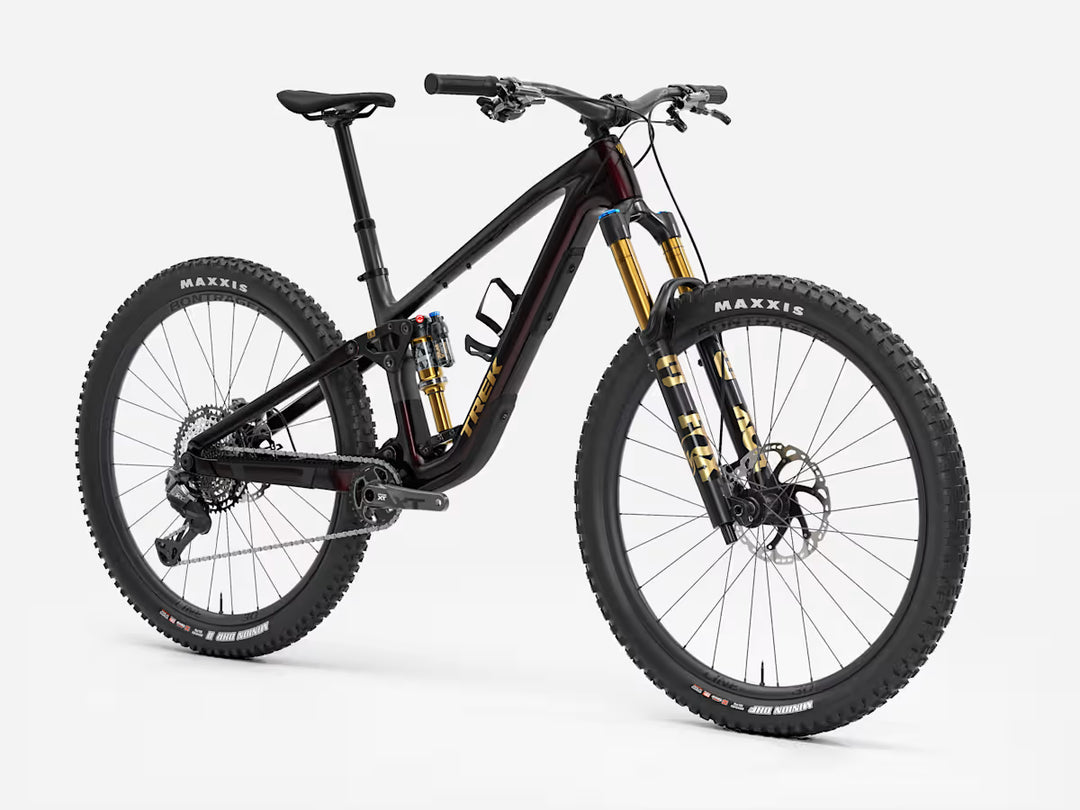

The Fuel EX 9.8 XT Di2 is a versatile and adaptable carbon MTB built to tackle any trail, at any time. Its OCLV Mountain Carbon frame pairs with a Fox Factory suspension package (145 mm rear, 150 mm front) to deliver traction and stability in the rough. Shimano's iconic wireless XT Di2 12-speed drivetrain gives you robust, light and crisp customisable shifting, while 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-penny power.
| *Frame |
Size: S, XL, L, M, XXL
OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
|
|---|---|
| *Fork |
Size: S, XL, L, M, XXL
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 150 mm travel
|
| *Shock |
Size: S, XL, L, M, XXL

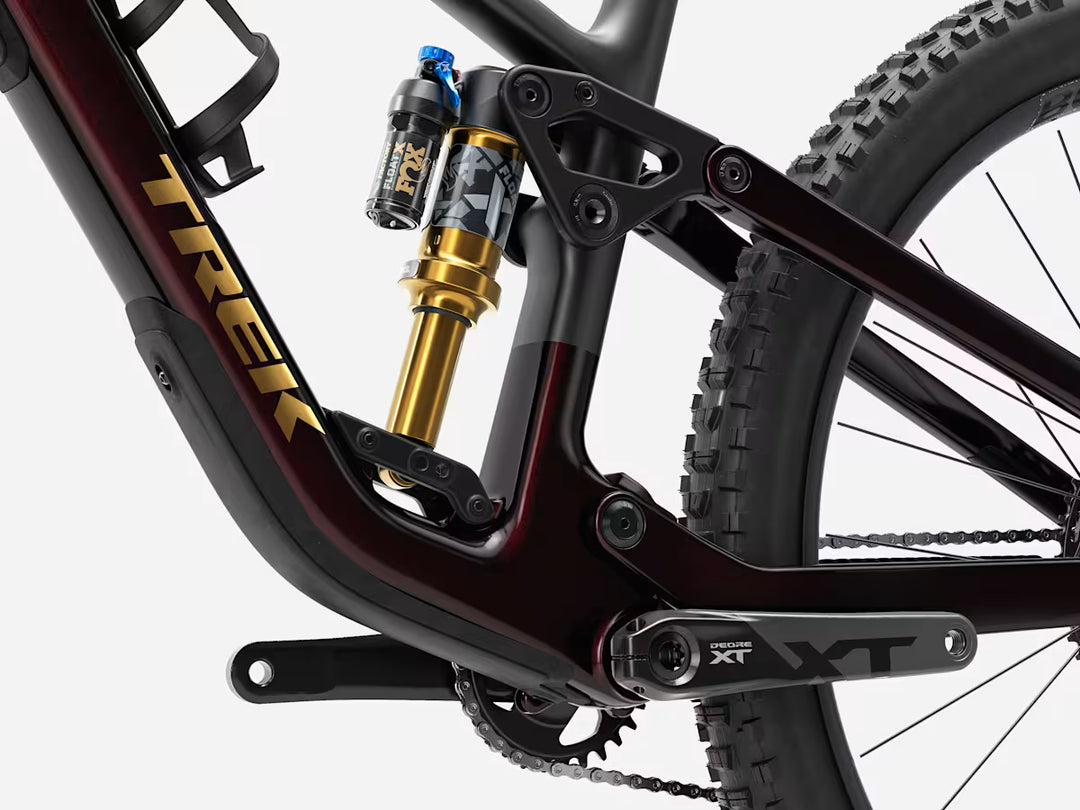

Fox Factory Float X, 205 mm x 60 mm
|
| *Wheel front | Size: S, XL, L, M, XXLBontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" |
|---|---|
| *Wheel rear |
Size: S
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru-axle, 27.5"
|
|
Size: XL, L, M, XXL
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru-axle, 29"
|
|
| *Skewer rear | Size: S, XL, L, M, XXLBontrager Switch thru-axle, removable lever |
| *Tyre |
Size: S, XL, L, M, XXL
Maxxis Minion DHF, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
|
|
Size: S
Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5''
|
|
|
Size: XL, L, M, XXL
Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
|
|
| *Tyre part |
Size: S, XL, L, M, XXL
Bontrager TLR sealant, 180 ml/6 oz
|
| Max tyre size | Frame: 29x2.50", Fork: See manufacturer |
| *Shifter |
Size: S, XL, L, M, XXL
Shimano XT Di2 M8250, 12-speed
|
|---|---|
| *Rear derailleur |
Size: S, XL, L, M, XXL
Shimano XT M8250, long cage
|
| *Crank |
Size: S, XL, L, M, XXL
Shimano XT 8200, 30T, 55 mm chain-line, 170 mm length
|
| *Bottom bracket |
Size: S, XL, L, M, XXL
Shimano BB-MT501 BSA
|
| *Cassette |
Size: S, XL, L, M, XXL
Shimano XT M8200, 10-51, 12-speed
|
| *Chain |
Size: S, XL, L, M, XXL
Shimano Ultegra/XT M8100, 12-speed
|
| Max. chainring size | Max: 34T (oval – 32T) Min: 30T (oval – 32T) |
| *Saddle | Size: S, XL, L, M, XXLVerse Short Pro, carbon rails, 145 mm width |
|---|---|
| *Seatpost | Size: SBontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length |
| Size: MBontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length | |
| Size: XL, L, XXLBontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length | |
| *Handlebar |
Size: S, XL, L, M, XXL
Race Face ERA, carbon, 35 mm, 27.5 mm rise, 800 mm width
|
| *Grips | Size: S, XL, L, M, XXLTrek Line Elite, lock-on |
| *Stem | Size: S, XL, L, M, XXLBontrager Elite, 35 mm, 0-degree, 45 mm length |
| *Brake |
Size: S, XL, L, M, XXL
Shimano XT M8200 4-piston hydraulic disc
|
| *Brake rotor |
Size: S, XL, L, M, XXL
Shimano RT86, 6-bolt, 203 mm
|
|
Size: S, XL, L, M, XXL
Shimano RT86, 6-bolt, 180 mm
|
|
| Rotor size | Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer |
| Weight | M - 15.08 kg / 33.25 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
