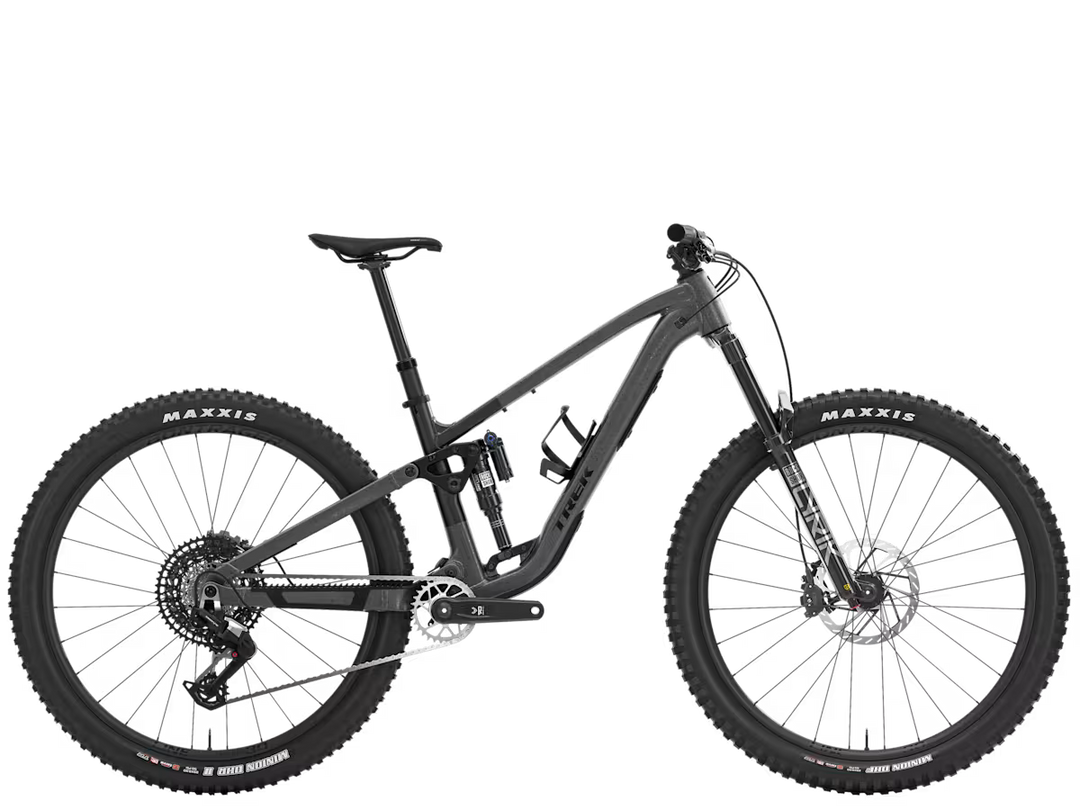

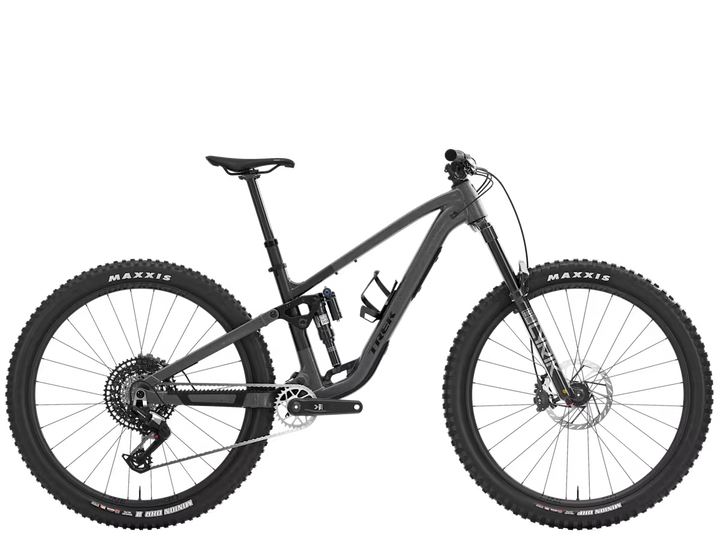

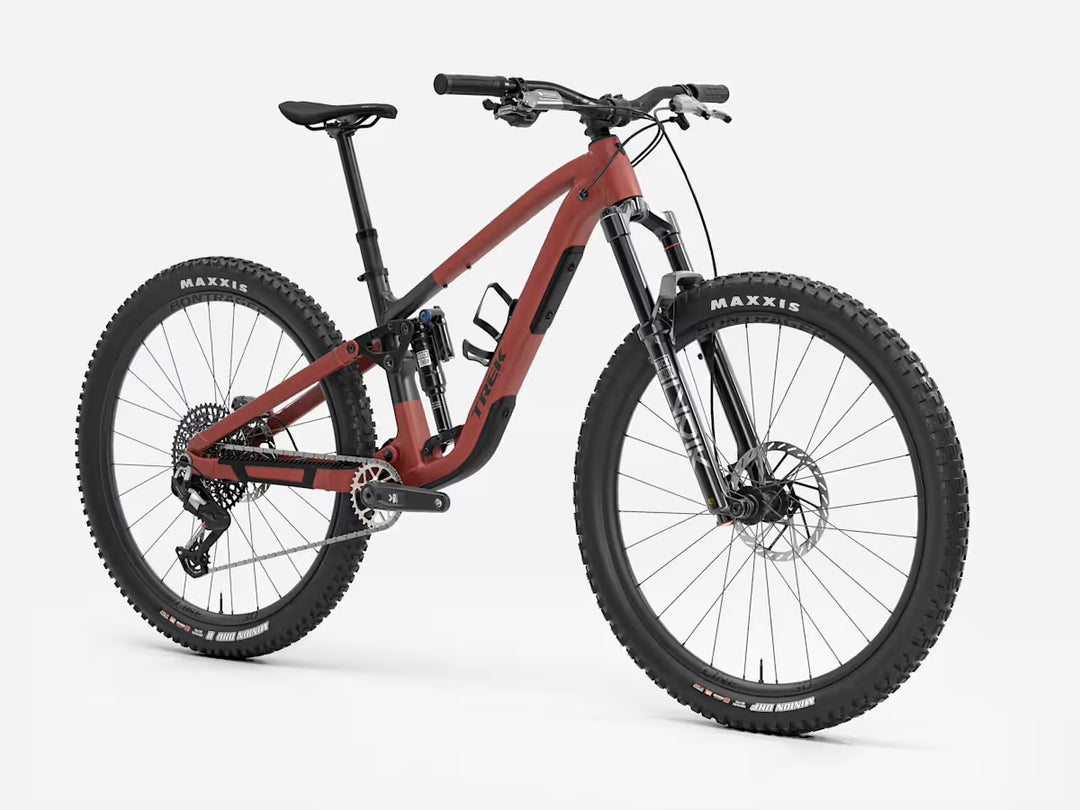

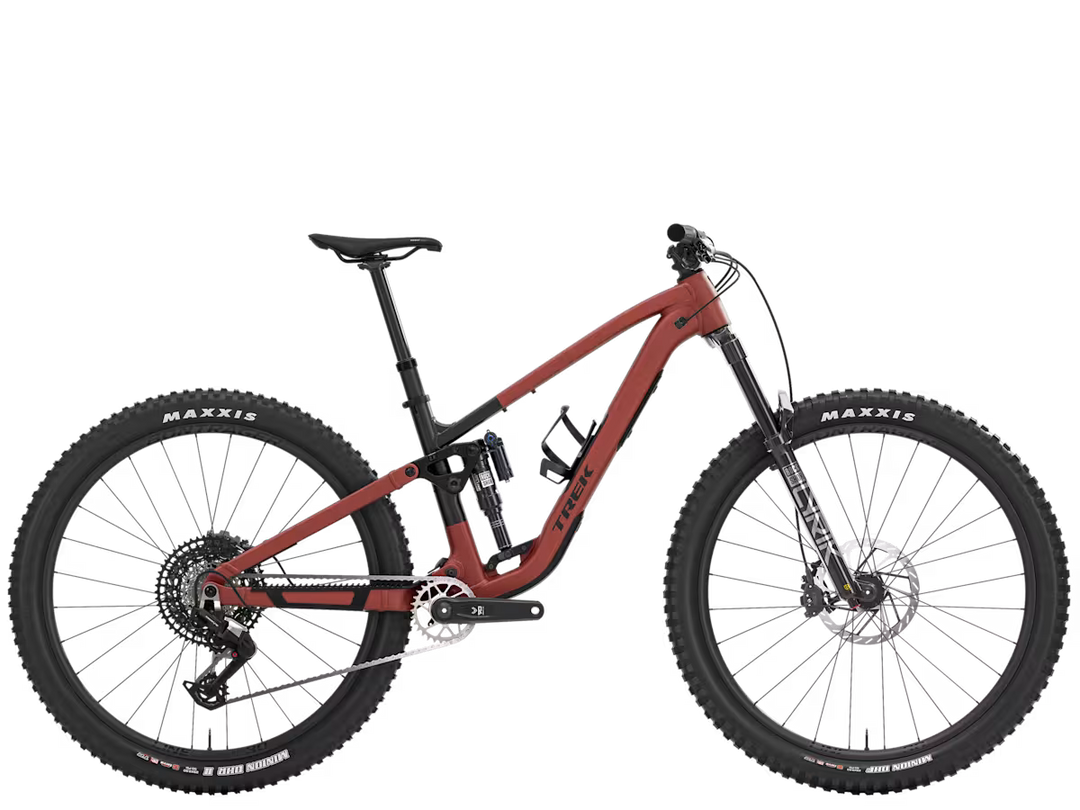

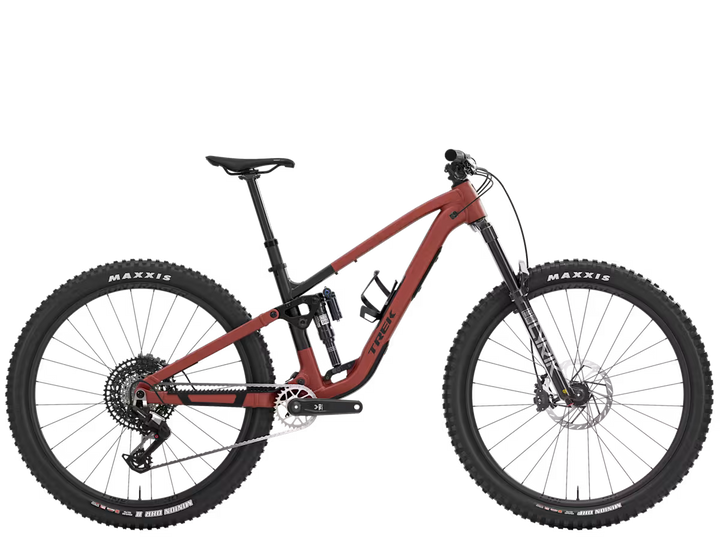

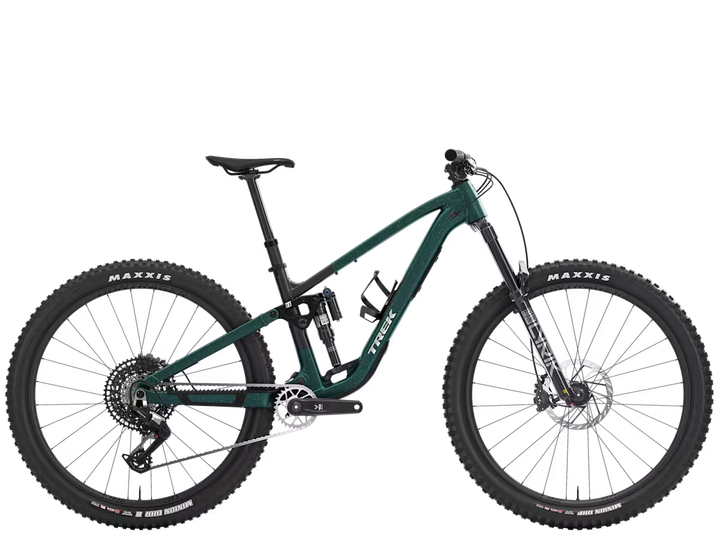

The Fuel EX 9 Eagle 90 is a confident trail bike made to rip into just about anything. It starts with an Alpha NEXT Platinum aluminium frame with a RockShox Lyrik Ultimate fork and Deluxe Ultimate RC2T shock (150 mm front, 145 mm rear) for confident handling on any trail. A SRAM Eagle 90 transmission gives you fuss-free mechanical shifting that stays smooth under load, while SRAM Maven Bronze 4-piston brakes deliver incredible power for quick stops after steep descents.
| *Frame |
Size: S, XL, L, M
Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
|
|---|---|
| *Fork |
Size: S, XL, L, M
RockShox Lyrik Ultimate, DebonAir+ w/ ButterCups, Charger 3.1 RC damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel
|

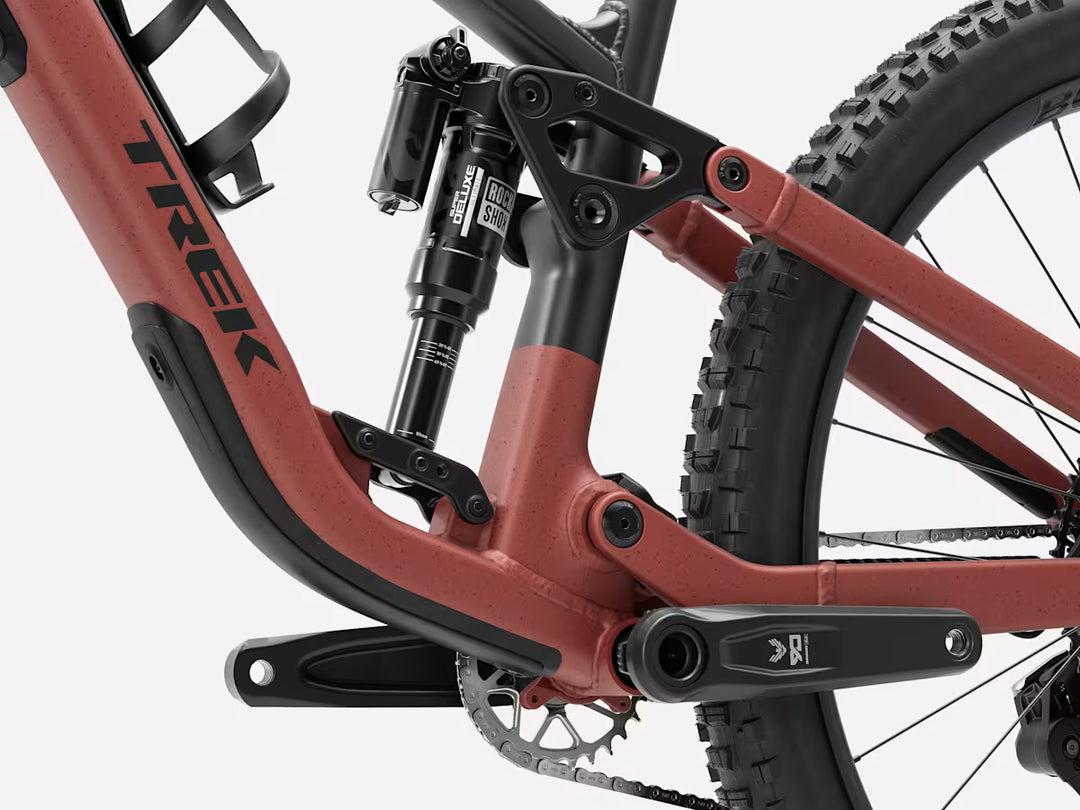

| *Shock |
Size: S, XL, L, M
RockShox Deluxe Ultimate RC2T, 205 mm x 60 mm
|
| *Wheel front | Size: S, XL, L, MBontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" |
|---|---|
| *Wheel rear | Size: SBontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12 mm thru axle, 27.5'' |
| Size: XL, L, MBontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12 mm thru axle, 29'' | |
| *Skewer rear | Size: S, XL, L, MBontrager Switch thru-axle, removable lever |
| *Tyre |
Size: S, XL, L, M
Maxxis Minion DHF, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
|
|
Size: S
Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5''
|
|
|
Size: XL, L, M
Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
|
|
| *Tyre part |
Size: S, XL, L, M
Bontrager TLR sealant, 180 ml/6 oz
|
| Max tyre size | Frame: 29x2.50", Fork: See manufacturer |
| *Shifter |
Size: S, XL, L, M
SRAM Eagle 90, 12-speed
|
|---|---|

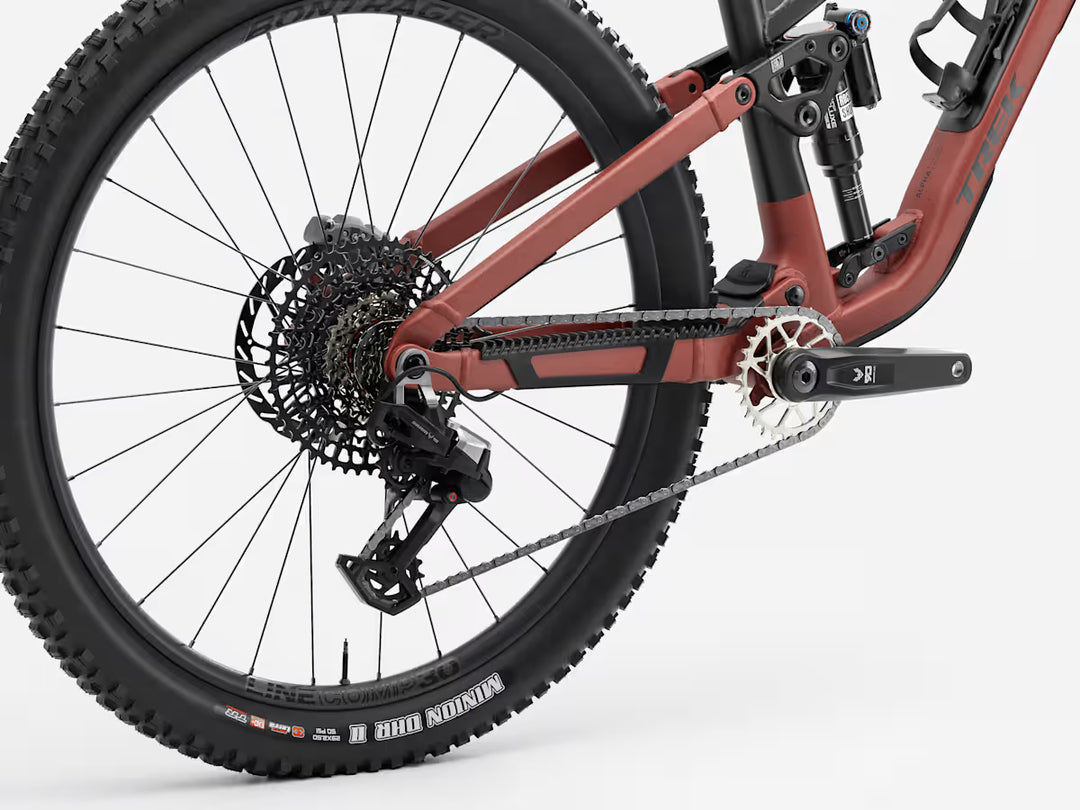

| *Rear derailleur |
Size: S, XL, L, M
SRAM Eagle 90, T-Type
|
| *Crank |
Size: S, XL, L, M
SRAM Eagle 90, DUB, 30T steel, T-Type, 55 mm chainline, 170 mm length
|
| *Bottom bracket |
Size: S, XL, L, M
SRAM DUB MTB Wide, 73 m, BSA threaded
|
| *Cassette |
Size: S, XL, L, M
SRAM Eagle XS-1275, T-Type, 10-52, 12-speed
|
| *Chain |
Size: S, XL, L, M
SRAM GX Eagle, T-Type, 12-speed
|
| Max. chainring size | Max: 34T (oval – 32T) Min: 30T (oval – 32T) |
| *Saddle | Size: S, XL, L, MVerse Short Comp, steel rails, 145 mm width |
|---|---|
| *Seatpost | Size: SBontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length |
| Size: MBontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length | |
| Size: XL, LBontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length | |
| *Handlebar |
Size: S, XL, L, M
Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width
|
| *Grips | Size: S, XL, L, MTrek Line Elite, lock-on |
| *Stem | Size: S, XL, L, MBontrager Elite, 35 mm, 0-degree, 45 mm length |
| *Brake |
Size: S, XL, L, M
SRAM Maven Bronze 4-piston hydraulic disc
|
| *Brake rotor |
Size: S, XL, L, M
SRAM HS2, 6-bolt, 180mm
|
|
Size: S, XL, L, M
SRAM HS2, 6-bolt, 200mm
|
|
| Rotor size | Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer |
| Weight | M - 16.58 kg / 36.56 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
