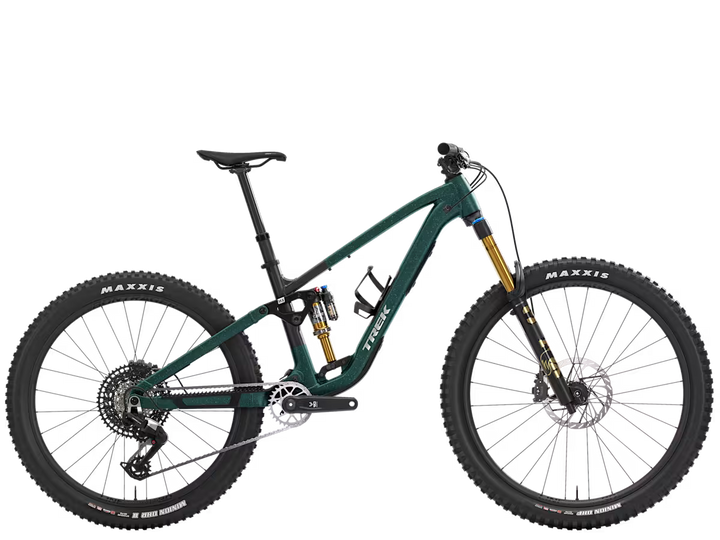

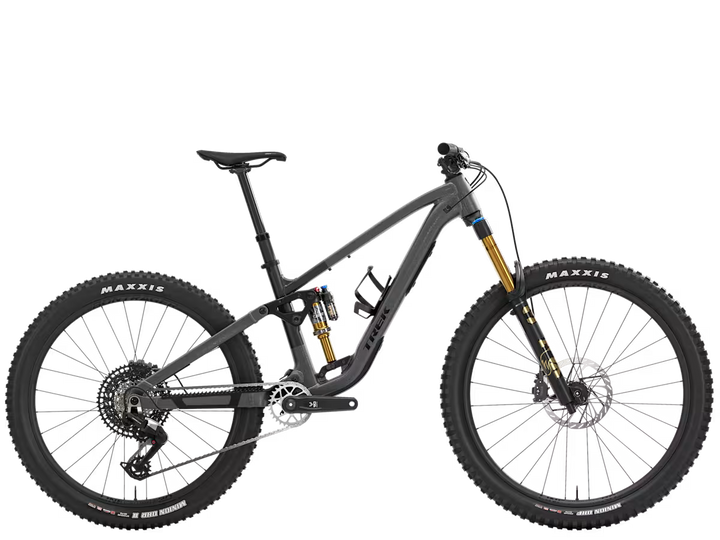

The Fuel MX 9 Eagle 90 is a playful trail bike made for hunting down side hits. Its Alpha NEXT Platinum aluminium frame it paired with a Fox Factory suspension package (150 mm rear, 160 mm front) and MX wheels for a ride that's flickable and zippy. It comes ready to rip with a fuss-free SRAM Eagle 90 mechanical transmission that keeps shifts smooth under load and SRAM Maven Bronze 4-piston brakes for stopping power.
| *Frame |
Size: S, XL, L, M
Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
|
|---|---|
| *Fork |
Size: S, XL, L, M
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 160 mm travel
|
| *Shock |
Size: S, XL, L, M
Fox Factory Float X, 205 mm x 60 mm
|
| *Wheel front | Size: S, XL, L, MBontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" |
|---|---|
| *Wheel rear | Size: S, XL, L, MBontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12 mm thru axle, 27.5'' |
| *Skewer rear | Size: S, XL, L, MBontrager Switch thru-axle, removable lever |
| *Tyre |
Size: S, XL, L, M
Maxxis Assegai, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
|
|
Size: S, XL, L, M
Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5''
|
|
| *Tyre part |
Size: S, XL, L, M
Bontrager TLR sealant, 180 ml/6 oz
|
| Max tyre size | Frame: 29x2.50", Fork: See manufacturer |
| *Shifter |
Size: S, XL, L, M
SRAM Eagle 90, 12-speed
|
|---|---|
| *Rear derailleur |
Size: S, XL, L, M
SRAM Eagle 90, T-Type
|
| *Crank |
Size: S, XL, L, M
SRAM Eagle 90, DUB, 30T steel, T-Type, 55 mm chainline, 170 mm length
|
| *Bottom bracket |
Size: S, XL, L, M
SRAM DUB MTB Wide, 73 m, BSA threaded
|
| *Cassette |
Size: S, XL, L, M
SRAM Eagle XS-1275, T-Type, 10-52, 12-speed
|
| *Chain |
Size: S, XL, L, M
SRAM GX Eagle, T-Type, 12-speed
|
| Max. chainring size | Max: 34T (oval – 32T) Min: 30T (oval – 32T) |
| *Saddle | Size: S, XL, L, MVerse Short Comp, steel rails, 145 mm width |
|---|---|
| *Seatpost | Size: SBontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length |
| Size: MBontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length | |
| Size: XL, LBontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length | |
| *Handlebar |
Size: S, XL, L, M
Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width
|
| *Grips | Size: S, XL, L, MTrek Line Elite, lock-on |
| *Stem | Size: S, XL, L, MBontrager Elite, 35 mm, 0-degree, 45 mm length |
| *Brake |
Size: S, XL, L, M
SRAM Maven Bronze 4-piston hydraulic disc
|
| *Brake rotor |
Size: S, XL, L, M
SRAM HS2, 6-bolt, 180mm
|
|
Size: S, XL, L, M
SRAM HS2, 6-bolt, 200mm
|
|
| Rotor size | Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer |
| Weight | M - 16.78 kg / 37 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
