Name: Trek Rail 9.5 Gen 4 2024
Brand: Trek
SKU: 5303032
Price: 3795.00 GBP
Availability: InStock

£6,900.00 £3,795.00 Save 45%

Size

Small

Colour

Black Olive

Found a better deal? Click here for our Price Match Promise.

View our shipping information Here.

Not sure what Motor suits your E-Bike needs? Click Here to see our in-depth, yet easy to understand guide to help you figure out which motor is the best for you!

[{"id":43833892274350,"title":"Small \/ Black Olive","option1":"Small","option2":"Black Olive","option3":null,"sku":"5303032","requires_shipping":true,"taxable":true,"featured_image":{"id":33663595905198,"product_id":7945688318126,"position":1,"created_at":"2023-03-23T16:44:34+00:00","updated_at":"2023-03-23T16:44:35+00:00","alt":null,"width":1920,"height":1440,"src":"\/\/www.allridenow.co.uk\/cdn\/shop\/products\/Rail95_23_41679_A_Primary.jpg?v=1679589875","variant_ids":[43833892274350]},"available":true,"name":"Trek Rail 9.5 Gen 4 2024 - Small \/ Black Olive","public_title":"Small \/ Black Olive","options":["Small","Black Olive"],"price":379500,"weight":0,"compare_at_price":690000,"inventory_quantity":20,"inventory_management":"shopify","inventory_policy":"deny","barcode":"601479125807","featured_media":{"alt":null,"id":26039489396910,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1440,"width":1920,"src":"\/\/www.allridenow.co.uk\/cdn\/shop\/products\/Rail95_23_41679_A_Primary.jpg?v=1679589875"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

{"id":43833892274350,"title":"Small \/ Black Olive","option1":"Small","option2":"Black Olive","option3":null,"sku":"5303032","requires_shipping":true,"taxable":true,"featured_image":{"id":33663595905198,"product_id":7945688318126,"position":1,"created_at":"2023-03-23T16:44:34+00:00","updated_at":"2023-03-23T16:44:35+00:00","alt":null,"width":1920,"height":1440,"src":"\/\/www.allridenow.co.uk\/cdn\/shop\/products\/Rail95_23_41679_A_Primary.jpg?v=1679589875","variant_ids":[43833892274350]},"available":true,"name":"Trek Rail 9.5 Gen 4 2024 - Small \/ Black Olive","public_title":"Small \/ Black Olive","options":["Small","Black Olive"],"price":379500,"weight":0,"compare_at_price":690000,"inventory_quantity":20,"inventory_management":"shopify","inventory_policy":"deny","barcode":"601479125807","featured_media":{"alt":null,"id":26039489396910,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1440,"width":1920,"src":"\/\/www.allridenow.co.uk\/cdn\/shop\/products\/Rail95_23_41679_A_Primary.jpg?v=1679589875"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

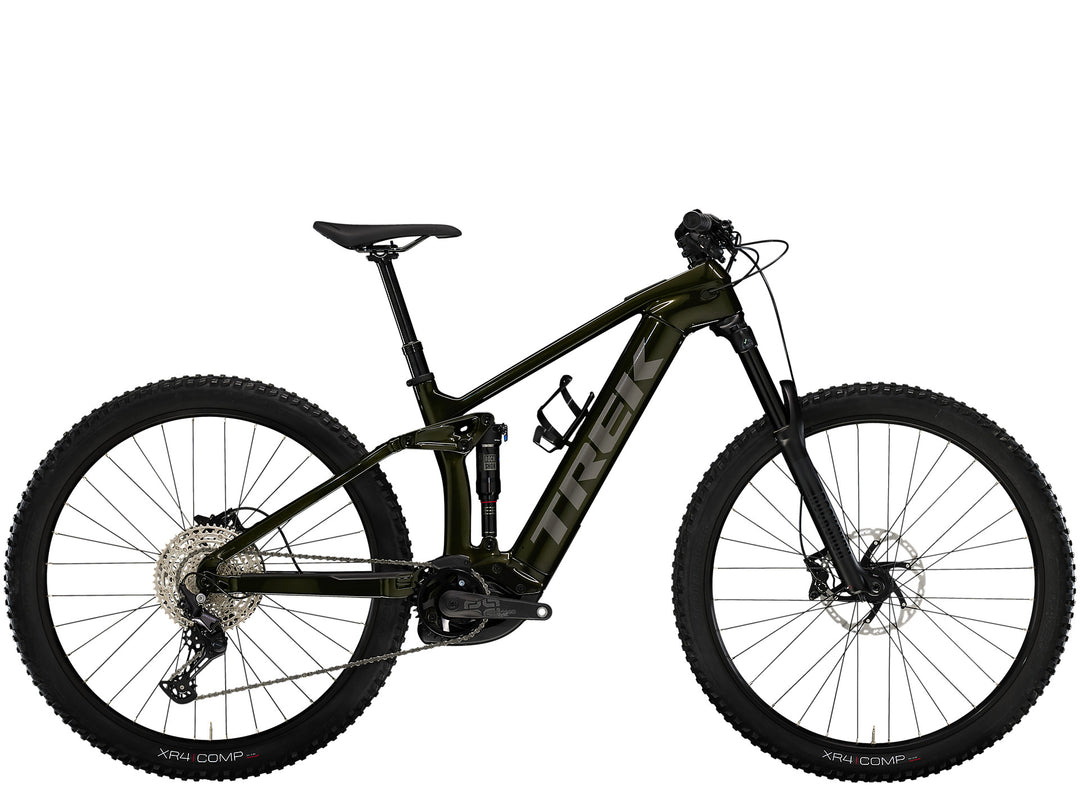

The Rail 9.5 is a carbon electric mountain bike with long-travel suspension. It features an upgraded frame with longer reach for serious stability on the trail, and a suspension set-up and parts worthy of the gnarliest enduro laps. The powerful Bosch smart system motor will get you back up the mountain faster than you ever thought possible, and the huge 750 Wh battery makes the laps feel endless.

You're looking for a long-travel e-MTB that gives you a serious power boost without holding you back from hitting the techy terrain and big drops you love. You want to spend your cash on a carbon frame and worry about upgrading components later.

An OCLV Mountain Carbon frame with a 750 Wh Removable Integrated Battery, a super-responsive 160 mm RockShox 35 Gold RL fork with DebonAir spring, Motion Control damper and lockouts, a 150 mm RockShox Deluxe+ Select shock, the latest from Bosch with smart system Performance Line CX capable of speeds up to 20 mph (25 km/h in Europe), including a Bluetooth® LED remote for easy connectivity and activity tracking through the eBike Flow app. A Shimano Deore 12-speed drivetrain with an extra-low 52-tooth climbing gear.

The Rail 9.5 is the go-to if you want a carbon ride, and are happy to upgrade the part as you go. It keeps the price down with a Shimano Deore drivetrain, but upgrades things that matter most, like a frame with longer reach and extra stability. If you're looking for an e-MTB built to rip and upgrade over time, look no further.

Frame	OCLV Mountain Carbon main frame, 1.8'' lower head tube, Bosch System Controller-compatible, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9 mm seat tube, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru-axle, 150 mm travel
Fork	RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel
Shock	RockShox Deluxe Select+ RT, 230 mm x 57.5 mm
Max compatible fork travel	170 mm (580 mm axle-to-crown)

Hub front	Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear	Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
Skewer rear	Bontrager Switch thru-axle, removable lever
Rim	Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
Tyre	Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
Max tyre size	Frame: 29x2.60" Fork: See manufacturer

Shifter	Shimano Deore M6100, 12-speed
Rear derailleur	Shimano Deore M6100, long cage
Crank	Ethirteen Espec Plus, 165 mm length
Chainring	Ethirteen Espec, 34T alloy, 55 mm chainline
Cassette	SunRace CSMZ800 11-51, 12 speed
Chain	Shimano Deore M6100
Pedal	Wellgo VPE-536
Max. chainring size	34T

Saddle	Bontrager Arvada, steel rails, 138 mm width
*Seatpost	Size: S TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length
	Size: M TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length
	Size: L, XL TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length
Handlebar	Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips	Bontrager XR Trail Comp, nylon lock-on
Stem	Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
*Brake	Size: S, M, L, XL Tektro HD-M745 hydraulic disc
*Brake	Size: S, M, L, XL Tektro HD-M745 4-piston hydraulic disc
Brake rotor	Tektro, 6-bolt, 203 mm
Rotor size	Max brake rotor sizes: Front see fork manufacturer, rear 200 mm

*Battery	Size: S Bosch PowerTube 625Wh, smart system
*Battery	Size: M, L, XL Bosch PowerTube 750Wh, smart system
Charger	Bosch standard 4A, 230V, smart system
Motor	Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
Computer	Bosch LED remote, smart system

Weight	M – 25.35 kg/55.89 lb

Trek Rail 9.5 Gen 4 2024

It's right for you if...

The tech you get

The final word

Specifications
