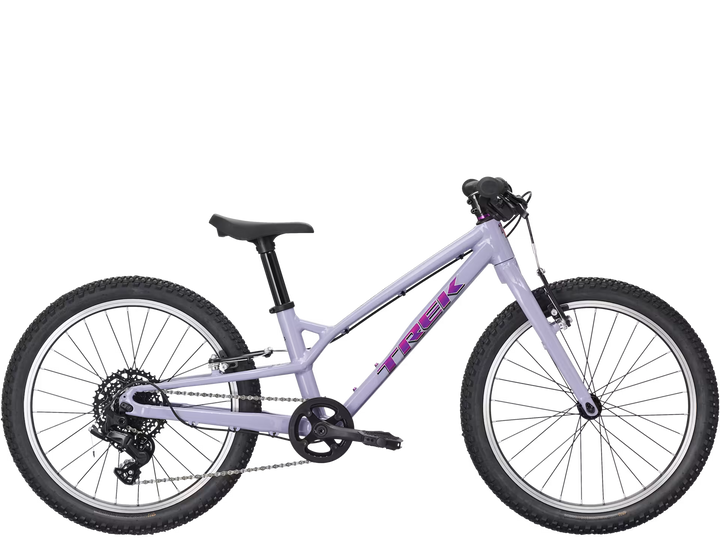

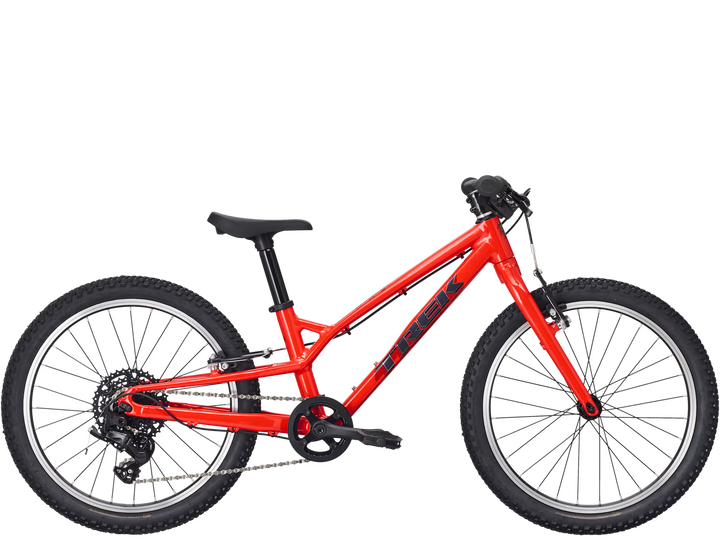

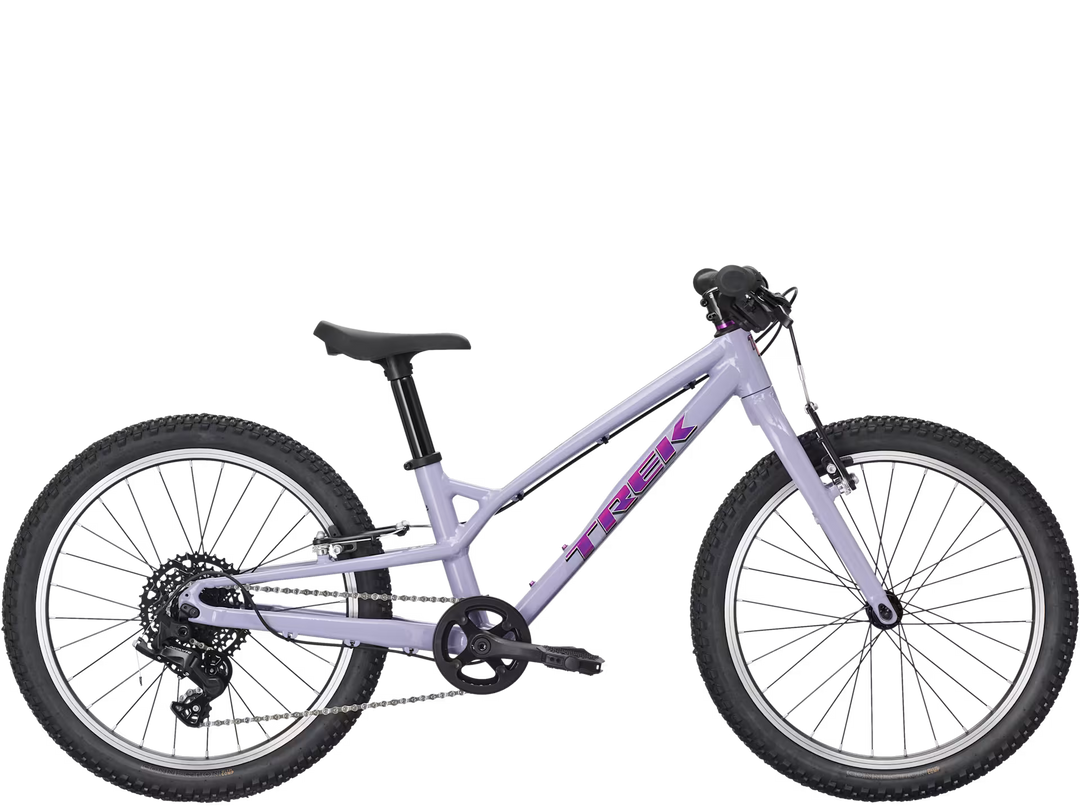

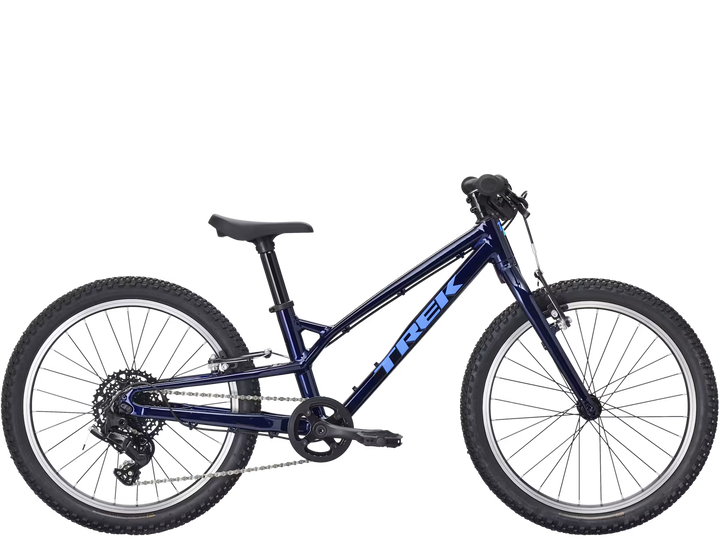

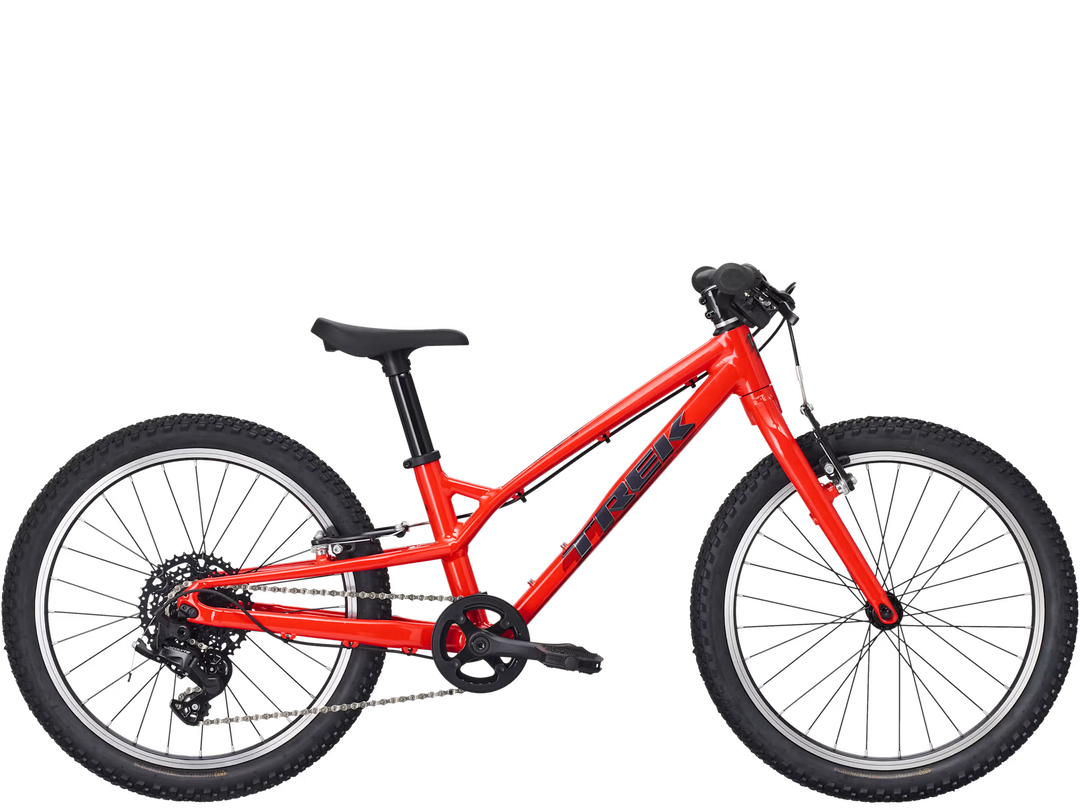

The Wahoo 20 Path is a lightweight kids' bike that’s ready to roll from city parks to greenways and beyond while your mini-me builds confidence and skills. It’s built with a sturdy aluminium frame that holds up to their bumps and jumps and wide, smooth tyres that help them carry speed on pavement without sacrificing grip. Plus, they get 8 gears to shift through as they work their way up big hills and rim brakes to slow their roll on the way back down. Fit for riders 114–132 cm tall.
| *Frame |
Size: 20" wheel
Alpha Silver Aluminium, 20"
|
|---|---|
| *Fork |
Size: 20" wheel
Wahoo 20" alloy, V-brake bosses, ThruSkew 5 mm QR
|
Wheels
| *Front Hub |
Size: 20" wheel
Formula alloy, 100 mm
|
|---|---|
| *Front Skewer | Size: 20" wheel135x5 mm bolt-on |
| *Rear Hub |
Size: 20" wheel
Formula FM32 alloy, 135x5 mm
|
| *Rear Skewer | Size: 20" wheel169x5 mm bolt-on |
| *Rim |
Size: 20" wheel
Alloy 20", 28 h
|
| *Tire |
Size: 20" wheel
Bontrager Connection Comp, wire bead, 30 tpi, 20x2.00"
|
| Max tyre size | 20x2.40" without mudguards, 20x2.20" with mudguards |
Drivetrain
| *Shifter | Size: 20" wheelmicroSHIFT Acolyte SL-M6285, 8-speed |
|---|---|
| *Rear Derailleur | Size: 20" wheelmicroSHIFT Acolyte M5180S, 34-38T max cog |
| *Crank | Size: 20" wheelAlloy, 28T steel ring, chainguard, 114 mm length |
| *Bottom Bracket |
Size: 20" wheel
Sealed cartridge, 68 mm
|
| *Cassette | Size: 20" wheelmicroSHIFT Acolyte H083, 11-38, 8-speed |
| *Chain |
Size: 20" wheel
KMC Z8
|
| *Pedal | Size: 20" wheelKids' Satellite, 9/16 thread |
Components
| *Saddle |
Size: 20" wheel
Kids' padded, integrated seat post, Blendr light mount, 31.6x230 mm
|
|---|---|
| *Handlebar |
Size: 20" wheel
Bontrager Approved, alloy, 31.8 mm, 15 mm rise, 560 mm width
|
| *Grips |
Size: 20" wheel
Kids' grip, 108 mm width
|
|
Size: 20" wheel
Kids' grip, 110 mm width
|
|
| *Stem | Size: 20" wheelBontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
| *Headset | Size: 20" wheelIntegrated, sealed cartridge bearings |
| *Brake |
Size: 20" wheel
Alloy linear-pull
|
| *Brake Lever |
Size: 20" wheel
Kids' alloy brake lever, black
|
Weight
| Weight | 8.75 kg / 19.3 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider,and cargo) of 36 kg (80 lb). |
