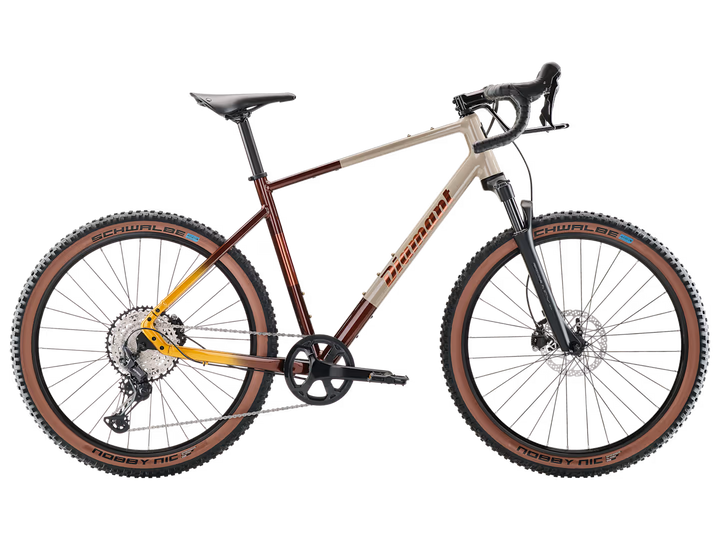

Our movement is free-time. And this bike is built to move free. The Diamant 140 uses our newest, most versatile frame to truly stand out and to inspire you. We give you a tool to go out and play, ride the way you always wanted, ride where you always wanted, and for as long as your fun lasts. Escape your boundaries. Escape this planet - why not ride the moon? It's the only right way to celebrate our 140th birthday. We've stripped this adventure gravel bike down to the essentials, but fear not: It can be fitted with anything you need or want.
| Frame | Alpha Smooth Aluminum, internal cable routing, post-mount disc, replaceable dropouts, belt split, ringlock mount |
|---|---|
| Fork | SR Suntour NCX32, coil spring, 75 mm suspension |
Wheels
| Hub front | Shimano Tourney HB-QC300, centerlock |
|---|---|
| Hub rear | Shimano FH-QC500-MS, 32-hole, CentreLock, 12-speed, 135x5 mm QR |
| Rim | Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Schwalbe Nobby Nic with bronze sidewall, foldable, Tubeless Easy, Evolution Line, Super Ground Compound, 62-584, 27.5" x 2.4" |

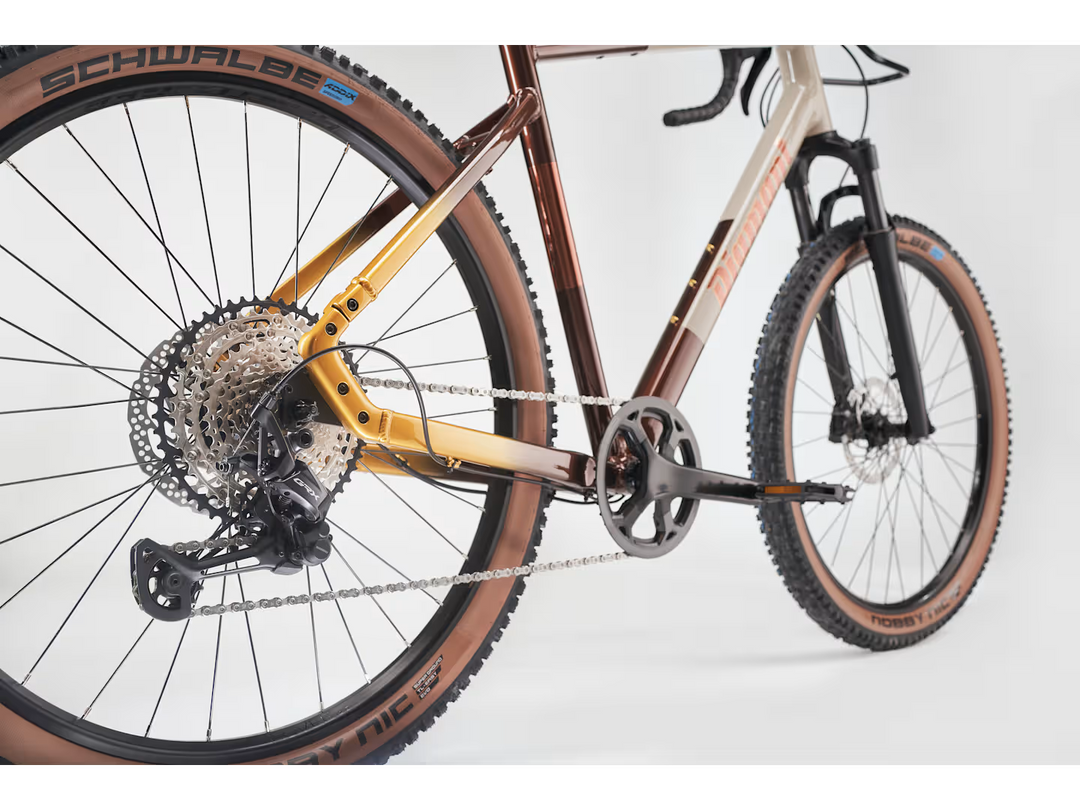

Drivetrain
| Shifter | Shimano GRX RX822 |
|---|---|
| Rear derailleur | Shimano GRX RX822, long cage |
| Crank | ProWheel alloy, 42T, 175 mm |
| Bottom bracket | Sealed cartridge, 68 mm |
| Cassette | Shimano SLX M7100, 10-51T, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Pedal | VP-536 nylon platform |
Components

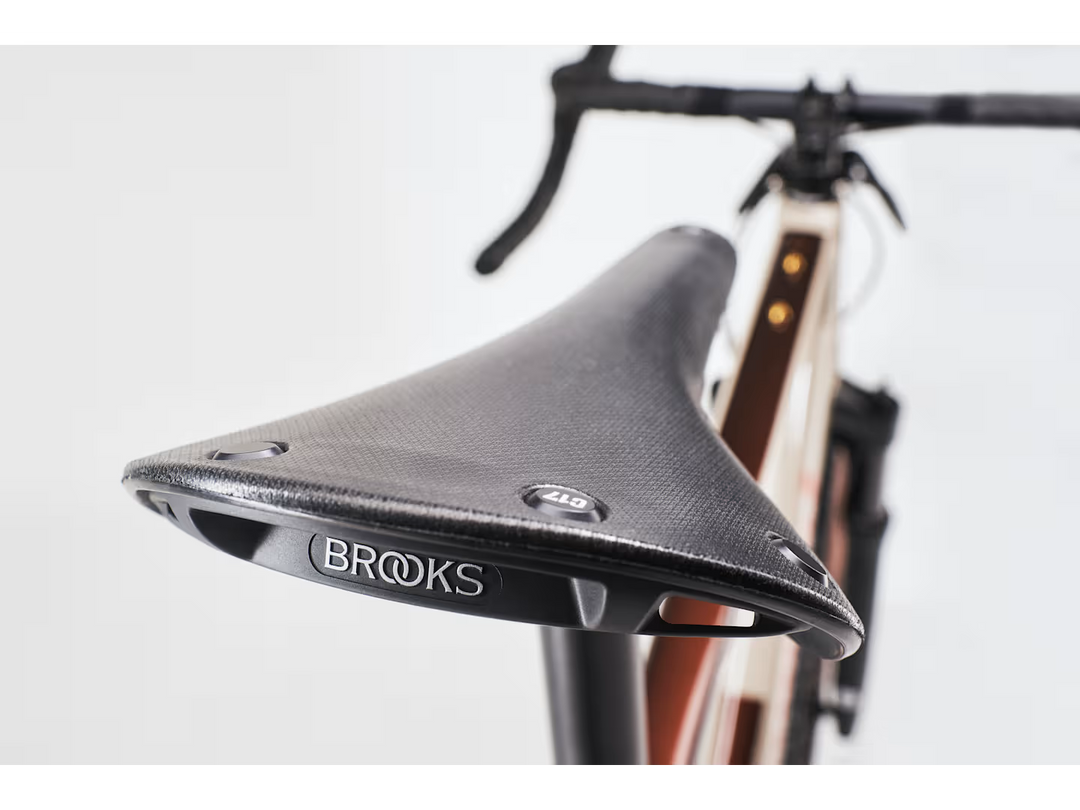

| Saddle | Brooks C17 Cambium Bold |
|---|---|
| Seatpost | Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
| Handlebar | |
| Handlebar Tape | Brooks Cambium rubber bar tape |
| *Stem |
Size: M Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: L
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
|
|
Size: XL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
|
|
| Brake | Shimano GRX RX610 brake shift lever with hydraulic disc GRX RX410 |
| Brake rotor | Shimano RT30, CentreLock, 180 mm |
Accessories
| *Light | N/A |
|---|---|
| N/A | |
| Kickstand | N/A |

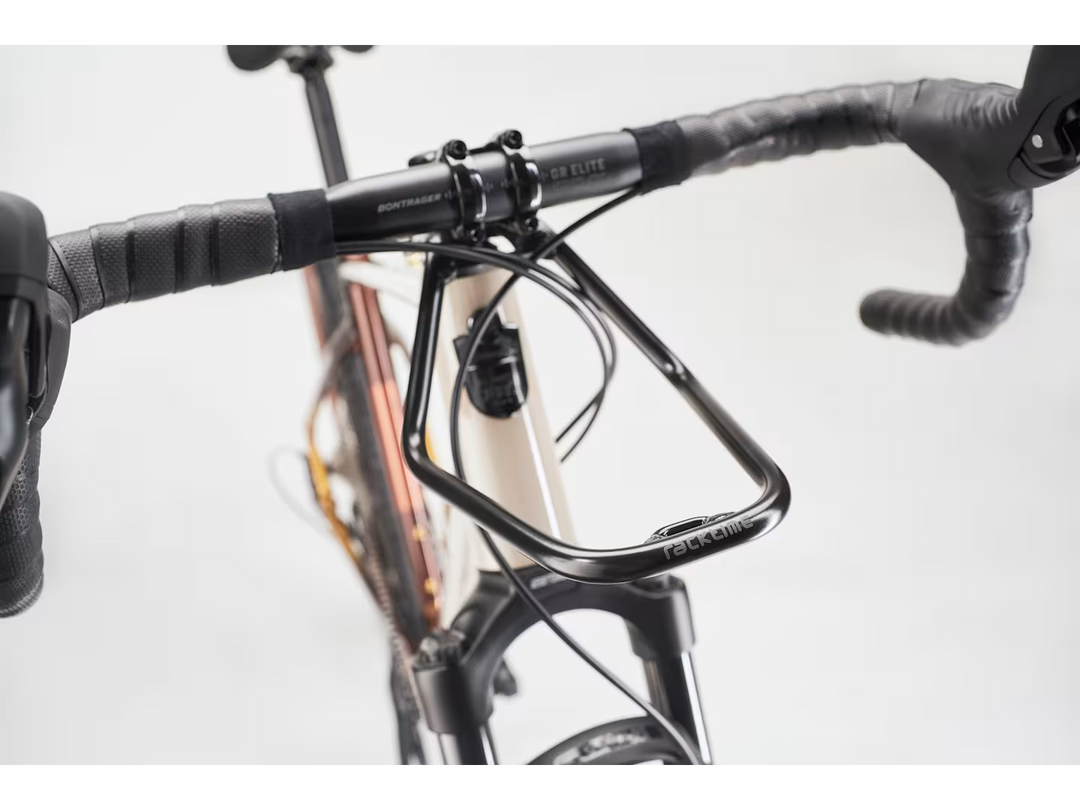

| Cargo rack | Racktime Viewit |
| *Mudguard | N/A |
| N/A |
Weight
| Weight | L - 14.70 kg / 32.41 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
