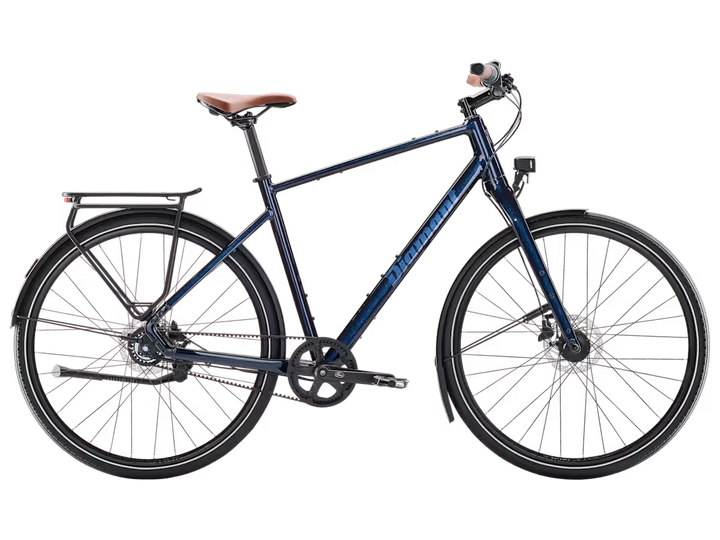

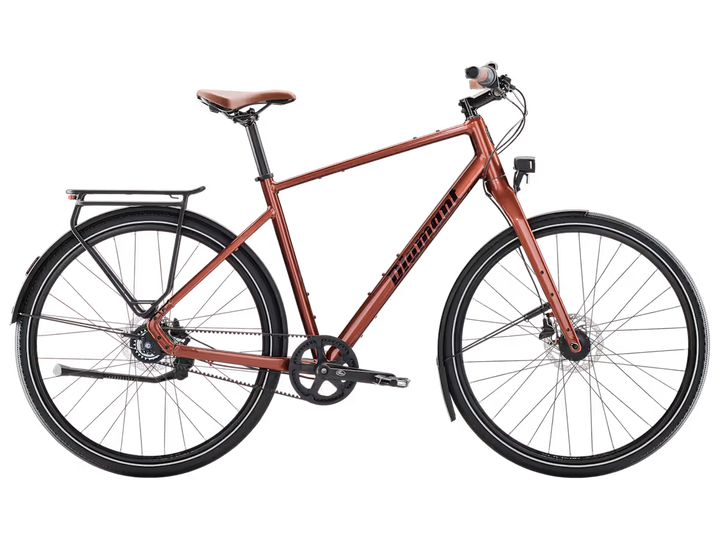

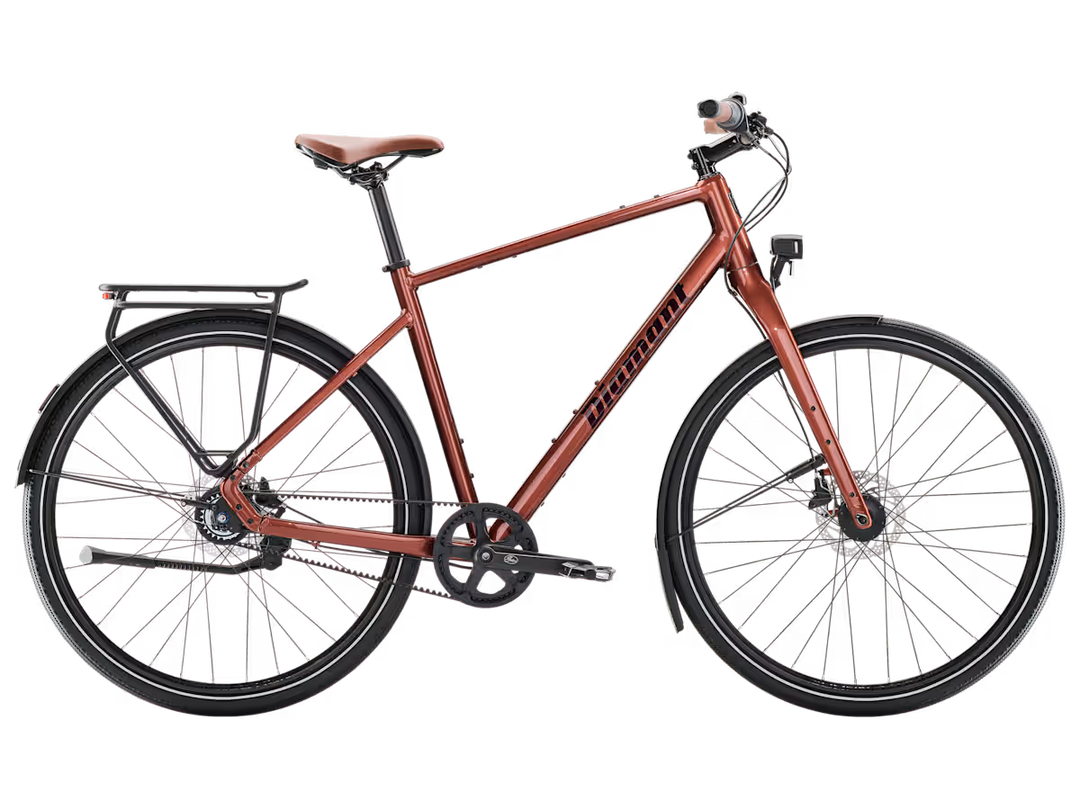

The Mahon is based on our Clever-Frame technology. This allows us to offer a variety of options with just one frame. Each Mahon is a complete trekking® bike for sporty riders that you can easily customize and upgrade. As Style Plus, the Mahon stands out with its particularly clean, modern look featuring a low-maintenance belt drive, weather-resistant hub gear, and the Clever Rack by Diamant.
| Frame | Alpha Smooth Aluminum, internal cable routing, post-mount disc, replaceable dropouts, belt split, ringlock mount |
|---|---|
| Fork | Alloy disc touring with accessory mounts, 100x5 mm ThruSkew |
Wheels
| Hub front | Shimano 3.0 watt dynamo hub |
|---|---|

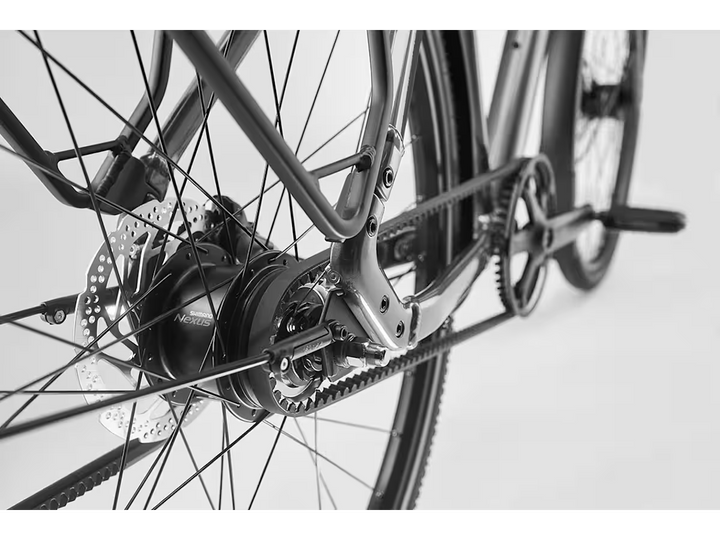

| Hub rear | Shimano Nexus, 8-speed, internal gear hub |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager Girona Comp, sub tread puncture protection, Black Sidewall, Reflective stripe, 700x42C, made with recycled content |
Drivetrain
| Shifter | Shimano Nexus Revo, 8-speed |
|---|---|
| Rear derailleur | N/A |
| Crank |
Size: M
Gates CDN for Belt, 50T, 170 mm length
|
| Bottom bracket | Sealed cartridge, 68 mm |
| Cassette | Gates CDC CentreTrack, 24T |
| Chain | Gates CDC CenterTrack, 24T |
| Pedal | Bontrager City pedals |
Components
| Saddle | Selle Royal Vivo Moderate Ergo |
|---|---|
| Seatpost | Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
| Handlebar | Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width |
| Grips | Herrmans Clik, ergonomic, lock-on |
| *Stem |
Size: M Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length |
|
Size: L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length Size: XL, XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length |
|
| Brake | Shimano MT200 hydraulic disc |
| Brake rotor | Shimano SM-RT30, CentreLock, 160 mm |
Accessories
| *Light | Spanninga Pimento Large, with stand light function |
|---|---|
| Herrmans Nordic MR5, 100 lumen, LED, with stand light function | |
| Kickstand | Pletscher Comp Flex 40 |
| Cargo rack | Cargo Rack SUV MIK Black |
| *Mudguard | SKS plastic, front |
| SKS plastic, rear |
Weight
| Weight | L - 14.70 kg / 32.41 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
