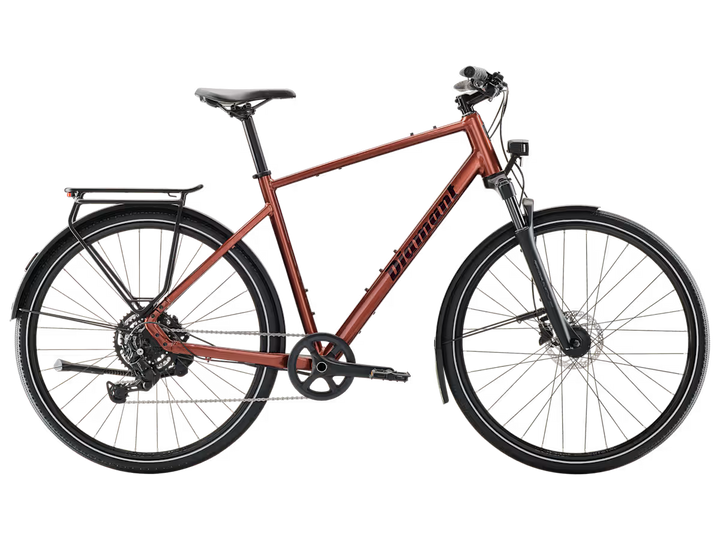

Clever-Frame technology is the universal foundation for every Mahon, the next generation can-do-anything bike. The Mahon Trip Core also benefits from this highly maintenance-friendly frame and the many possibilities to easily replace, upgrade, or add technical components. The complete Clever Rack is part of the standard equipment.
| Frame | Alpha Smooth Aluminum, internal cable routing, post-mount disc, replaceable dropouts, belt split, ringlock mount |
|---|---|
| Fork | SR Suntour NCX32, coil spring, 75 mm suspension |
Wheels
| Hub front | Shimano 3.0 watt dynamo hub |
|---|---|
| Hub rear | Shimano QC400, 32-hole, centerlock, 135x5 mm QR |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager Girona Comp, sub tread puncture protection, Black Sidewall, Reflective stripe, 700x42C, made with recycled content |
Drivetrain
| Shifter | Shimano U4000, 9-speed |
|---|---|

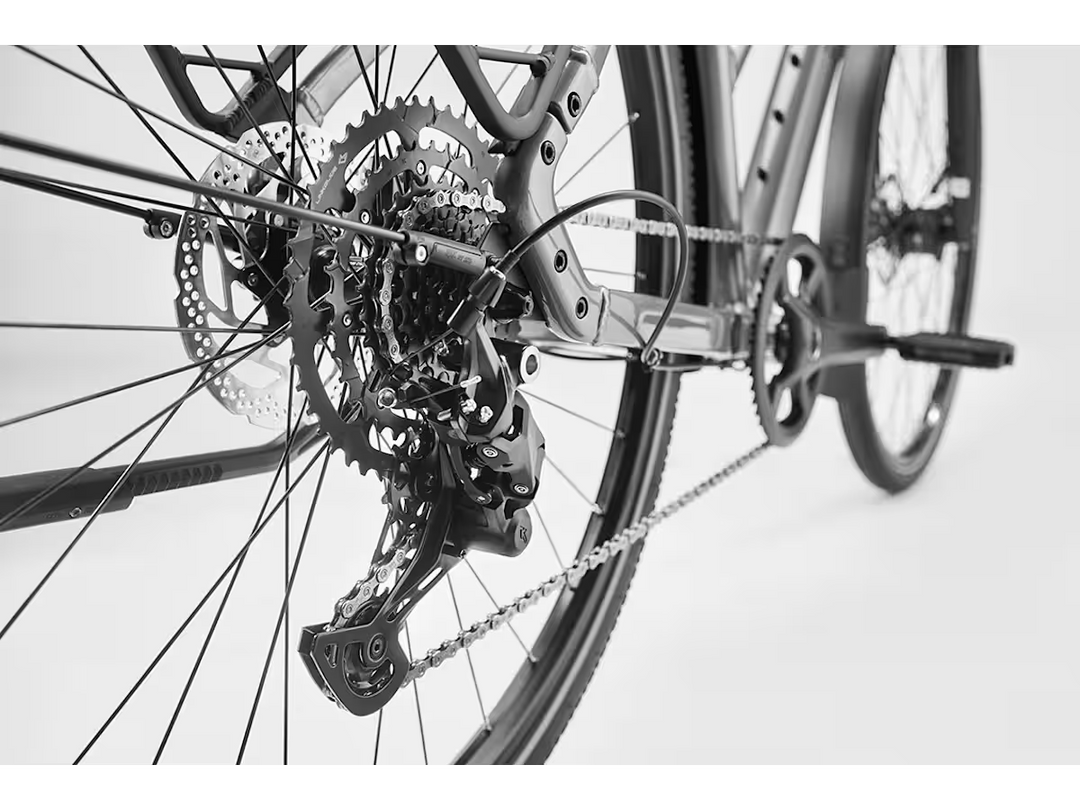

| Rear derailleur | Shimano CUES U4000 |
| Crank |
Size: M
Prowheel alloy, 40T narrow-wide ring, 170 mm length
Size: XL, L
Prowheel alloy, 40T narrow-wide ring, 175 mm length
|
| Bottom bracket | Sealed cartridge, 68 mm |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9-speed |
| Chain | Shimano LG500 |
| Pedal | VP-536 nylon platform |
Components
| Saddle | Bontrager Commuter Comp |
|---|---|
| Seatpost | Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
| Handlebar | Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width |
| Grips | Trek Line Ergonomic Comp, lock-on |
| *Stem |
Size: M Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length |
|
Size: L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length Size: XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length |
|
| Brake | Shimano MT200 hydraulic disc |
| Brake rotor | Shimano SM-RT30, CentreLock, 160 mm |
Accessories

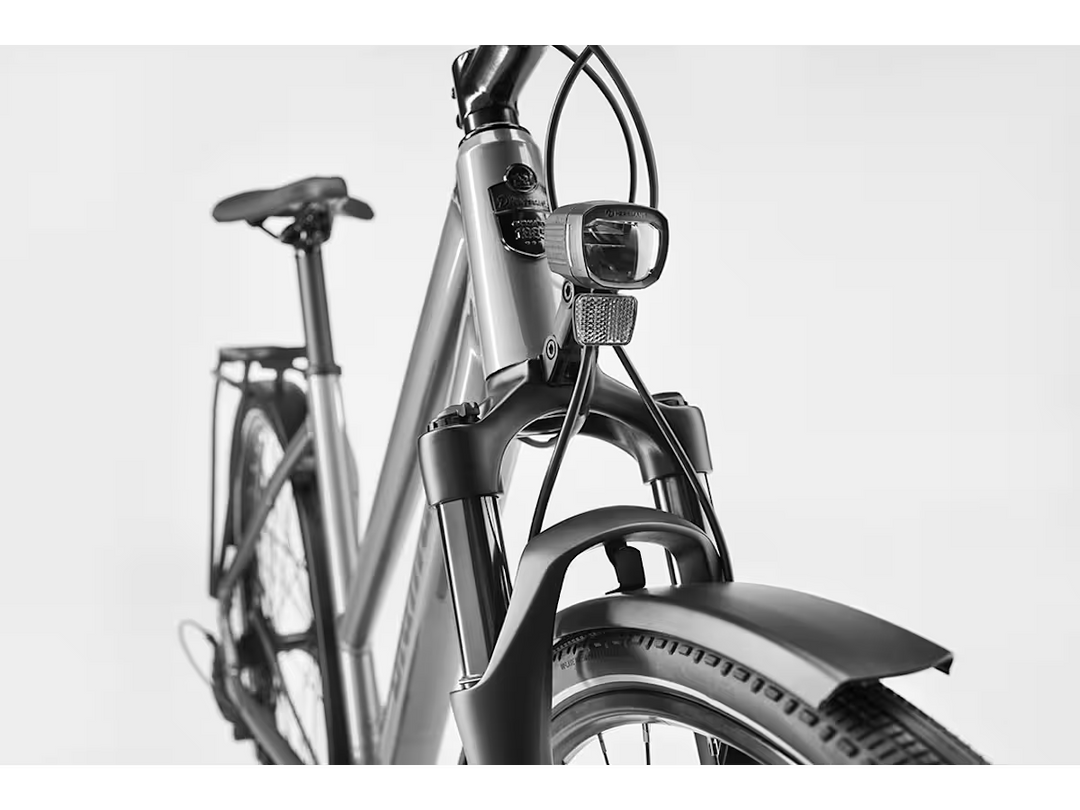

| *Light | Spanninga Pimento Large, with stand light function |
|---|---|
| Herrmans Nordic MR5, 100 lumen, LED, with stand light function | |
| Kickstand | Pletscher Comp Flex 40 |

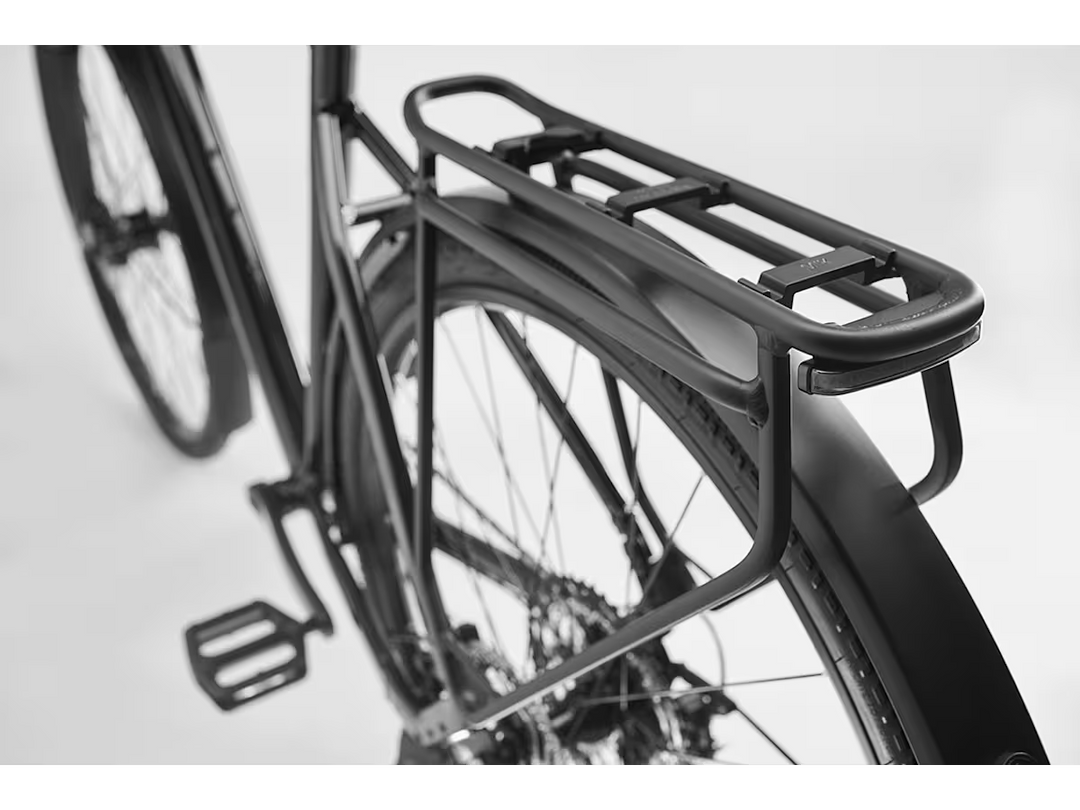

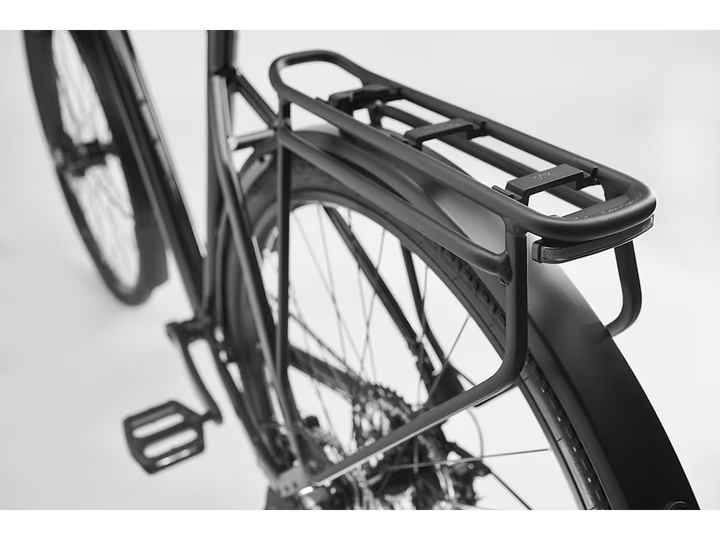

| Cargo rack | Cargo Rack SUV MIK Black |
| *Mudguard | SKS plastic, front |
| SKS plastic, rear |
Weight
| Weight | L - 15.80 kg / 34.84 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
