| Frame | High-performance hydroformed alloy, Smart Routing for cables, UDH dropout, belt split, ringlock mount |
|---|---|
| Fork | SR Suntour Mobie 34, air spring, lockout, 100 mm travel |
Wheels
| Hub front | Shimano TC500 alloy, CentreLock, 110x15 mm thru axle |
|---|---|
| Hub rear | Shimano TC500 alloy, CentreLock, 148x12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve |
| Tyre | Schwalbe Johnny Watts 365, reflective strip, puncture protection, 65-584 |
E-system
| Charger | Bosch standard 4A, 230V, smart system |
|---|---|
| *Computer |
Bosch Kiox 500, smart system |
| Bosch LED remote, smart system | |

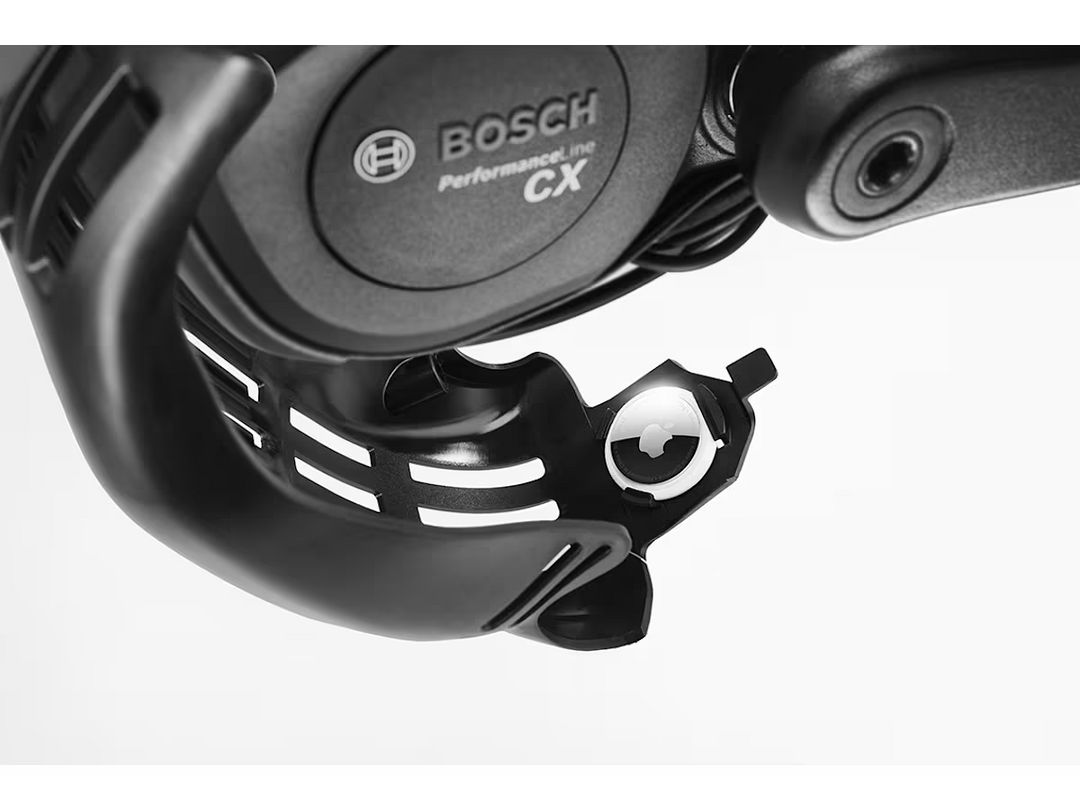

| Motor | Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC) |
Drivetrain
| Shifter | Shimano CUES U6000 w/optical gear display, 10-speed |
|---|---|
| Rear derailleur | Shimano CUES U6000 GS |
| *Crank |
Size: S-M ProWheel alloy, 165mm length
|
|
Size: L-XL ProWheel alloy, 170 mm length |
|
| Chainring | Alloy, with 40T narrow-wide steel ring, alloy guard |
| Cassette | Shimano CUES LG400, LINKGLIDE, 11-48, 10-speed |
| Chain | Shimano LG500, 9/10/11-speed |
| Pedal | VP-536 nylon platform |
Components
| Saddle | Selle Royal Vivo Moderate Ergo |
|---|---|
| *Seatpost | Size: S-M Aluminium with suspension, 300 mm long, with adjustable spring rate |
|
Size: L-XL Aluminium with suspension, 350 mm long, with adjustable spring rate |
|

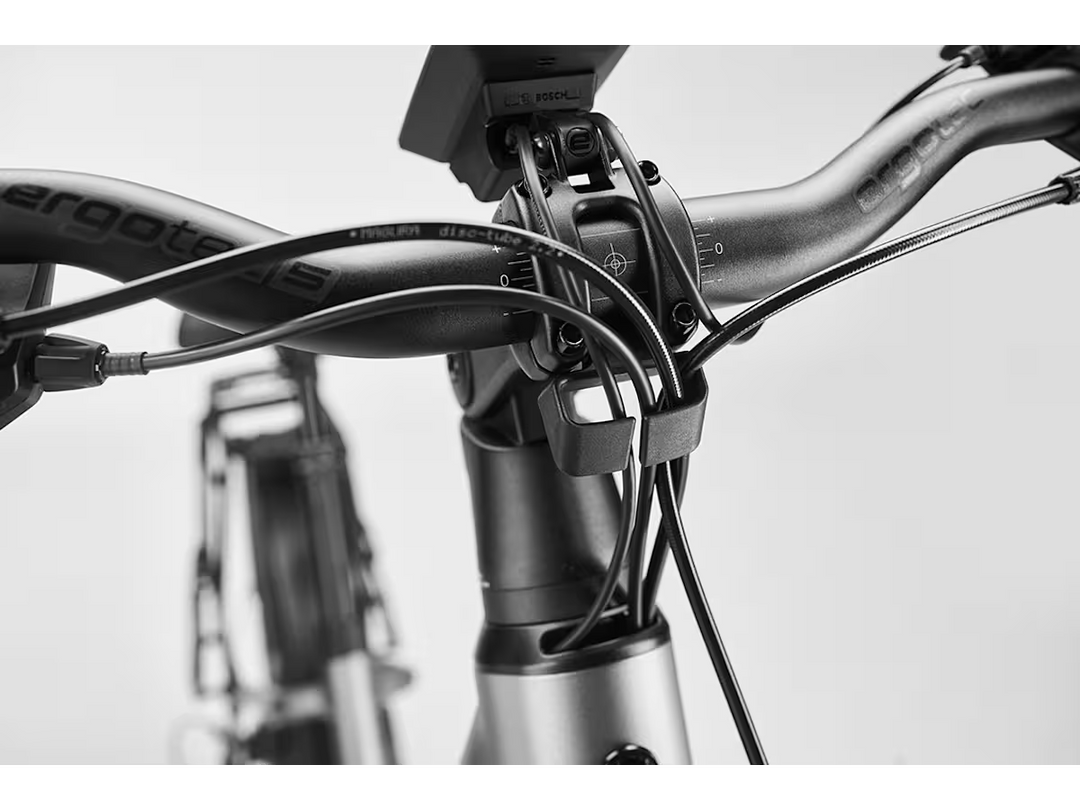

| Handlebar | Ergotec Ergo Series XXL, 31.8 mm, 30 mm rise, 16 degree sweep |
| Grips | Ergotec EG Active Flex, lock on, flex adjustment |
| *Stem | |
| Aluminium, adjustable, 31.8 mm, Blendr-compatible, with display mount | |
| *Brake | Magura MT Thirty, 4-piston hydraulic disc |
| *Brake rotor | Magura MDR-C, 203 mm |
| Magura MDR-C, 203 mm |
Accessories
| *Light | Herrmans H-Black MR5-E, 140 Lumen, 40 Lux, LED, headlight |
|---|---|
| Spanninga Pimento Large, with brake light | |
| Kickstand | Pletscher Comp Flex 18 |
| Cargo rack | Cargorack Diamant Suvea. MIK HD. Compatible with child seats |
| *Mudguard | SKS plastic, rear |
| SKS plastic, front |
Weight
| Weight | S-M - 28.40 kg (600 Wh) / 29.30 kg (800 Wh) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
