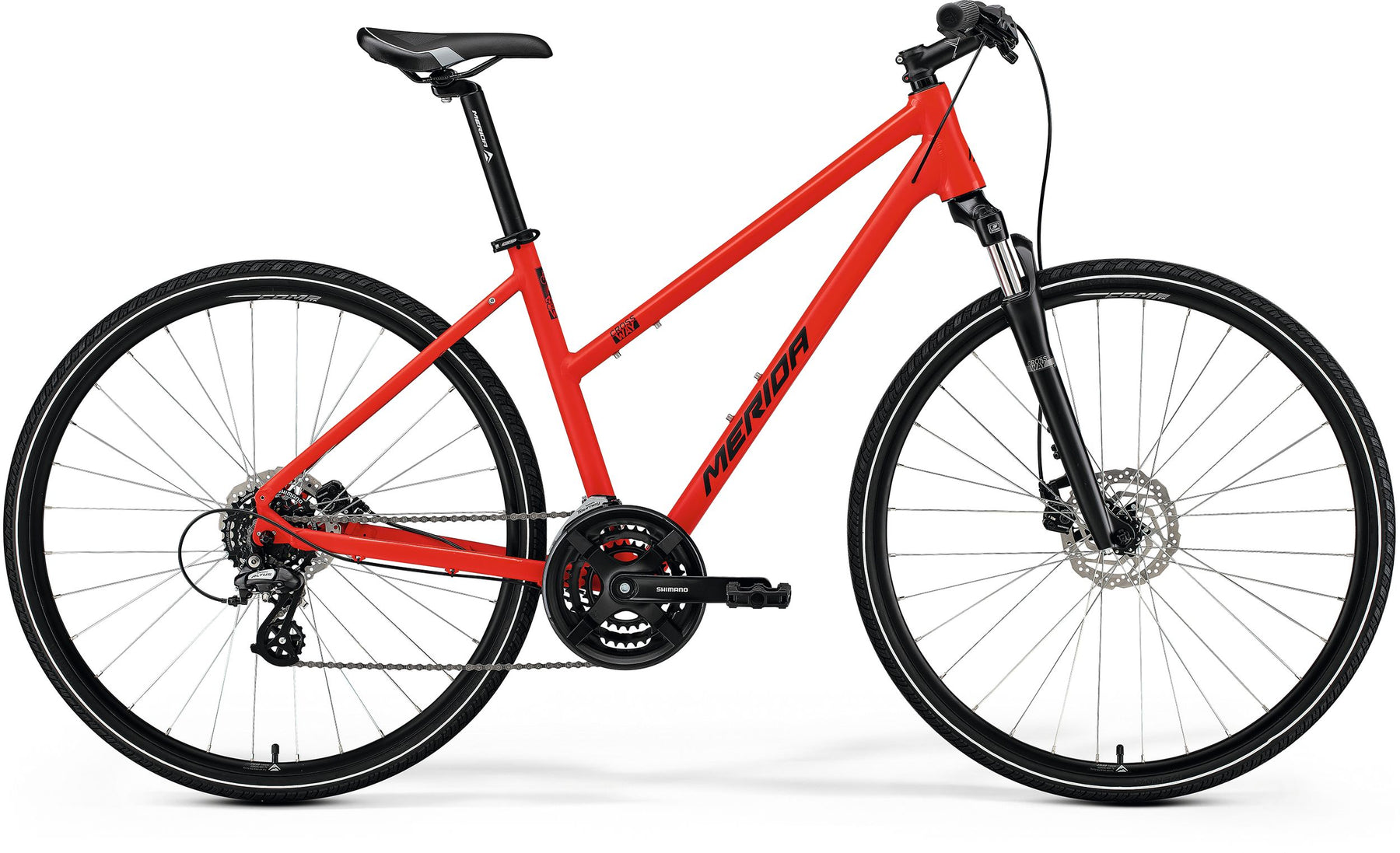

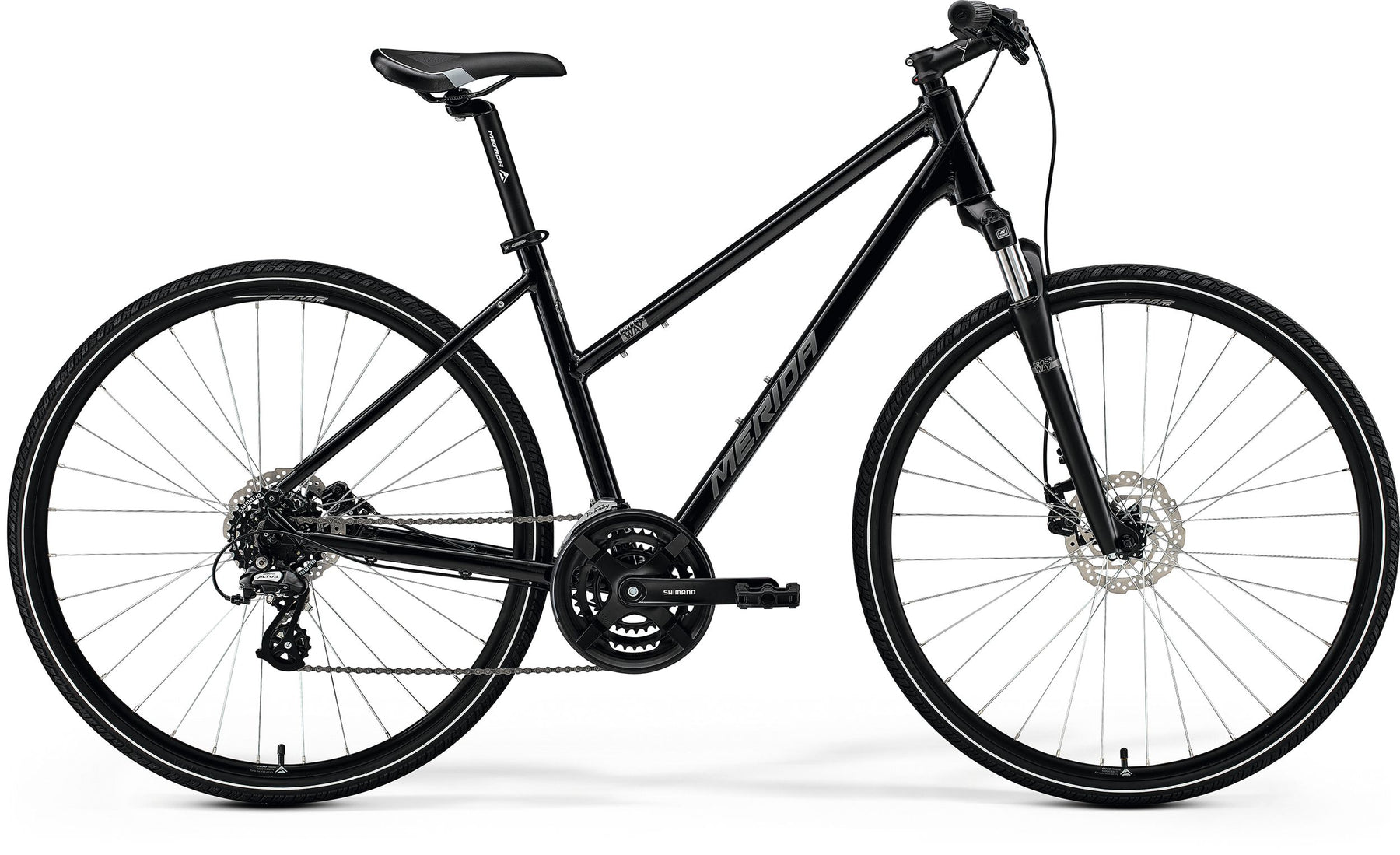

You don't always have to spend big-ticket money to get a reliable lightweight aluminium hybrid that delivers when it comes to day-to-day usability, built-in weekend fun and all-round riding comfort. Our CROSSWAY 10 comes with easy to modulate and low maintenance disc brakes, a broad 3x7 speed gear range that gets you to your destination quickly as well as climbs steeper slopes with ease. A suspension fork provide extra comfort and riding safety.
The CROSSWAY family has been the MERIDA range's backbone since its introduction. They are used worldwide and are proven as a reliable, versatile and fun-packed way of getting around. Designed to provide a comfortable place to take in the surroundings thanks to an upright riding position and comfort focused equipment such as suspension fork and adjustable stems on selective models, they offer the perfect blend of comfort, enjoyment and all-round functionality. They are suitable for fitness training, commuting and leisurely rides through forests and on trails. Made from high-quality, lightweight aluminium with the ability to mount mudguards, racks and kickstands, the CROSSWAY range is the perfect choice for everyday riding. The fitted 700c wheels cover ground quickly, while the extra volume of the 40 mm wide tyres offers puncture protection, grip and comfort. All CROSSWAY models are available as a low step-through frame, making mounting and dismounting straightforward.
Highlights:
- Lightweight aluminium frame
- Suspension fork
- 21 speed transmission
- Shimano mechanical disc brakes
- Multiple fixing points for rear rack and mudguards
| Specification | Detail |
|---|---|
| Frame | TFS III - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c |
| Fork | SR Suntour NEX DS; Coil; 63mm travel; Max tyre size: 700x50C |
| Headset | Merida M2345 |
| Stem | Merida Comp TK; aluminium; 25.4mm diameter; 7 degree rise - Length - 100mm (all sizes) |
| Handlebar | Merida CC; steel; 620mm wide; 30mm rise |
| Grip | Merida EC |
| Brake Type | Mechanical Disc |
| Brake Lever | Shimano ST-EF500 |
| Front Brake | Shimano BR-M375 mechanical disc brake caliper with Shimano RT10; 160mm rotor |
| Rear Brake | Shimano BR-M375 mechanical disc brake caliper with Shimano RT10; 160mm rotor |
| Front Tyre | Merida K1171; 700 x 40C; wire bead |
| Rear Tyre | Merida K1171; 700 x 40C; wire bead |
| Wheel Size | 700c |
| Rim | Merida CC; 17mm inner rim width; aluminium |
| Spokes | Steel UCP |
| Front Hub | Shimano TX505; 100 x 9mm; 32 spoke; Centerlock |
| Rear Hub | Shimano TY505-7; 135 x 9mm; 32 spoke; Centerlock |
| Speeds | 21 |
| Front Derailleur | Shimano FD-TY510-3 |
| Rear Derailleur | Shimano RD-M310-7 |
| Shift Levers | Shimano ST-EF500 |
| Chain | Sunrace CNM84 |
| Cassette | Shimano CS-HG200-7; 12-32 teeth; 7 speed |
| Chainset | Shimano TY301; 48-38-28 tooth chainset; Aluminium; Crank length - 170mm (XXS/SM), 175mm (ML and up) |
| Bottom Bracket | Shimano BB-UN101 73-123 |
| Pedals | VP VPE-891 |
| Saddle | Merida Cross Sport |
| Seat Post | Merida CC; 30.9mm diameter; 15 mm layback; Aluminium |
