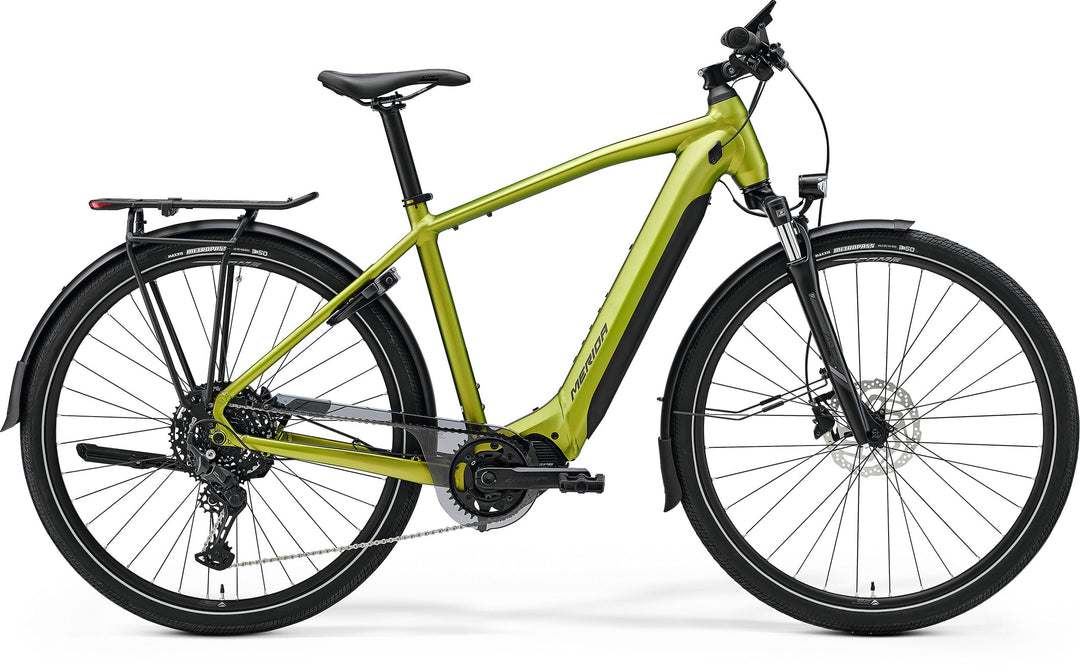

Merida eSpresso 575 EQ 2024
P885
Life can feel awfully busy at times, which is why the eSPRESSO 575 EQ is designed to get you where you need to go with a minimum of fuss. The latest Shimano EP6 drive unit is paired with an extra high-capacity 750 Wh battery to give smooth, time-saving pedal-assistance. Whether it's getting across town to see friends, commuting to work or carrying the shopping home, it's equipped to keep you safe and secure thanks to a long list of standard fit accessories, while a suspension fork delivers extra comfort and control. The smooth Shimano 10-speed drivetrain gives a wide range of gears for all kinds of terrain, while powerful hydraulic disc brakes are low maintenance too.
Highlights:
- Shimano Steps EP6 85Nm motor
- 750Wh battery
- Shimano CUES 10 speed
- Shimano hydraulic disc brakes
- Mudguards, kickstand, rack, lock and lights
- Reflective strip on tyres
| Specification | Detail |
|---|---|
| Frame | Lite IV - Hydroformed 6066 triple butted aluminium, internal battery. 142 x 12mm axle standard. Internal cable routing. Max. tyre size 700 x 50c with mudguards |
| Fork | Suntour NEX E25; Coil; 63mm travel; Max. tyre size: 700 x 52C |
| Headset | Merida-8156 |
| Stem | Merida Expert CT; aluminium; 31.8mm diameter; adjustable; length: 90mm (XS,S,M), 110mm (L,XL) |
| Handlebar | Merida Expert; aluminium; 660mm wide; 15mm rise |
| Grip | Merida Expert TK |
| Brake Type | Hydraulic disc |
| Brake Lever | Shimano MT200 |
| Front Brake | Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor |
| Rear Brake | Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor |
| Front Tyre | Continental Ride Cruiser; 622-50; wire bead with reflective strip |
| Rear Tyre | Continental Ride Cruiser; 622-50; wire bead with reflective strip |
| Wheel Size | 700c |
| Rim | Merida Comp TK; 20mm inner rim width; aluminium |
| Spokes | Black stainless |
| Front Hub | Shimano QC300; 100 x 9mm; 32 spokes; Centerlock |
| Rear Hub | Shimano TC500-HM; 142 x 12mm; 36 spokes; Centerlock with Merida Comp TR axle including removable 6mm allen key |
| Speeds | 10 |
| Rear Derailleur | Shimano CUES U6000; GS |
| Shift Levers | Shimano CUES U6000 |
| Chain | Shimano LG500 |
| Cassette | Shimano LG300; 11-48 teeth; 10 speed |
| Chainset | Samox NWP203; 38 tooth chainset with Merida Expert TK; 165mm length crank all sizes with Sunnywheel SW-CG-173A chainguard |
| Bottom Bracket | Part of Shimano Steps motor |
| Pedals | VP Components - VPE-891 |
| Saddle | Merida Expert TK II; V-mount |
| Seat Post | Merida Expert CC; aluminium; 34.9mm diameter; in-line |
| Motor | Simplo Trend Power Internal Battery Gen 2; 750Wh, Shimano Steps EP6; 85Nm |
| Battery Capacity | 750Wh |
| eBike Display | Shimano SC-EN610 |
