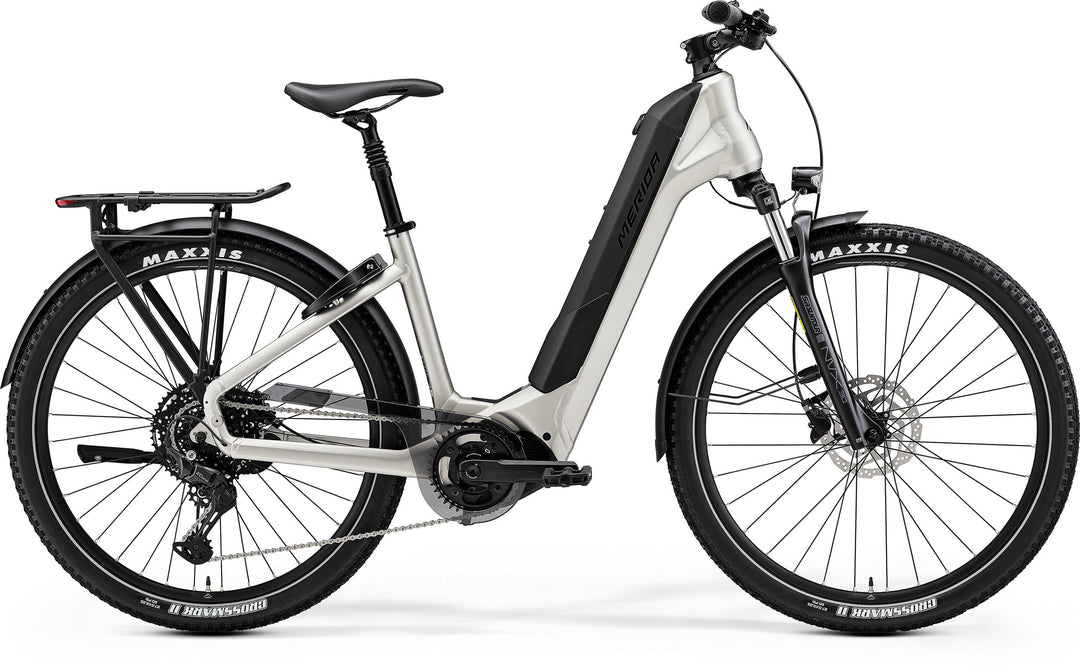

Merida eSpresso CC 575 EQ 2024

P925

  • Built & checked by our highly experienced workshop team
  • Ready-to-ride delivery or free in-store collection
  • UK warranty support from a real local bike shop
  • Expert advice before & after purchase — no call centres
Regular price£3,300.00
/

Size
Colour

Found a better deal? Click here for our Price Match Promise.

View our shipping information Here.

Not sure what Motor suits your E-Bike needs? Click Here to see our in-depth, yet easy to understand guide to help you figure out which motor is the best for you!

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

The eSpresso CC 575 EQ pairs the same Shimano EP6 motor and 750 Wh battery as the top eSpresso CC with a simpler, more affordable set of parts. It's a super-low step-through e-bike with wide, grippy tyres and everything you need already fitted.


WHO THIS BIKE SUITS

Riders who want an easy, comfortable e-bike for town that can also handle a towpath, a forest track or a gravel lane at the weekend. The super-low step-through frame makes getting on and off easy, even with a loaded rack, and the upright position keeps you relaxed and able to see what's going on around you. It comes with mudguards, lights, a lock, a rack and a kickstand, and is rated for a combined rider and luggage weight of up to 150 kg.

The 575 EQ suits riders who want the full range and power without paying for the extra gear and lockout fork of the 675 EQ.


IF YOU'RE LOOKING FOR SOMETHING DIFFERENT

If you'll be riding steeper hills with heavy loads, the eSpresso CC 675 EQ adds an 11-speed drivetrain with a wider range, a fork with lockout and stronger brakes. If you'd prefer bigger 29" wheels and a more mountain bike style for rougher ground, look at the eBig Tour range.


WHERE IT SITS IN THE RANGE

The eSpresso CC is the rugged version of Merida's eSpresso city e-bikes, with high-volume tyres on 27.5" wheels. The 575 EQ shares its frame, 85 Nm Shimano EP6 motor and 750 Wh battery with the 675 EQ. It has a 10-speed drivetrain, an 80 mm Suntour fork and Shimano MT200 brakes.

Also in this range at All Ride Now: eSpresso CC 675 EQ


HOW IT RIDES

This is a relaxed, easy bike to ride. The step-through frame makes getting on and off simple, the upright position is comfortable, and the 85 Nm motor makes short work of hills and headwinds. The suspension fork and 40 mm suspension seatpost smooth out rough roads and paths, and the 2.25" Maxxis Crossmark tyres give you confidence on gravel and towpaths.

The Shimano CUES 10-speed drivetrain is built for long life and gives a wide 11-48 range. Shimano hydraulic disc brakes with 180 mm rotors provide reliable stopping in all weathers.


THE FINAL WORD

Plenty of power and range in a comfortable, fully equipped package. Built and set up by our workshop.


Frame: CC Lite III Hydroformed 6066 triple butted aluminium. Tapered head tube. 135 x 9mm axle standard. Cables routed internally via Smart Entry to hold them neatly and silent. Max. tyre size 27.5" x 2.25"

Headset: Merida-8254

Bottom Bracket: Part of Shimano Steps motor

Fork: Suntour NVX30 DS; Coil; 80mm travel; Max. tyre size 27.5" x 2.4"

Seatpost: JD-SP79; 30.9mm diameter; 15mm lay back; 40mm suspension travel

Motor: Shimano Steps EP6, 85 Nm

Battery: Simplo Trend Power internal, 750 Wh, removable

Display: Shimano SC-EN500

Shifters: Shimano CUES U6000, 10-speed

Rear Derailleur: Shimano CUES U6000; GS

Crank: Samox NWP203; 38 tooth chainset with Merida Expert TK; 165mm length crank all sizes with Sunnywheel SW-CG-173A chainguard

Cassette: Shimano LG300; 11-48 teeth; 10 speed

Chain: Shimano LG500

Front Brake: Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor

Rear Brake: Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RTEM300 180mm rotor

Brake Levers: Shimano MT200

Rims: Merida Comp TK; 20mm inner rim width; aluminium

Front Hub: Shimano QC300; 100 x 9mm; 32 spokes; Centerlock

Rear Hub: Shimano QC300; 135 x 9mm; 36 spokes; Centerlock

Spokes: Black stainless

Front Tyre: Maxxis Crossmark II; 27.5" x 2.25"; wire bead with reflective strip

Rear Tyre: Maxxis Crossmark II; 27.5" x 2.25"; wire bead with reflective strip

Handlebar: Merida Expert; aluminium; 660mm wide; 15mm rise

Stem: Merida Expert CT; aluminium; 31.8mm diameter; adjustable; length: 90mm all sizes

Grips: Merida Expert TK

Saddle: Merida Expert TK II; V-mount

Pedals: VP Components - VPE-891

Mudguards: Full-length mudguards

Rack: Merida MIK HD rear carrier with integrated rear light

Lights: Front and rear lights powered by the main battery

Lock: Integrated Abus frame lock

Kickstand: Included

Chainguard: Included
