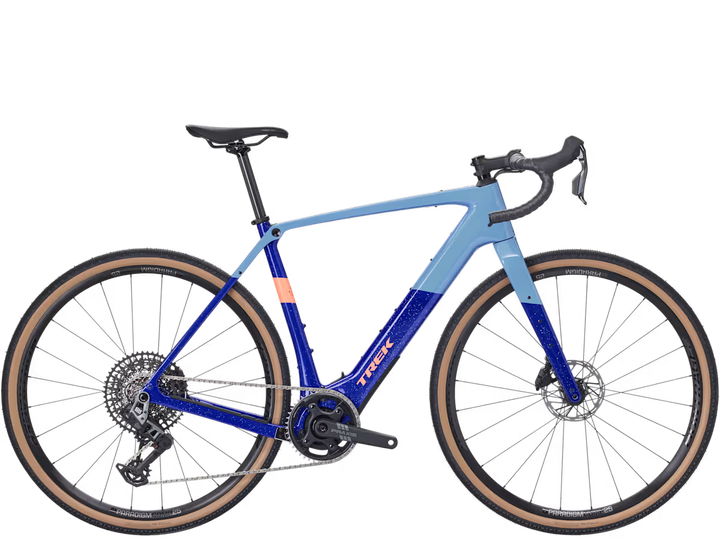

The Checkpoint+ SL 6 AXS is a carbon electric gravel bike for extending your adventures. It's ready to explore anywhere, with a smooth and quiet TQ HPR60 motor, SRAM GX AXS wireless 12-speed drivetrain, durable alloy wheels, clearance for 50 mm tyres and loads of mounts for gear.
Specifications
*Please note – spec applies to all sizes unless listed separately
| Frame | 500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle |
|---|---|
| Fork | Trek Checkpoint, full carbon, tapered steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle |
Weight
| Weight | ML - 13.76 kg / 30.34 lbs (with TLR sealant, no tubes) |
|---|
E-system
| Battery | TQ 360Wh |
|---|---|
| Charger | TQ 4A charger |
| Computer | TQ LED display with Bluetooth & ANT+ connectivity |
| Motor | TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power |
Drivetrain
| Shifter | SRAM Rival AXS, 13-speed |
|---|---|
| Rear derailleur | SRAM GX Eagle AXS, T-Type |
| *Crank | Size: S, XS Praxis Alloy, 165 mm length
|
| Size: M, ML Praxis Alloy, 170 mm length
|
|
|
Size: XL, L Praxis Alloy, 172.5 mm length
|
|
| Cassette | SRAM Eagle XS-1275, T-Type, 10-52, 12-speed |
| Chain | SRAM GX Eagle, T-Type, 12-speed |
| Max. chainring size | 1x: 44T |
Wheels
| Wheel front | Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle |
|---|---|
| Wheel rear | Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle |
| Skewer front | Bontrager Switch thru-axle, removable lever |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Tyre | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | 50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details) |
Components
| *Saddle | Verse Short Comp, steel rails, 145 mm width |
|---|---|
| *Seatpost | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |
| *Handlebar |
Size: S, XS Size: M, ML |
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem |
Size: XS Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
|
|
Size: S, M Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80mm length
|
|
|
Size: L, ML Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90mm length
|
|
|
Size: XL Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100mm length
|
|
| Brake rotor | SRAM Paceline, rounded, CentreLock, 160 mm |
| Rotor size | Max brake rotor sizes: 180 mm front and rear |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
