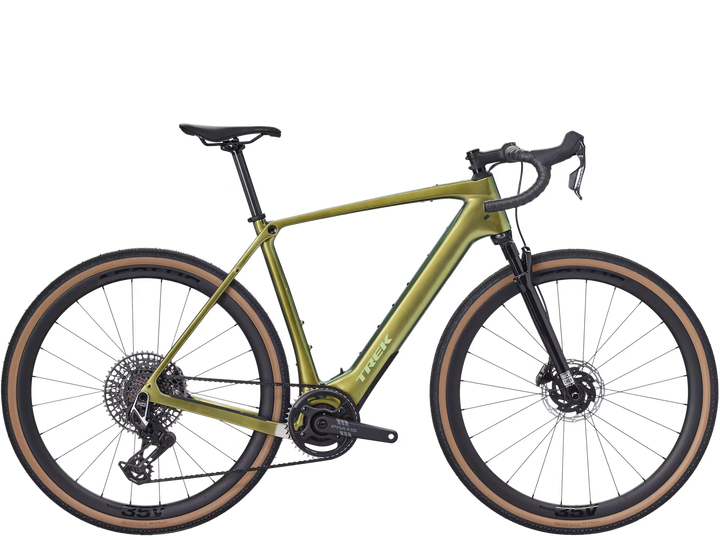

The Checkpoint+ SL 7 AXS is an electric gravel bike built to take you on your most wide-ranging adventures. An OCLV Carbon frame keeps things light, a TQ HPR60 motor provides a smooth and quiet boost, while a 40 mm RockShox Rudy XPLR suspension fork keeps handling confident and relaxed on the roughest roads. The SRAM's Force AXS E1 13-speed drivetrain delivers smooth, wireless shifting and OCLV Carbon Bontrager Aeolus Elite 35V wheels and a carbon seat post dampen vibrations while keeping the weight down.
Specifications
*Please note – spec applies to all sizes unless listed separately
| Frame | 500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle |
|---|---|

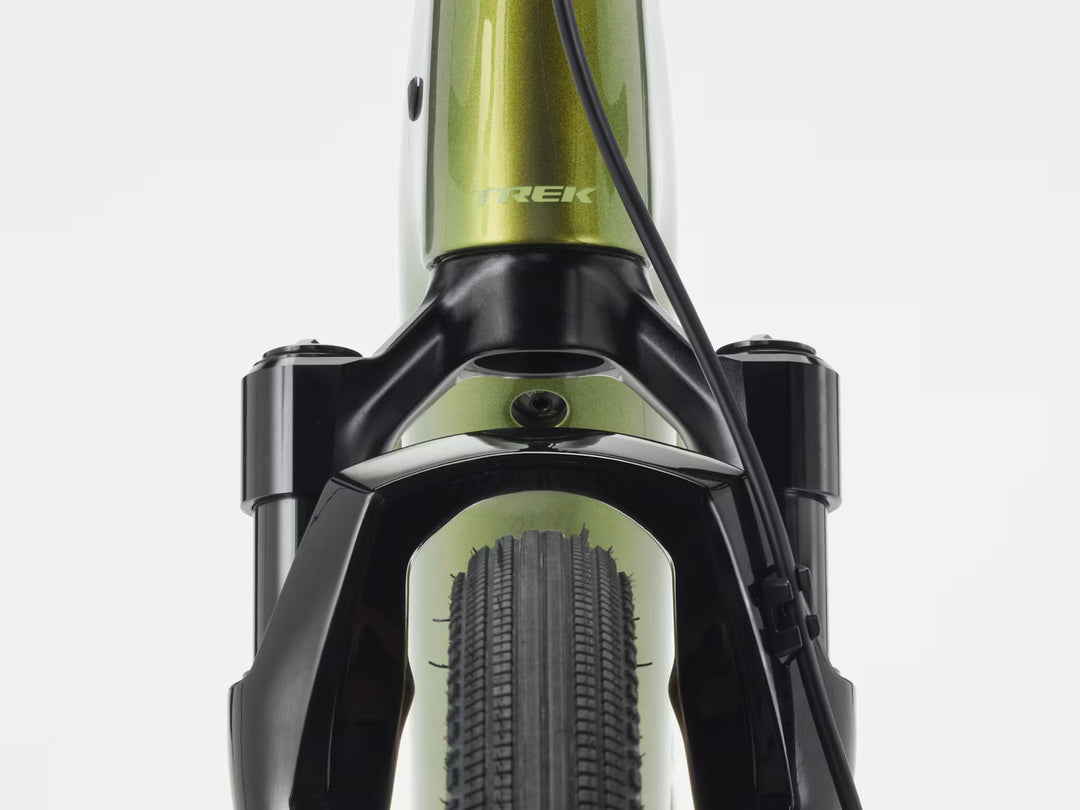

| Fork | RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45 mm offset, 12x100 mm thru axle, 40 mm travel |
Weight
| Weight | ML - 14.05 kg / 30.98 lbs (with TLR sealant, no tubes) |
|---|
E-system
| Battery | TQ 360Wh |
|---|---|
| Charger | TQ 4A charger |

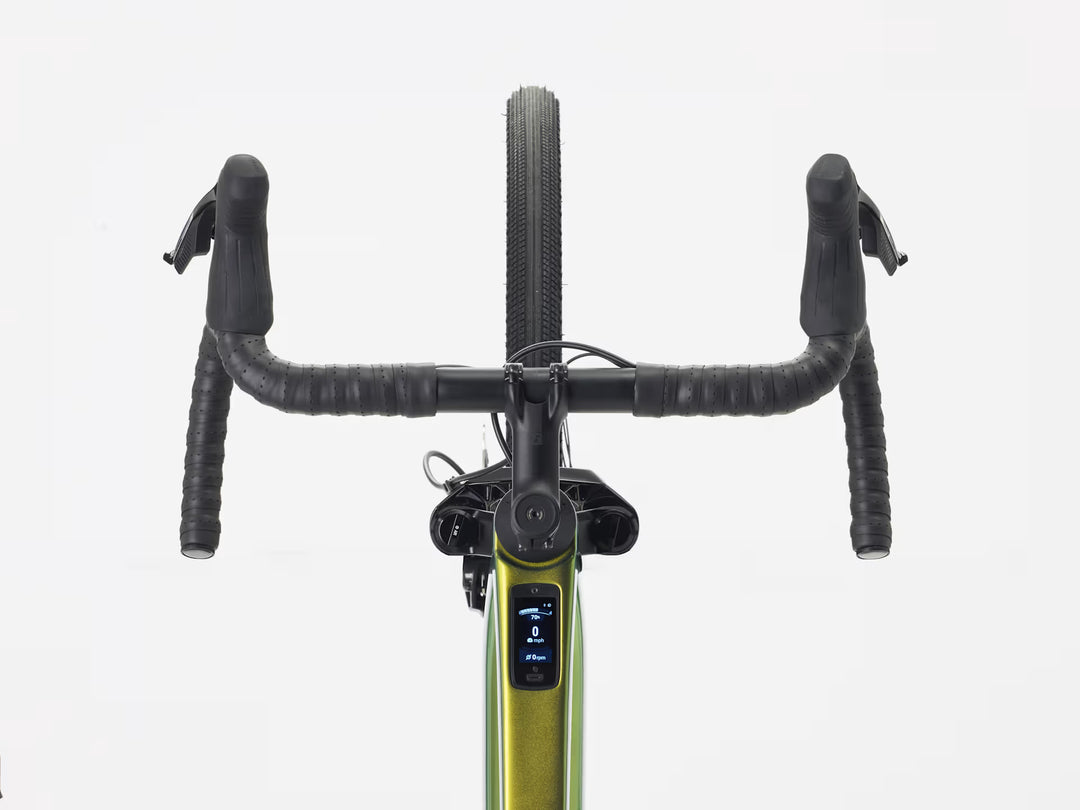

| Computer | TQ LED display with Bluetooth & ANT+ connectivity |

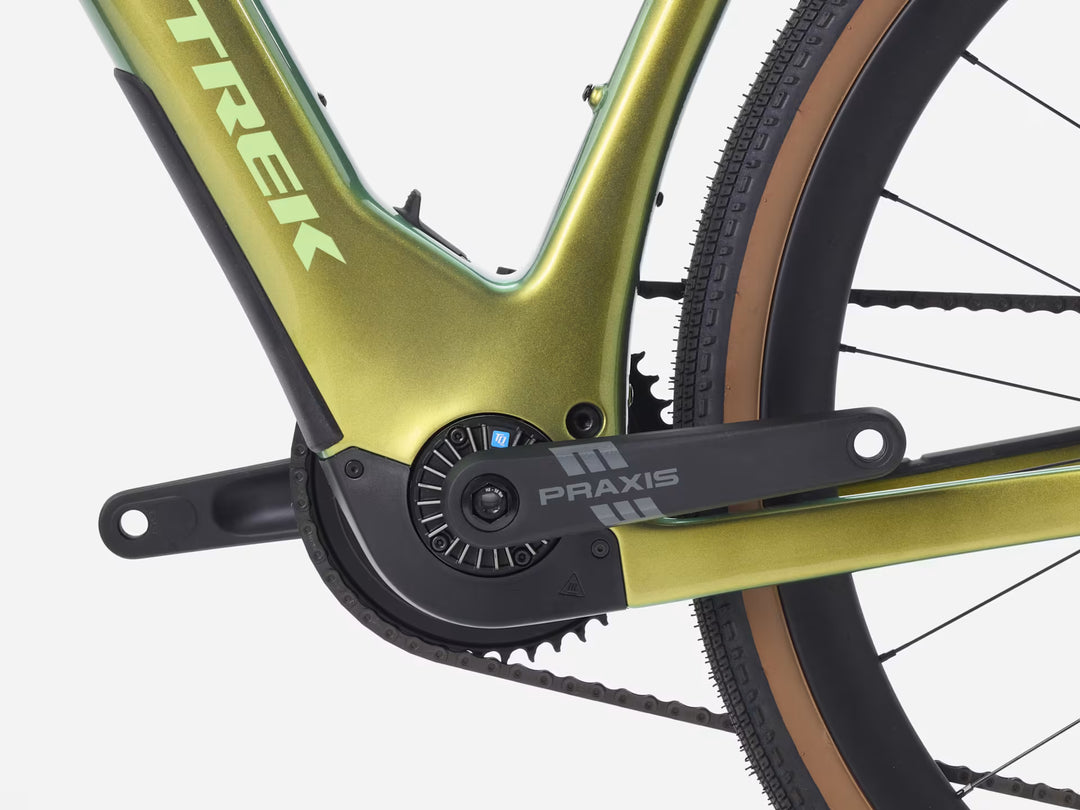

| Motor | TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power |
Drivetrain
| Shifter | SRAM Force AXS E1 |
|---|---|
| Rear derailleur | SRAM X0 Eagle AXS, T-Type |
| *Crank | Size: S, XS Praxis Alloy, 165 mm length
|
| Size: M, ML Praxis Alloy, 170 mm length
|
|
|
Size: XL, L Praxis Alloy, 172.5 mm length
|
|
| Cassette | SRAM Eagle XS-1295, T-Type, 10-52, 12-speed |
| Chain | SRAM X0 Eagle, T-Type, 12-speed |
| Max. chainring size | 1x: 44T |
Wheels
| Wheel front | Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, 100x12 mm thru axle |
|---|---|
| Wheel rear | Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, SRAM XD-R driver, 142x12 mm thru axle |
| Skewer front | Bontrager Switch thru-axle, removable lever |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Tyre | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | 50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details) |
Components
| *Saddle | Verse Short Elite, hollow magnesium rails, 145 mm width |
|---|---|
| *Seatpost | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |
| *Handlebar |
Size: S Bontrager Pro Gravel, 40 cm width Size: M, ML Bontrager Pro Gravel, 42 cm width |
|
Size: L Bontrager Pro Gravel, 44 cm width Size: XL Bontrager Pro Gravel, 46 cm width |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem |
Size: S, M Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80mm length
|
|
Size: L, ML Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90mm length
|
|
|
Size: XL Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100mm length
|
|
| Brake rotor | SRAM Paceline X, rounded, CentreLock, 160 mm |
| Rotor size | Max brake rotor sizes: 180 mm front and rear |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
