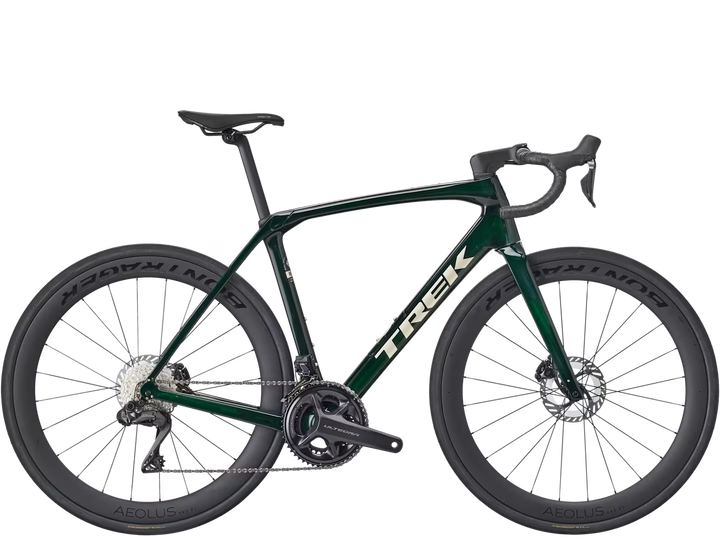

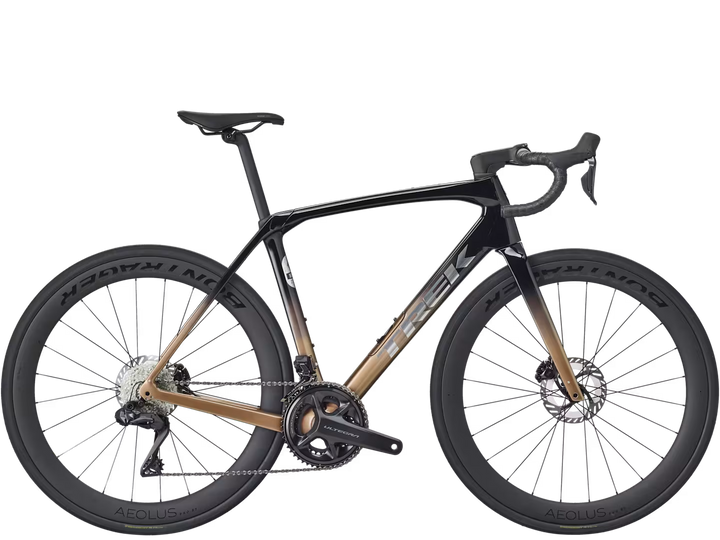

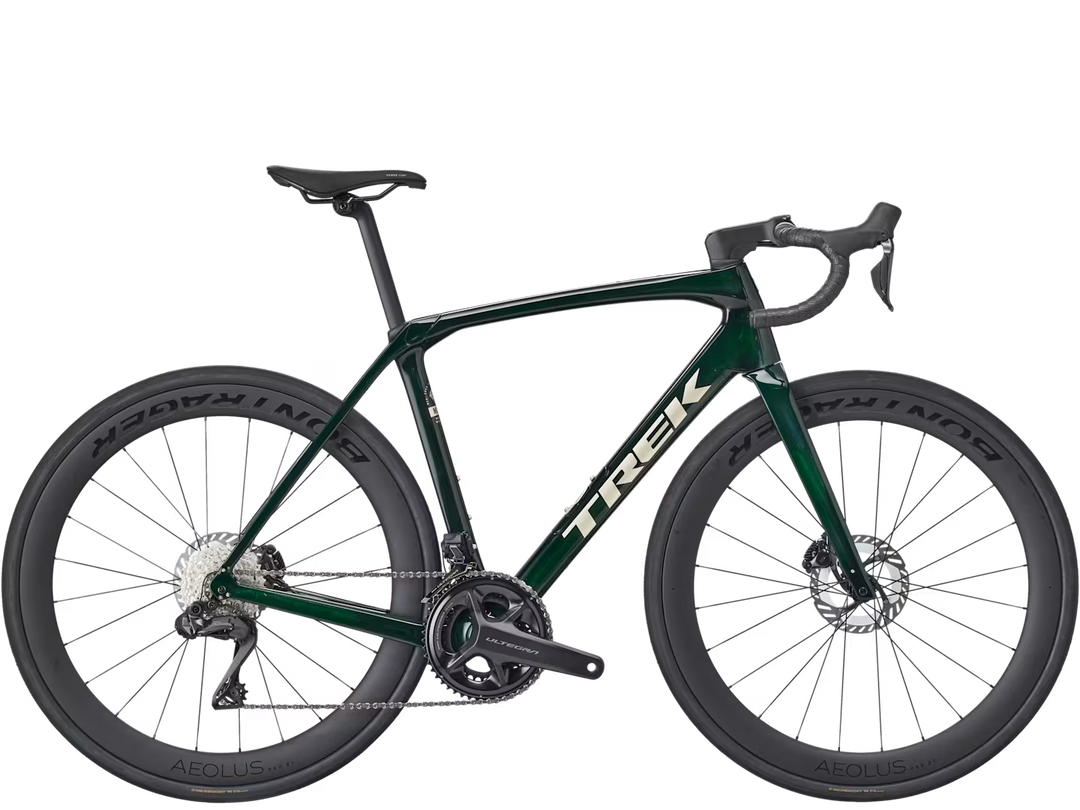

The Domane SL 7 is a light and capable endurance road bike that's ready to take on rough roads and long miles. It's built with a lightweight OCLV Carbon frame with an electronic Shimano Ultegra Di2 drivetrain for lightning-fast precision shifting in any condition. It's topped off with carbon wheels and alloy handlebars, delivering the perfect balance of performance and price.
| *Frame |
Size: 44, 56, 47, 58, 60, 50, 62, 52, 54
500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12 mm thru axle
|
|---|---|
| *Fork |
Size: 44, 56, 47, 58, 60, 50, 62, 52, 54
Domane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle
|
Weight
| Weight | 56 - 7.90 kg / 17.42 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
E-system
| *Battery |
Size: 44, 56, 47, 58, 60, 50, 62, 52, 54
Shimano BT-DN300
|
|---|---|
| *Charger |
Size: 44, 56, 47, 58, 60, 50, 62, 52, 54
Charging cable included
|
Drivetrain
| *Shifter |
Size: 44, 56, 47, 58, 60, 50, 62, 52, 54
Shimano Ultegra R8170 Di2, 12-speed
|
|---|---|
| *Front Derailleur |
Size: 44, 56, 47, 58, 60, 50, 62, 52, 54
Shimano Ultegra R8150 Di2, braze-on, down swing
|
| *Rear Derailleur |
Size: 44, 56, 47, 58, 60, 50, 62, 52, 54
Shimano Ultegra R8150 Di2, 34T max cog
|
| *Crank |
Size: 44, 47, 50
Shimano Ultegra R8100, 50/34, 165 mm length
|
|
Size: 56, 52, 54
Shimano Ultegra R8100, 50/34, 170 mm length
|
|
|
Size: 58, 60, 62
Shimano Ultegra R8100, 50/34, 172.5 mm length
|
|
| *Bottom Bracket | Size: 44, 56, 47, 58, 60, 50, 62, 52, 54Praxis, T47 threaded, internal bearing |
| *Cassette |
Size: 44, 56, 47, 58, 60, 50, 62, 52, 54
Shimano Ultegra R8101, 11-34, 12-speed
|
| *Chain |
Size: 44, 56, 47, 58, 60, 50, 62, 52, 54
Shimano XT M8100, 12-speed
|
| Max. chainring size | 1x: 48T, 2x: 52/36 |
Wheels
| *Front Wheel |
Size: 44, 56, 47, 58, 60, 50, 62, 52, 54
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
|
|---|---|
| *Rear Wheel | Size: 44, 56, 47, 58, 60, 50, 62, 52, 54Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12 mm thru axle |
| *Front Skewer | Size: 44, 56, 47, 58, 60, 50, 62, 52, 54Bontrager Switch thru-axle |
| *Rear Skewer | Size: 44, 56, 47, 58, 60, 50, 62, 52, 54Bontrager Switch thru-axle, removable lever |
| *Tire |
Size: 44, 56, 47, 58, 60, 50, 62, 52, 54
Bontrager Kwaremont Pro GR, tubeless ready, folding bead, dual compound, 120 tpi, 700x32 mm
|
| *Tire Part |
Size: 44, 56, 47, 58, 60, 50, 62, 52, 54
Bontrager TLR sealant, 180 ml/6 oz
|
| Max tyre size | 38 mm without mudguards, 35 mm with mudguards (as measured, see manual for details) |
Components
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
