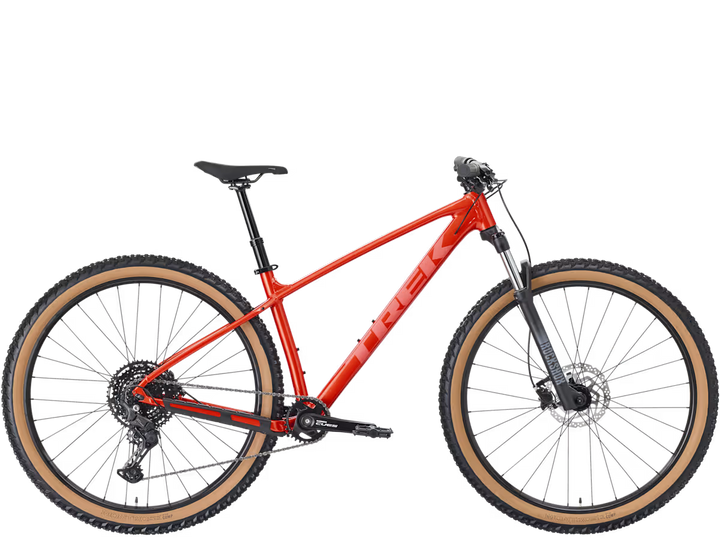

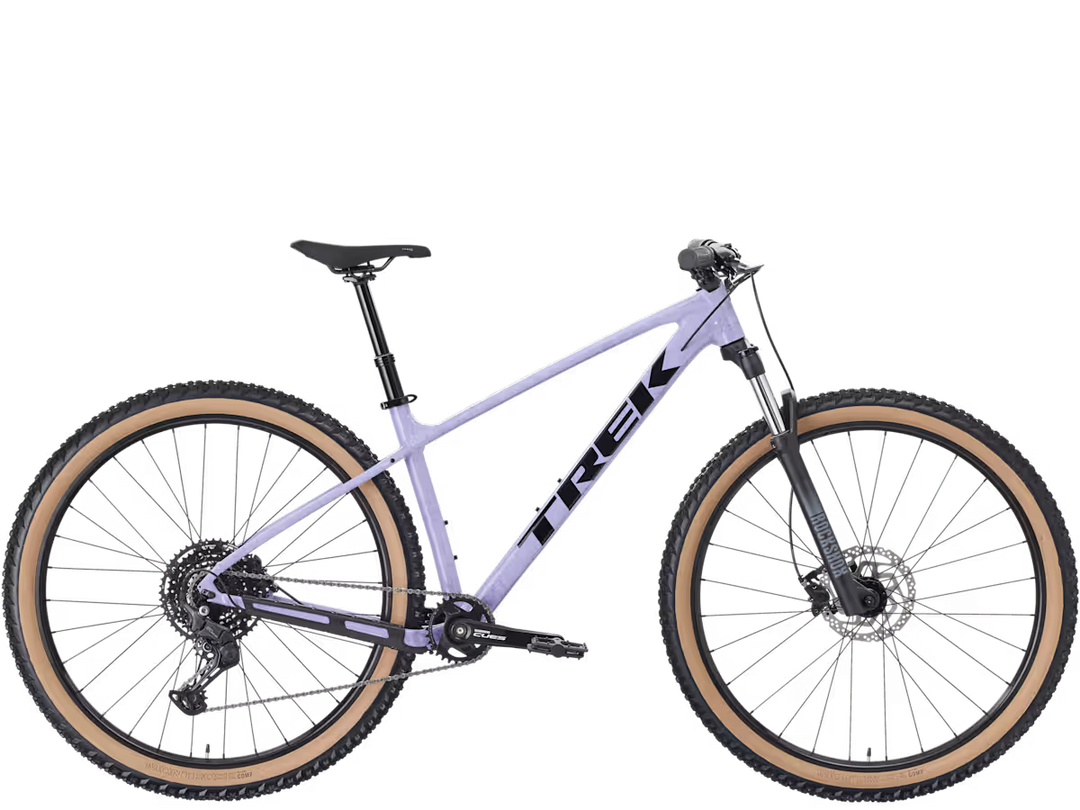

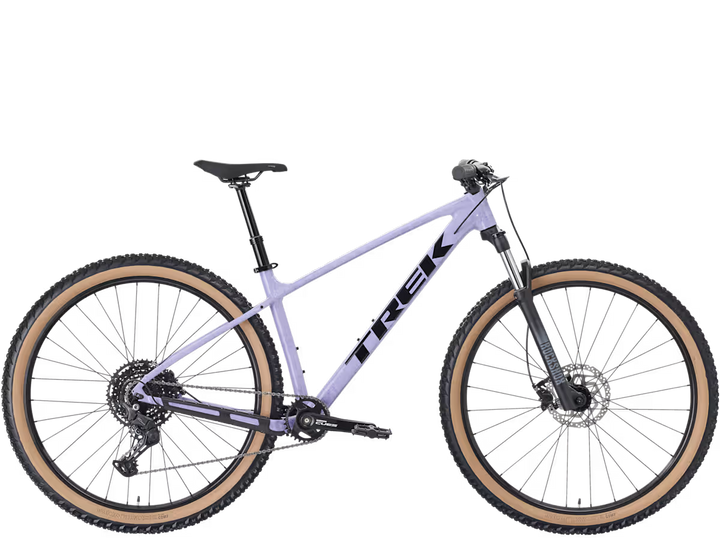

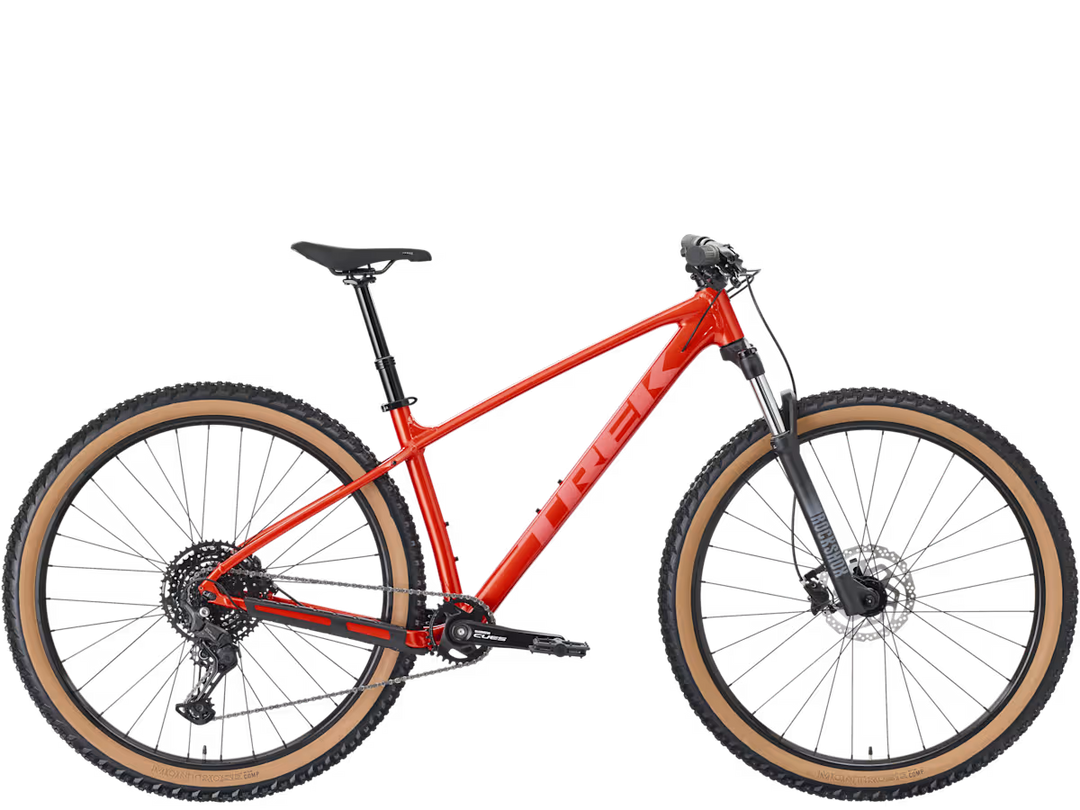

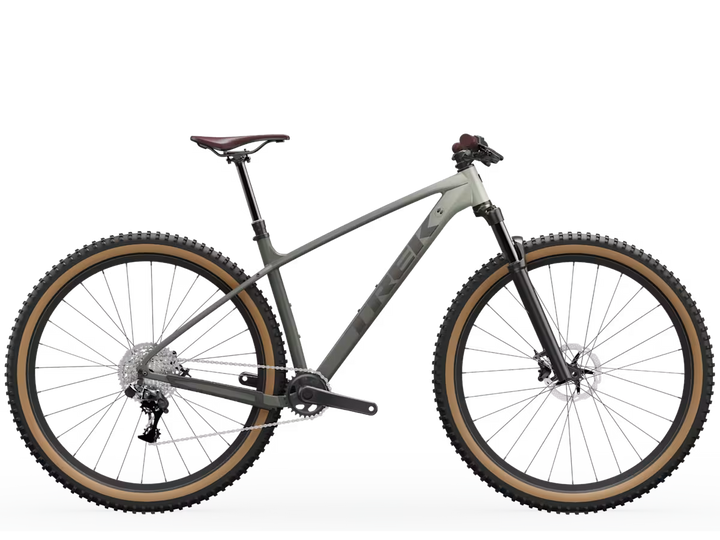

The Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.
| *Frame |
Size: XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|---|---|
|
Size: S , M , ML , L , XL , XXL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|
| *Fork |
Size: XS , S RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel |
|
Size: M , ML , L , XL , XXL RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | 173x5 mm QR |
| *Rim |
Size: XS , S , M , ML , L , XL , XXL Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve |
|
Size: M , ML , L , XL , XXL Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve |
|
| *Tyre |
Size: XS , S Maxxis IKON, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5x2.35'' |
|
Size: M , ML , L , XL , XXL Maxxis Rekon Race, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.35" |
|
| Rim strip | Bontrager TLR |
Drivetrain
| Shifter | Shimano U6000, 10-speed |
|---|---|
| Rear derailleur | Shimano CUES U6000 GS |
| *Crank |
Size: XS , S , M , ML Shimano U4000, 30T chainring, 170 mm length |
|
Size: L , XL , XXL Shimano U4000, 30T chainring, 175 mm length |
|
| Bottom bracket | Shimano, 73 mm, threaded cartridge, 122.5 mm spindle |
| Cassette | Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed |
| Chain | Shimano LG500 |
| Pedal | VP-536 nylon platform |
Components
| Saddle | Bontrager Verse Short, stainless steel rails |
|---|---|
| *Seatpost |
Size: XS , S TranzX JD-YSI34, 100 mm travel, internal routing, 34.9 mm, 350 mm length |
|
Size: M TranzX JD-YSI34, 125 mm travel, internal routing, 34.9 mm, 405 mm length |
|
|
Size: ML , L , XL TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm, 456 mm length |
|
|
Size: XXL TranzX JD-YSI34, 170 mm travel, internal routing, 34.9 mm, 500 mm length |
|
| *Handlebar |
Size: XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
|
Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width |
|
|
Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
| Grips | Trek Line Comp, nylon lock-on |
| *Stem |
Size: XS , S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
|
Size: M , ML , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
|
|
Size: XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length |
|
|
Size: XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length |
|
| Head set | Semi-integrated, 1-1/8" |
| Brake | Shimano MT200 hydraulic disc |
| *Brake rotor |
Size: XS , S , M , ML , L , XL , XXL Shimano RT26, 6-bolt, 160 mm |
|
Size: M , ML , L , XL , XXL Shimano RT26, 6-bolt, 180 mm |
|
| Brake Set | Shimano MT200 hydraulic disc |
Weight
| Weight | M - 15.00 kg / 33.07 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
