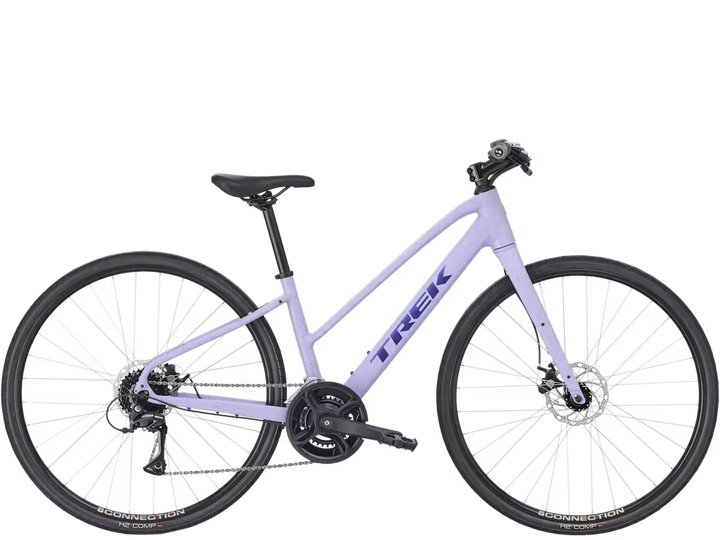

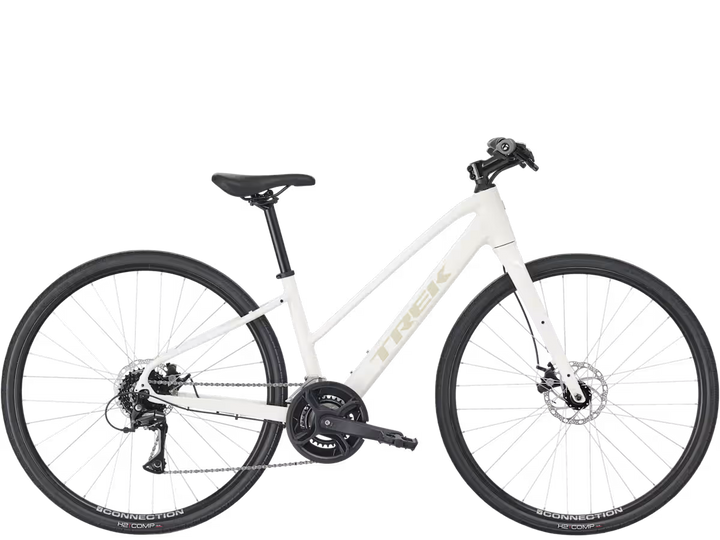

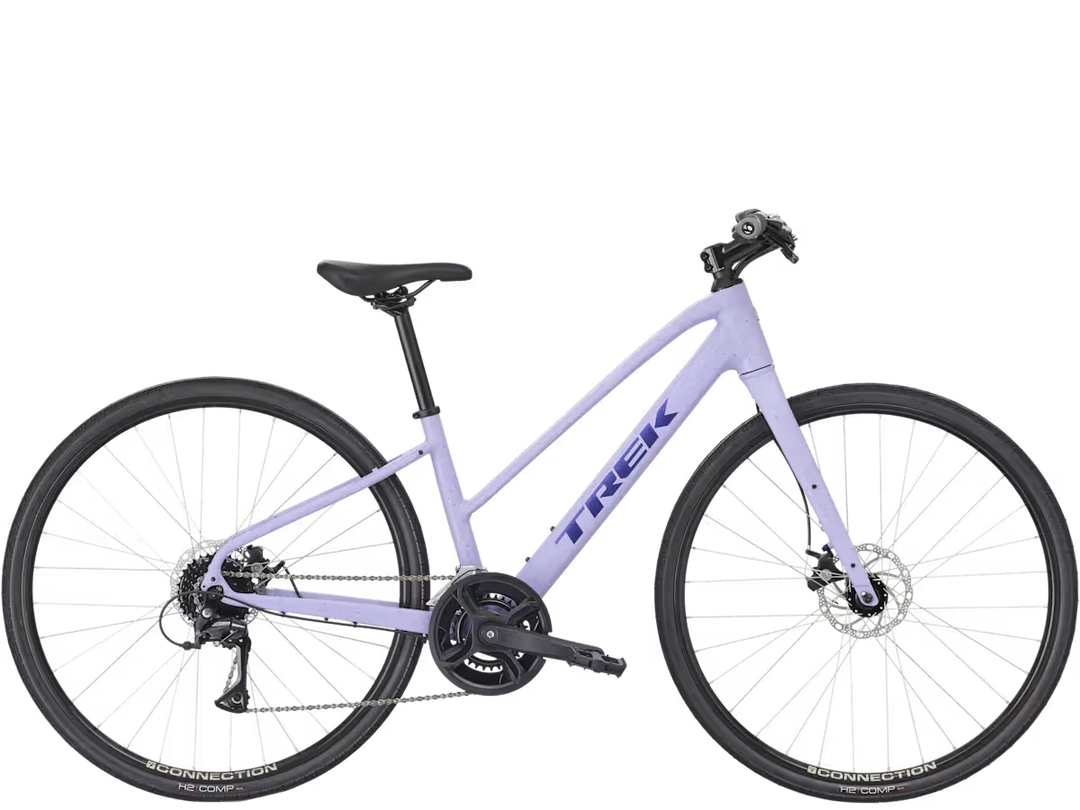

The FX 1 Midstep is a versatile and sleek hybrid bike for riding all around town. Its classic stepthrough frame is easier to mount and dismount, and make it perfect to ride for exercise, commuting or fun. You get price-conscious parts that still deliver a big range of speeds, disc brakes that let you stop on a penny and loads of mounts for accessories.
| Frame | Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5Â mm QR |
|---|---|
| Fork | FX steel, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Skewer front | 139x5 mm bolt-on |
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | 152x5 mm QR |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Tyre | Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm |
Drivetrain
| Shifter |
Size:Â S, XL, L, M
Shimano EF500, 2-speed
Size:Â S, XL, L, M
Shimano EF500, 8-speed
|
|---|---|
| Derailleur |
Shimano Tourney TY606, 31.8/34.9 mm clamp, top swing, dual pull Shimano Acera M3020-8, 40T max cog |
| Crank | Forged alloy, 46/30, 170 mm length |
| Bottom bracket | Sealed cartridge, 68 mm |
| Cassette | Shimano 8-speed, 12-32T |
| Chain | KMC Z8.3 |
| Pedal | Wellgo nylon platform |
Components
| Saddle | Bontrager Sport Women's |
|---|---|
| *Seatpost |
Size:Â S, M Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
|
|
Size:Â XL, L Bontrager alloy, 27.2 mm, 12 mm offset, 400 mm length
|
|
| *Handlebar | Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width |
| Grips | Trek Line Ergonomic Comp, lock-on |
| *Stem |
Size:Â S, M Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length |
|
Size:Â XL, L Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length |
|
| Brake rotor | Tektro MD-U310 mechanical disc |
| Brake Set | Tektro wave, 6-bolt, 160 mm |
Weight
| Weight | M - 12.85 kg / 28.33 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
