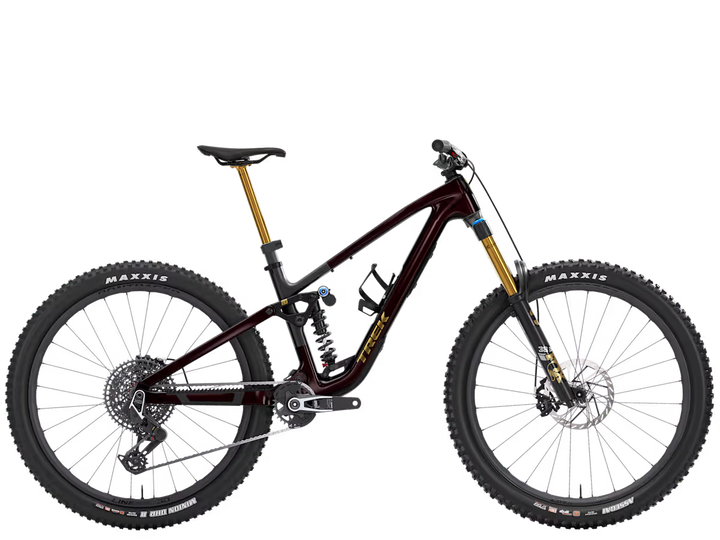

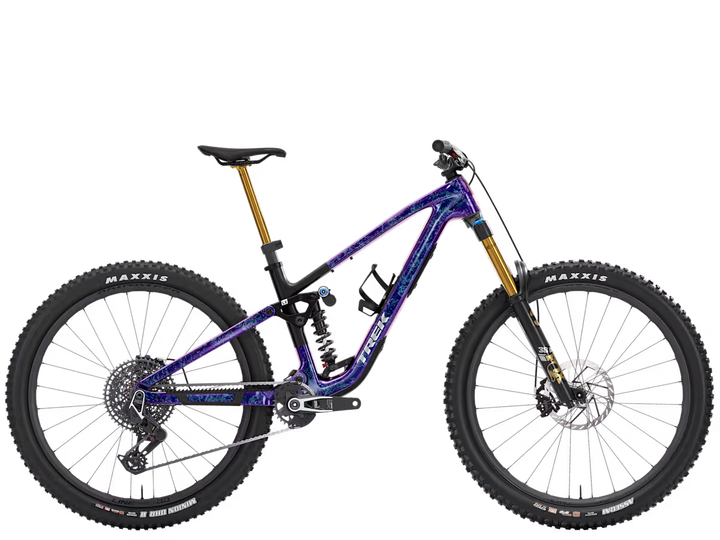

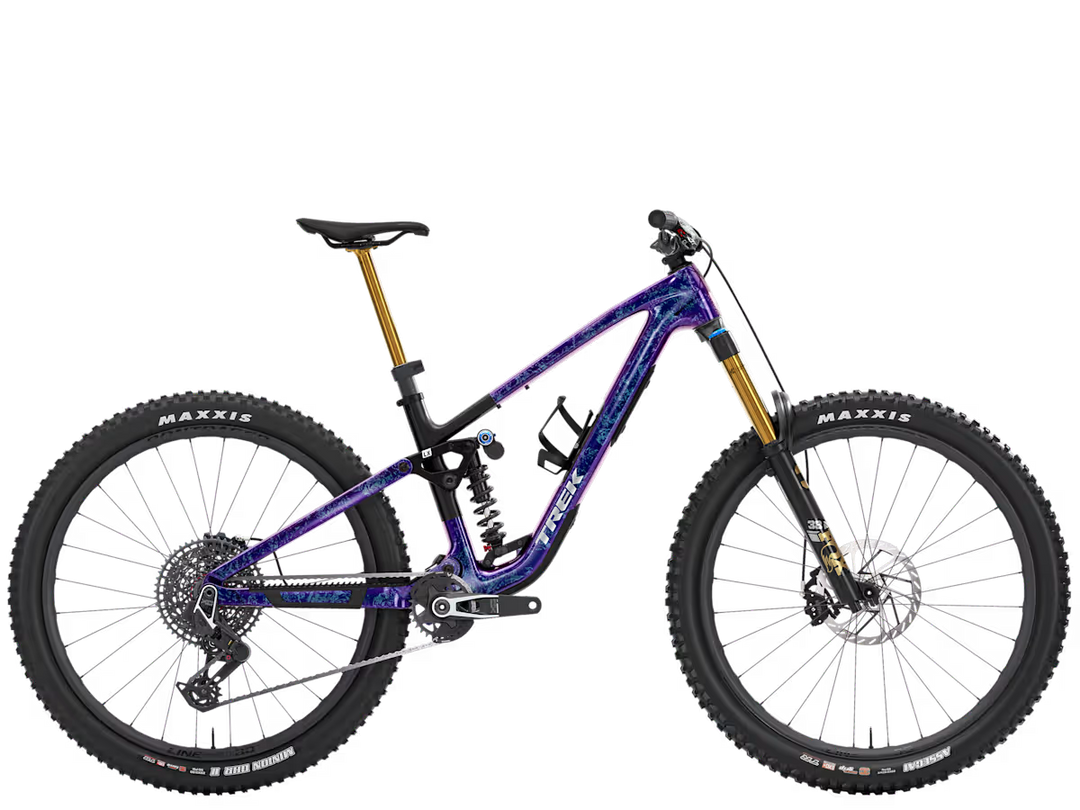

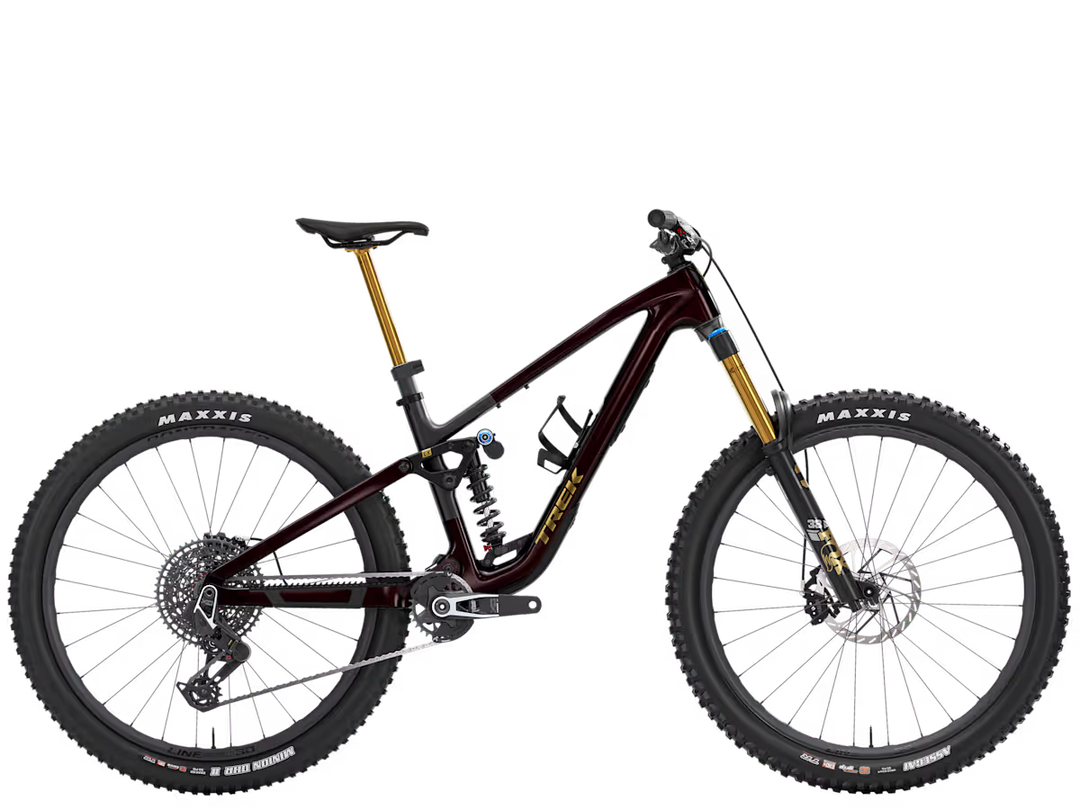

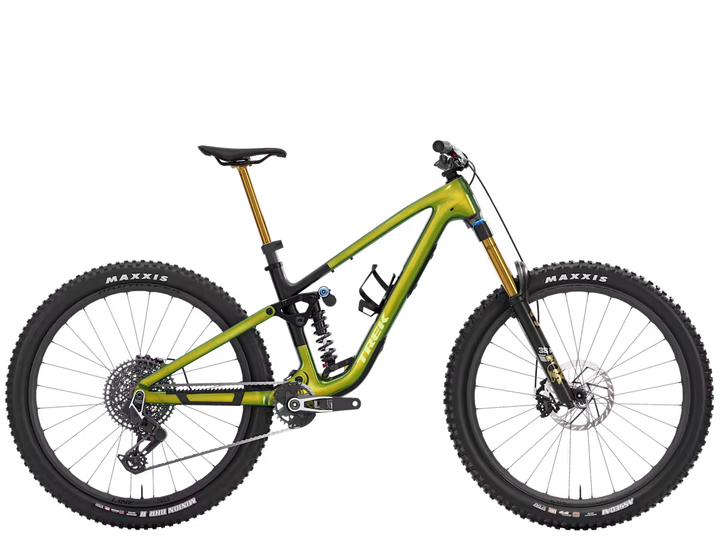

The Fuel LX 9.9 X0 AXS Gen 7 is our top carbon trail bike, born for the chaos and topped with the best components. Its OCLV Mountain Carbon frame partners with a Fox Factory 38 fork and DHX2 coil shock (160 mm rear, 170 mm front) for going all-out on the wiliest lines on the mountain. A SRAM X0 AXS transmission gives you clean and crisp shifting, even on the punchiest climbs, while SRAM Maven Silver 4-piston brakes provide incredible modulation and power. It's topped off with a Fox Transfer NEO dropper post and carbon Bontrager Line Pro wheels.
| *Frame |
OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm |
|---|---|
| *Fork |
Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 170 mm travel |
| *Shock |
Fox DHX2, 205 mm x 65 mm
Size: S
Fox steel coil spring, 250 lbs
Size: M
Fox steel coil spring, 350 lbs
Size: L
Fox steel coil spring, 400 lbs
Size: XL
Fox steel coil spring, 450 lbs
|
| *Wheel front |
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" |
|---|---|
| *Wheel rear |
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru-axle, 29" |
| *Skewer rear | Bontrager Switch thru-axle, removable lever |
| *Tyre |
Size: S, XL, L, M
Maxxis Assegai, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
|
|
Size: S, XL, L, M Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
|
|
| *Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Max tyre size | Frame: 29x2.50", Fork: See manufacturer |
| *Shifter | SRAM AXS pod w/ SRAM AXS battery pack (with charger) |
|---|---|
| *Rear derailleur |
|
| *Crank | SRAM X0 Eagle, DUB, 30T, T-Type, 55 mm chainline, 170 mm length |
| *Bottom bracket | SRAM DUB MTB Wide, 73 m, BSA threaded |
| *Cassette |
SRAM Eagle XS-1295, T-Type, 10-52, 12-speed |
| *Chain |
|
| Max. chainring size | Max: 34T (oval – 32T) Min: 30T (oval – 32T) |
| *Saddle |
Verse Short Pro, carbon rails, 145 mm width |
|---|---|
| *Seatpost | |
| Fox Transfer NEO | |
| *Handlebar |
Race Face ERA, carbon, 35 mm, 27.5 mm rise, 800 mm width |
| *Grips | Trek Line Elite, lock-on |
| *Stem | Race Face Turbine R, 35 mm, 0 degree, 40 mm length |
| *Brake |
SRAM Maven Silver 4-piston hydraulic disc |
| *Brake rotor |
Size: S, XL, L, M, XXL SRAM HS2, 6-bolt, 180mm
|
|
Size: S, XL, L, M, XXL SRAM HS2, 6-bolt, 200mm
|
|
| Rotor size | Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer |
| Weight | M - 15.27 kg / 33.67 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
