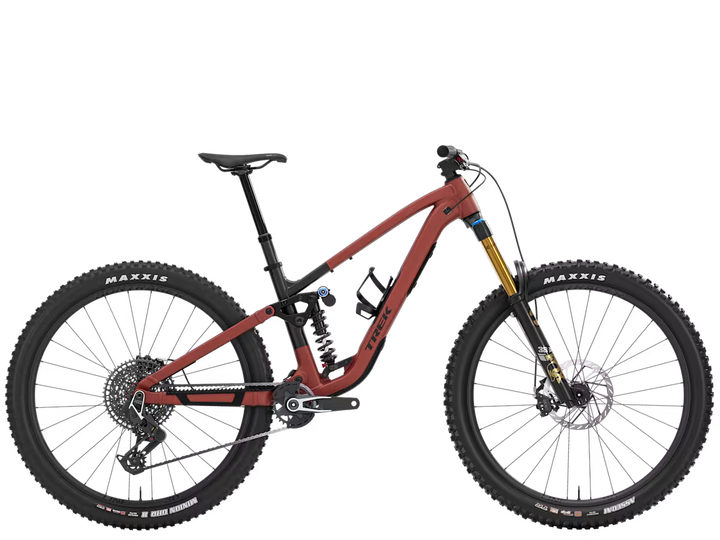

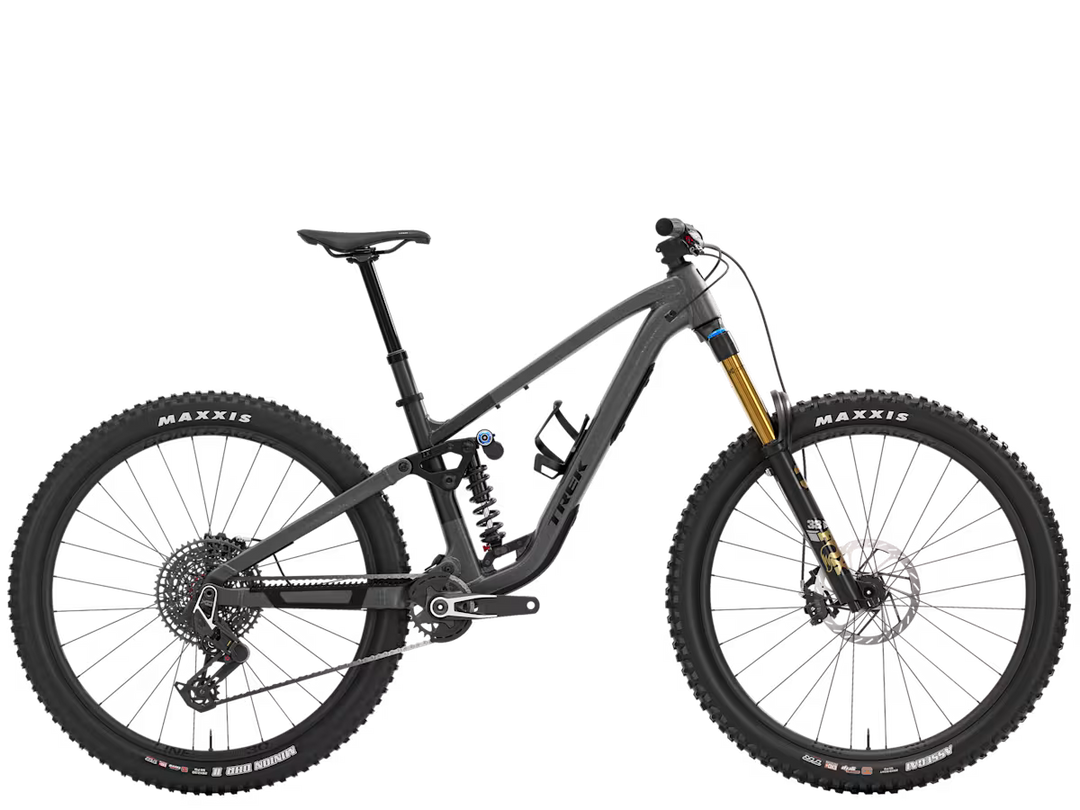

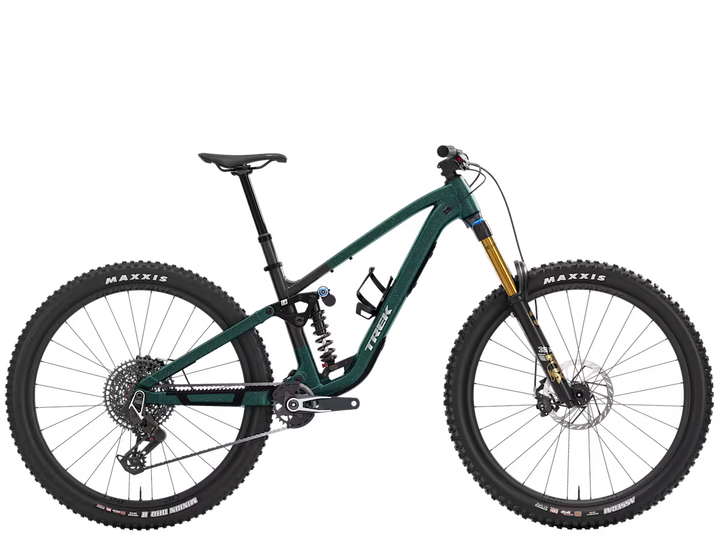

The Fuel LX 9 X0 AXS is a hard-charging trail bike built for rowdy laps and hair-raising descents. It pairs an adaptable Alpha NEXT Platinum aluminium frame with a Fox Factory 38 fork and DHX2 coil shock (160 mm rear, 170 mm front) for rolling into steeper than steep lines packed with wheel-eating terrain. It comes ready to rip with a wireless SRAM X0 Eagle AXS transmission that keeps shifts smooth under load and SRAM Maven Silver 4-piston brakes for massive stopping power.
| *Frame |
Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm |
|---|---|
| *Fork |
Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 170 mm travel |
| *Shock |
Fox DHX2, 205 mm x 65 mm
Size: S
Fox steel coil spring, 250 lbs
Size: M
Fox steel coil spring, 350 lbs
Size: L
Fox steel coil spring, 400 lbs
Size: XL
Fox steel coil spring, 450 lbs
|
| *Wheel front |
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" |
|---|---|
| *Wheel rear |
Bontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12 mm thru axle, 29'' |
| *Skewer rear | Bontrager Switch thru-axle, removable lever |
| *Tyre |
Size: S, XL, L, M
Maxxis Assegai, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
|
|
Size: S, XL, L, M Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
|
|
| *Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Max tyre size | Frame: 29x2.50", Fork: See manufacturer |
| *Shifter | SRAM AXS pod w/ SRAM AXS battery pack (with charger) |
|---|---|
| *Rear derailleur |
|
| *Crank | SRAM X0 Eagle, DUB, 30T steel, T-Type, 55mm chainline, 170 mm length |
| *Bottom bracket | SRAM DUB MTB Wide, 73 m, BSA threaded |
| *Cassette |
SRAM Eagle XS-1295, T-Type, 10-52, 12-speed |
| *Chain |
|
| Max. chainring size | Max: 34T (oval – 32T) Min: 30T (oval – 32T) |
| *Saddle |
Verse Short Comp, steel rails, 145 mm width |
|---|---|
| *Seatpost |
Size: S Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length |
| Size: M Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length |
|
|
Size: XL, L Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length |
|
| *Handlebar |
Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width |
| *Grips | Trek Line Elite, lock-on |
| *Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| *Brake |
SRAM Maven Silver 4-piston hydraulic disc |
| *Brake rotor |
Size: S, XL, L, M SRAM HS2, 6-bolt, 180mm
|
|
Size: S, XL, L, M SRAM HS2, 6-bolt, 200mm
|
|
| Rotor size | Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer |
| Weight | M - 17.78 kg / 39.2 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
