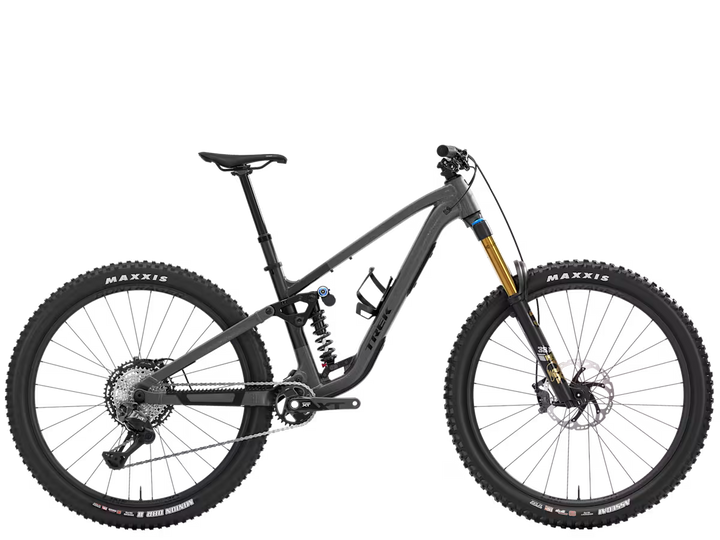

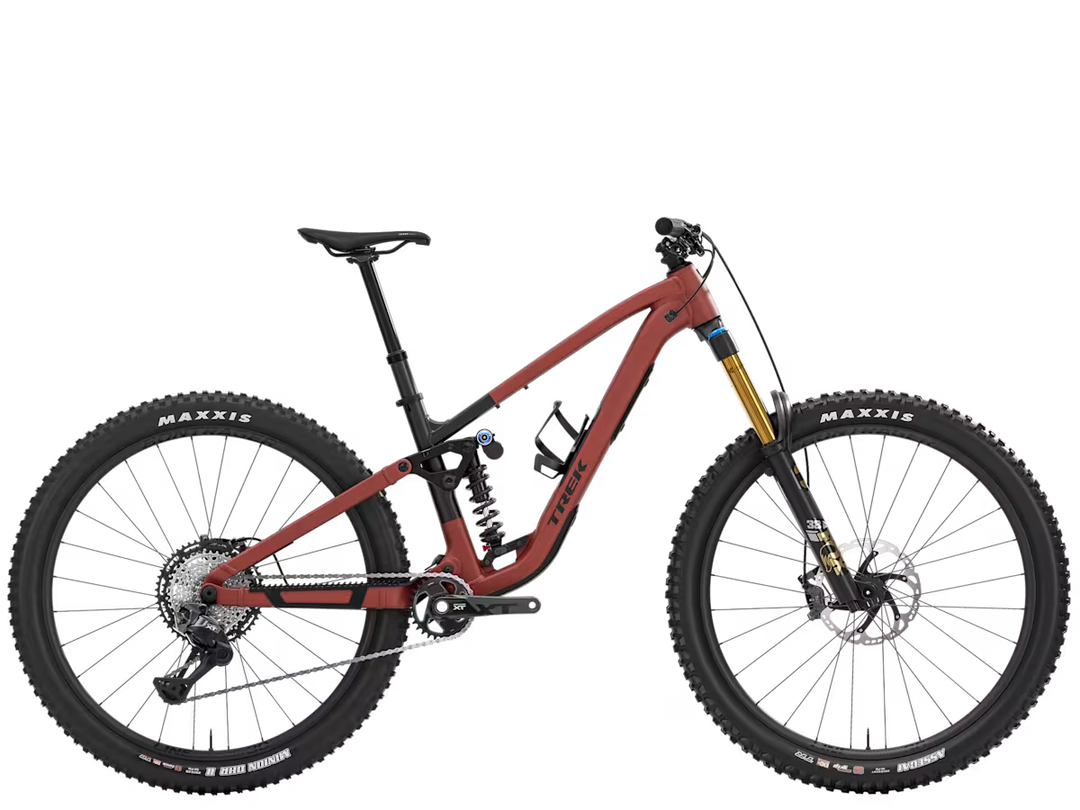

The Fuel LX 9 XT is a hard-charging trail bike built for rowdy laps and hair-raising descents. It pairs an adaptable Alpha NEXT Platinum aluminium frame with a Fox Factory 38 fork and DHX2 coil shock (160 mm rear, 170 mm front) for rolling into steeper than steep lines packed with mine fields of boulders. Shimano's wireless XT Di2 drivetrain delivers ultra-crisp, customisable shifting in a light, robust package and 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-penny power.
| *Frame |
Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm |
|---|---|
| *Fork |
Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 170 mm travel |
| *Shock |
Fox DHX2, 205 mm x 65 mm
Size: S
Fox steel coil spring, 250 lbs
Size: M
Fox steel coil spring, 350 lbs
Size: L
Fox steel coil spring, 400 lbs
Size: XL
Fox steel coil spring, 450 lbs
|
| *Wheel front |
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" |
|---|---|
| *Wheel rear |
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru-axle, 29" |
| *Skewer rear | Bontrager Switch thru-axle, removable lever |
| *Tyre |
Size: S, XL, L, M
Maxxis Assegai, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
|
|
Size: S, XL, L, M Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
|
|
| *Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Max tyre size | Frame: 29x2.50", Fork: See manufacturer |
| *Shifter | Shimano XT Di2 M8250, 12-speed |
|---|---|
| *Rear derailleur |
|
| *Crank | Shimano XT 8200, 30T, 55 mm chain-line, 170 mm length |
| *Bottom bracket | Shimano BB-MT501 BSA |
| *Cassette |
Shimano XT M8200, 10-51, 12-speed |
| *Chain |
|
| Max. chainring size | Max: 34T (oval – 32T) Min: 30T (oval – 32T) |
| *Saddle |
Verse Short Comp, steel rails, 145 mm width |
|---|---|
| *Seatpost |
Size: S Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length |
| Size: M Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length |
|
|
Size: XL, L Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length |
|
| *Handlebar |
Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width |
| *Grips | Trek Line Elite, lock-on |
| *Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| *Brake |
Shimano XT M8200 4-piston hydraulic disc |
| *Brake rotor |
Size: S, XL, L, M Shimano RT86, 6-bolt, 203 mm
|
|
Size: S, XL, L, M Shimano RT86, 6-bolt, 180 mm
|
|
| Rotor size | Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer |
| Weight | M - 17.84 kg / 39.34 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
