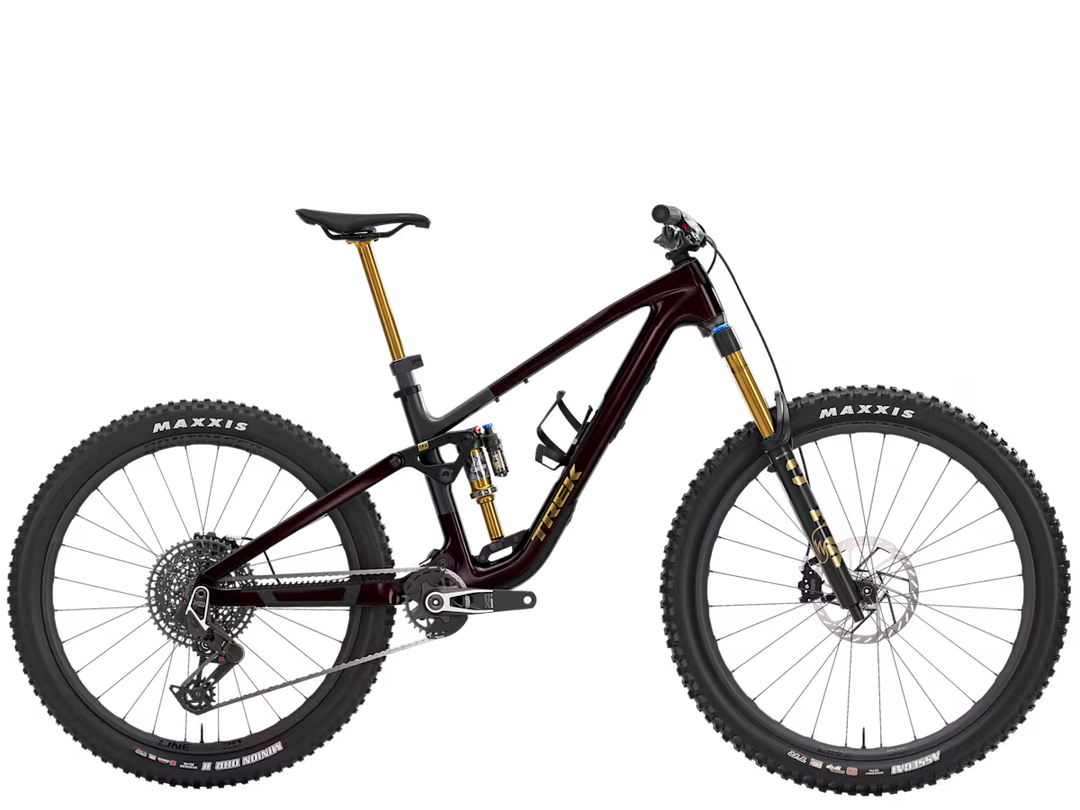

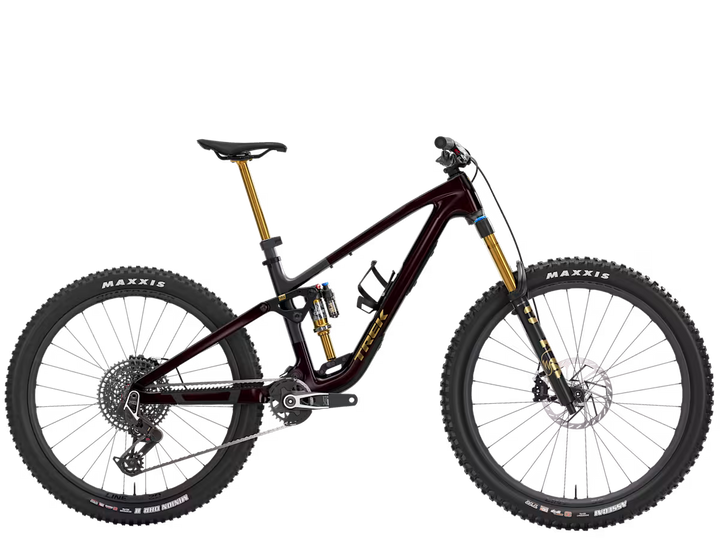

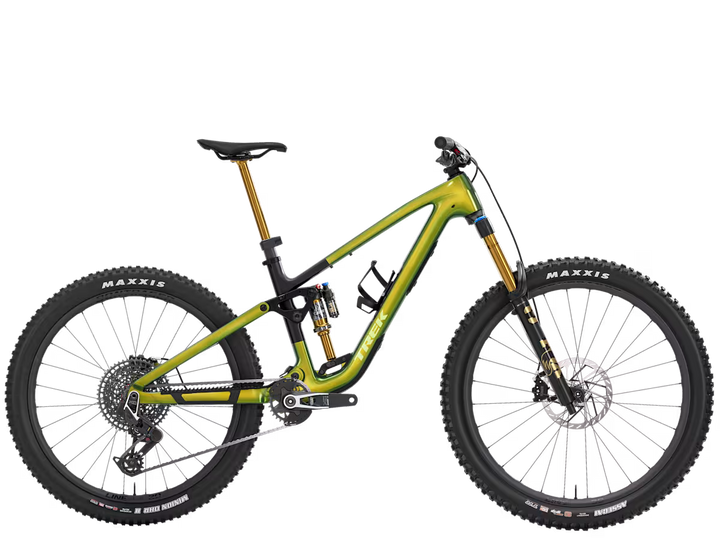

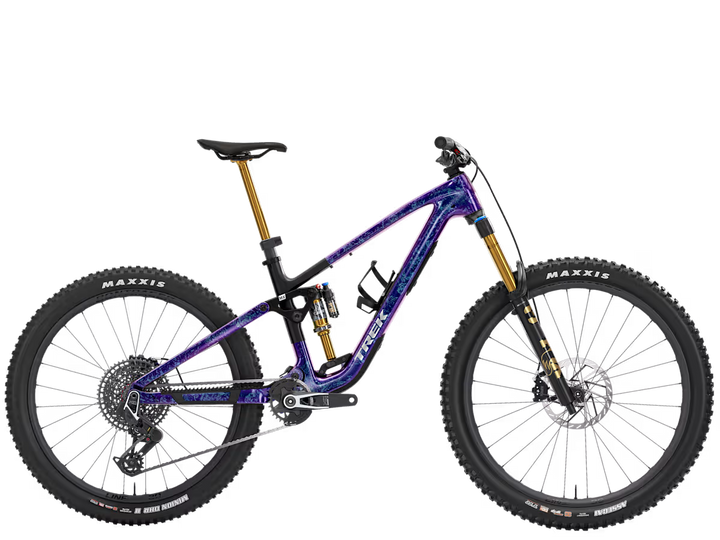

The Fuel MX 9.9 X0 AXS is our top-tier chaos-craving carbon trail bike, built for chasing the wilder things in life. It starts off with an OCLV Mountain Carbon frame, speced with a Fox Factory suspension package (150 mm rear, 160 mm front) and MX wheels for getting wild on the trail. SRAM's wireless X0 AXS transmission delivers crystal-clear shifting, even under load, while 4-piston SRAM Maven Silver brakes give you the modulation and power you need. It's topped off with a Fox Transfer NEO dropper post and carbon Bontrager Line Pro 30 wheels.
| *Frame |
OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
|
|---|---|
| *Fork |
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 160 mm travel |
| *Shock |
Fox Factory Float X, 205 mm x 60 mm
|
| *Wheel front |
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" |
|---|---|
| *Wheel rear |
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru-axle, 27.5" |
| *Skewer rear | Bontrager Switch thru-axle, removable lever |
| *Tyre |
Size: S, XL, L, M
Maxxis Assegai, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
|
|
Size: S, XL, L, M
Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5''
|
|
| *Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Max tyre size | Frame: 29x2.50", Fork: See manufacturer |
| *Shifter | SRAM AXS pod w/ SRAM AXS battery pack (with charger) |
|---|---|
| *Rear derailleur |
SRAM X0 Eagle AXS, T-Type |
| *Crank | SRAM X0 Eagle, DUB, 30T, T-Type, 55 mm chainline, 170 mm length |
| *Bottom bracket | SRAM DUB MTB Wide, 73 m, BSA threaded |
| *Cassette |
SRAM Eagle XS-1295, T-Type, 10-52, 12-speed |
| *Chain |
|
| Max. chainring size | Max: 34T (oval – 32T) Min: 30T (oval – 32T) |
| *Saddle |
Verse Short Pro, carbon rails, 145 mm width |
|---|---|
| *Seatpost | |
| Fox Transfer NEO | |
| *Handlebar |
Race Face ERA, carbon, 35 mm, 27.5 mm rise, 800 mm width |
| *Grips | Trek Line Elite, lock-on |
| *Stem | Race Face Turbine R, 35 mm, 0 degree, 40 mm length |
| *Brake |
SRAM Maven Silver 4-piston hydraulic disc |
| *Brake rotor |
Size: S, XL, L, M, XXL SRAM HS2, 6-bolt, 180mm
|
|
Size: S, XL, L, M, XXL SRAM HS2, 6-bolt, 200mm
|
|
| Rotor size | Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer |
| Weight | M - 14.38 kg / 31.71 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
