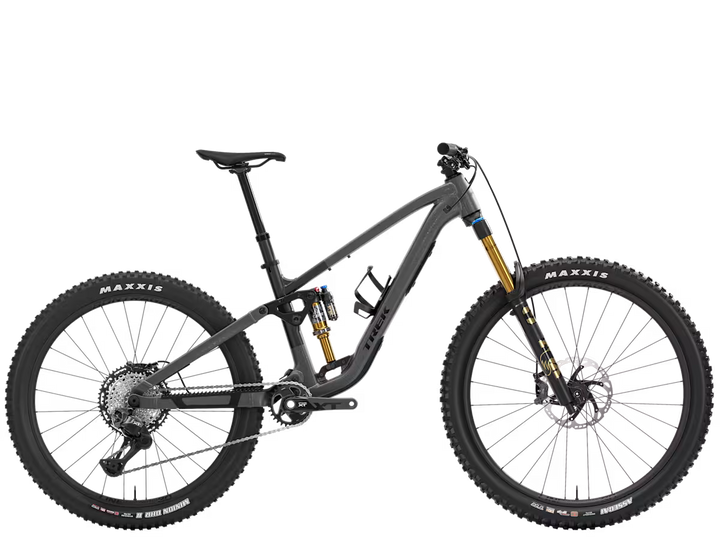

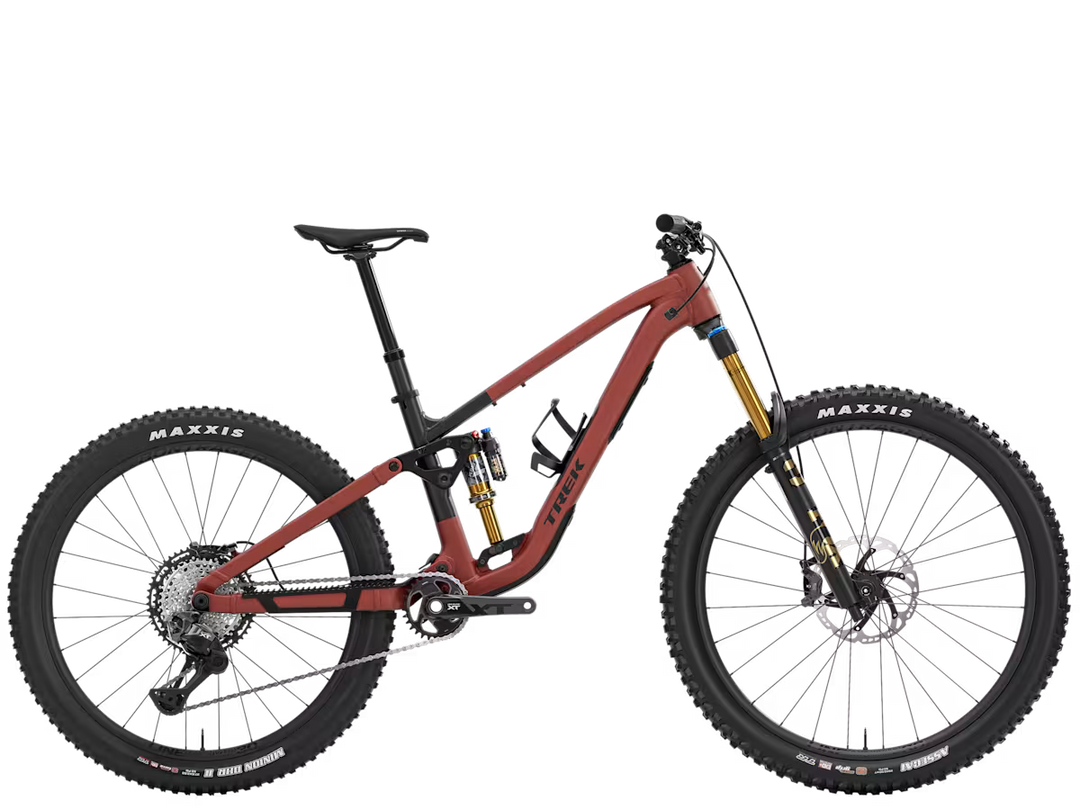

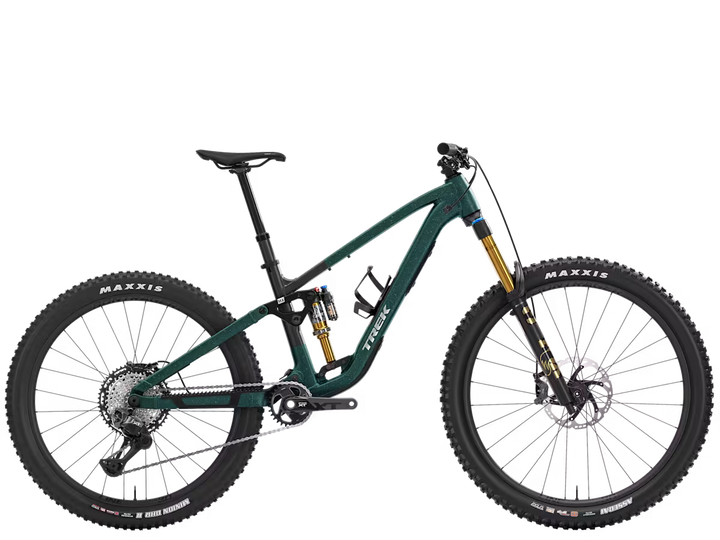

The Fuel MX 9 XT Di2 is a playful trail bike made for hunting down side hits and chasing chaos. Its Alpha NEXT Platinum aluminium frame it paired with a Fox Factory suspension package (150 mm rear, 160 mm front) and MX wheels for a ride that's flickable and zippy. A wireless Shimano XT Di2 12-speed drivetrain gives you clean, customisable shifting and 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-penny power.
| *Frame |
Size: S, XL, L, M
Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
|
|---|---|
| *Fork |
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 160 mm travel |
| *Shock |
Fox Factory Float X, 205 mm x 60 mm
|
| *Wheel front | Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" |
|---|---|
| *Wheel rear | Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru-axle, 27.5" |
| *Skewer rear | Bontrager Switch thru-axle, removable lever |
| *Tyre |
Size: S, XL, L, M
Maxxis Assegai, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
|
|
Size: S, XL, L, M
Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5''
|
|
| *Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Max tyre size | Frame: 29x2.50", Fork: See manufacturer |
| *Shifter | Shimano XT Di2 M8250, 12-speed |
|---|---|
| *Rear derailleur |
Shimano XT Di2 M8250, long cage |
| *Crank | Shimano XT 8200, 30T, 55 mm chain-line, 170 mm length |
| *Bottom bracket | Shimano BB-MT501 BSA |
| *Cassette |
Shimano XT M8200, 10-51, 12-speed
|
| *Chain |
Shimano XT M8100, 12-speed
|
| Max. chainring size | Max: 34T (oval – 32T) Min: 30T (oval – 32T) |
| *Saddle | Verse Short Comp, steel rails, 145 mm width |
|---|---|
| *Seatpost |
Size: S |
|
Size: M Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length |
|
|
Size: XL, L Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length |
|
| *Handlebar |
Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width
|
| *Grips | Trek Line Elite, lock-on |
| *Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| *Brake |
Shimano XT M8200 4-piston hydraulic disc
|
| *Brake rotor |
Size: S, XL, L, M Shimano RT86, 6-bolt, 203 mm
|
|
Size: S, XL, L, M Shimano RT86, 6-bolt, 180 mm
|
|
| Rotor size | Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer |
| Weight | M - 16.96 kg / 37.4 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
