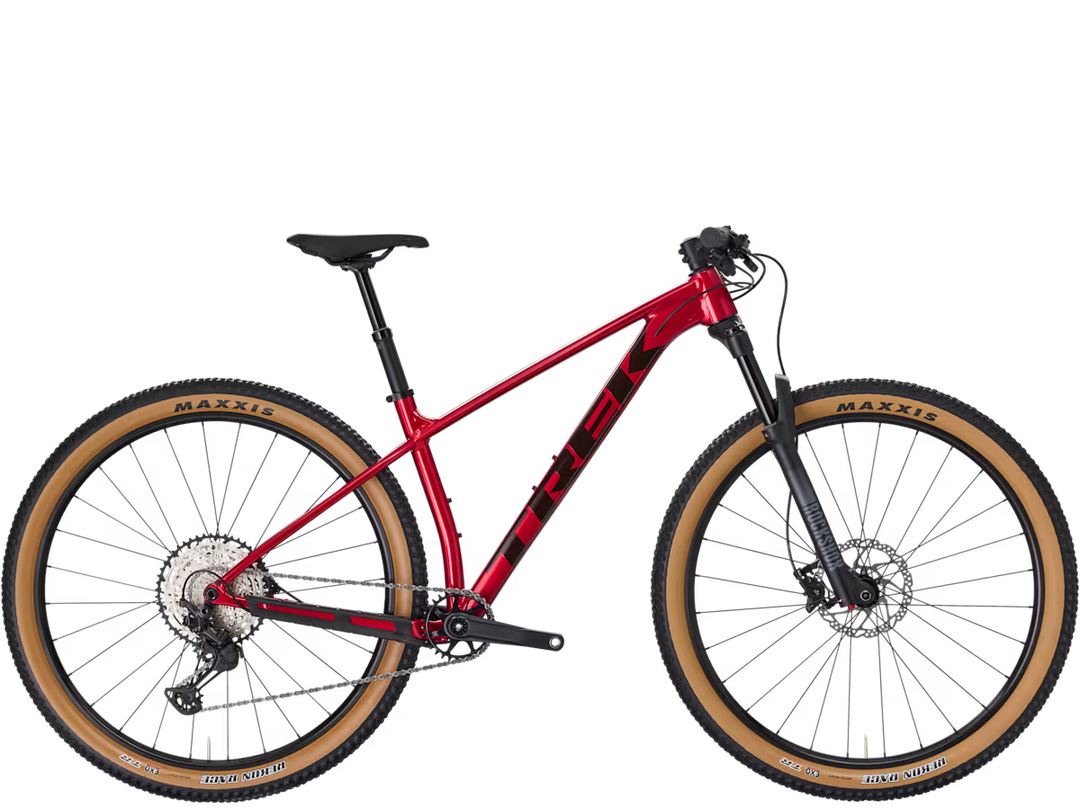

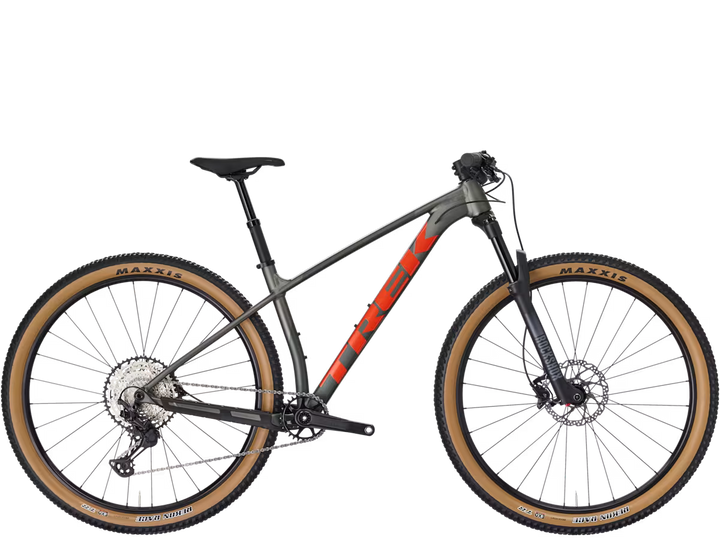

The Procaliber 8 is a cross-country mountain bike built for hot laps and singletrack. It confidently rolls the fine line between race-ready and pocket-friendly with an alloy frame that's built with modern geometry for handling fast corners and rough sections of trail while keeping you ready to sprint up climbs. A 12-speed Shimano SLX and XT drivetrain and 120 mm RockShox Recon Gold fork seal the deal with all the gears and rock-smoothing comfort you need.
Specifications
*spec applies to all sizes unless otherwise noted
| Frame | Alpha Platinum Aluminium, tapered head tube, internal routing, BSA 73, hidden rack and kickstand mounts, UDH, Boost148, 12 mm thru axle |
|---|---|
| Fork | RockShox Recon Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15 mm Maxle Stealth, 120mm travel |
| Max compatible fork travel | 130 mm (540 mm axle-to-crown) |
Wheels
| Hub front | Shimano TC500 alloy, CentreLock, 110x15 mm thru axle |
|---|---|
| Hub rear | Shimano TC500 alloy, CentreLock, 148x12 mm thru axle |
| Rim | Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve |
| Tyre | Maxxis Rekon Race, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.40" |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | Frame: 29x2.40", Fork: See manufacturer |

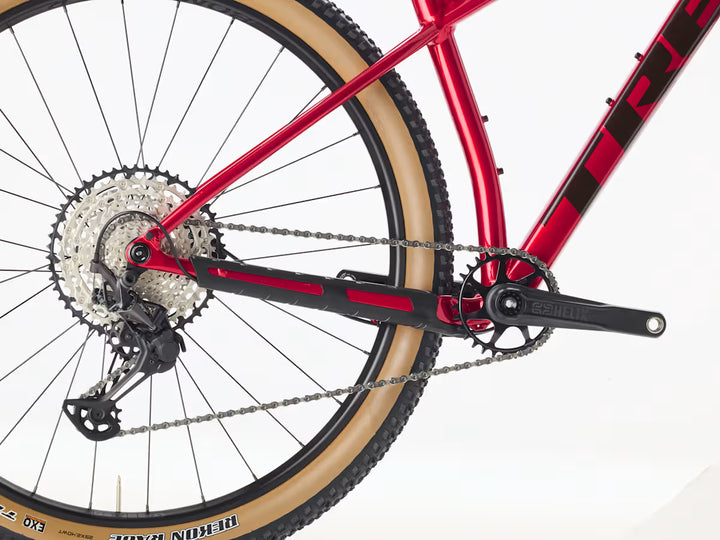

Drivetrain
| Shifter | Shimano SLX M7100, 12-speed |
|---|---|
| Rear derailleur | Shimano XT M8100, long cage |
| *Crank |
Size:Â M , S E*thirteen Helix, 30T steel ring, 73 mm spindle length, 52 mm chainline, 170 mm length
|
|
Size:Â ML , L , XL E*thirteen Helix, 30T steel ring, 73 mm spindle length, 52 mm chainline, 175 mm length
|
|
| Bottom bracket | Shimano BB-MT501 BSA |
| Cassette | Shimano SLX M7100, 10-51T, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 1x: 34T (55 mm chain line), min 30T (52 mm chain line) |
Components
| Saddle | Verse Short, chromoly rails, 145 mm width |
|---|---|
| *Seatpost |
Size:Â M , S Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length
|
|
Size:Â ML , L Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length
|
|
|
Size:Â XL Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length
|
|
| *Handlebar | Size:Â M , S Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width |
|
Size:Â ML , L , XL Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
|
|
| Grips | Trek Line Comp, nylon lock-on |
| *Stem | Size:Â S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
|
Size:Â ML , M Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
|
|
|
Size:Â L Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
|
|
|
Size:Â XL Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
|
|
| Head set | Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8" top, 1.5" bottom |
| Brake | Shimano hydraulic disc, MT4100 lever, MT410 calliper |
| *Brake rotor |
Size:Â ML , M , L , S , XL Shimano RT54, CentreLock, 160 mm
|
|
Size:Â ML , M , L , S , XL Shimano RT54, CentreLock, 180 mm
|
|
| Brake Set | Shimano hydraulic disc, MT4100 lever, MT410 calliper |
| Rotor size | Max brake rotor sizes – Frame: 180 mm, Fork: see fork manufacturer |
Weight
| Weight | M - 12.78 kg / 28.18 lbs (with TLR sealant, no tubes) |
|---|
