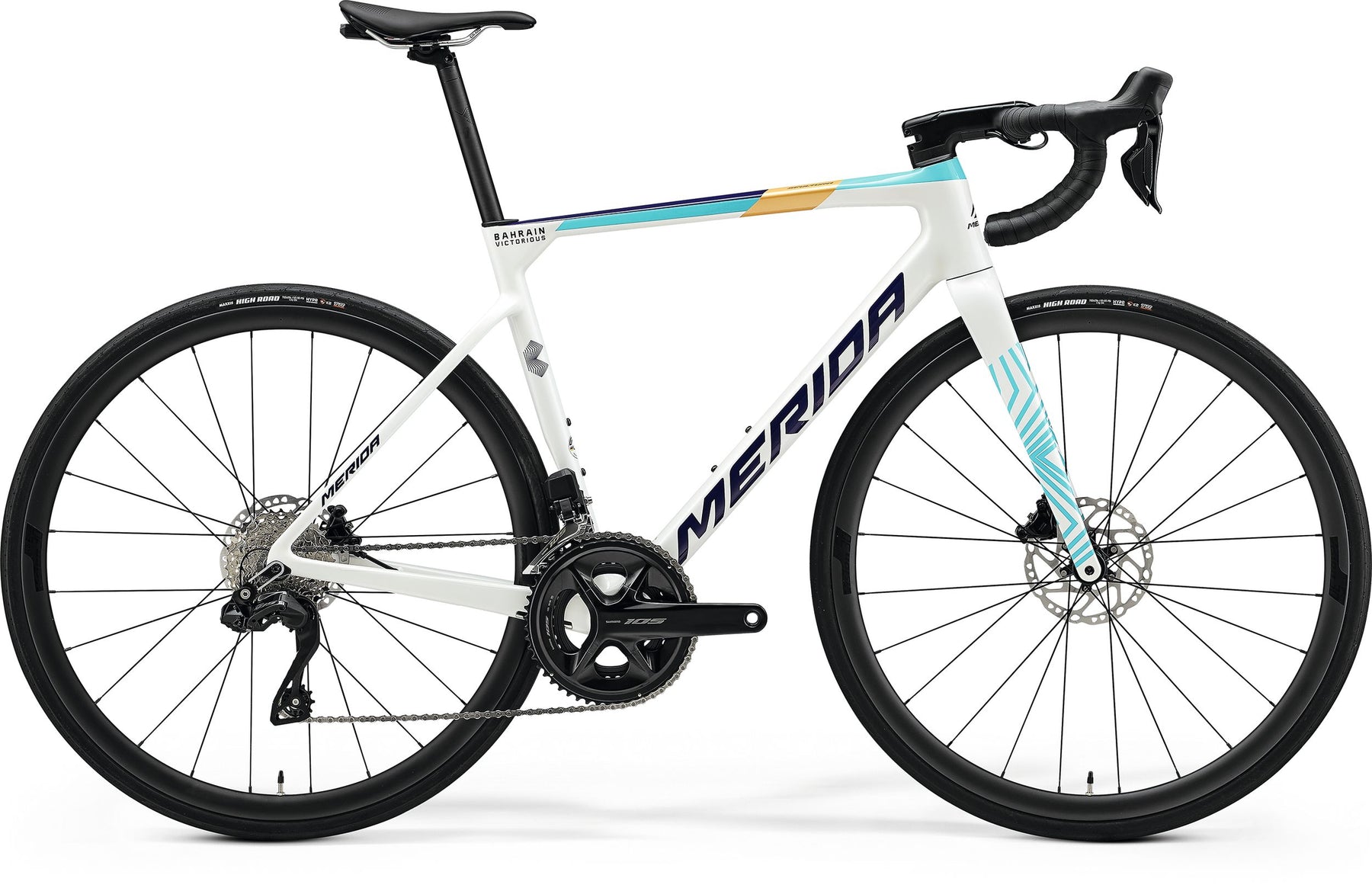

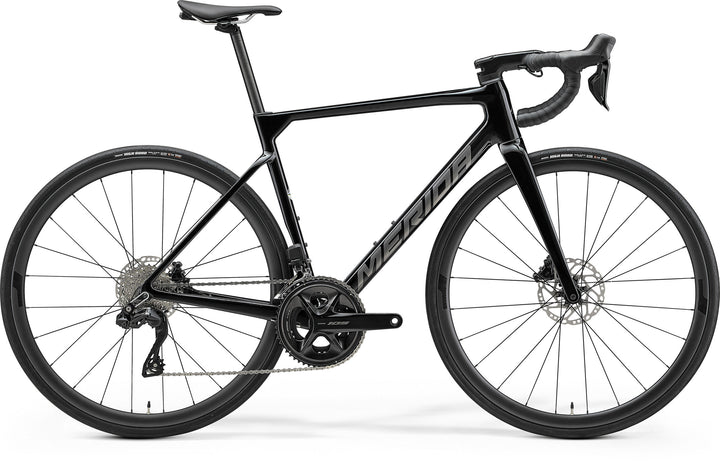

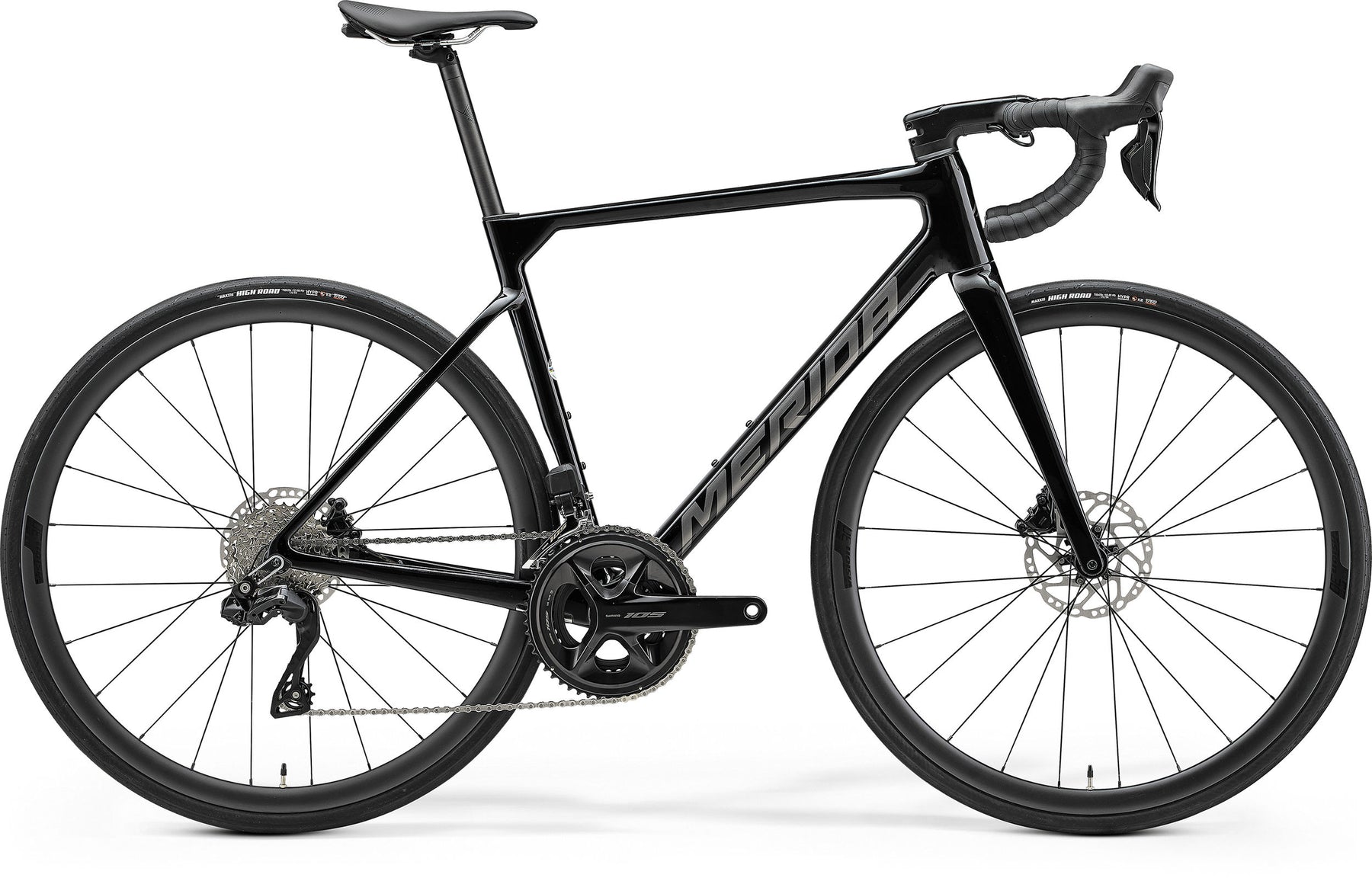

Looking for a lightweight carbon road bike with a super precise electronic groupset, a long list of aerodynamic upgrades, perfect cable integration, class-leading frame compliance, ample tyre clearance and high-quality components? Do you turn your hand to racing or stay at the front of the pack on fast club rides, or like an undulating ride profile? The Shimano 105 Di2 equipped SCULTURA 6000 could be your perfect bike. Our award-winning SCULTURA stands for 'streamlined race compliance' and delivers exactly that, whatever challenge you throw at it.
The fifth generation of our lightweight racer marries outstanding handling with improved comfort and an even more aerodynamic chassis. Thanks to incorporating selected aero details from our test and award-winning REACTO aero bike, the SCULTURA is the most aerodynamic version ever. Yet, it remains true to its lightweight, agility and rider comfort focus; in fact it takes these factors to the next level, so far that Cycling Weekly gave it the highly sought after 'Best Value Race Bike of the Year 2024' award. The SCULTURA demonstrates outstanding compliance, providing the rider with class-leading riding comfort that will help to keep the body fresh for the final sprint or ascent. Available in CF5 and CF3 carbon frame versions, both sharing their geometry with the World Tour proven REACTO, our classic road bike combines outstanding comfort with whippet-like acceleration and class-leading climbing pedigree.
Highlights:
- Lightweight CF3 Carbon frame with full carbon tapered fork
- Shimano 105 Di2 2 x 12 drivetrain
- Shimano 105 chainset
- Vision SC30 carbon wheelset
- Shimano 105 hydraulic disc brakes with Disc Cooler Technology
- Maxxis Highroad 28c tyres
| Specification | Detail |
|---|---|
| Frame | CF3 V carbon, race geometry. Internal cable routing, 142 x 12mm axle standard, flat mount rear brakes with Disc Cooler, Pressfit 86.5 BB standard, 1 1/2" to 1 1/4" headtube. Max tyre size - 30c |
| Fork | Scultura CF3 Disc; full carbon; Max tyre size: 700 x 30c - Disc cooler technology |
| Headset | Merida Team SL (OP-203 neck) |
| Stem | Merida Expert SL 2PII; aluminium; -9 degree rise -Length - 90mm (XXS-XS), 100mm (S), 110mm (M-L), 120mm (XL) |
| Handlebar | Merida Expert SLII; aluminium; 380mm(XXS-XS-S), 400mm (M-L-XL) |
| Grip | Merida Expert |
| Brake Type | Hydraulic disc |
| Brake Lever | Shimano 105 |
| Front Brake | Shimano 105; Hydraulic disc brake caliper with Shimano RT64; 160mm rotor |
| Rear Brake | Shimano 105; Hydraulic disc brake caliper with Shimano RT64; 160mm rotor |
| Front Tyre | Maxxis Highroad; 700 x 28C; Kevlar bead; tubeless ready |
| Rear Tyre | Maxxis Highroad; 700 x 28C; Kevlar bead; tubeless ready |
| Wheel Size | 700c |
| Rim | Part of wheelset -Vision SC30 DB; 19mm inner rim width; 33mm rim depth; carbon |
| Spokes | Part of wheelset |
| Front Hub | Part of wheelset - Vision SC30 DB; 100 x 12mm; Centerlock |
| Rear Hub | Part of wheelset - Vision SC30 DB; 142 x 12mm; Centerlock |
| Speeds | 24 |
| Front Derailleur | Shimano 105 Di2 |
| Rear Derailleur | Shimano 105 Di2 |
| Shift Levers | Shimano 105 disc Di2 |
| Chain | Shimano CN-M6100-12 |
| Cassette | Shimano CS-R7101; 11-34 teeth; 12 speed |
| Chainset | Shimano 105; FCR7100, 52-36 tooth chainset; Crank length - 165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL) |
| Bottom Bracket | SM-BB71-41B, Pressfit 86.5 |
| Saddle | Merida Expert SL; V-mount; including Merida minitool |
| Seat Post | Merida Expert CC; 27.2mm diameter; 15mm layback; Carbon |
