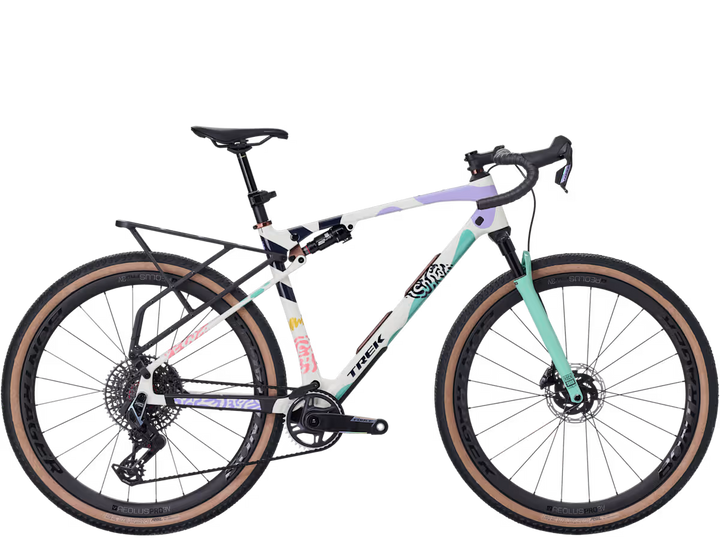

The CheckOUT SL 7 is a full-suspension gravel bike built for exploring rowdy roads, singletrack and anything else you throw its way. Its carbon frame delivers 55 mm of rear travel from a RockShox SIDluxe IsoStrut shock, while a RockShox Rudy XL fork smooths rowdy roads and trails with 60 mm of travel. It gets upgrades where they matter most, like Bontrager Aeolus Pro 3V carbon wheels, a SRAM Force AXS E1 wireless 13-speed drivetrain and a wireless RockShox Reverb AXS dropper post.
| Frame | 500 Series OCLV Carbon, integrated frame bag mounts, integrated rack, T47, UDH, 142x12 mm chamfered thru axle, 55 mm travel |
|---|---|
| Fork | RockShox Rudy XL Ultimate, Charger Race Day 2 Solo Air spring, tapered steerer, 45 mm offset, 12x100 mm thru axle, 60 mm travel |
| Shock | RockShox SIDluxe Ultimate 3P, 170 mm x 27.5 mm |
Weight
| Weight | ML - 12.04 kg / 26.55 lbs (with TLR sealant, no tubes, excluding rear rack) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
E-system
| Battery | SRAM AXS battery pack (with charger) |
|---|

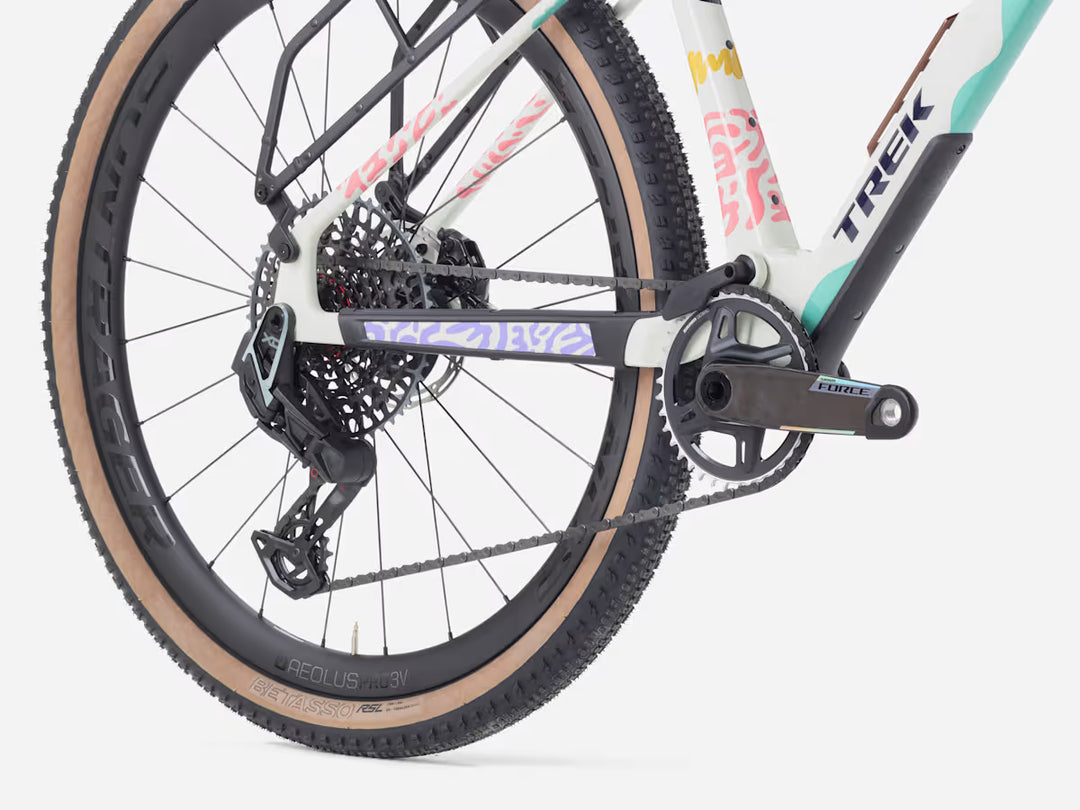

| Rear derailleur | SRAM X0 Eagle AXS, T-Type |
|---|---|
| *Crank |
Size: S Sram Force 1 XPLR E1, 38T, DUB wide, 165 mm length
|
|
Size: M, ML Sram Force 1 XPLR E1, 38T, DUB wide, 170 mm length
|
|
|
Size: L, XL Sram Force 1 XPLR E1, 38T, DUB wide, 172.5 mm length
|
|
| Bottom bracket | SRAM DUB Wide, T47 threaded, internal bearing |
| Cassette | SRAM Eagle XS-1295, T-Type, 10-52, 12-speed |
| Chain | SRAM X0 Eagle, T-Type, 12-speed |
| Max. chainring size | 1x: 38T |
Wheels
| Wheel front | Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle |
|---|---|
| Wheel rear | Bontrager Aeolus Pro 37V, OCLV Carbon, Tubeless Ready, 25 mm rim width, SRAM XD-R driver, 142x12 mm thru axle |
| Skewer front | Bontrager Switch chamfered thru axle |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| *Tyre | Bontrager Betasso RSL GX, Tubeless ready, aramid bead, 60 tpi, 700x50 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | 56 mm/2.20" (as measured, see manual for details) |
Components
| Saddle | Verse Short Elite, hollow magnesium rails, 145 mm width |
|---|---|
| Seatpost | RockShox Reverb AXS, 100 mm travel, wireless, 31.6 mm, 337 mm length |

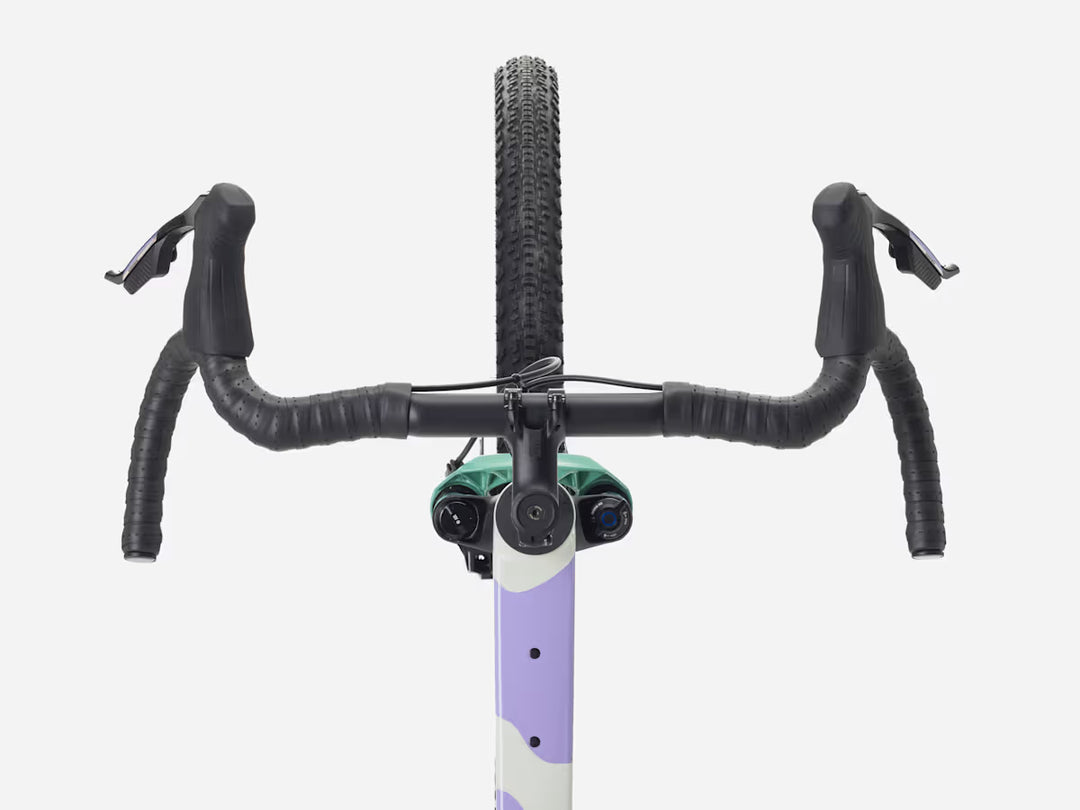

| Handlebar |
Size: S Bontrager GR Checkout, 42 cm |
|
Size: M Bontrager GR Checkout, 44 cm |
|
|
Size: L, ML Bontrager GR Checkout, 46 cm |
|
|
Size: XL Bontrager GR Checkout, 48 cm |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| Stem |
Size: S, M Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 60mm length
|
|
Size: L, ML Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
|
|
|
Size: XL Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80mm length
|
|
| Brake rotor | SRAM Paceline X, rounded, CentreLock, 160 mm |
| Rotor size | Max brake rotor sizes: 180mm front and rear |
Accessories

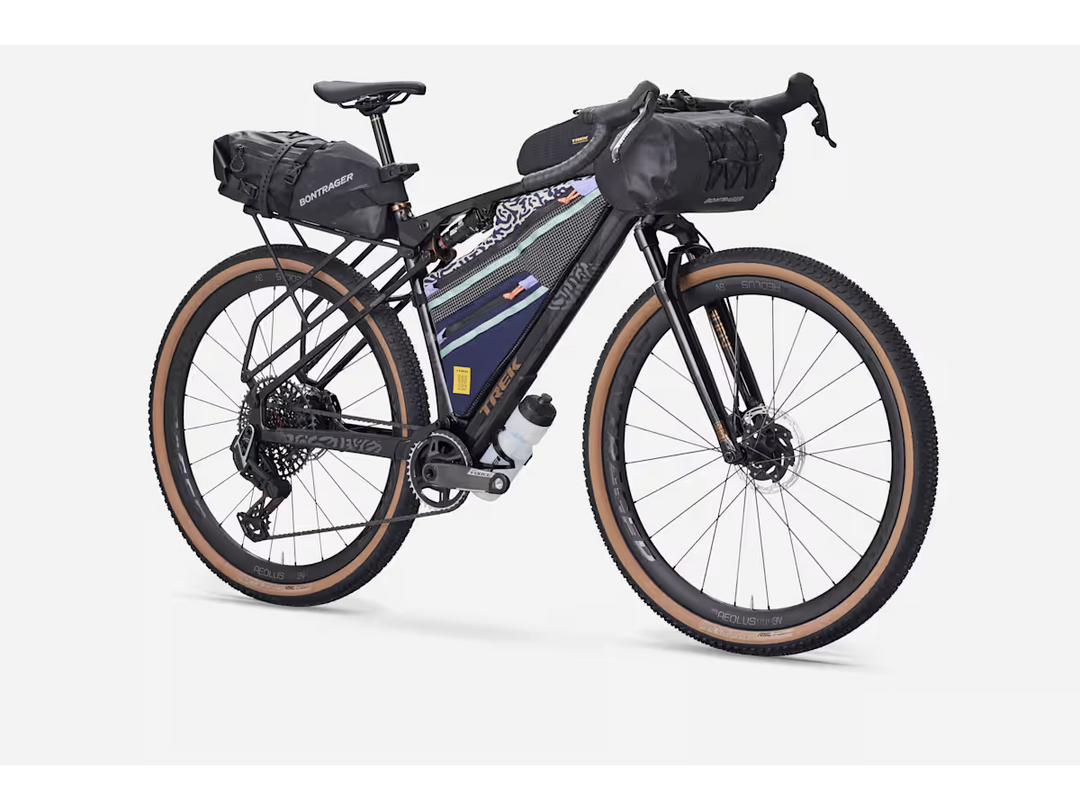

| Cargo rack | Checkout rear rack |
|---|
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
