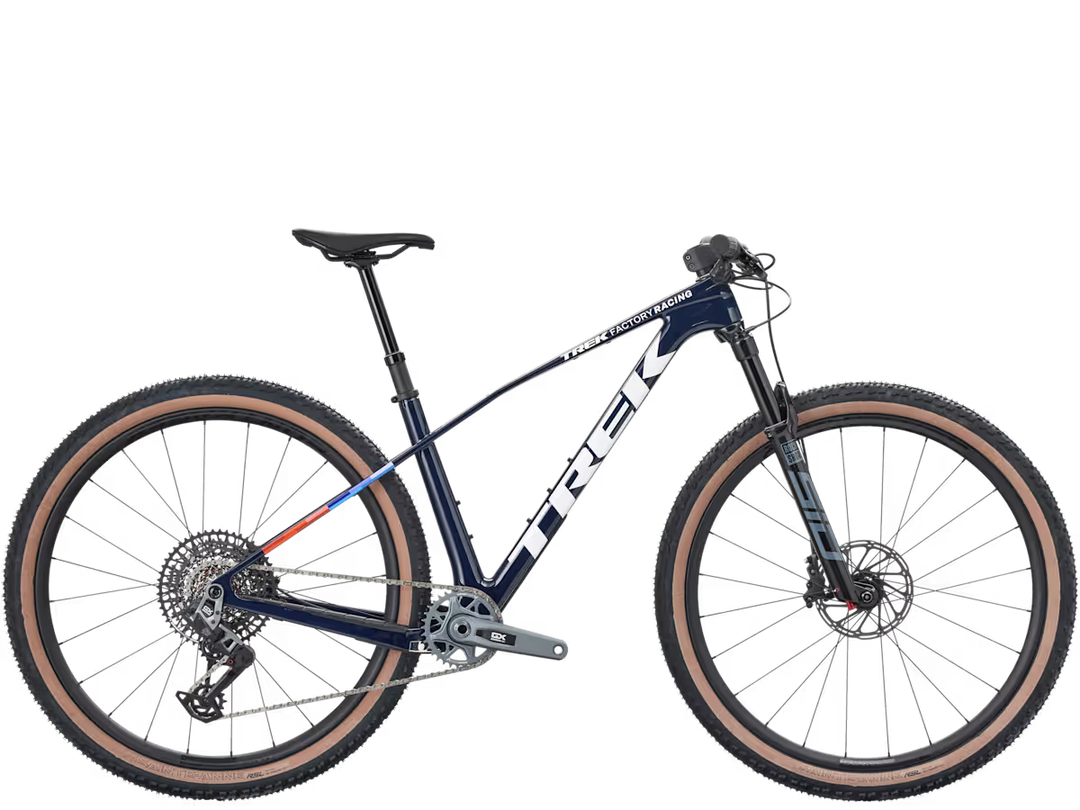

The Procaliber 9.7 Gen 3 is a carbon XC hardtail that's built to race. Its crafted from OCLV Mountain Carbon fibre with IsoBow trail-smoothing tech that not only eats up chatter, but sheds weight too. It's built for speed, with carbon wheels, an upgraded RockShox fork and a wireless SRAM AXS transmission.
Specifications
*spec applies to all sizes unless otherwise noted
| Frame | OCLV Mountain Carbon, IsoBow, tapered head tube, internal routing, balanced post-mount brake, Boost148 |
|---|---|
| Fork | RockShox SID, DebonAir spring, Rush RL damper, remote lockout, tapered steerer, 44 mm offset, Boost120, 15 mm Maxle Stealth, 120 mm travel |
| Max compatible fork travel | 120 mm |
Wheels
| Wheel front | Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29" |
|---|---|
| Wheel rear | Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, Boost148, 12 mm thru axle, 29" |
| Tyre | Bontrager Sainte-Anne RSL XR, Tubeless Ready, dual compound, aramid bead, 220 tpi, 29x2.40" |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | Frame: 29x2.40", Fork: See manufacturer |
E-system
| Battery | SRAM AXS battery pack (with charger) |
|---|

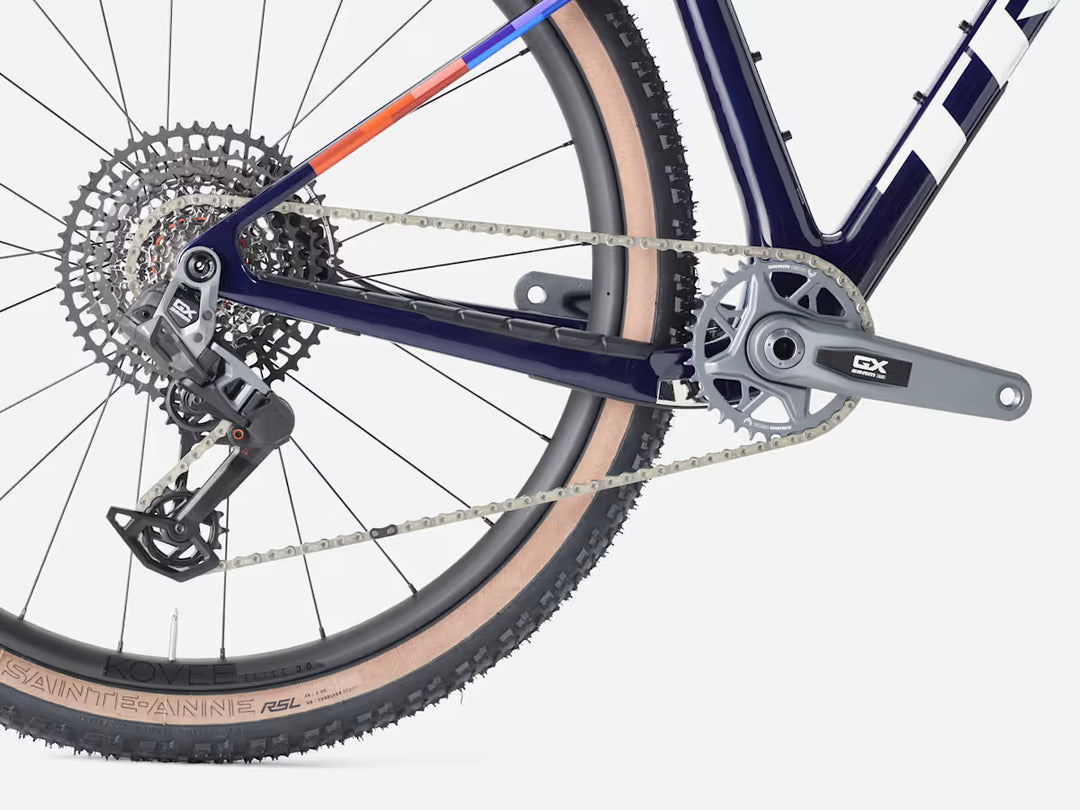

Drivetrain
| Shifter | SRAM AXS POD |
|---|---|
| Rear derailleur | SRAM GX Eagle AXS, T-Type |
| *Crank |
Size: S , M , ML SRAM GX Eagle, DUB, T-Type, 34T, 55 mm chain line, 170 mm length |
|
Size: L , XL SRAM GX Eagle, DUB, T-Type, 34T, 55 mm chain line, 175 mm length |
|
| Bottom bracket | SRAM DUB, 92 mm, PressFit |
| Cassette | SRAM Eagle XS-1275, T-Type, 10-52, 12-speed |
| Chain | SRAM GX Eagle, T-Type, 12-speed |
| Max. chainring size | 1x: 38T |
Components
| Saddle | Verse Short Elite, hollow magnesium rails, 145 mm width |
|---|---|
| *Seatpost |
Size: S Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length |
|
Size: M , ML , L Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length |
|
|
Size: XL Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length |
|
| *Handlebar/stem (integrated) |
Size: S , M , ML Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 70 mm length |
|
Size: L Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 80 mm length |
|
|
Size: XL Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 90 mm length |
|
| Grips | ESI Chunky |
| Head set | FSA IS-2, 1-1/8" top, 1.5" bottom |
| Brake |
Size: ML , M , L , S , XL Size: ML , M , L , S , XL |
| *Brake rotor |
Size: S , M , ML , L , XL SRAM CenterLine, 6-bolt, round-edge, 160 mm |
|
Size: S , M , ML , L , XL SRAM CentreLine, 6-bolt, round-edge, 180 mm |
|
| Rotor size | Max brake rotor sizes – Frame: 180 mm, Fork: see fork manufacturer |
Weight
| Weight | M – 10.58 kg/23.33 lb (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
