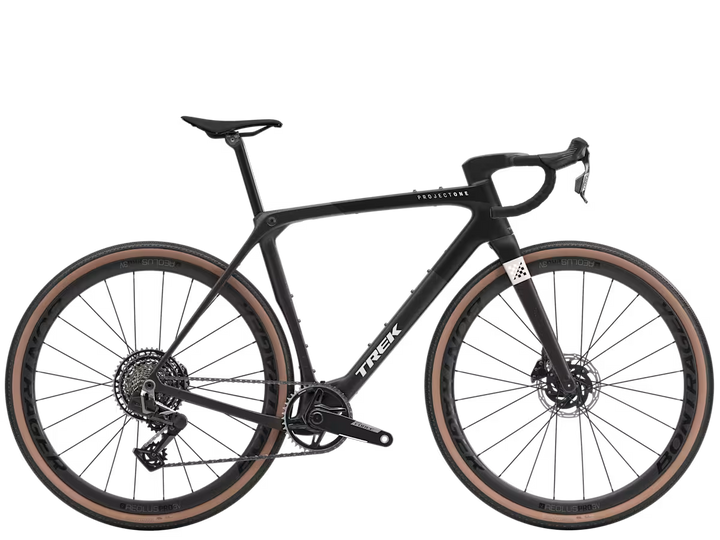

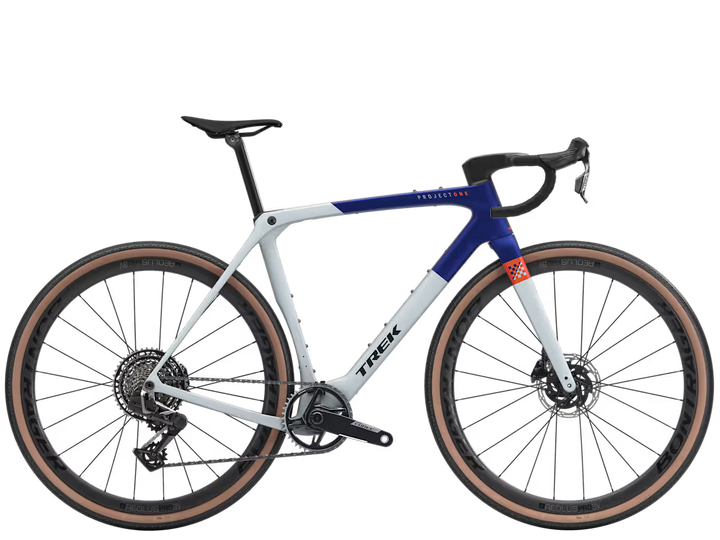

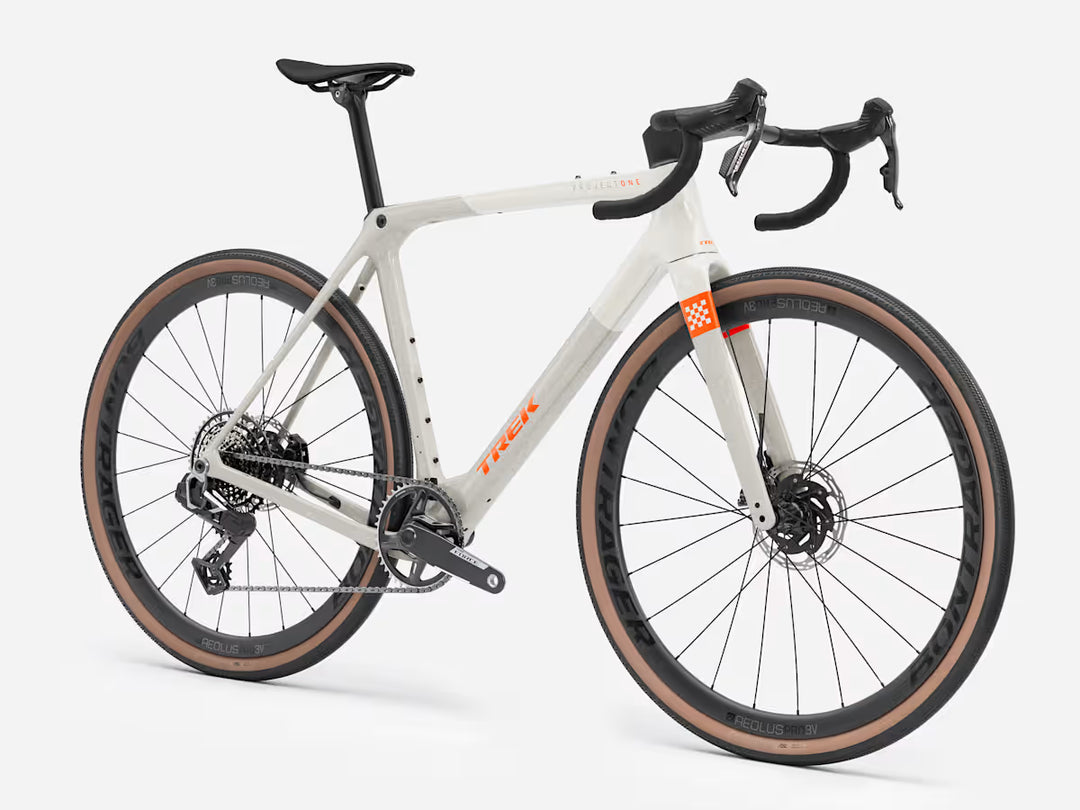

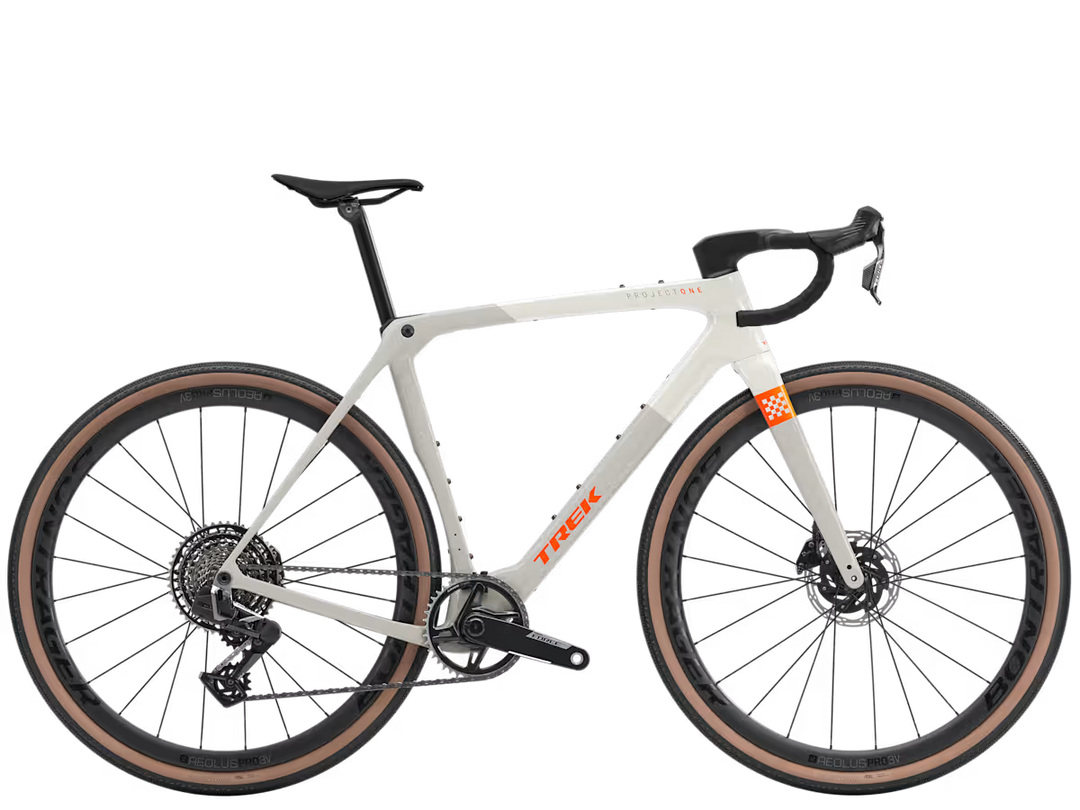

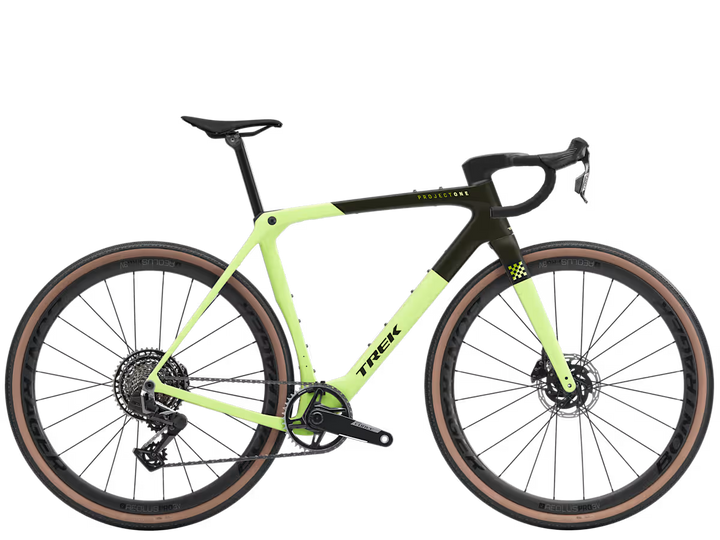

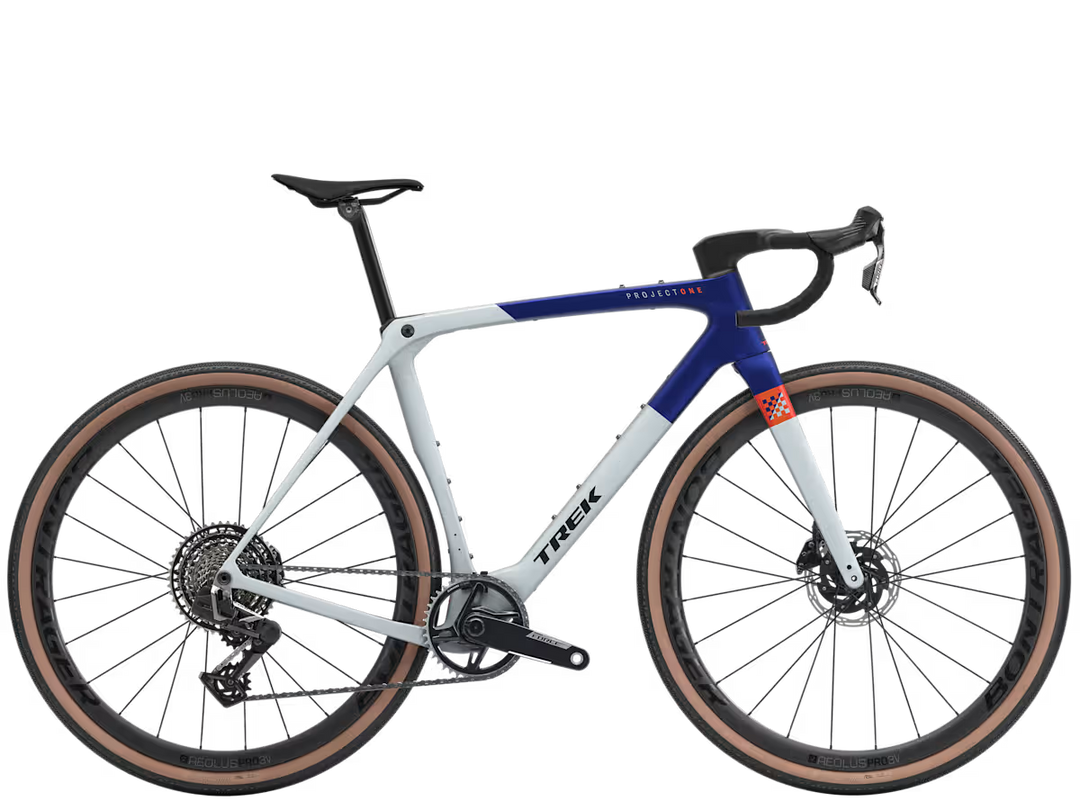

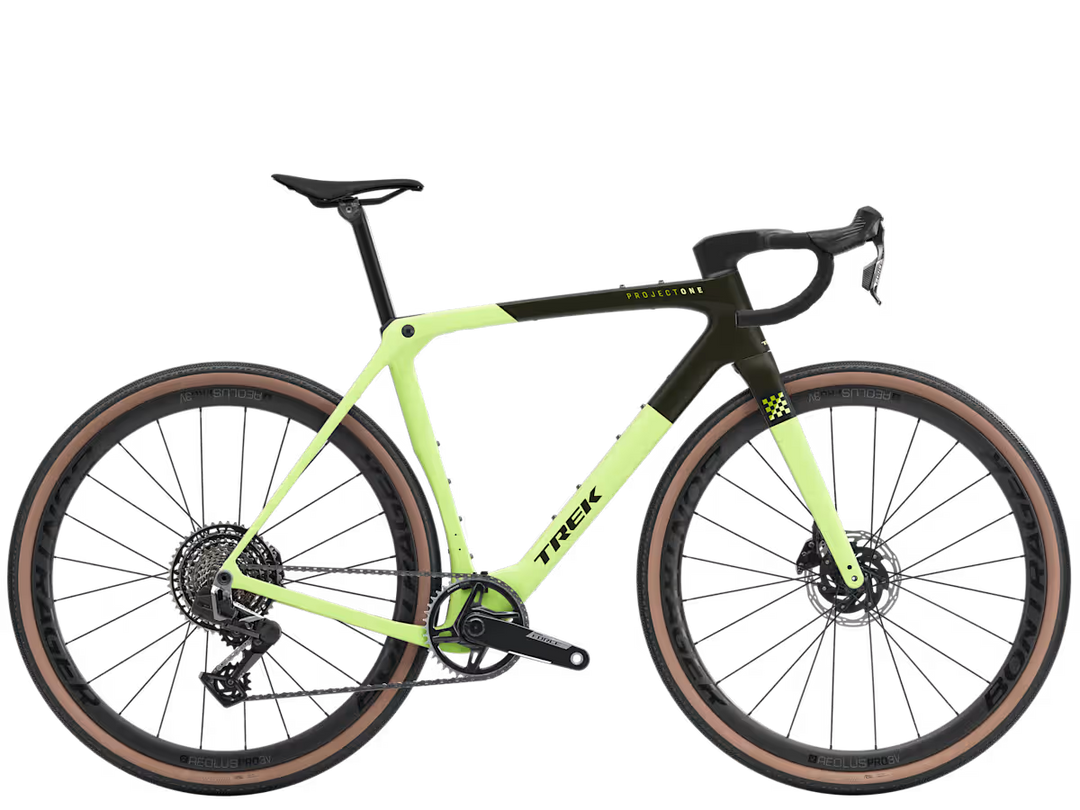

The Checkmate SLR 7 AXS is a carbon gravel race bike built to toe the line and kick up dust on the long and rough road. To deliver the performance that you crave on race day, the Checkmate combines a lightweight aero design with IsoSpeed and new Gravel Race geometry that keeps you poised for the attack without eating up your energy. It's topped off with a SRAM Force XPLR AXS E1 wireless drivetrain, carbon wheels and Trek Aero RSL bar/stem for a lightweight build.
| Frame | 800 Series OCLV Carbon, IsoSpeed, hidden mudguard mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle |
|---|---|
| Fork | Checkmate SLR full carbon, tapered carbon steerer, hidden mudguard mounts, flat-mount disc, 12x100 mm thru axle |
Weight
| Weight | |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
E-system
| Battery | SRAM AXS battery pack (with charger) |
|---|
Drivetrain

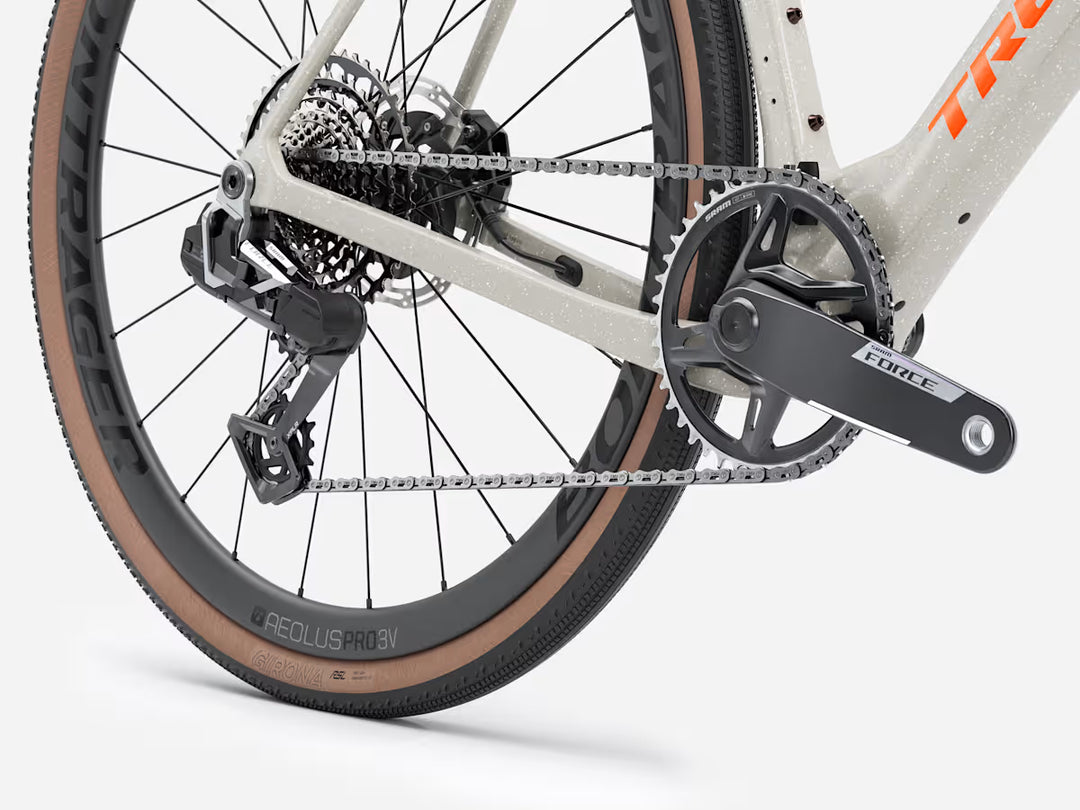

| Rear derailleur | SRAM Force XPLR AXS, 46T max cog |
|---|---|
| *Crank |
Size: S, XS SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 165 mm length
|
|
Size: M, ML SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 170 mm length
|
|
|
Size: XL, L SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 172.5 mm length
|
|
| Bottom bracket | SRAM DUB Wide, T47 threaded, internal bearing |
| Cassette | SRAM Force XPLR XG-1371, 10-46, 13-speed |
| Chain | SRAM Force E1, 12/13-speed |
| Max. chainring size | See service manual |
Wheels
| Wheel front | Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle |
|---|---|
| Wheel rear | Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, SRAM XD-R driver, 142x12 mm thru axle |
| Skewer front | Bontrager Switch chamfered thru axle |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| *Tyre | Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | 45 mm without mudguards, 38 mm with mudguards (as measured, see manual for details) |
Components
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
