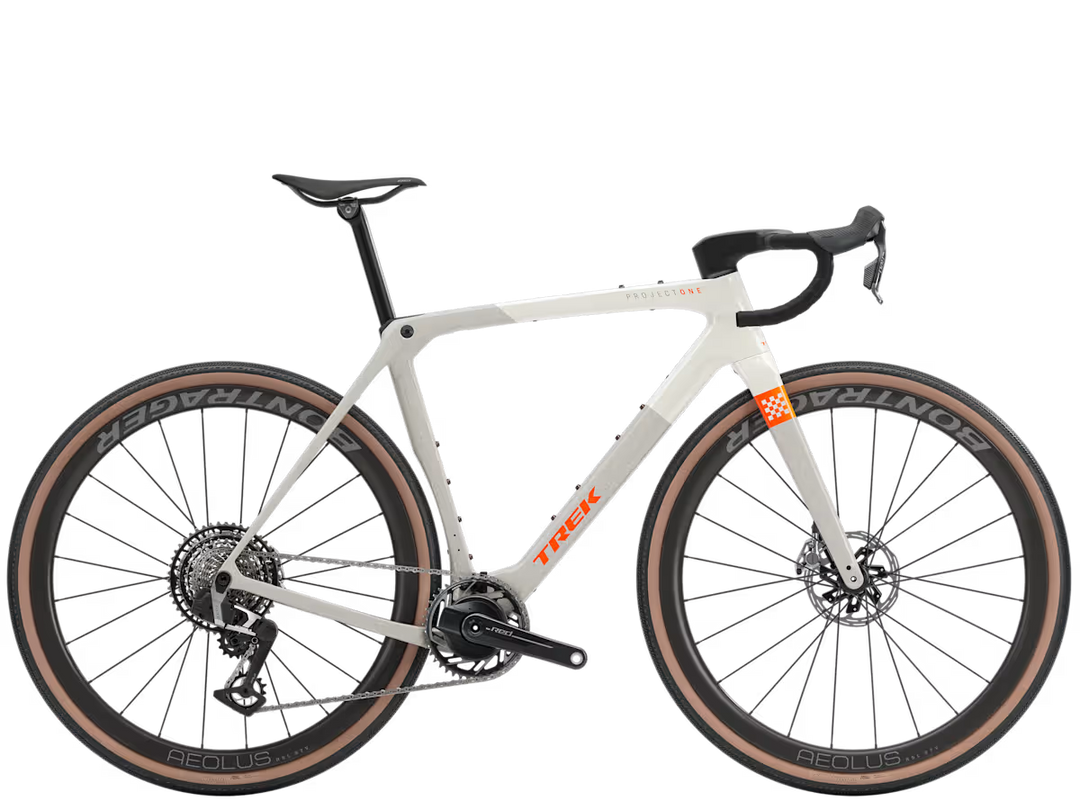

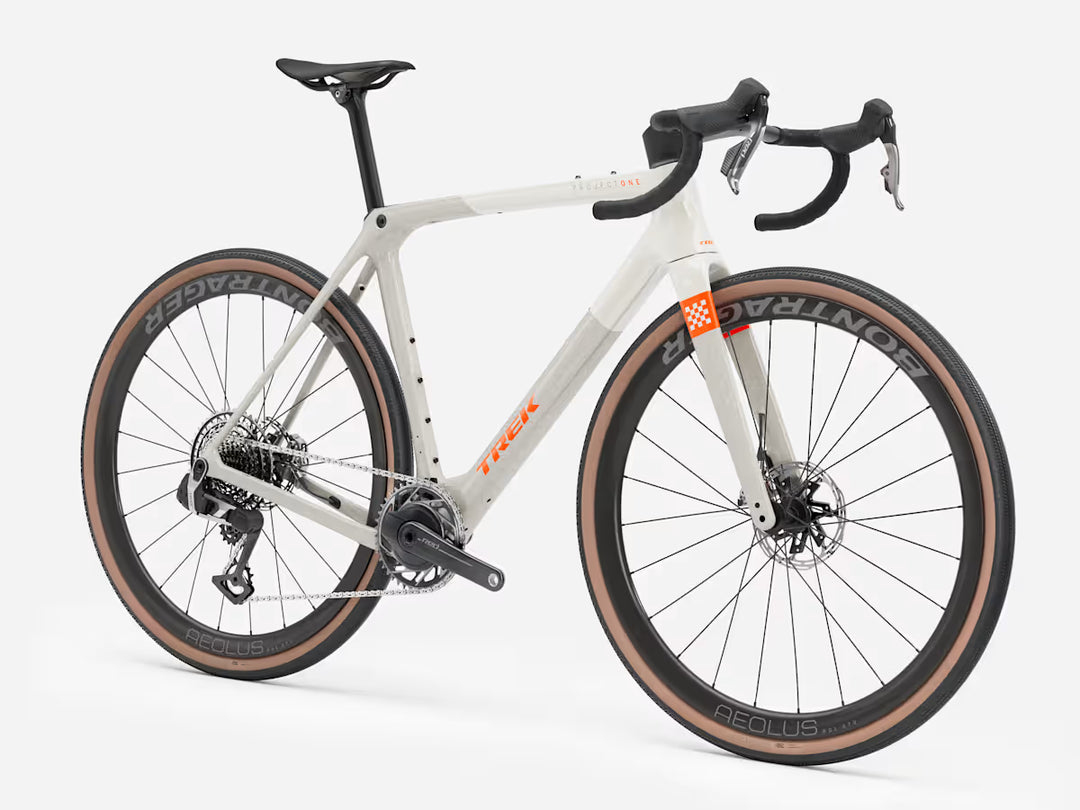

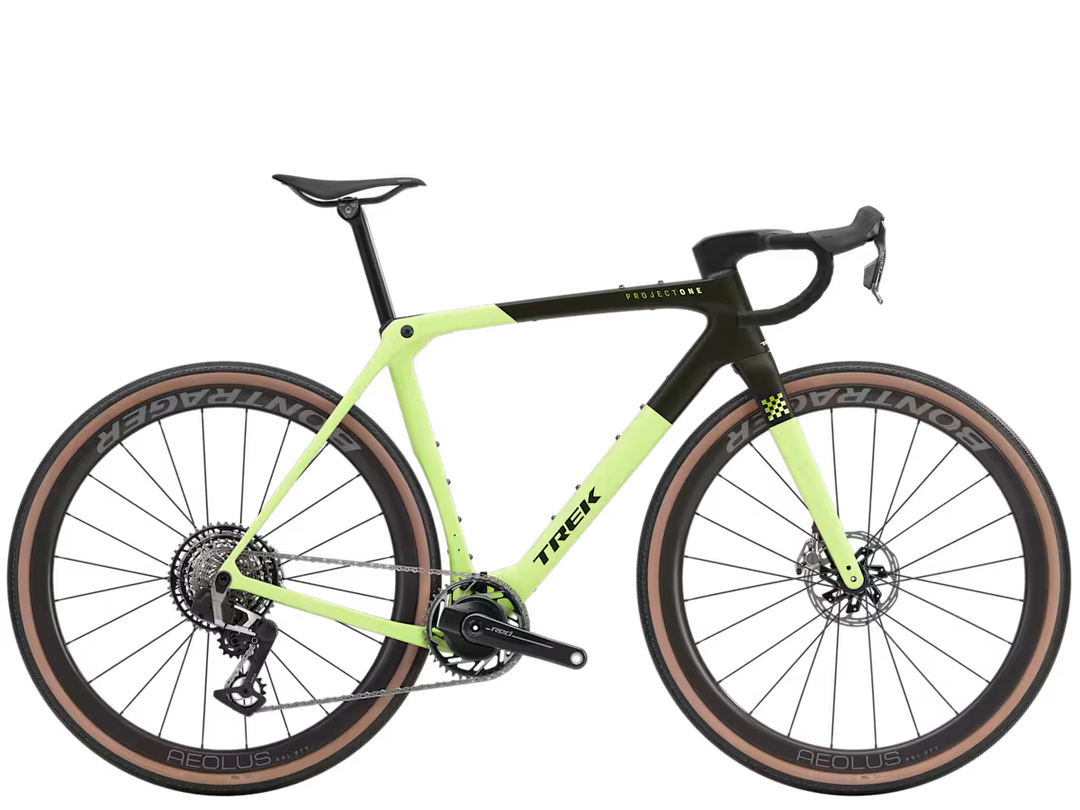

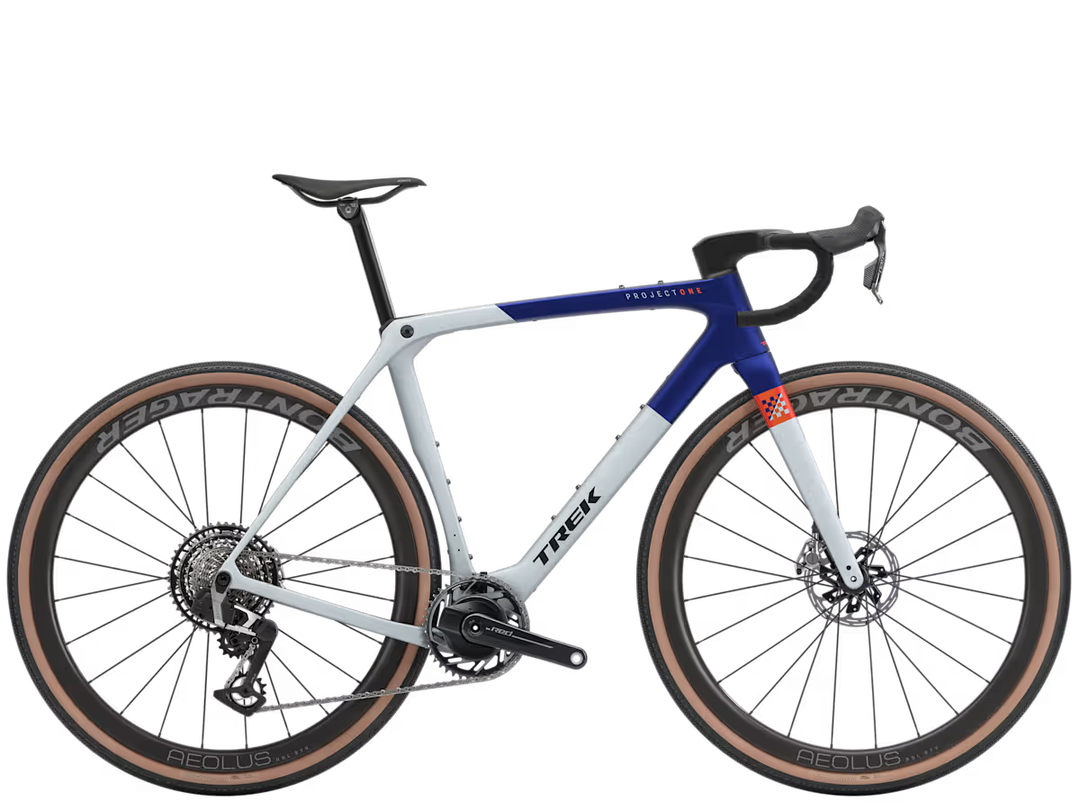

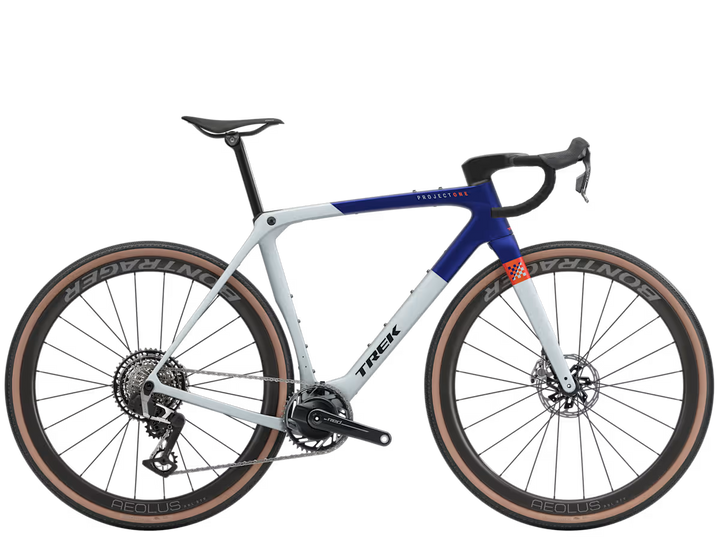

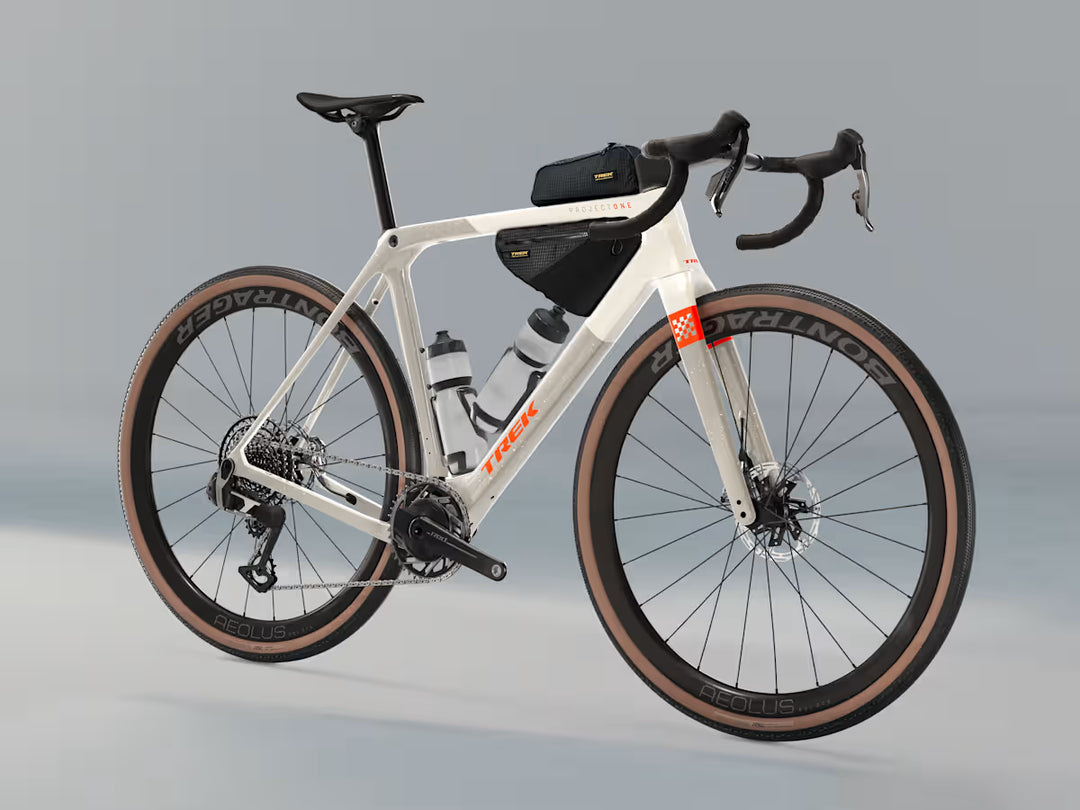

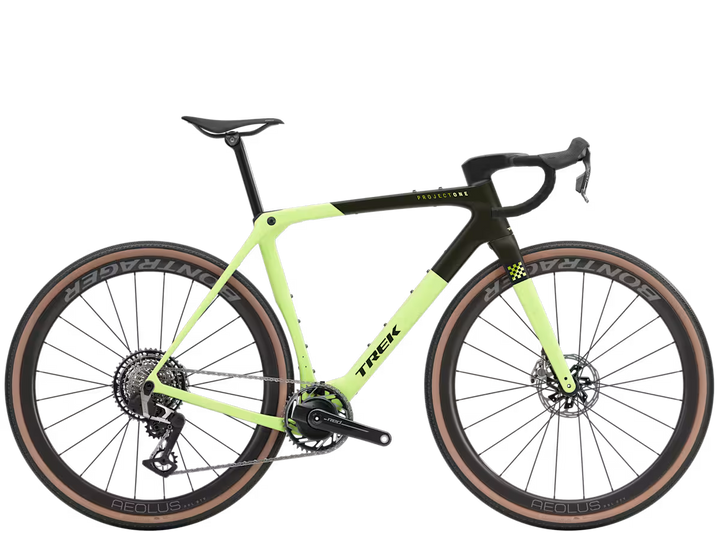

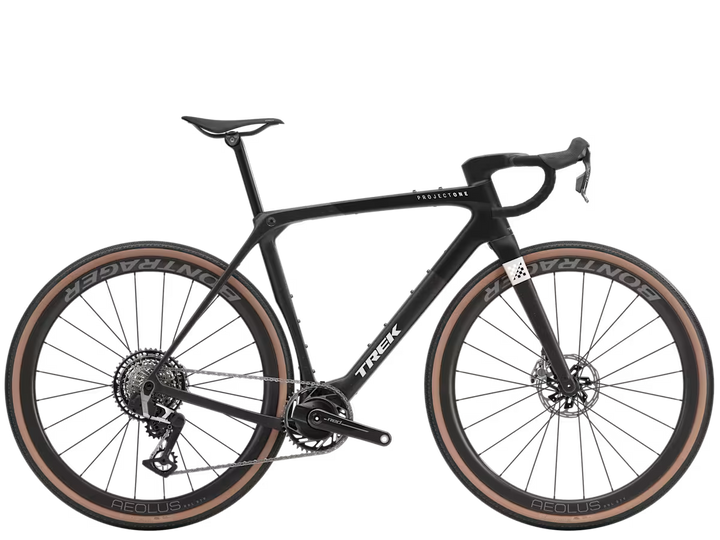

The Checkmate SLR 9 AXS is our fastest and lightest gravel race bike, built to chase podiums down rowdy roads. It combines a lightweight aero design with IsoSpeed road-smoothing tech and new Gravel Race geometry that keeps you poised for the attack without eating up your energy. To keep you at the front of the pack, it's equipped with top-tier parts, like carbon wheels and SRAM's latest ergonomic RED AXS XPLR wireless drivetrain.

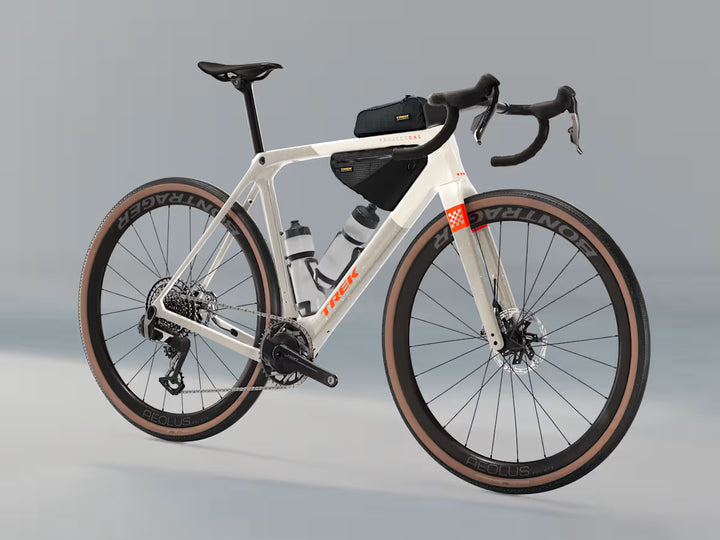

| Frame | 800 Series OCLV Carbon, IsoSpeed, hidden mudguard mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle |
|---|---|

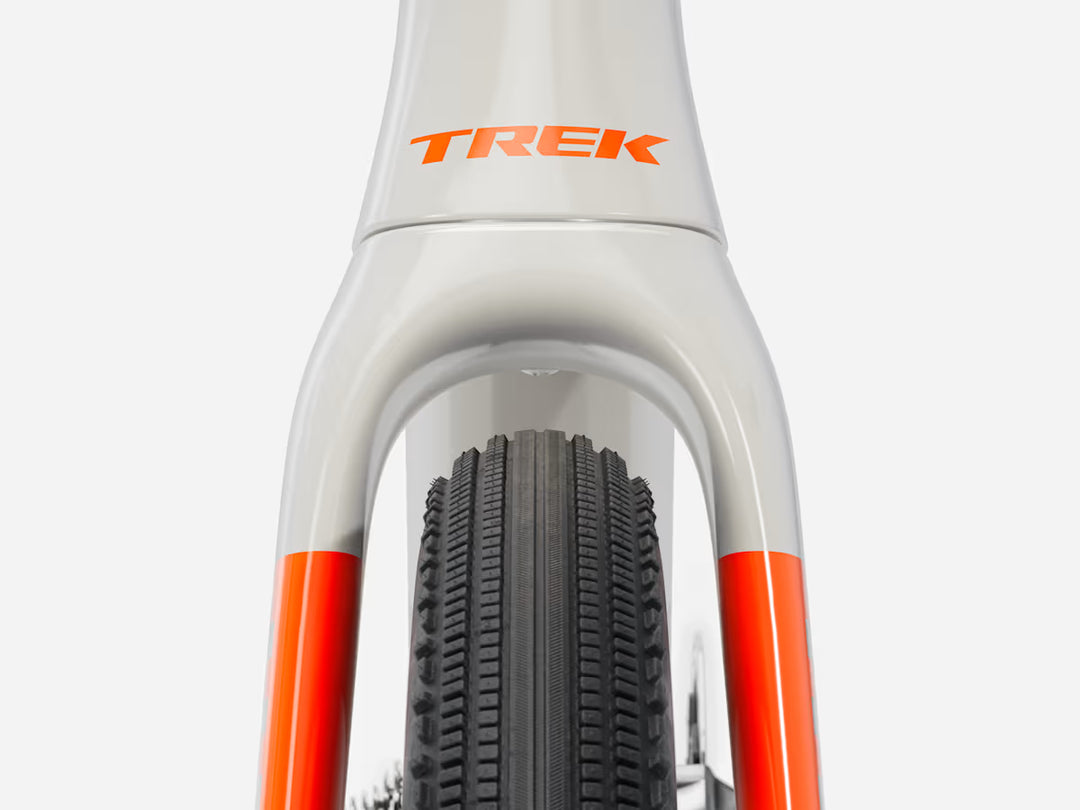

| Fork | Checkmate SLR full carbon, tapered carbon steerer, hidden mudguard mounts, flat-mount disc, 12x100 mm thru axle |
Weight
| Weight | ML – 7.55 kg/16.65 lb (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
E-system
| Battery | SRAM AXS battery pack (with charger) |
|---|

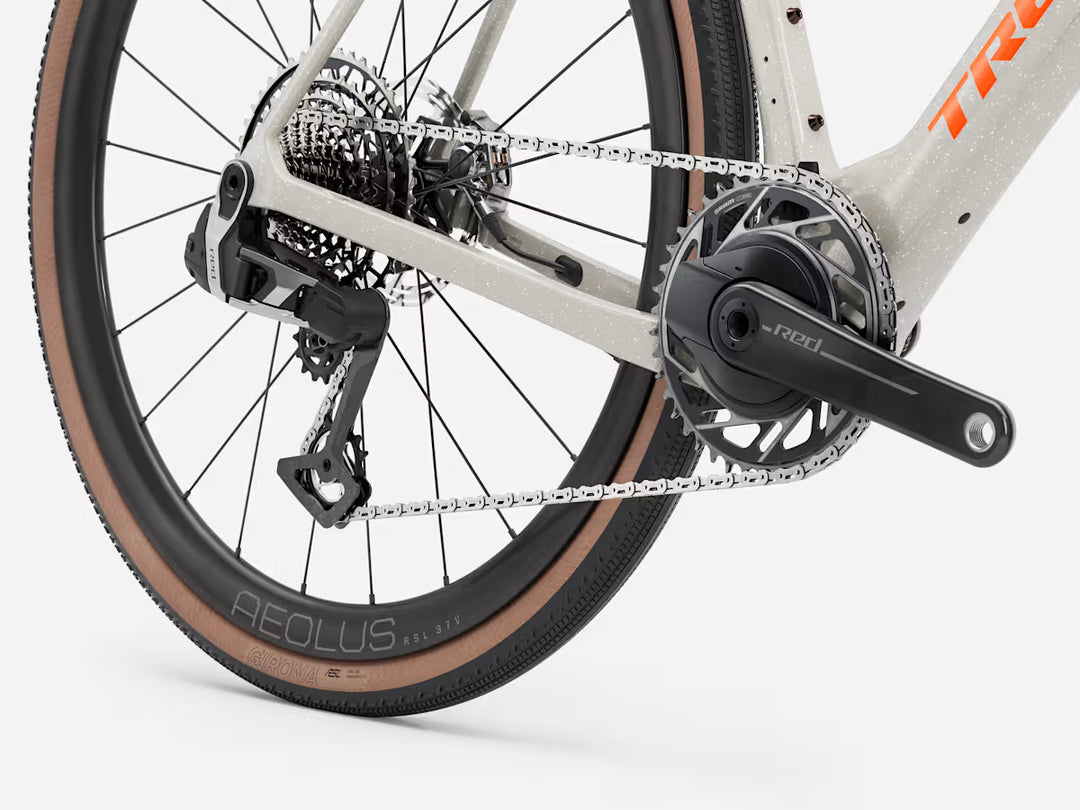

| Rear derailleur | SRAM RED XPLR eTap AXS, 46T max cog |
|---|---|
| *Crank |
Size: S, XS SRAM RED XPLR, power meter, 42T, DUB wide, 165 mm length
|
|
Size: M, ML SRAM RED XPLR, power meter, 42T, DUB wide, 170mm length
|
|
|
Size: XL, L, ML SRAM RED XPLR, power meter, 42T, DUB wide, 172.5 mm length
|
|
|
Size: XL SRAM RED XPLR, power meter, 42T, DUB wide, 175 mm length
|
|
| Bottom bracket | SRAM DUB Wide, T47 threaded, internal bearing |
| Cassette | SRAM XG-1391, 10-46T, 13-speed |
| Chain | SRAM Force E1, 12/13-speed |
| Max. chainring size | See service manual |
Wheels
| Wheel front | Bontrager Aeolus RSL 37V, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 100 x 12mm thru axle |
|---|---|
| Wheel rear | Bontrager Aeolus RSL 37V, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 142 x 12mm thru axle |
| Skewer front | Bontrager Switch chamfered thru axle |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| *Tyre |
Size: S, XL, XS, L, M, ML Bontrager Girona RSL GR, Tubeless-Ready, aramid bead, 220 tpi, 700x38 mm |
|
Size: S, XL, XS, L, M, ML Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42 mm |
|
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | 45 mm without mudguards, 38 mm with mudguards (as measured, see manual for details) |
Components
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
