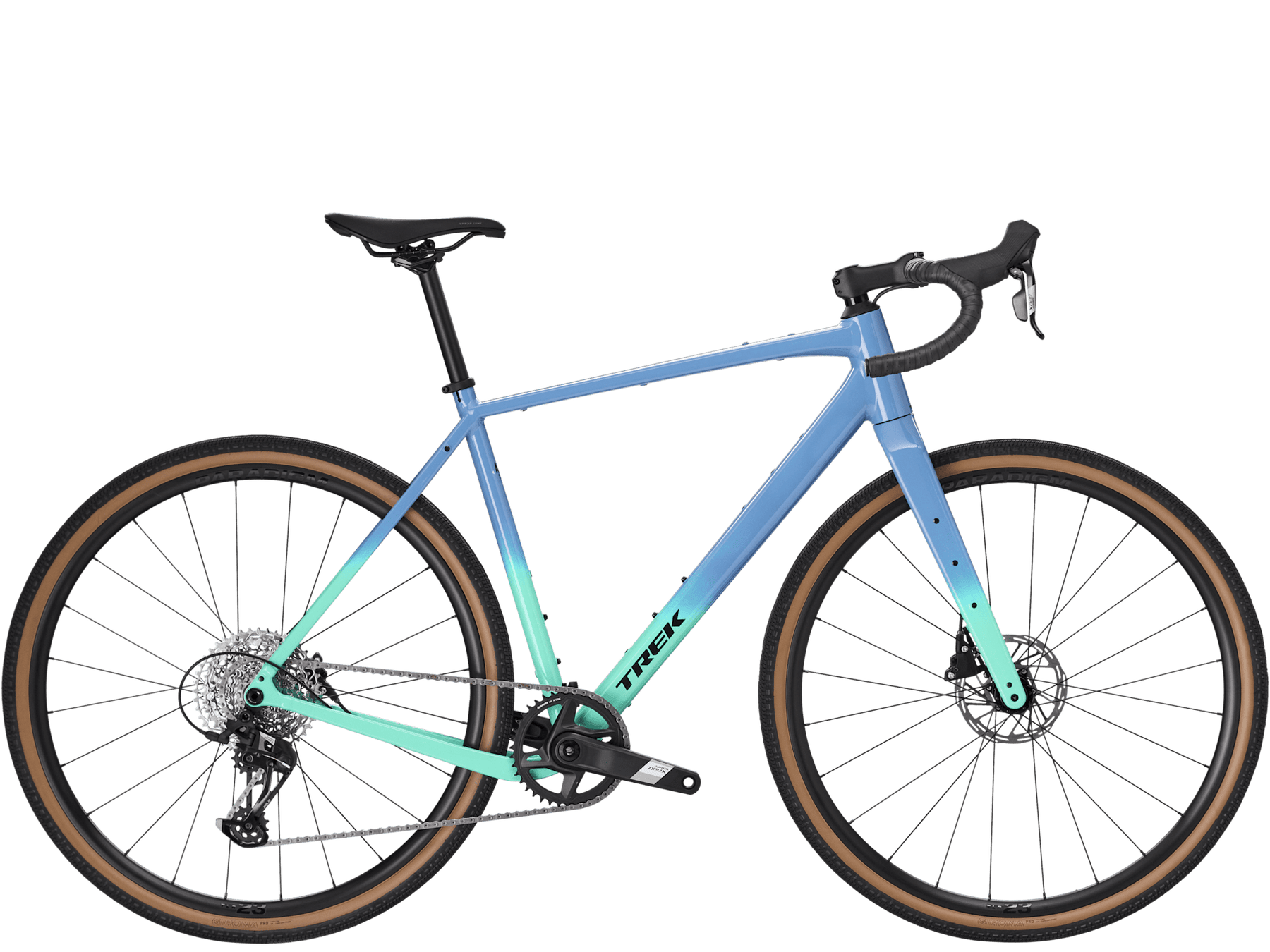

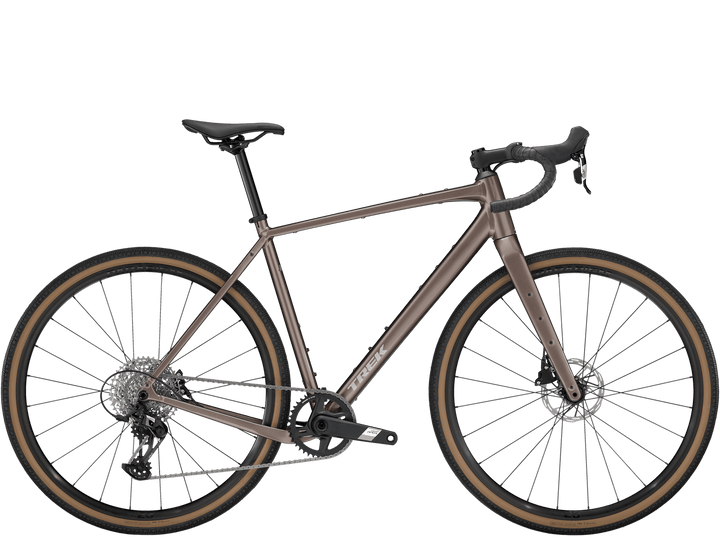

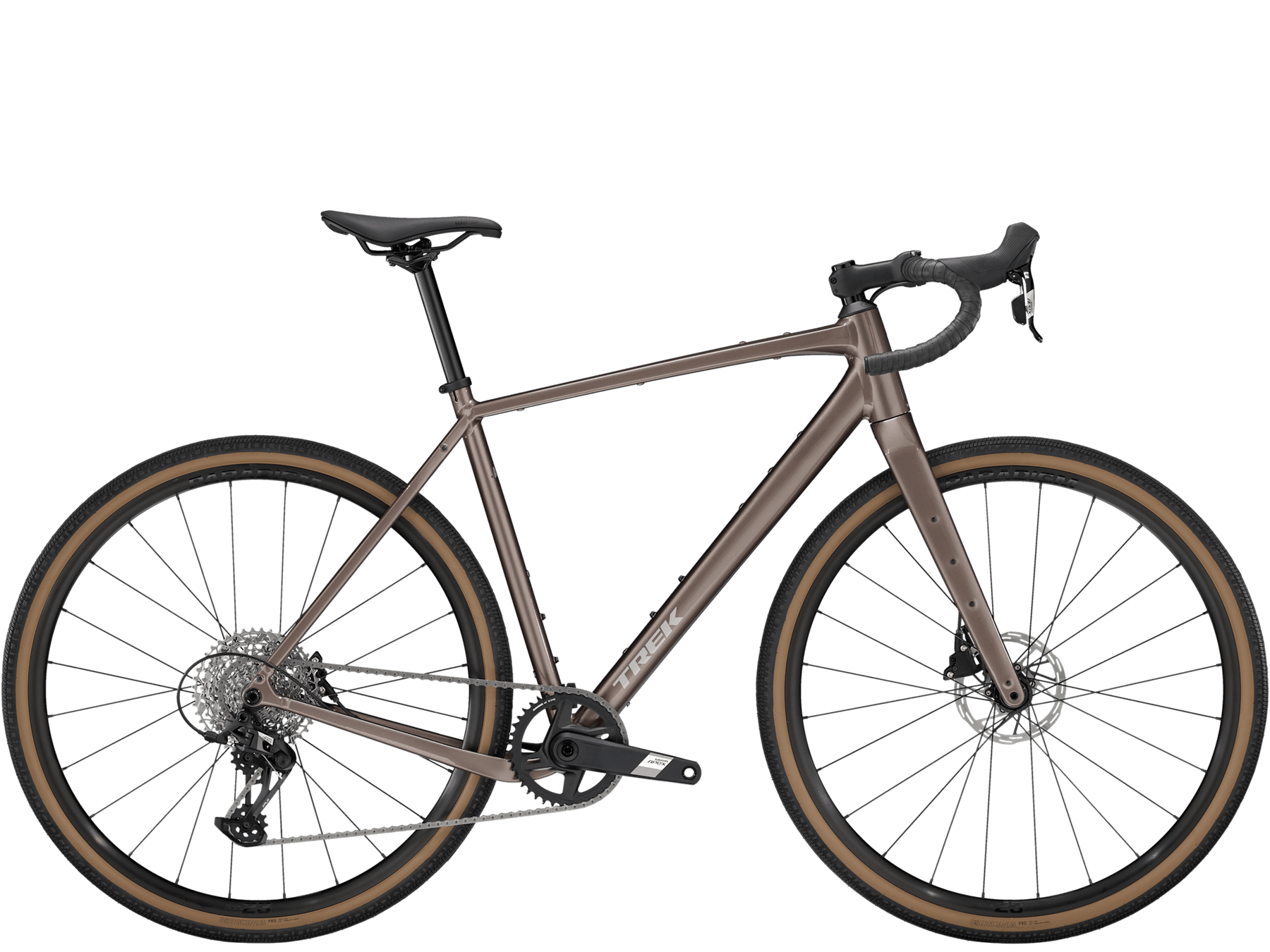

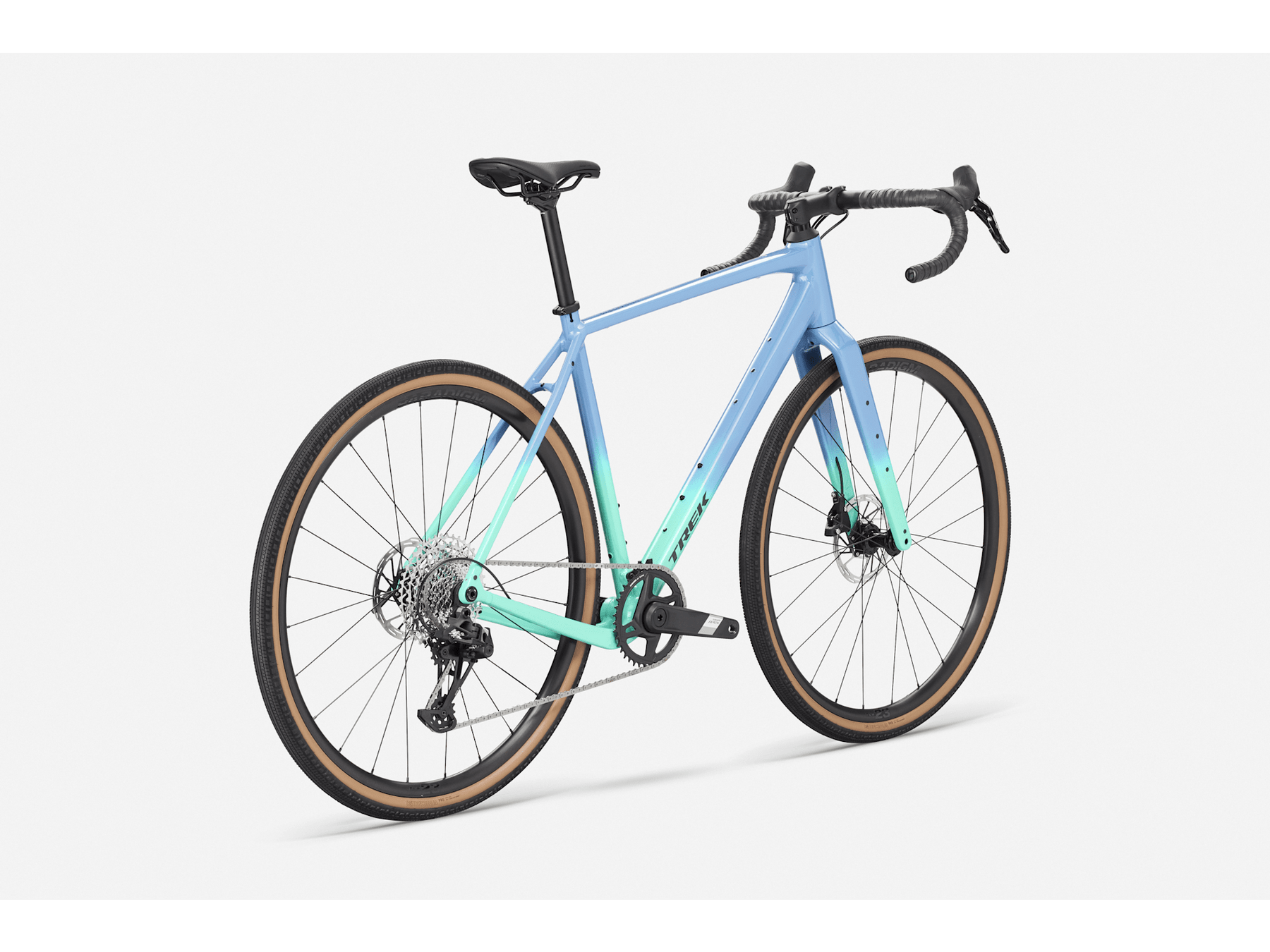

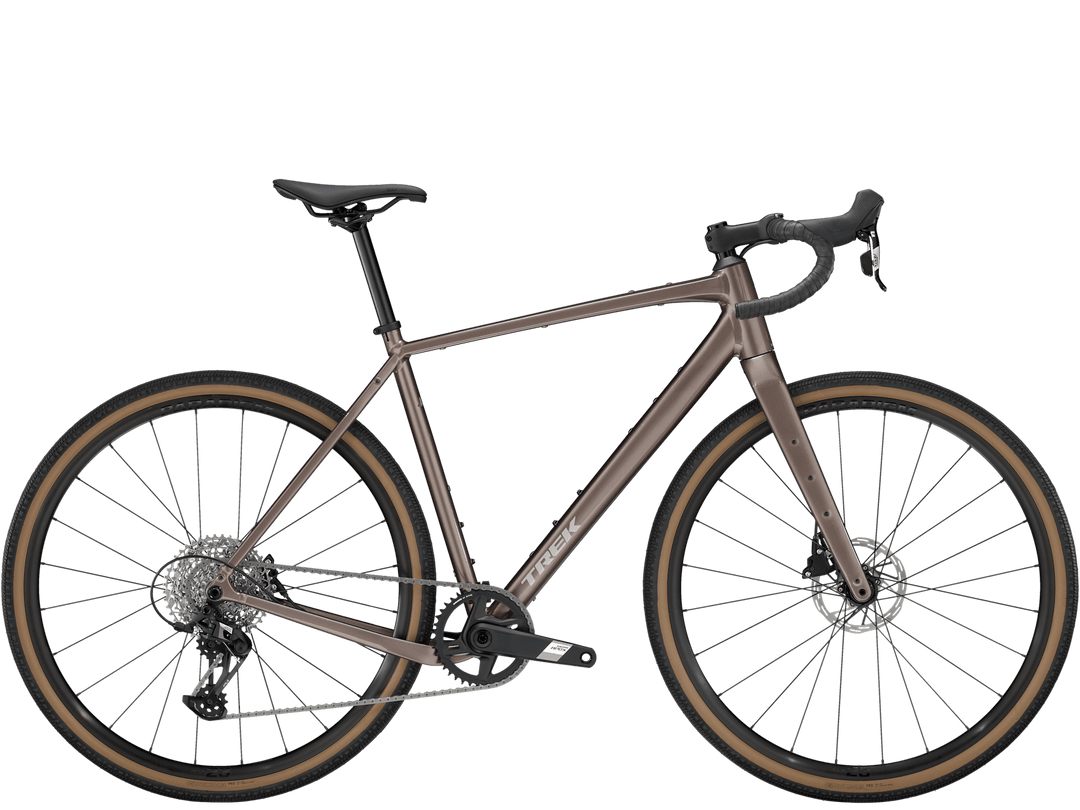

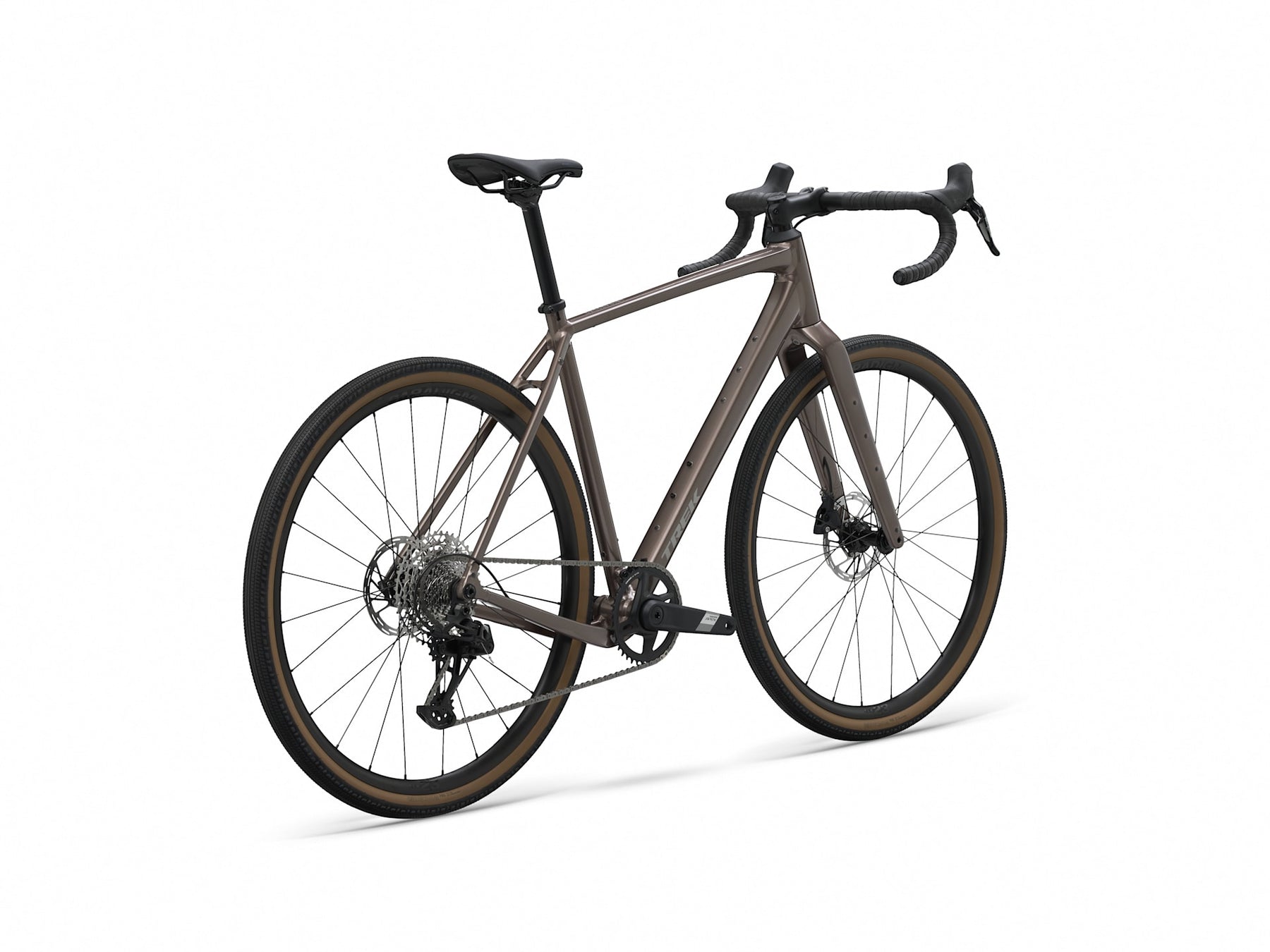

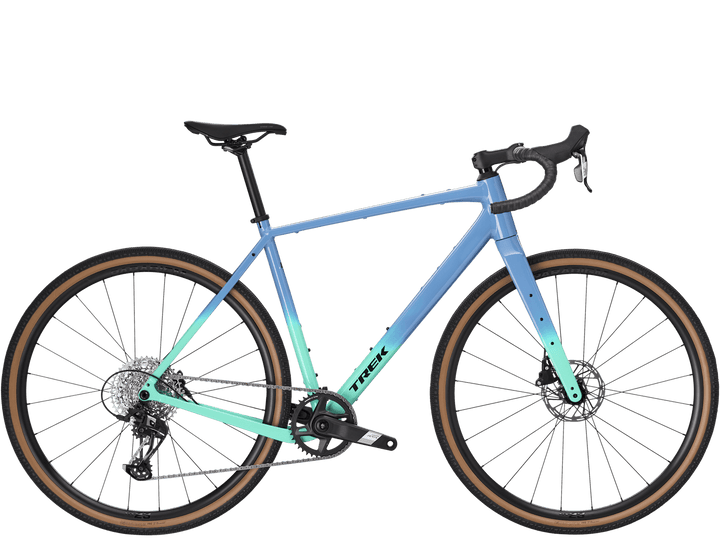

The Trek Checkpoint ALR 5 Gen 3 2027 tops the ALR range with SRAM Apex XPLR wireless 1x shifting, on the same proven aluminium platform.
WHO THIS BIKE SUITS
You want SRAM's wireless AXS shifting without paying for a carbon frame.
You want the simplicity of a 1x drivetrain — no front derailleur to think about.
You want the best the ALR platform offers.
IF YOU'RE LOOKING FOR SOMETHING DIFFERENT
If wireless shifting isn't a priority, the ALR 4 covers hydraulic brakes and a wide-range cassette for less. If you want IsoSpeed comfort and a carbon frame, look at the SL 5 AXS instead.
WHERE IT SITS IN THE RANGE
The ALR 5 is the top of the ALR range — same aluminium frame and carbon fork as the ALR 3 and 4, with SRAM Apex XPLR wireless 1x shifting as the standout upgrade.
Full Checkpoint range: ALR 3 — ALR 4 — SL 5 AXS — SL 6 AXS — SL 7 AXS.
HOW IT RIDES
The Checkpoint's Gravel Endurance geometry keeps you upright and comfortable over long days, with a wheelbase that feels stable and planted on loose surfaces. The ALR frame doesn't have the SL tier's IsoSpeed decoupler, but the carbon fork and generous 42mm tyre volume already take the edge off rough gravel — this is a genuinely capable, confidence-inspiring platform even at the top of the ALR range.
Shifting

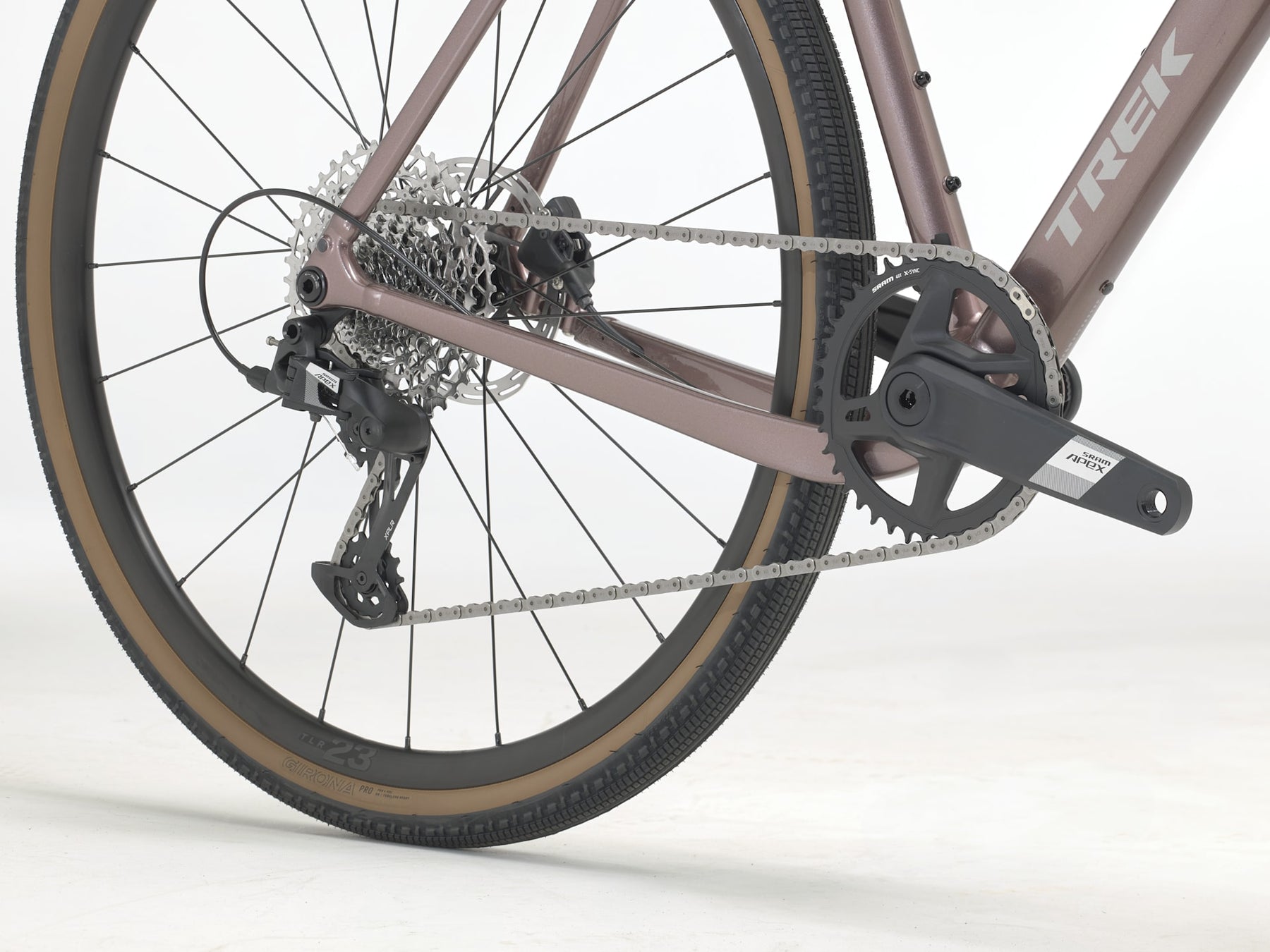

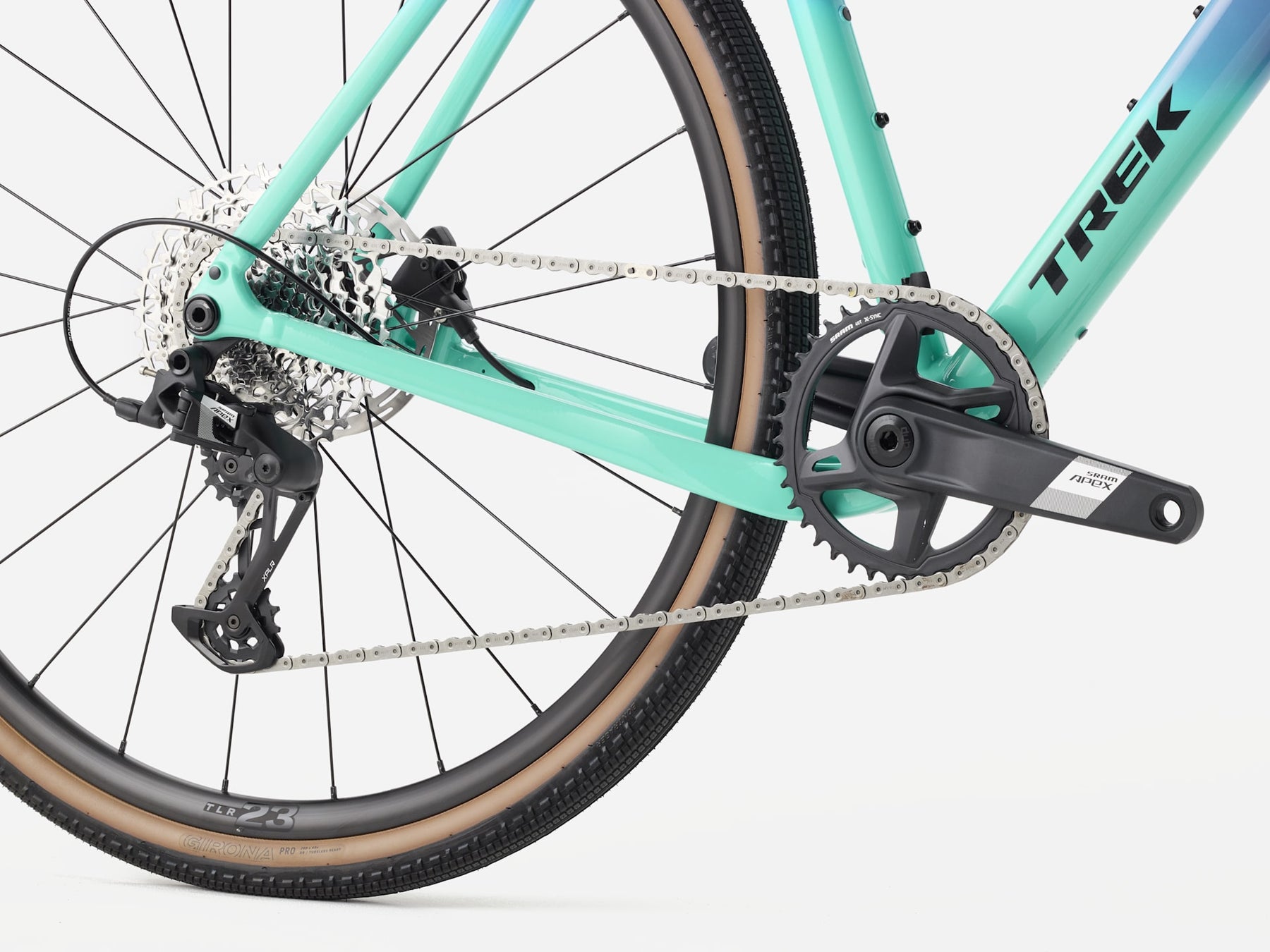

SRAM Apex XPLR AXS removes cables entirely and gives a genuinely wide single-chainring range for gravel climbing — a real step up in shift feel over the ALR 4's mechanical/hydraulic-cable setup.
THE FINAL WORD
The Trek Checkpoint ALR 5 Gen 3 2027 is as far as the aluminium platform goes. Come in and we'll help you weigh this against stepping up to the carbon SL 5 AXS.
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
Frame: 300 Series Alpha Aluminium, internal cable routing, 3S chain keeper, T47, UDH, rack and mudguard mounts

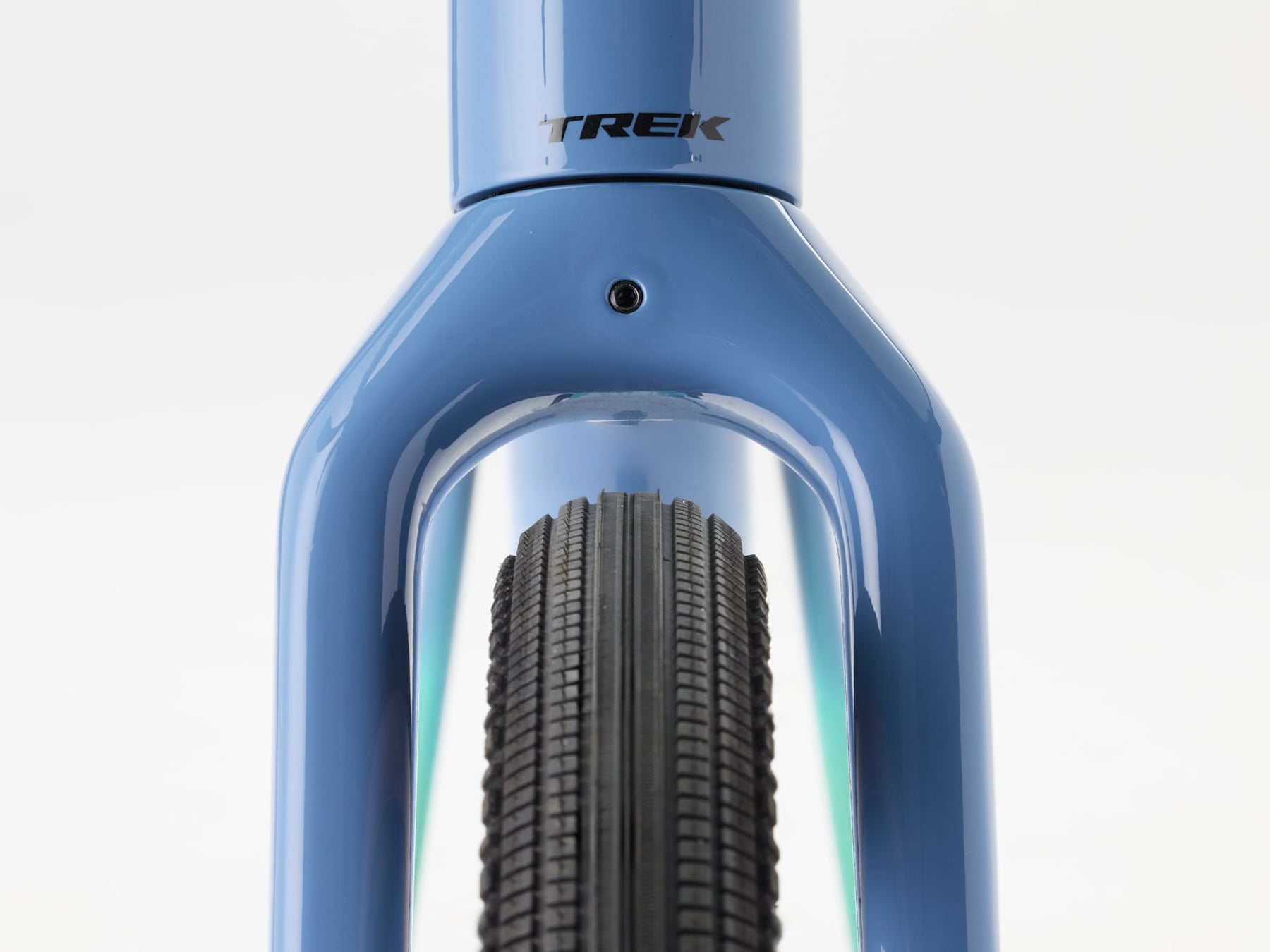

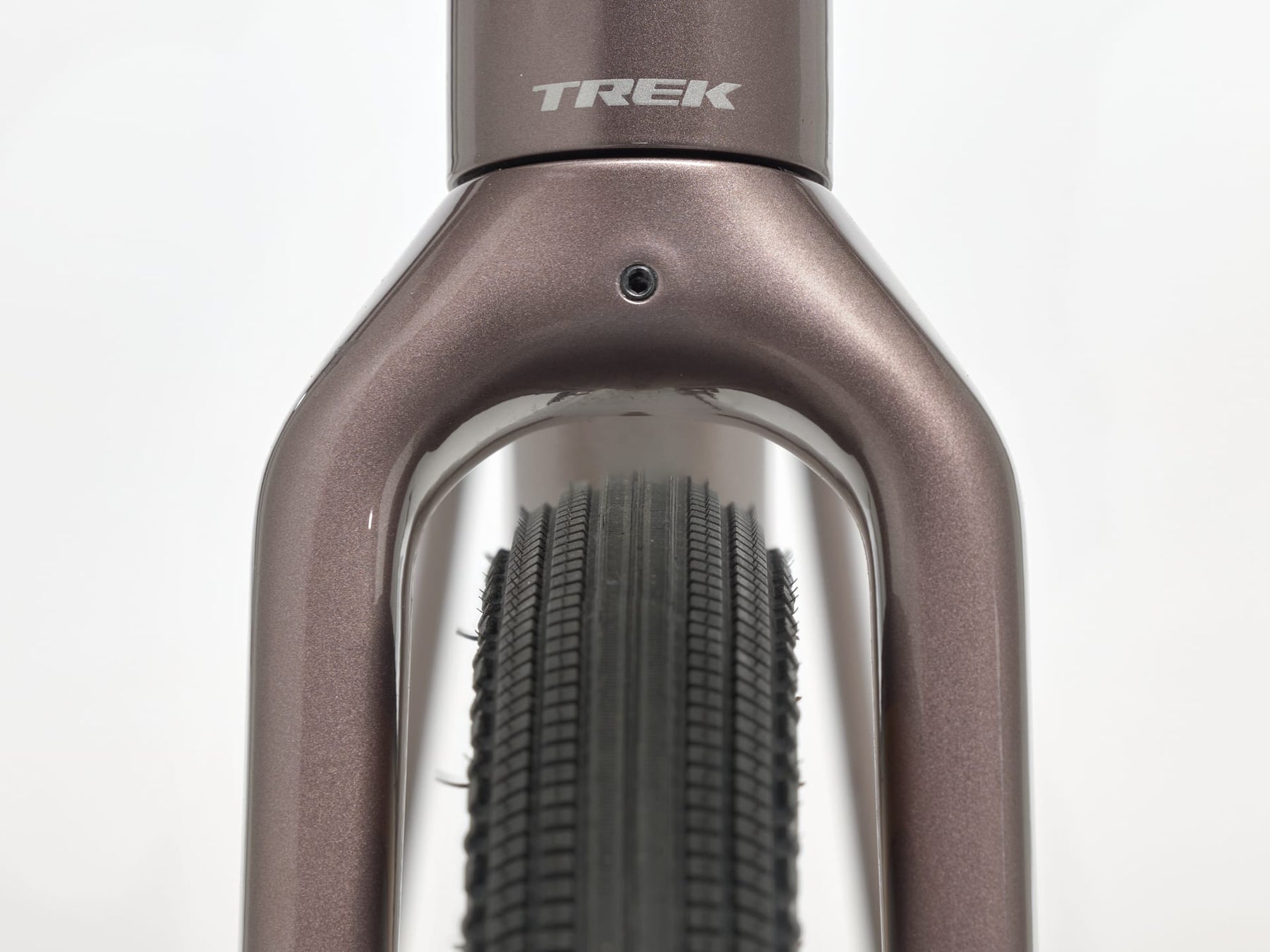

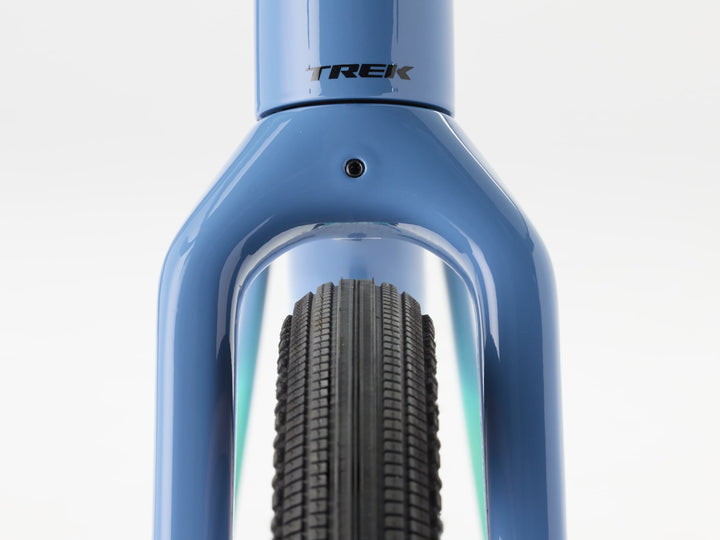

Fork: Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc
Headset: Integrated, tapered, internal cable routing through headset
Bottom bracket: SRAM DUB Wide, T47 threaded, internal bearing
Shifters: SRAM Apex XPLR AXS
Rear derailleur: SRAM Apex XPLR, 44T max cog
Crank: SRAM Apex 1, 40T, DUB Wide, 172.5 mm length
Cassette: SRAM XPLR PG-1231, 11-44, 12-speed
Chain: SRAM Apex, 12-speed
Brakeset: SRAM Apex D1 hydraulic disc, flat mount
Rotor: SRAM Paceline, rounded, CentreLock, 160 mm
Rims: Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
Front hub: Bontrager alloy, sealed bearing, CentreLock disc, 100x12 mm thru axle
Rear hub: Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Tyres: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm

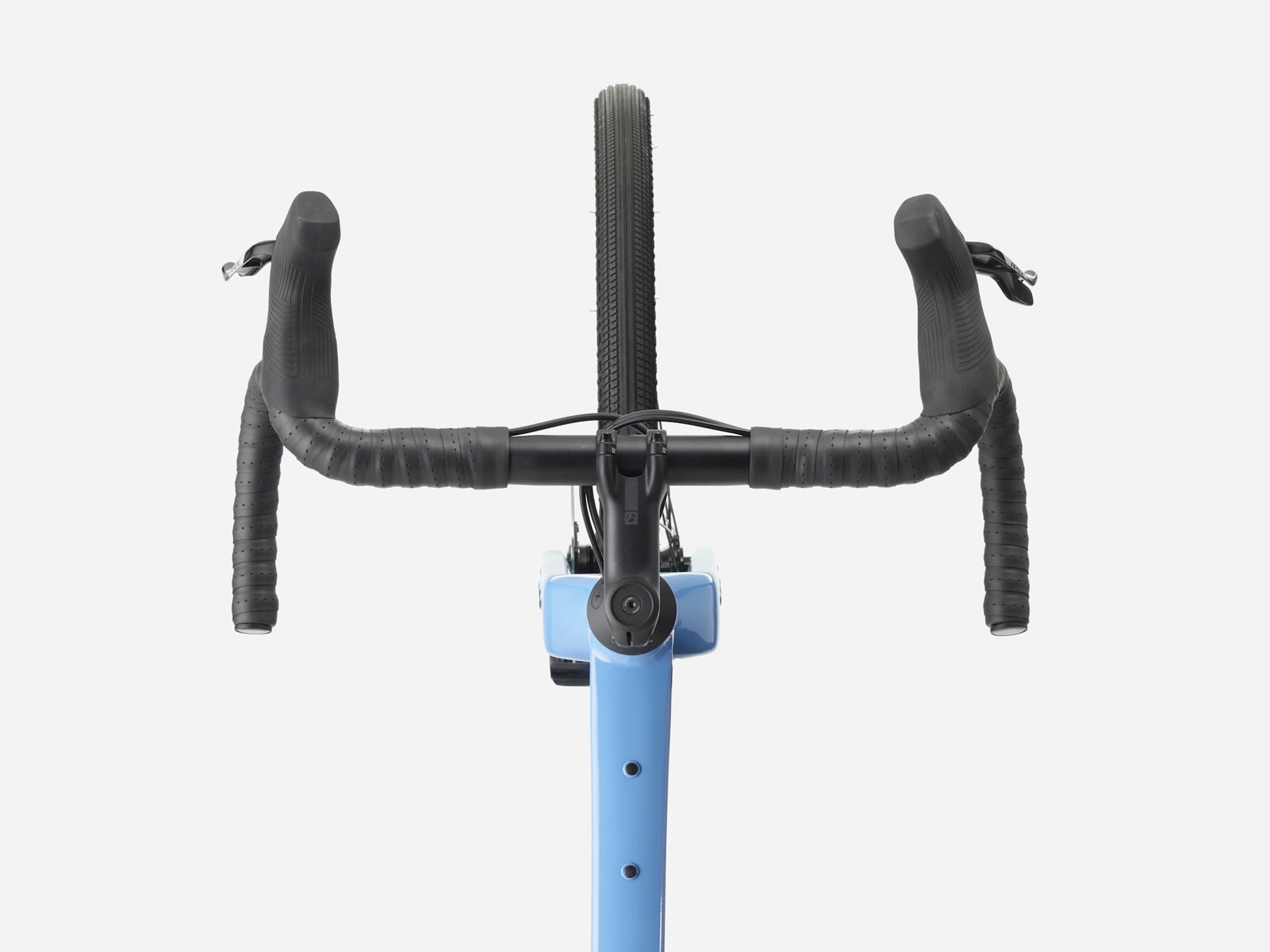

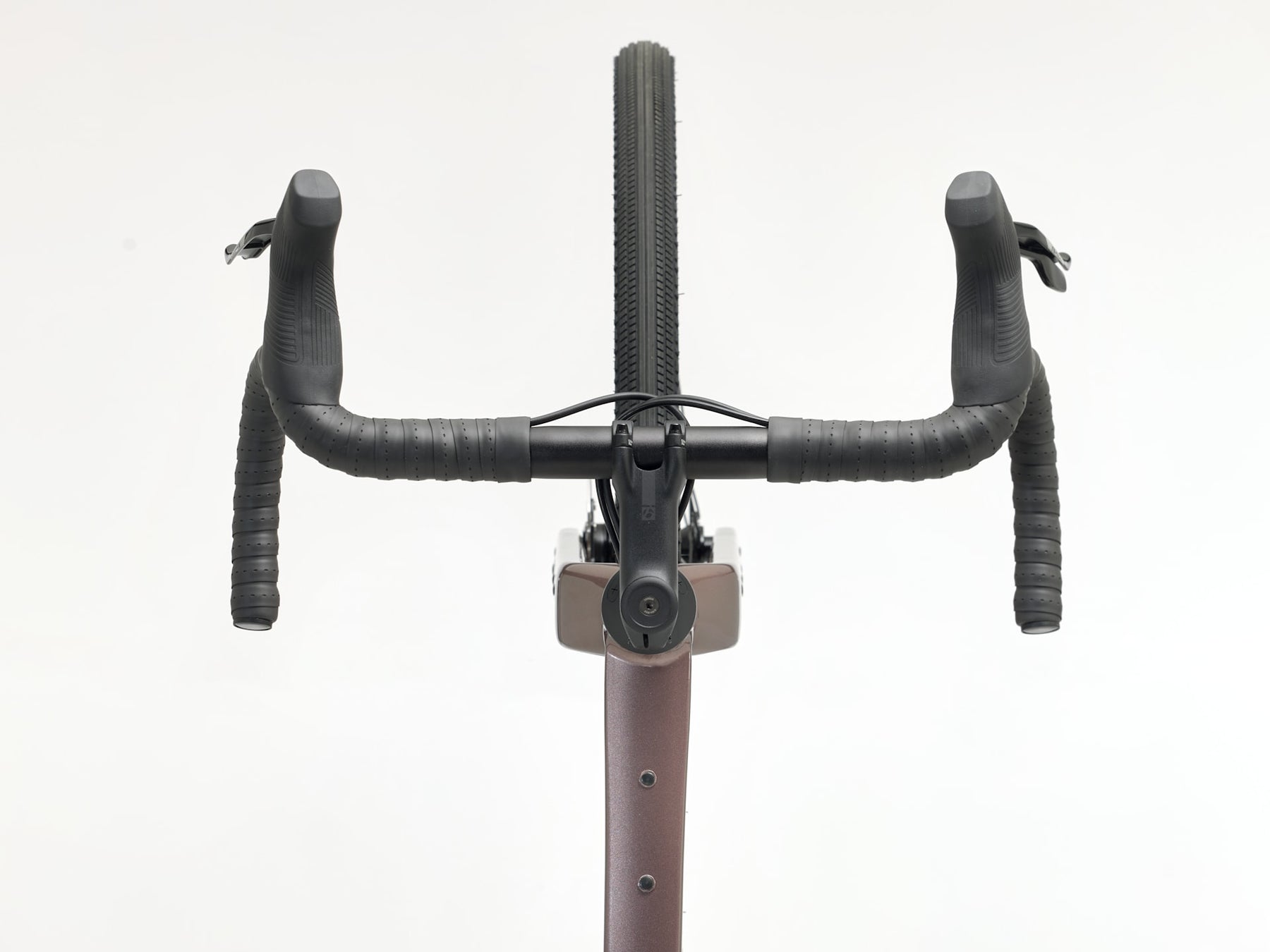

Handlebar: Bontrager Elite Gravel, alloy, 46 cm width
Stem: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Saddle: Verse Short Comp, steel rails, 145 mm width
Seatpost: Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
