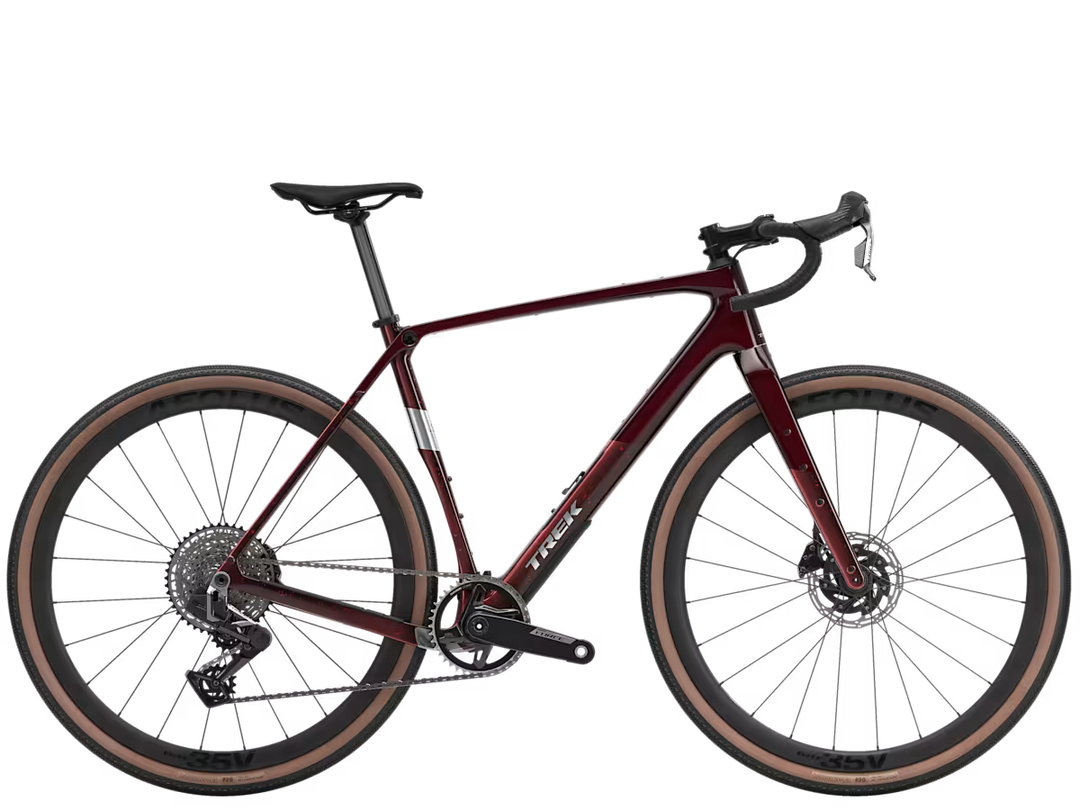

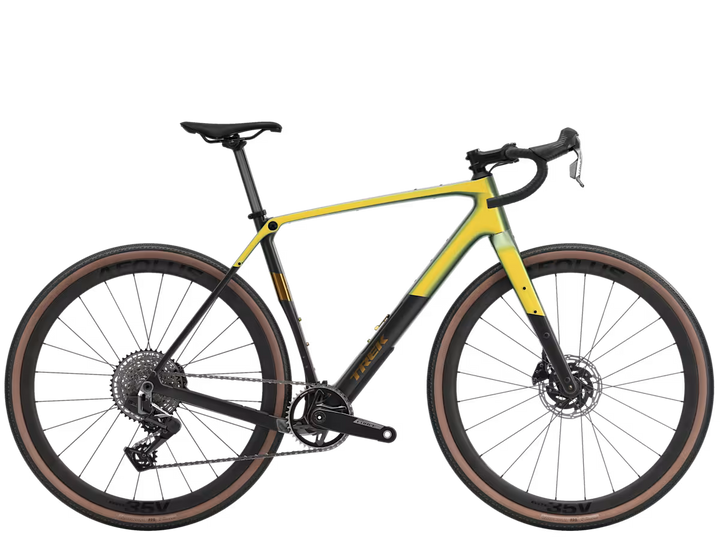

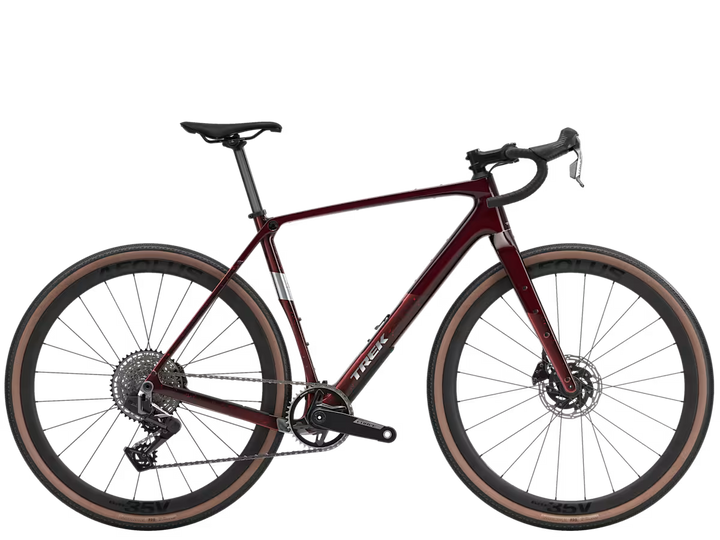

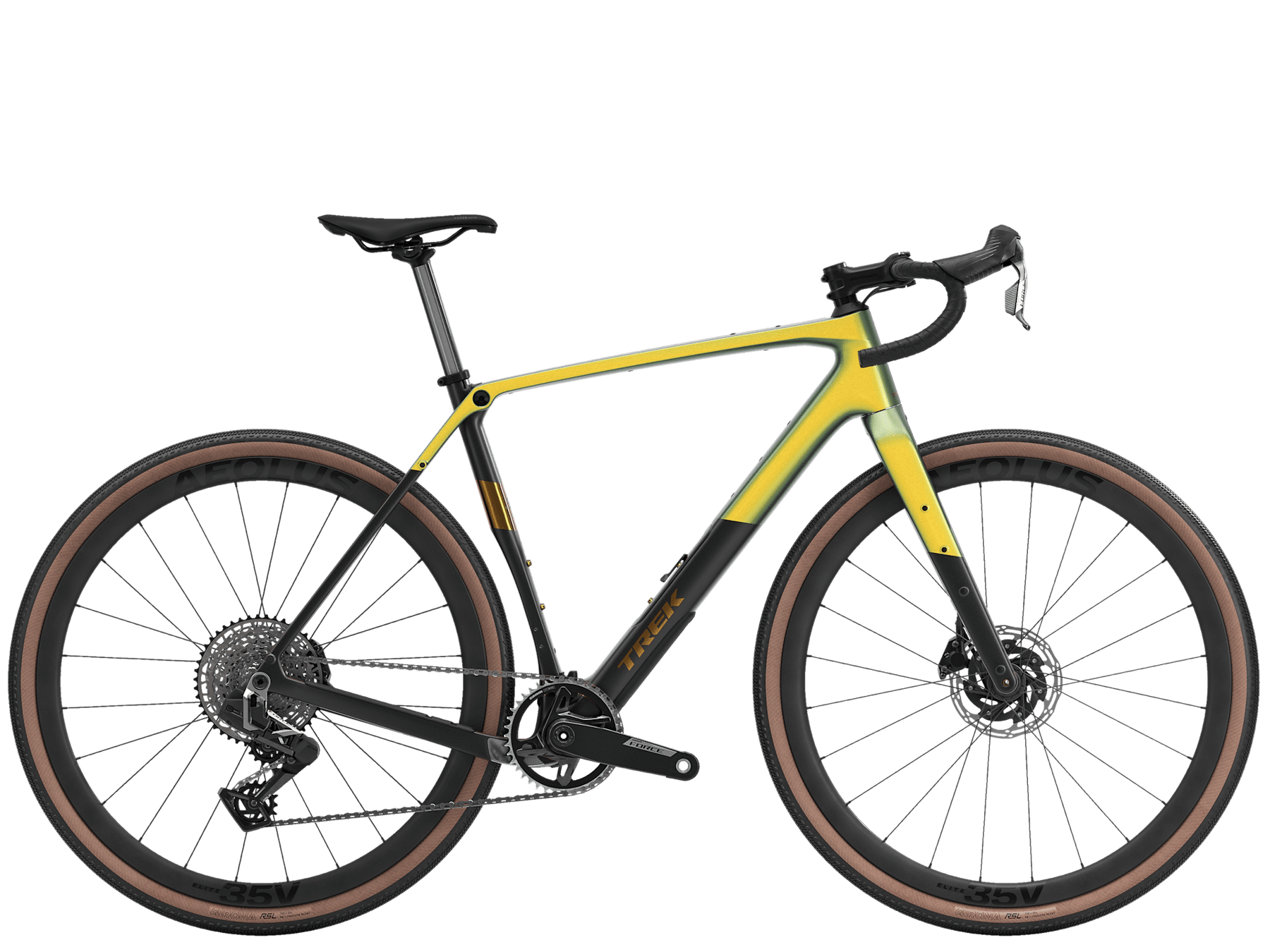

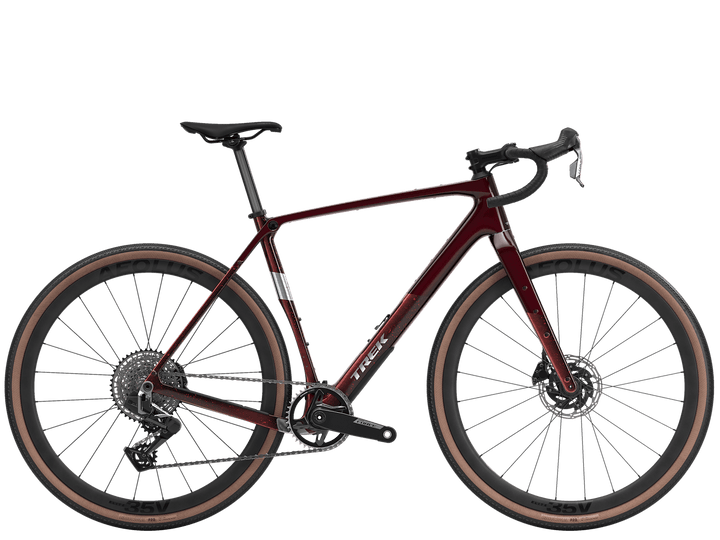

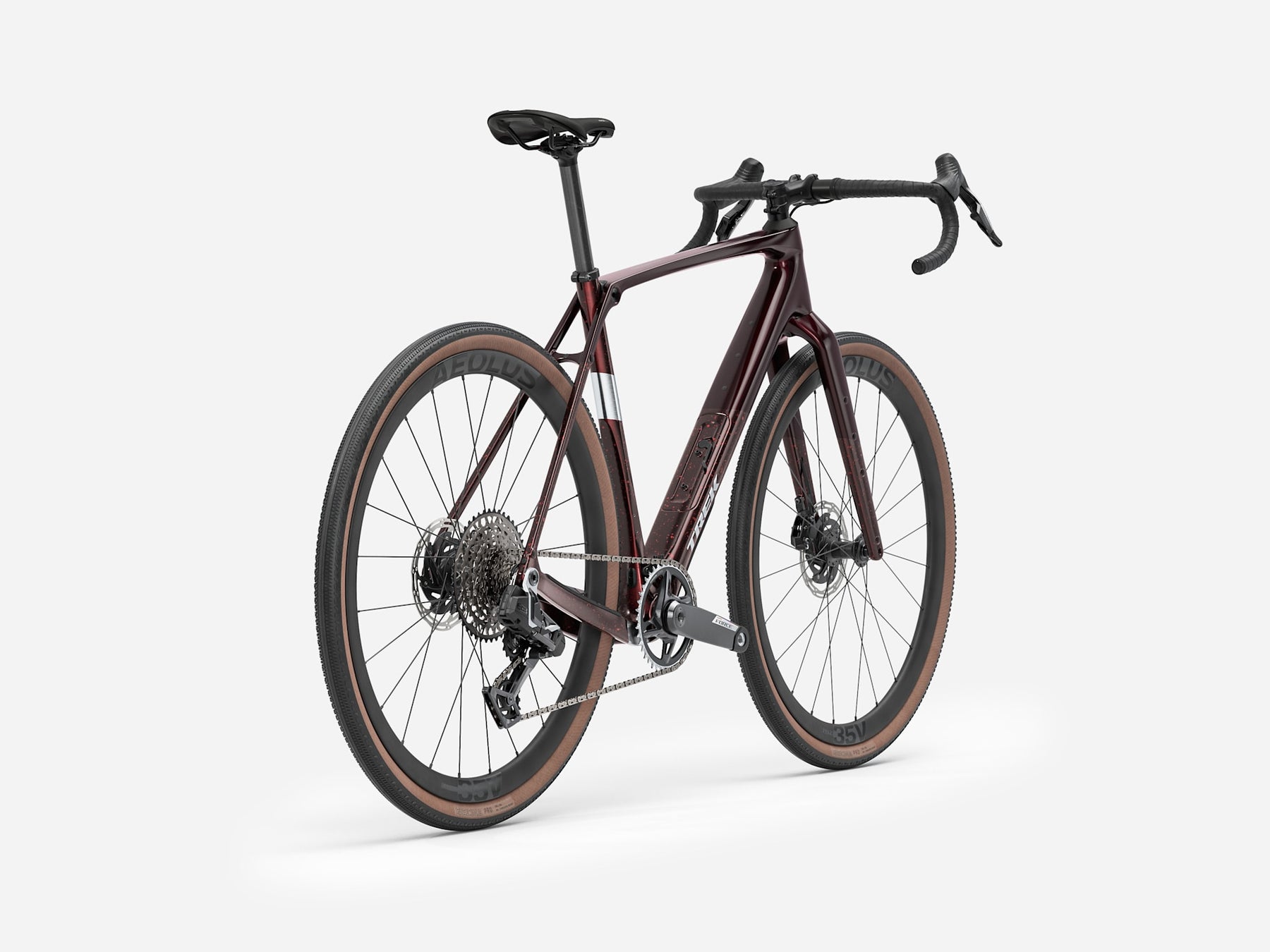

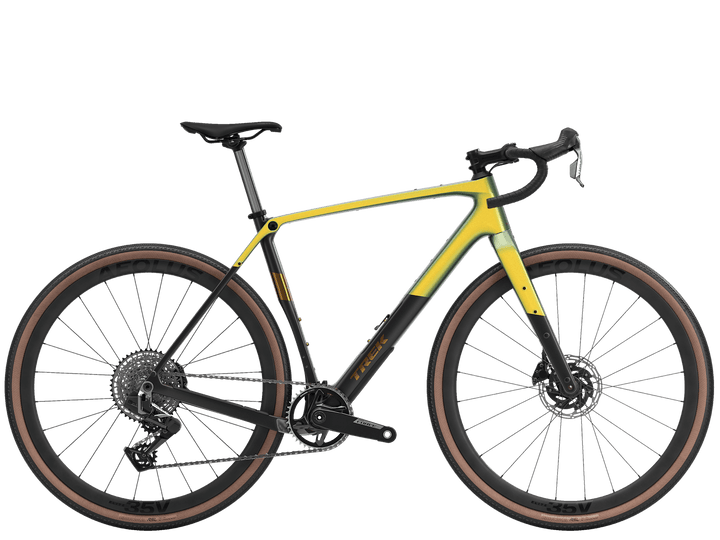

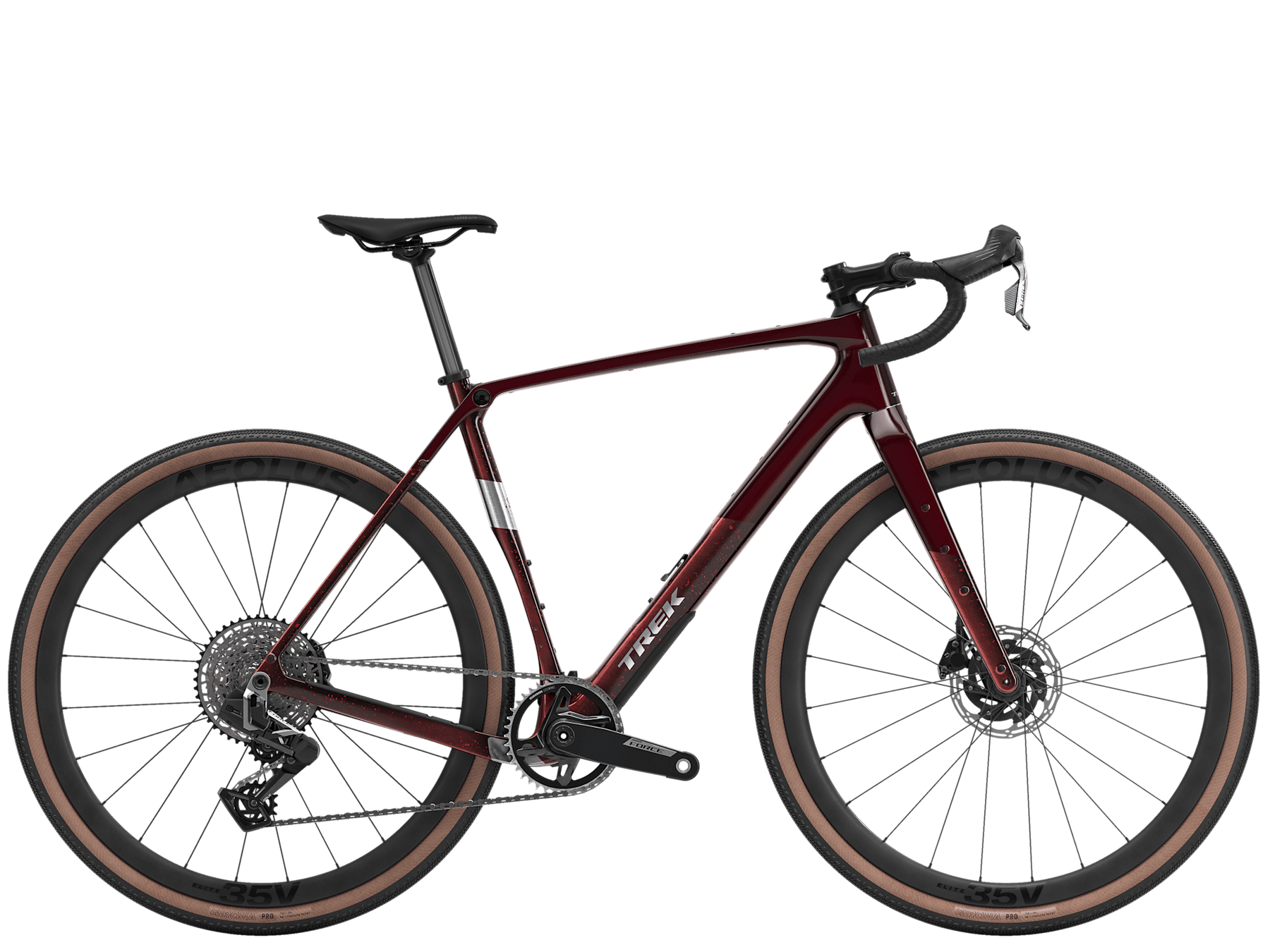

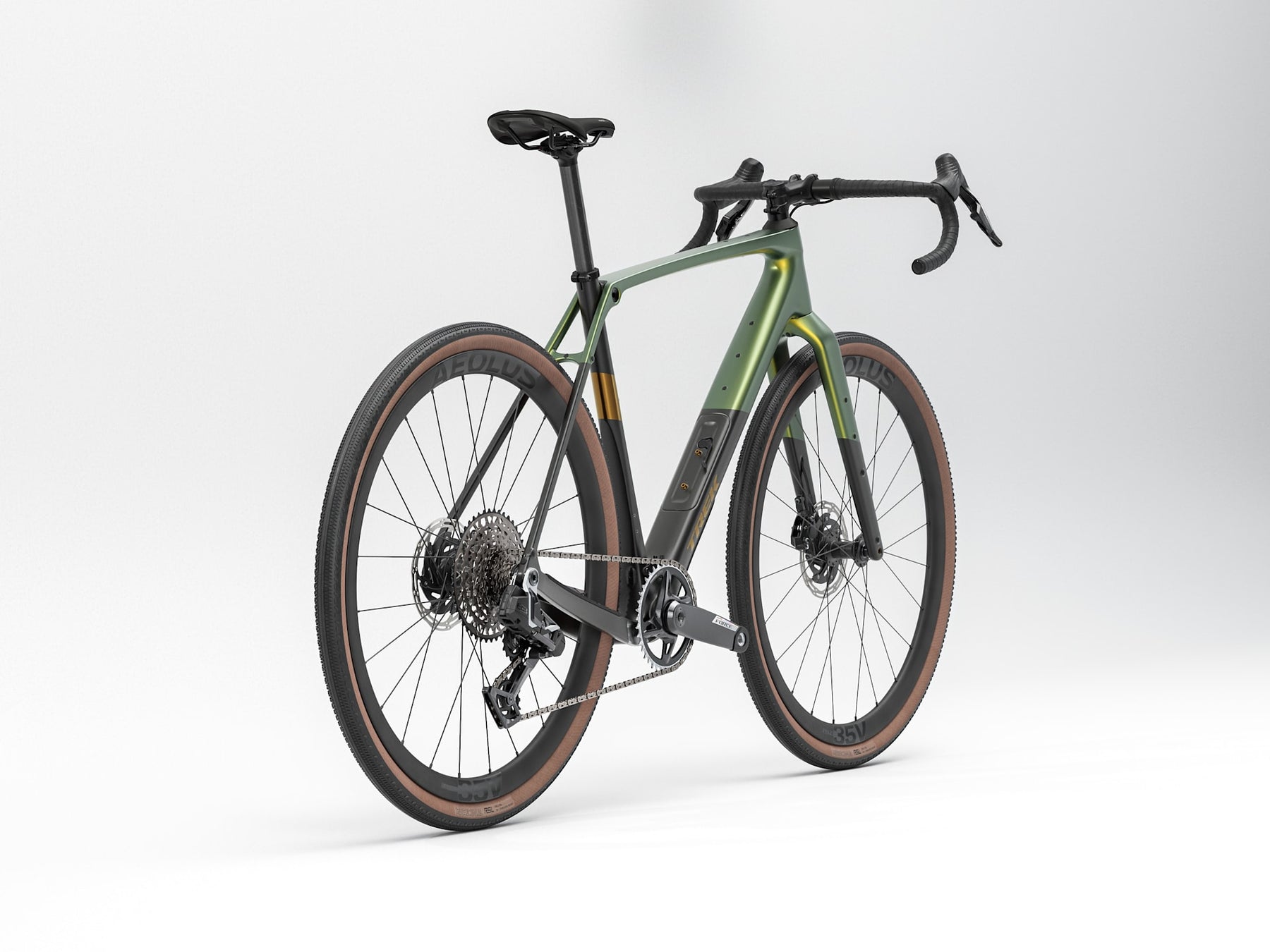

The Trek Checkpoint SL 7 AXS Gen 3 2027 tops the Checkpoint range with SRAM Force XPLR AXS — one of the first bikes to ship with SRAM's new flattop Force drivetrain.
WHO THIS BIKE SUITS
You want the best drivetrain the Checkpoint range offers.
You want deeper Bontrager Aeolus Elite carbon wheels for a genuine speed advantage.
You want a gravel bike capable enough to double as a part-time race bike.
IF YOU'RE LOOKING FOR SOMETHING DIFFERENT
If Rival-tier shifting covers what you need, the SL 6 AXS gives you the same frame and a similarly wide gear range for considerably less.
WHERE IT SITS IN THE RANGE
The SL 7 AXS is the top of the Checkpoint range — same IsoSpeed carbon frame as the SL 5 and 6 AXS, with SRAM Force XPLR AXS and deeper Aeolus Elite wheels as the standout upgrades.
Full Checkpoint range: ALR 3 — ALR 4 — ALR 5 — SL 5 AXS — SL 6 AXS.
HOW IT RIDES
The IsoSpeed decoupler is confirmed across multiple long-term reviews as a genuine, noticeable comfort upgrade — it lets the seat tube flex independently of the top tube, smoothing out chatter without dulling feedback from the rear tyre. Gravel Endurance geometry keeps the front end tall and the reach short, so you stay comfortable over long days without sacrificing confident handling on loose or technical ground. Reviewers who've ridden this bike back-to-back with a road bike note the geometry feels similar to an endurance road machine, just with the tyre clearance and mounts to go further off-road.
Drivetrain

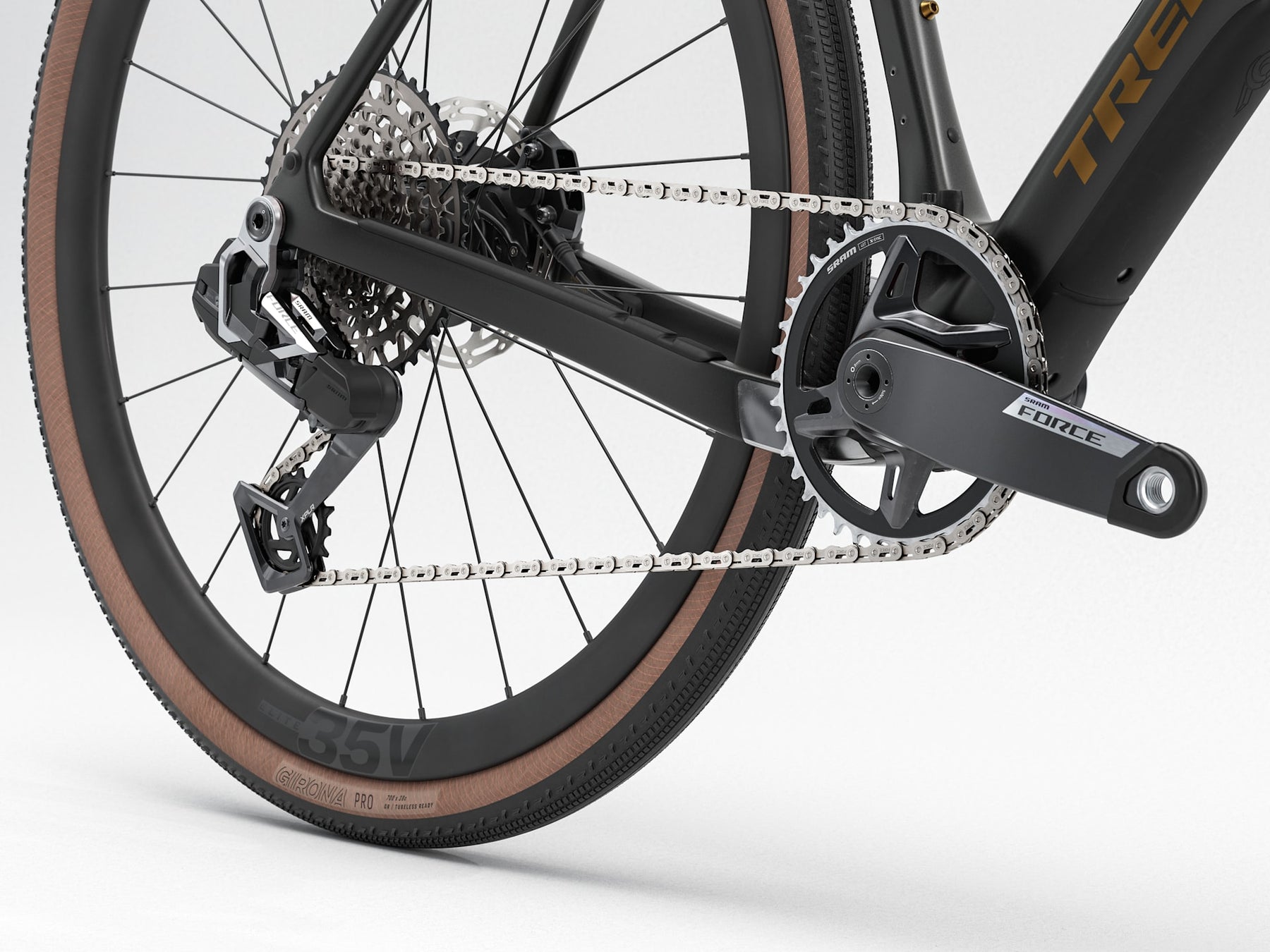

SRAM's Force XPLR AXS 13-speed cassette gives a 460% gear range in a single chainring — roughly matching a typical 2x road setup's spread without a front derailleur, using the new Force flattop Type-3 chain. Shift quality under load is a genuine step up from the Rival-tier SL 6.
THE FINAL WORD
The Trek Checkpoint SL 7 AXS Gen 3 2027 is as far as the Checkpoint platform goes. Come in and talk to us about whether the extra spend over the SL 6 AXS is worth it for your riding.
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

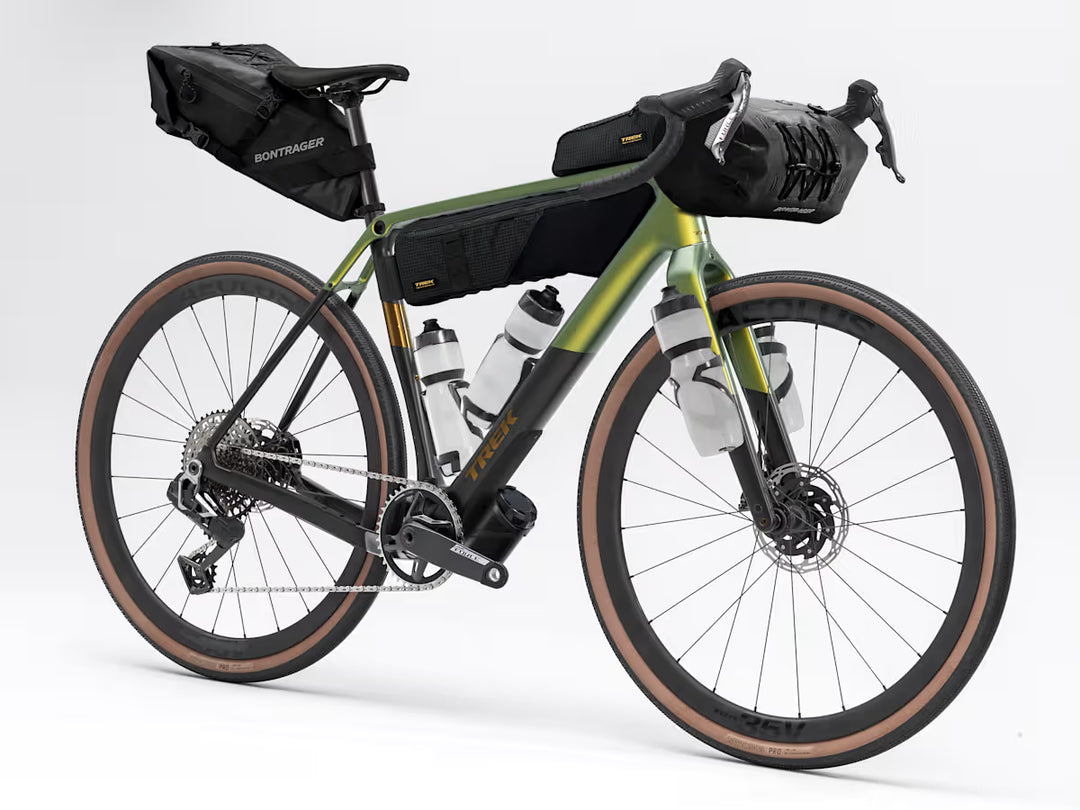

Frame: 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, RCS Universal Headset System, hidden cable routing, T47, flat mount disc, integrated chainkeeper, removable front derailleur hanger, UDH

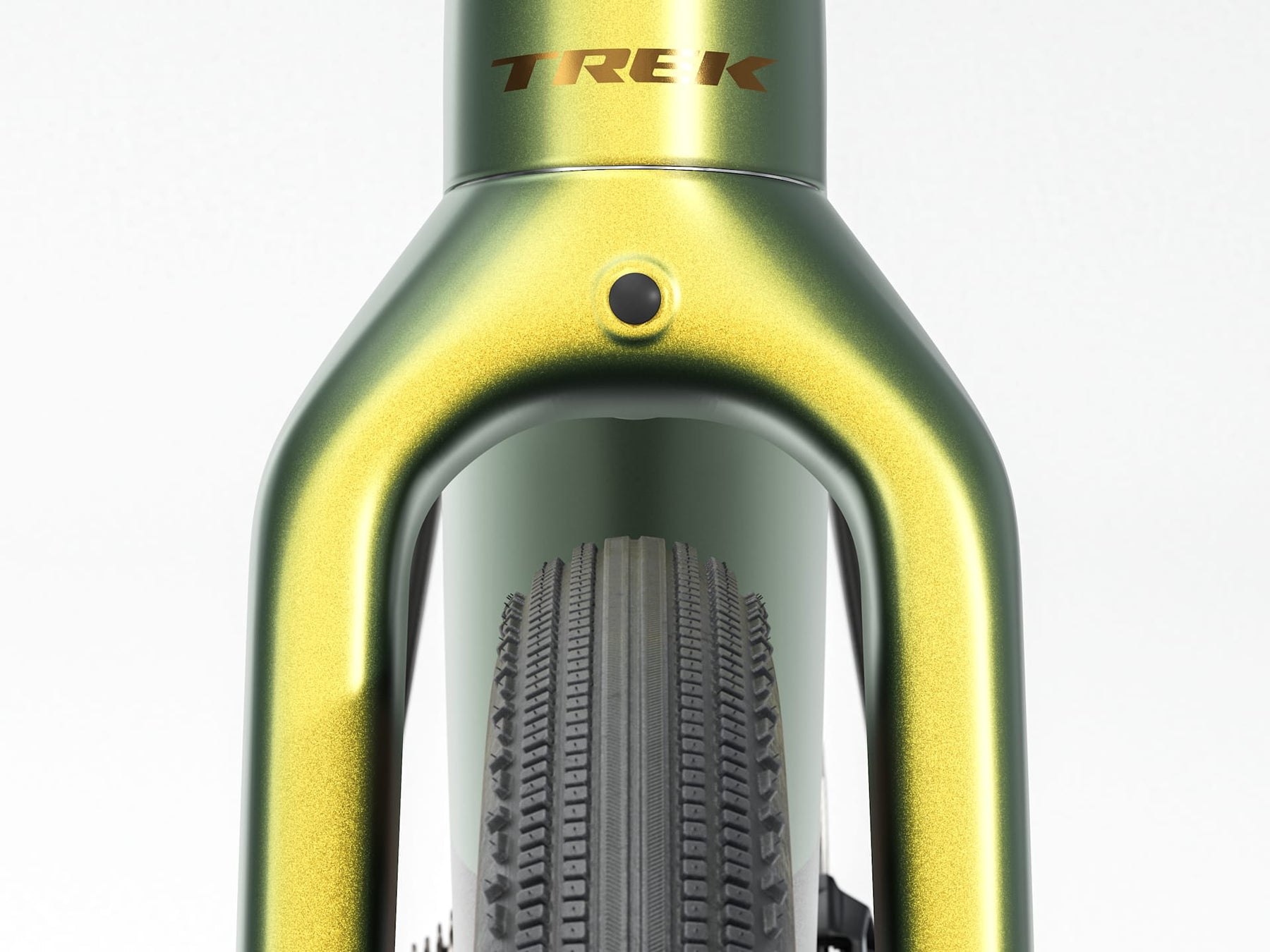

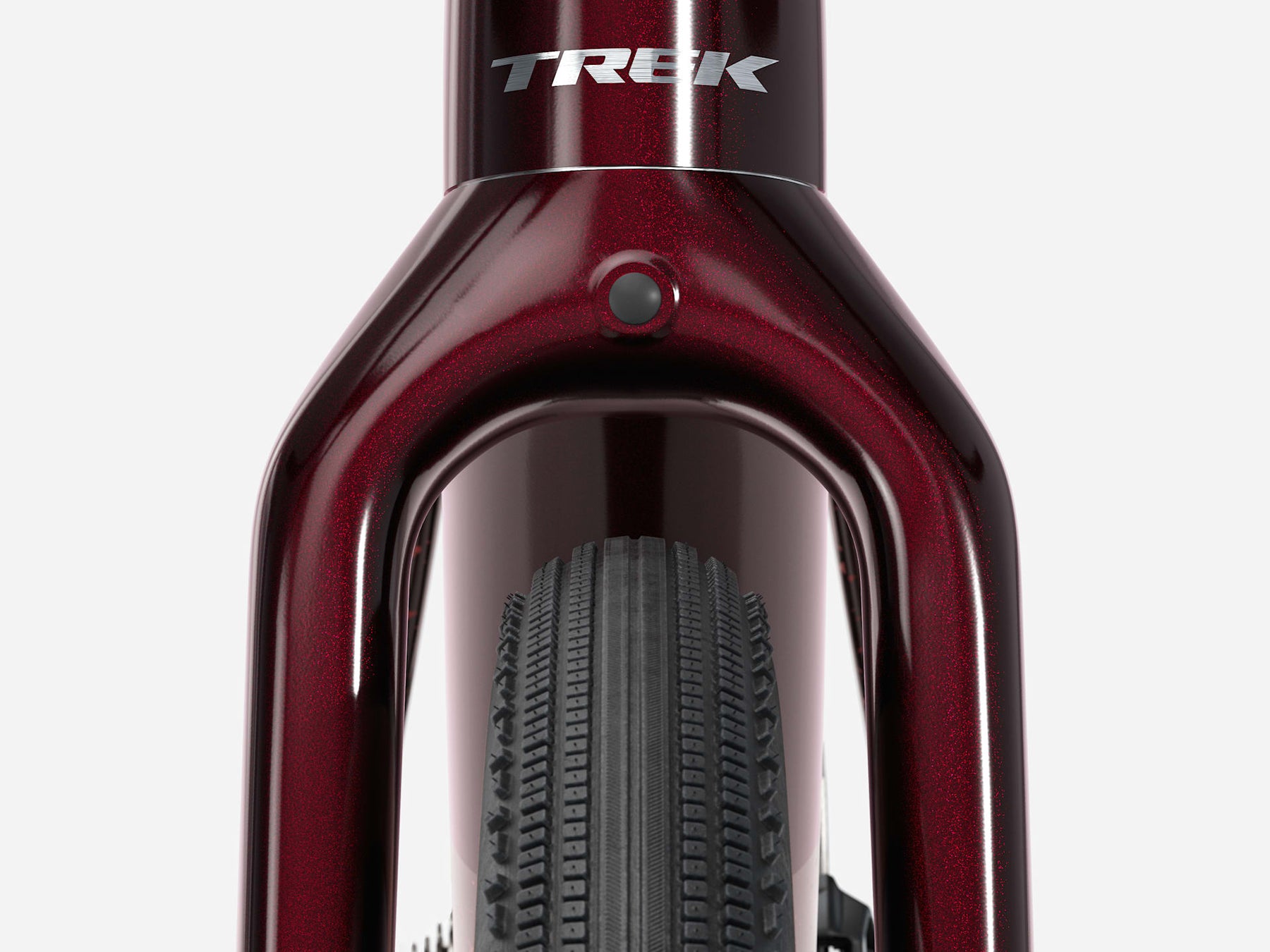

Fork: Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc
Headset: Trek RCS Universal Headset System, integrated, internal cable routing
Bottom bracket: SRAM DUB Wide, T47 threaded, internal bearing
Shifters: SRAM Force XPLR AXS
Rear derailleur: SRAM Force XPLR AXS, 46T max cog
Crank: SRAM Force XPLR, 40T, DUB Wide, 165 mm length
Cassette: SRAM Force XPLR XG-1371, 10-46, 13-speed
Chain: SRAM Force AXS, flattop, Type-3, 13-speed
Brakeset: SRAM Force eTap AXS HRD, hydraulic disc
Rotor: SRAM Paceline X, rounded, CentreLock, 160 mm
Wheels: Bontrager Aeolus Elite 35V
Tyres: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm

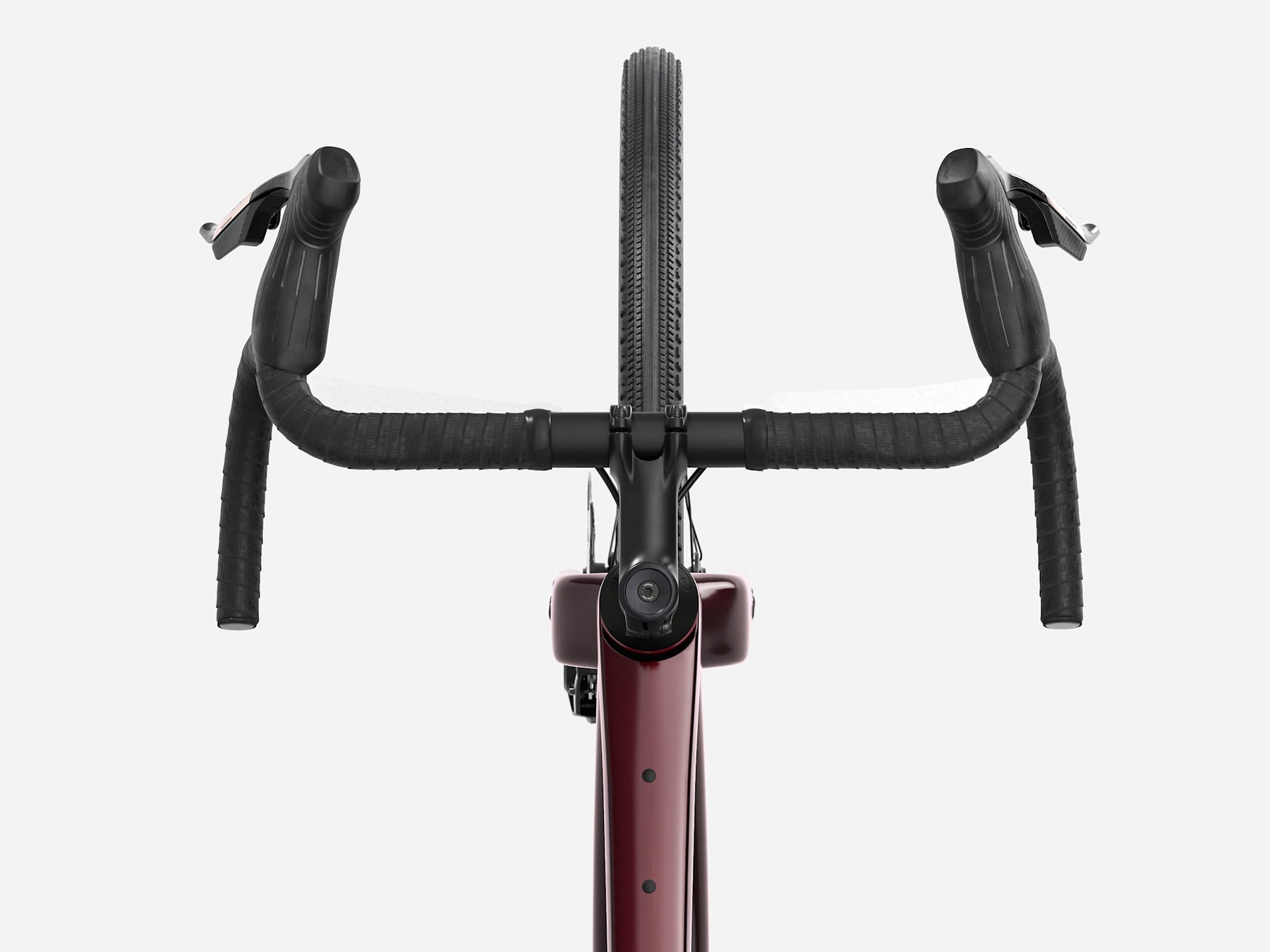

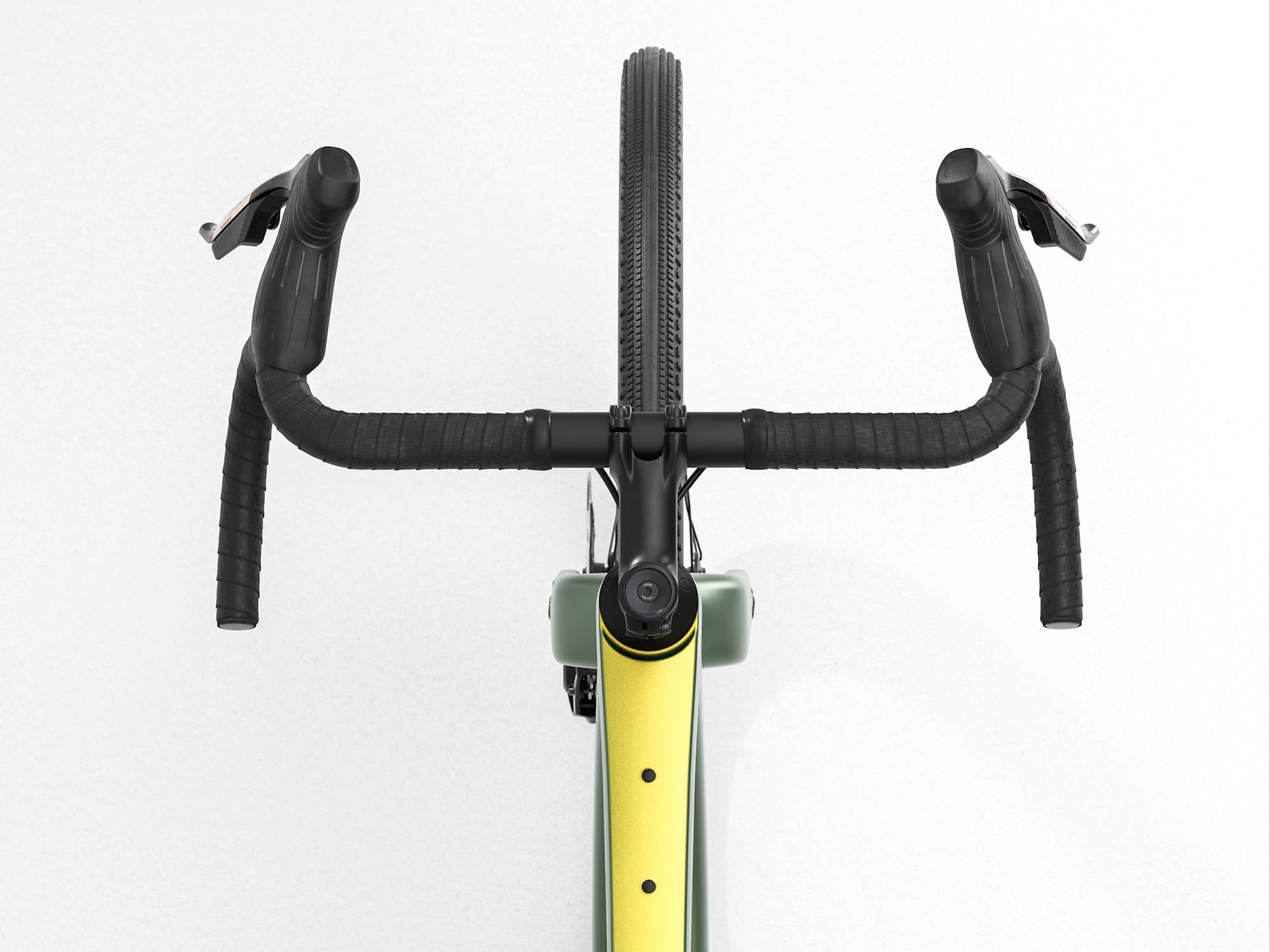

Handlebar: Bontrager Pro Gravel, 42 cm width
Stem: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Saddle: Verse Short Elite, hollow magnesium rails, 145 mm width
Seatpost: Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
