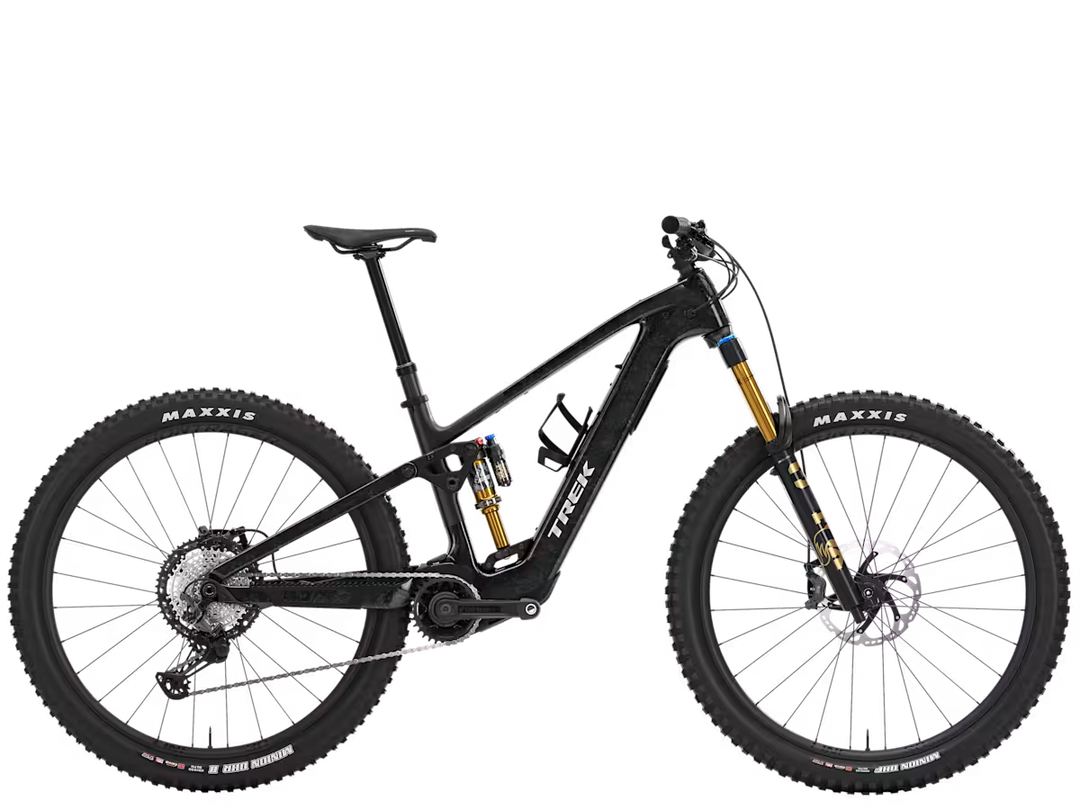

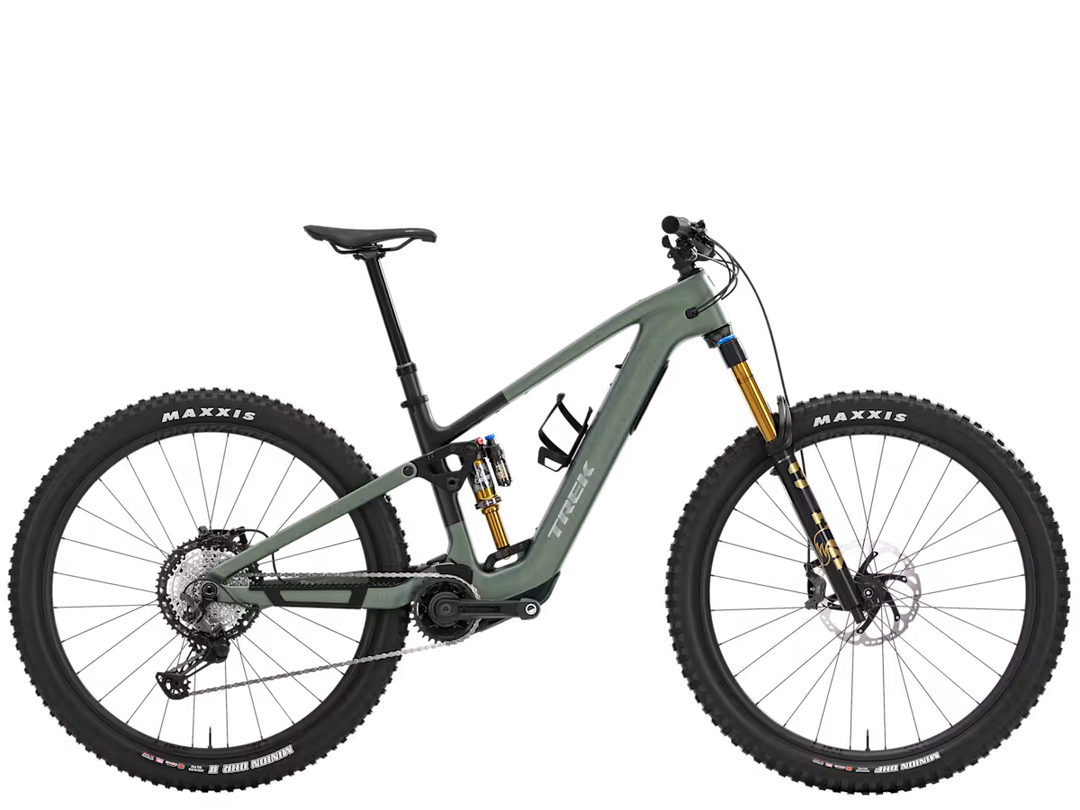

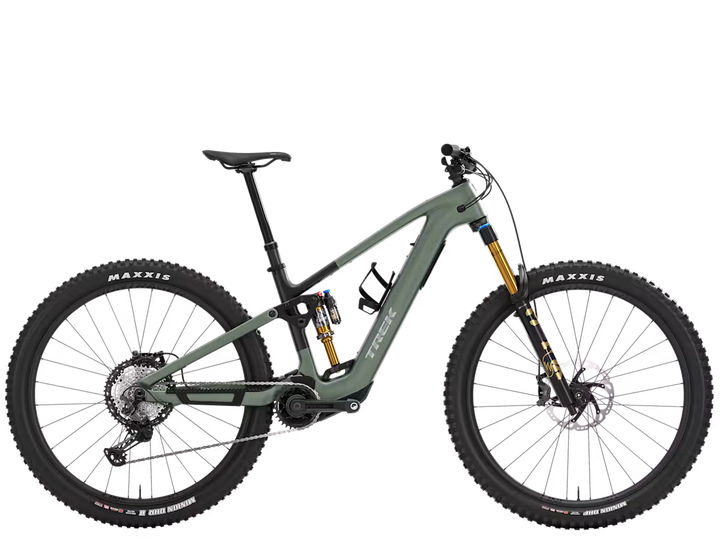

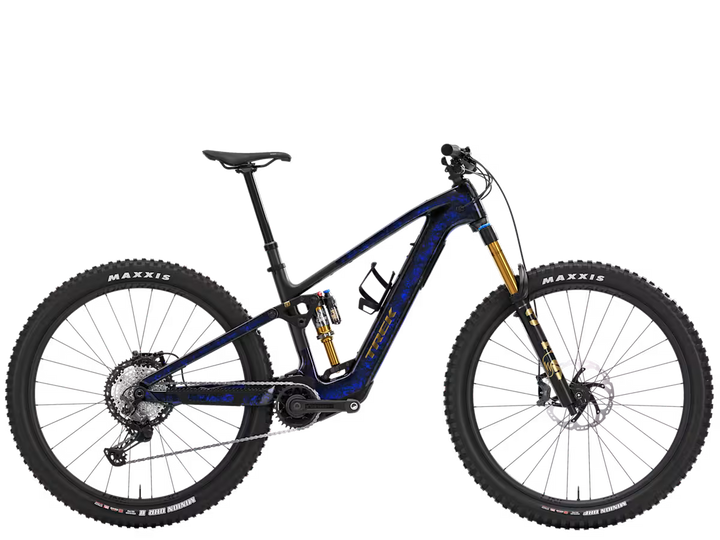

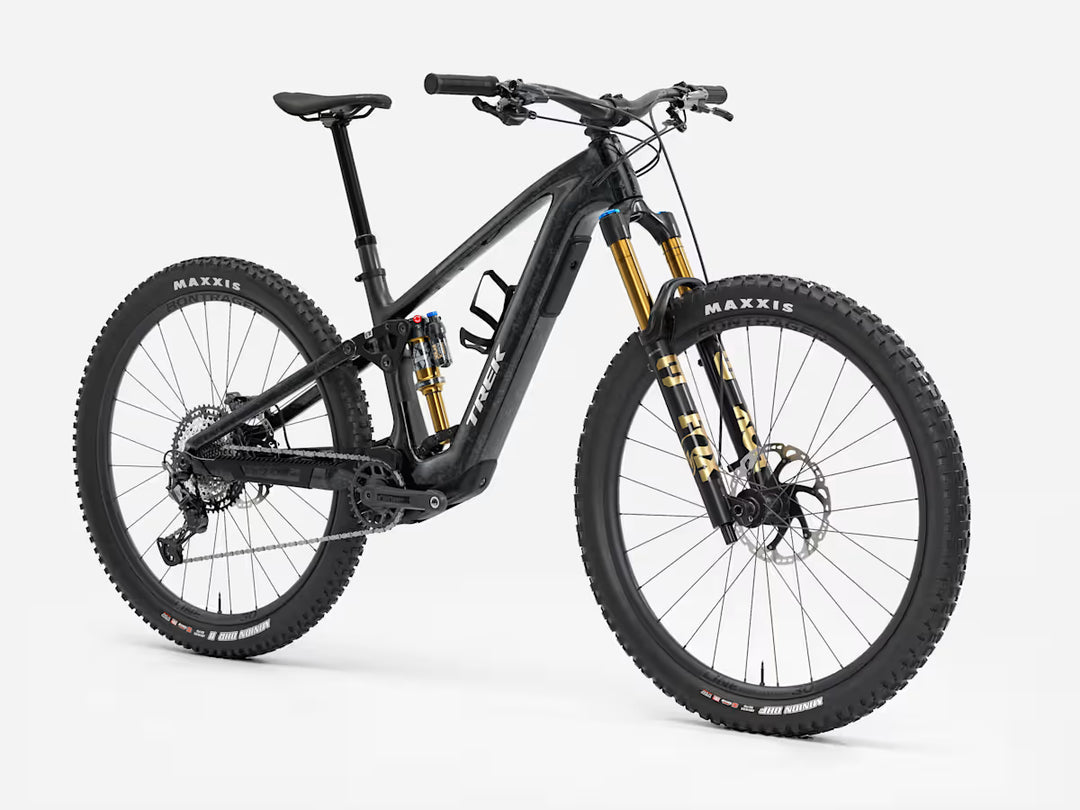

The Fuel+ EX 9.8 XT is an adaptable carbon e-MTB ready for sky-high climbs and dreamy descents. Its OCLV Mountain Carbon frame delivers a smooth boost from TQ's HPR-60 motor, while a Fox Factory suspension package (145 mm rear, 150 mm front) gives you buttery-smooth control through the rough. A mechanical Shimano XT 12-speed drivetrain gives you clean, reliable shifting and 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-penny power.
| *Mainframe |
Size: S, XL, L, M, XXL
OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
|
|---|---|
| *Fork |
Size: S, XL, L, M, XXL
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 150 mm travel
|

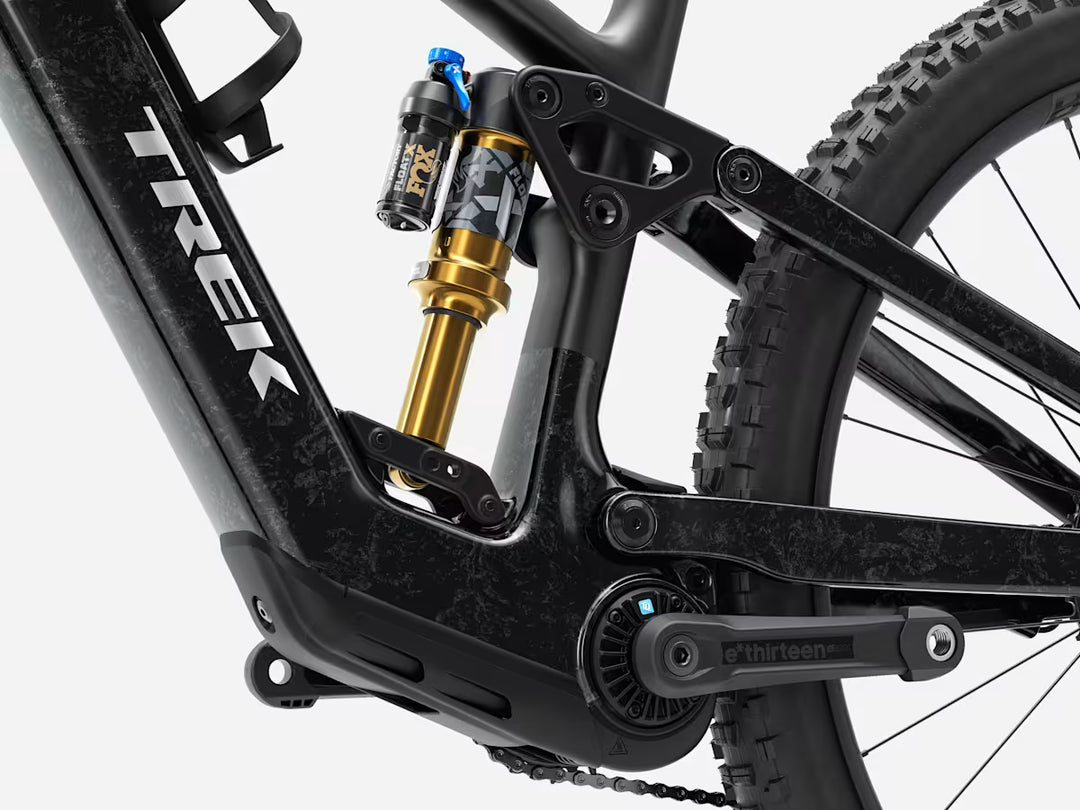

| *Shock |
Size: S, XL, L, M, XXL
Fox Factory Float X, 205 mm x 60 mm
|
Wheels
| *Front Wheel | Size: S, XL, L, M, XXLBontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" |
|---|---|
| *Rear Wheel |
Size: S
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru-axle, 27.5"
|
|
Size: XL, L, M, XXL
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru-axle, 29"
|
|
| *Rear Skewer | Size: S, XL, L, M, XXLBontrager Switch thru-axle, removable lever |
| *Tire |
Size: S, XL, L, M, XXL
Maxxis Minion DHF, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
|
|
Size: S
Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5''
|
|
|
Size: XL, L, M, XXL
Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
|
|
| *Tire Part |
Size: S, XL, L, M, XXL
Bontrager TLR sealant, 180 ml/6 oz
|
| Max tyre size | Frame: 29x2.50", Fork: See manufacturer |
E-system
| *Battery | Size: S, XL, L, M, XXLTQ 580Wh |
|---|---|
| *Charger |
Size: S, XL, L, M, XXL
TQ 4A charger
|
| *Controller |
Size: S, XL, L, M, XXL
TQ color LED display with Bluetooth & ANT+ connectivity
|
| *Motor |
Size: S, XL, L, M, XXL
TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
|

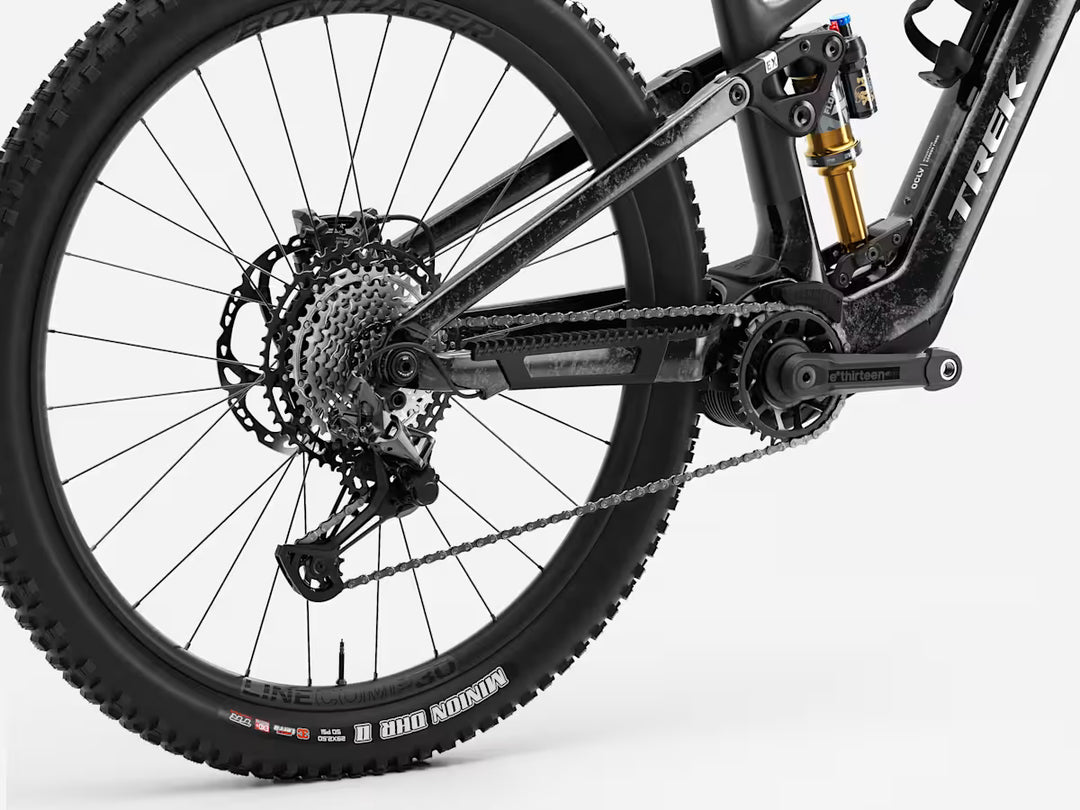

Drivetrain
| *Shifter |
Size: S, XL, L, M, XXL
Shimano XT M8100, 12-speed
|
|---|---|
| *Rear Derailleur |
Size: S, XL, L, M, XXL
Shimano XT M8100, long cage
|
| *Crank Arm |
Size: S, XL, L, M, XXL
E*thirteen E*spec Plus, 160 mm length
|
| *Chain Ring |
Size: S, XL, L, M, XXL
E*Thirteen Helix Core Steel 32t steel, 55mm chainline
|
| *Cassette |
Size: S, XL, L, M, XXL
Shimano XT M8200, 10-51, 12-speed
|
| *Chain |
Size: S, XL, L, M, XXL
Shimano Ultegra/XT M8100, 12-speed
|
| Max. chainring size | 1x: 34T, min 30T |
Components
| *Saddle | Size: S, XL, L, M, XXLVerse Short Comp, steel rails, 145 mm width |
|---|---|
| *Seatpost | Size: SBontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length |
| Size: MBontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length | |
| Size: XL, L, XXLBontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length | |
| *Handlebar |
Size: S, XL, L, M, XXL
Race Face ERA, carbon, 35 mm, 27.5 mm rise, 800 mm width
|
| *Grips | Size: S, XL, L, M, XXLTrek Line Elite, lock-on |
| *Stem | Size: S, XL, L, M, XXLBontrager Elite, 35 mm, 0-degree, 45 mm length |
| *Brake |
Size: S, XL, L, M, XXL
Shimano XT M8200 4-piston hydraulic disc
|
| *Brake Rotor |
Size: S, XL, L, M, XXL
Shimano RT86, 6-bolt, 203 mm
|
| Rotor size | Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer |
Weight
| Weight | M - 20.10 kg / 44.32 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
