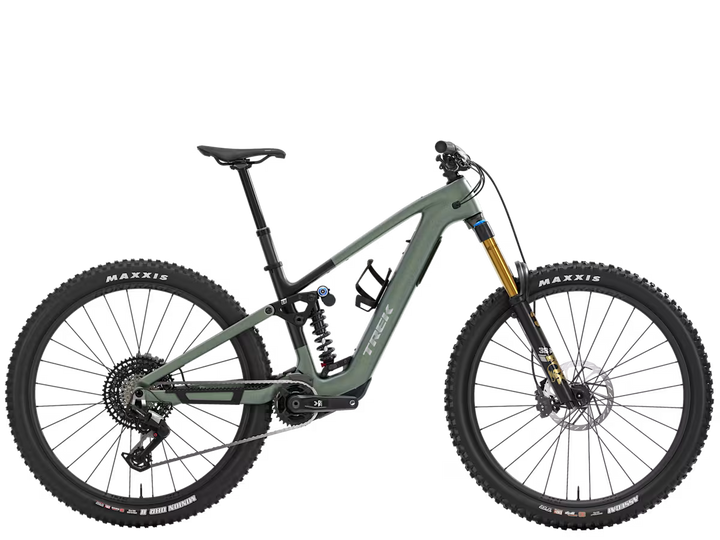

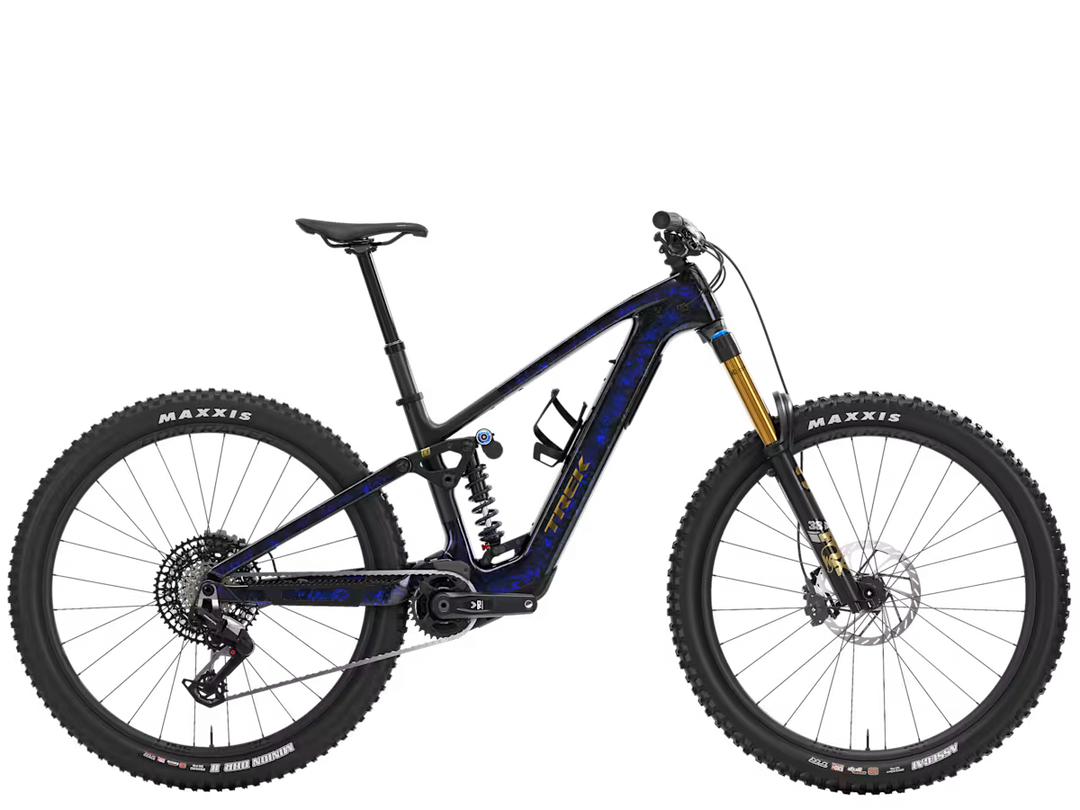

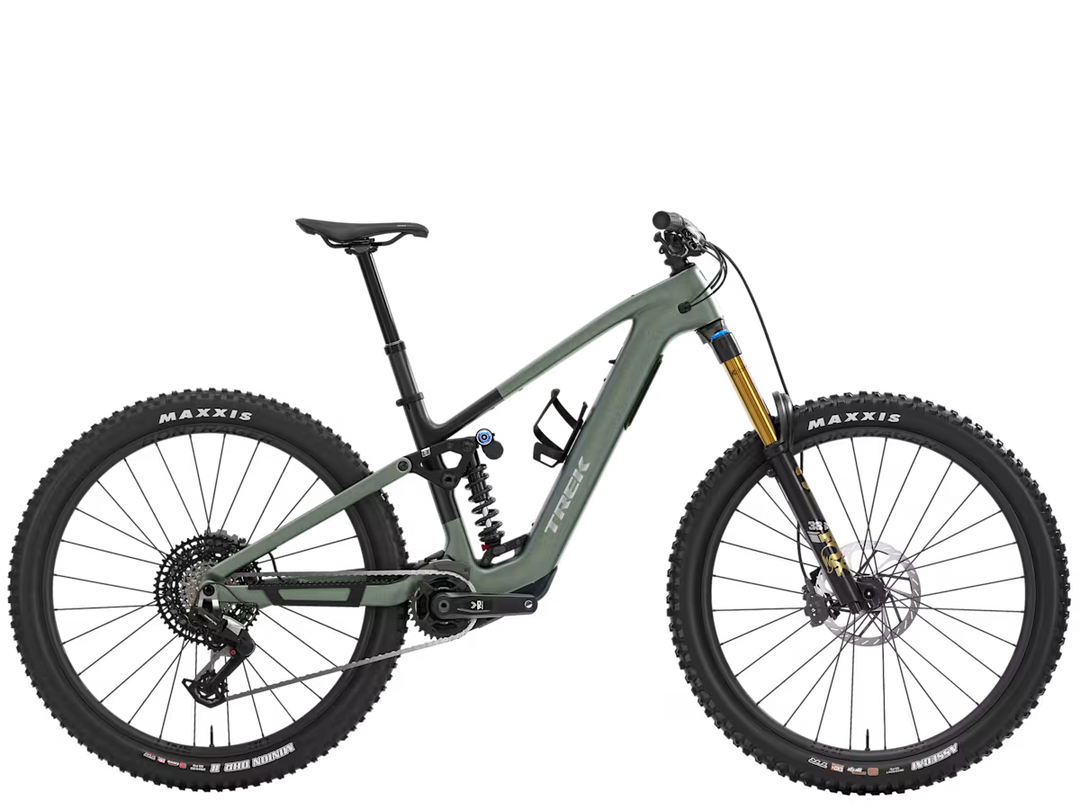

The Fuel+ LX 9.8 Eagle 90 is a hard-hitting electric mountain bike for tackling endless laps. Its OCLV Mountain Carbon frame partners with TQ's HPR60 motor for a quiet, smooth boost, while a Fox Factory suspension package with a coil shock (160 mm rear, 170 mm front) keeps you feeling confident in the roughest terrain. A fuss-free SRAM Eagle 90 transmission gives you smooth mechanical shifting and SRAM Maven Bronze 4-piston brakes keep modulation and control on lock.
| *Mainframe |
Size: S, XL, L, M, XXL
OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
|
|---|---|
| *Fork |
Size: S, XL, L, M, XXL
Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 170 mm travel
|
| *Shock |
Size: S, XL, L, M, XXL
Fox DHX2, 205 mm x 65 mm
|
| *Suspension Part |
Size: S
Fox steel coil spring, 250 lbs
|
|
Size: M
Fox steel coil spring, 350 lbs
|
|
|
Size: L
Fox steel coil spring, 400 lbs
|
|
|
Size: XL
Fox steel coil spring, 450 lbs
|
|
|
Size: XXL
Fox steel coil spring, 500 lbs
|
Wheels
| *Front Wheel | Size: S, XL, L, M, XXLBontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" |
|---|---|
| *Rear Wheel | Size: S, XL, L, M, XXLBontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12 mm thru axle, 29'' |
| *Rear Skewer | Size: S, XL, L, M, XXLBontrager Switch thru-axle, removable lever |
| *Tire |
Size: S, XL, L, M, XXL
Maxxis Assegai, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
|
|
Size: S, XL, L, M, XXL
Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
|
|
| *Tire Part |
Size: S, XL, L, M, XXL
Bontrager TLR sealant, 180 ml/6 oz
|
| Max tyre size | Frame: 29x2.50", Fork: See manufacturer |
E-system
| *Battery | Size: S, XL, L, M, XXLTQ 580Wh |
|---|---|
| *Charger |
Size: S, XL, L, M, XXL
TQ 4A charger
|
| *Controller |
Size: S, XL, L, M, XXL
TQ color LED display with Bluetooth & ANT+ connectivity
|
| *Motor |
Size: S, XL, L, M, XXL
TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
|
Drivetrain
| *Shifter |
Size: S, XL, L, M, XXL
SRAM Eagle 90, 12-speed
|
|---|---|
| *Rear Derailleur |
Size: S, XL, L, M, XXL
SRAM Eagle 90, T-Type
|
| *Crank Arm |
Size: S, XL, L, M, XXL
Premium Alpha Platinum Aluminium frame, top-load PowerPack, integrated cockpit routing, 135x5 mm QR
|
| *Chain Ring |
Size: S, XL, L, M, XXL
SRAM T-Type, 32T, alloy
|
| *Cassette |
Size: S, XL, L, M, XXL
SRAM Eagle XS-1275, T-Type, 10-52, 12-speed
|
| *Chain |
Size: S, XL, L, M, XXL
SRAM GX Eagle, T-Type, 12-speed
|
| Max. chainring size | 1x: 34T, min 30T |
Components
| *Saddle | Size: S, XL, L, M, XXLVerse Short Comp, steel rails, 145 mm width |
|---|---|
| *Seatpost | Size: SBontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length |
| Size: MBontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length | |
| Size: XL, L, XXLBontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length | |
| *Handlebar |
Size: S, XL, L, M, XXL
Race Face ERA, carbon, 35 mm, 27.5 mm rise, 800 mm width
|
| *Grips | Size: S, XL, L, M, XXLTrek Line Elite, lock-on |
| *Stem | Size: S, XL, L, M, XXLBontrager Elite, 35 mm, 0-degree, 45 mm length |
| *Brake |
Size: S, XL, L, M, XXL
SRAM Maven Bronze 4-piston hydraulic disc
|
| *Brake Rotor |
Size: S, XL, L, M, XXL
SRAM HS2, 6-bolt, 200mm
|
| Rotor size | Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer |
Weight
| Weight | M - 20.88 kg / 46.04 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
