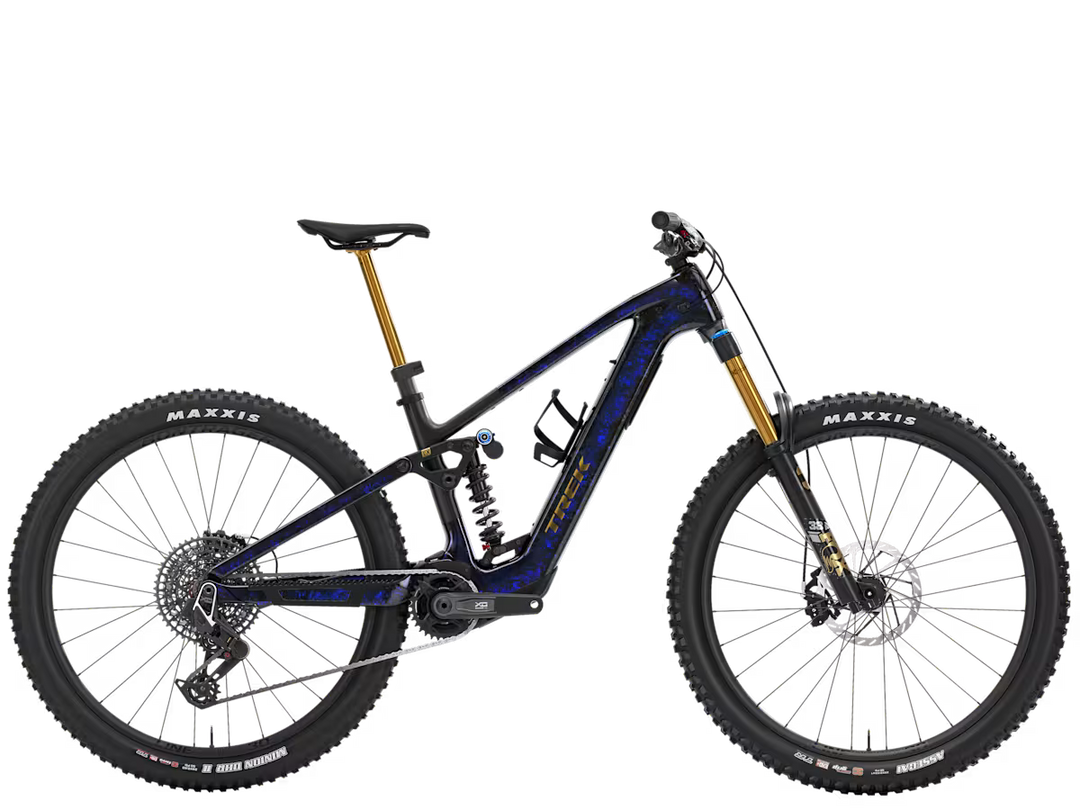

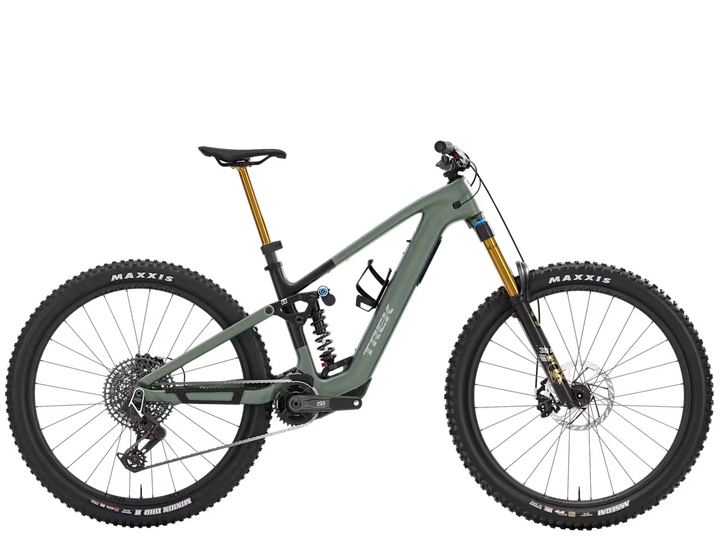

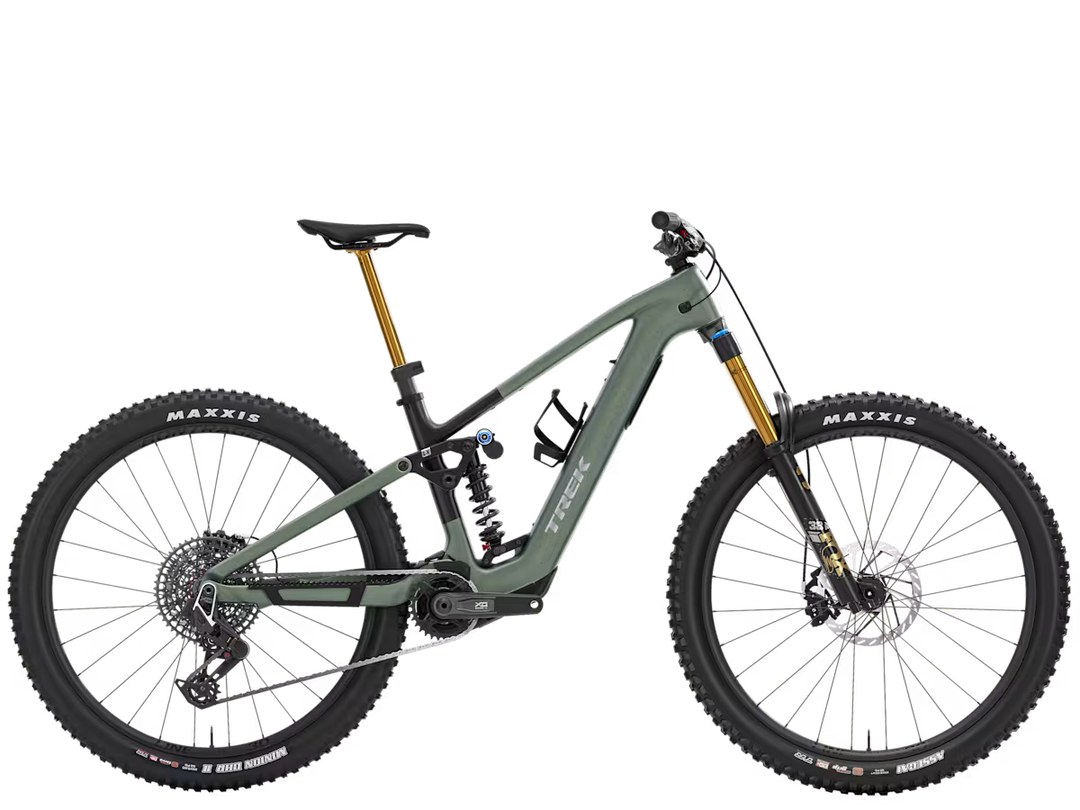

The Fuel+ LX 9.9 X0 AXS is the cream-of-the-crop rowdy e-MTB, delivering smooth assist for chasing more hair-raising descents. Its OCLV Mountain Carbon frame partners with TQ's HPR60 motor for a smooth boost, while a Fox Factory suspension package with a coil shock (160 mm rear, 170 mm front) keeps you feeling confident in the roughest terrain. It comes ready for anything with top-tier components, like a SRAM X0 AXS transmission, SRAM Maven Silver brakes, carbon wheels and a Fox Transfer Neo dropper post.
| *Frame |
Size: S, XL, L, M, XXL
OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
|
|---|---|
| *Fork |
Size: S, XL, L, M, XXL
Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 170 mm travel
|
| *Shock |
Size: S, XL, L, M, XXL
Fox DHX2, 205 mm x 65 mm
|
| *Suspension part |
Size: S
Fox steel coil spring, 250 lbs
|
|
Size: M
Fox steel coil spring, 350 lbs
|
|
|
Size: L
Fox steel coil spring, 400 lbs
|
|
|
Size: XL
Fox steel coil spring, 450 lbs
|
|
|
Size: XXL
Fox steel coil spring, 500 lbs
|
| *Wheel front | Size: S, XL, L, M, XXLBontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" |
|---|---|
| *Wheel rear |
Size: S, XL, L, M, XXL
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru-axle, 29"
|
| *Tyre |
Size: S, XL, L, M, XXL
Maxxis Assegai, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
|
|
Size: S, XL, L, M, XXL
Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
|
|
| *Tyre part |
Size: S, XL, L, M, XXL
Bontrager TLR sealant, 180 ml/6 oz
|
| Max tyre size | Frame: 29x2.50", Fork: See manufacturer |
| *Battery | Size: S, XL, L, M, XXLTQ 580Wh |
|---|---|
| *Charger |
Size: S, XL, L, M, XXL
TQ 4A charger
|
| *Controller |
Size: S, XL, L, M, XXL
TQ color LED display with Bluetooth & ANT+ connectivity
|
| *Motor |
Size: S, XL, L, M, XXL
TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
|
| *Shifter |
Size: S, XL, L, M, XXL
SRAM AXS pod
|
|---|---|
| *Rear derailleur |
Size: S, XL, L, M, XXL
SRAM X0 Eagle AXS, T-Type
|
| *Crank |
Size: S, XL, L, M, XXL
SRAM X0 Eagle, 160 mm length
|
| *Chainring |
Size: S, XL, L, M, XXL
SRAM T-Type, 32T, alloy
|
| *Cassette |
Size: S, XL, L, M, XXL
SRAM Eagle XS-1295, T-Type, 10-52, 12-speed
|
| *Chain |
Size: S, XL, L, M, XXL
SRAM X0 Eagle, T-Type, 12-speed
|
| Max. chainring size | 1x: 34T, min 30T |
| *Saddle | Size: S, XL, L, M, XXLVerse Short Pro, carbon rails, 145 mm width |
|---|---|
| *Handlebar |
Size: S, XL, L, M, XXL
Race Face ERA, carbon, 35 mm, 27.5 mm rise, 800 mm width
|
| *Grips | Size: S, XL, L, M, XXLTrek Line Elite, lock-on |
| *Stem |
Size: S, XL, L, M, XXL
Race Face Turbine R, 35 mm, 0 degree, 40 mm length
|
| *Brake |
Size: S, XL, L, M, XXL
SRAM Maven Silver 4-piston hydraulic disc
|
| *Brake rotor |
Size: S, XL, L, M, XXL
SRAM HS2, 6-bolt, 200mm
|
| Rotor size | Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer |
| Weight | M - 20.31 kg / 44.78 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
