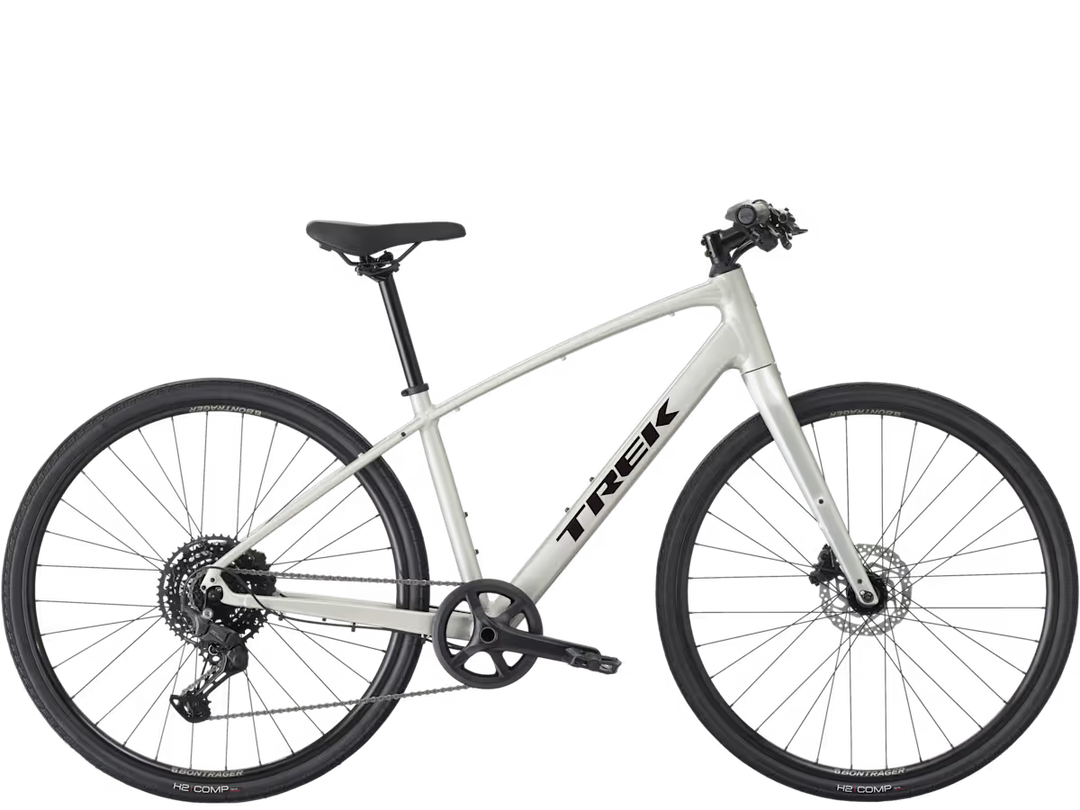

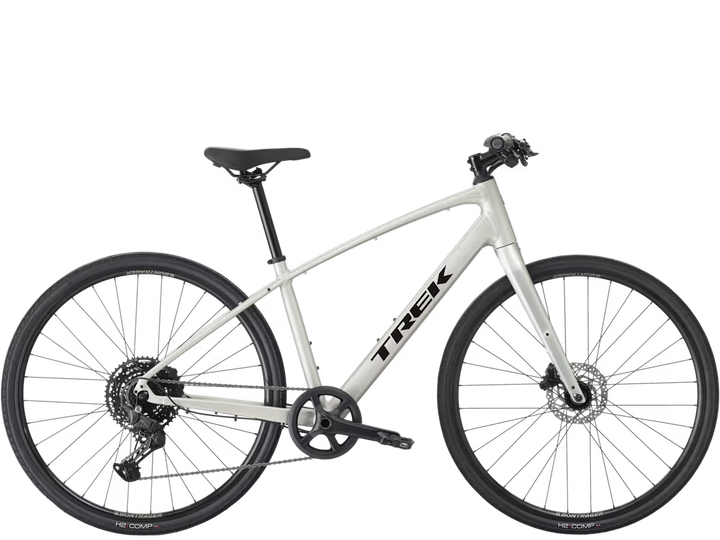

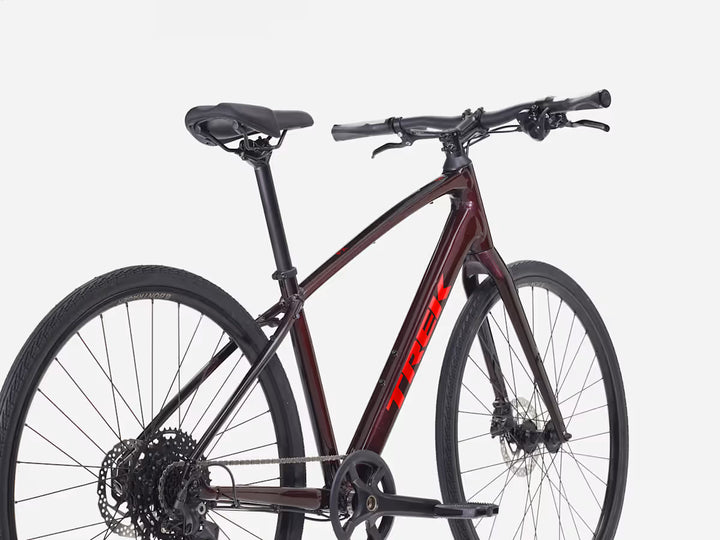

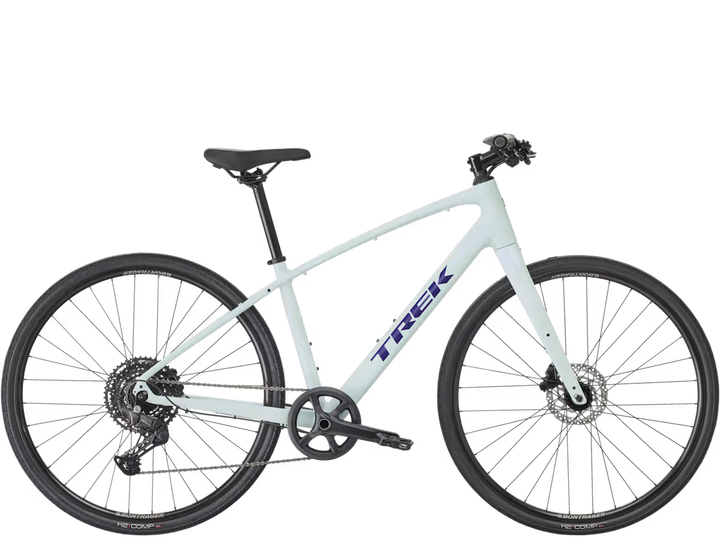

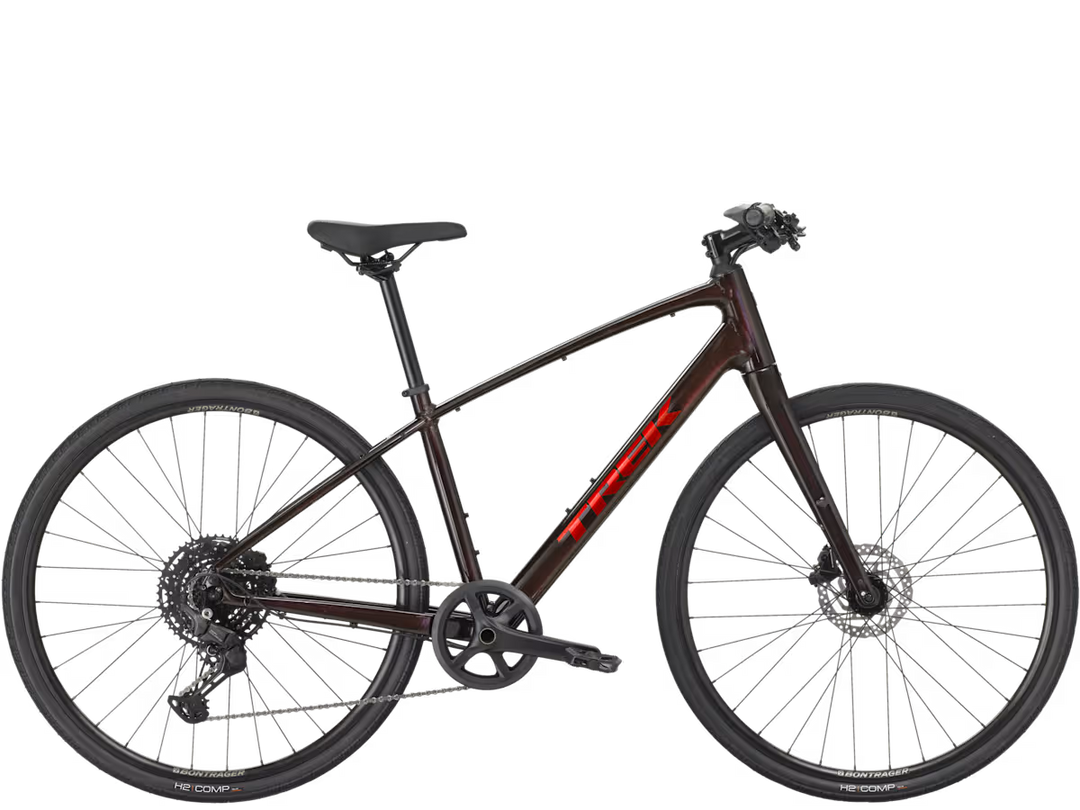

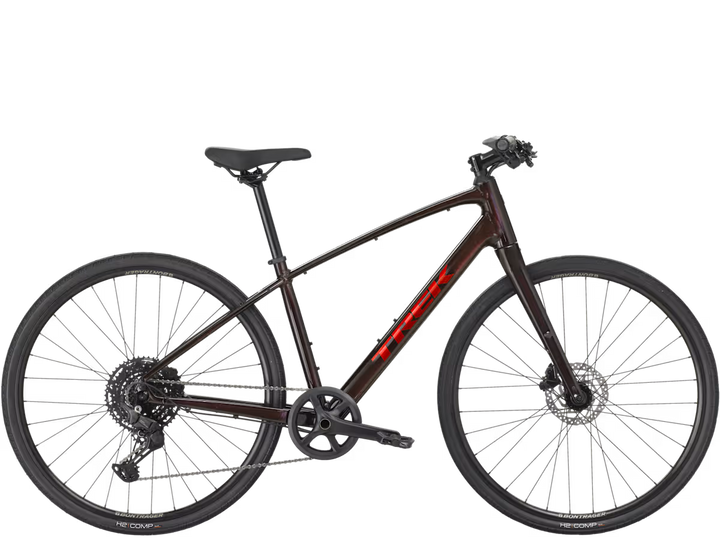

The FX 3 is a versatile hybrid bike that's primed for performance, comfort and utility. It has features like a lightweight aluminium frame, a carbon fork, a 1x drivetrain and powerful disc brakes that stop in any weather. It's a commuting pro if you want it to be, or the perfect fitness companion on road and rail trails.

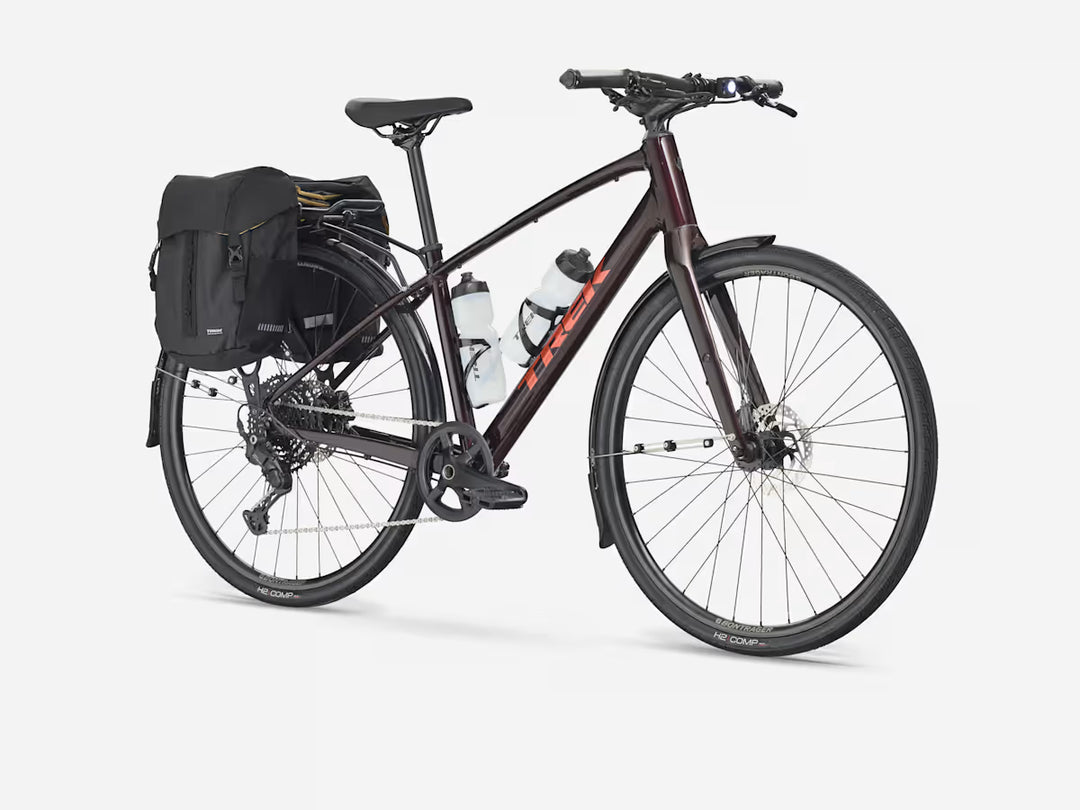

| Frame | Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR |
|---|---|
| Fork | FX carbon, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Skewer front | 139x5 mm bolt-on |
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | 152x5 mm QR |
| Rim | Bontrager Tubeless Ready Disc, 32-hole, Presta valve |
| Tyre | Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm |

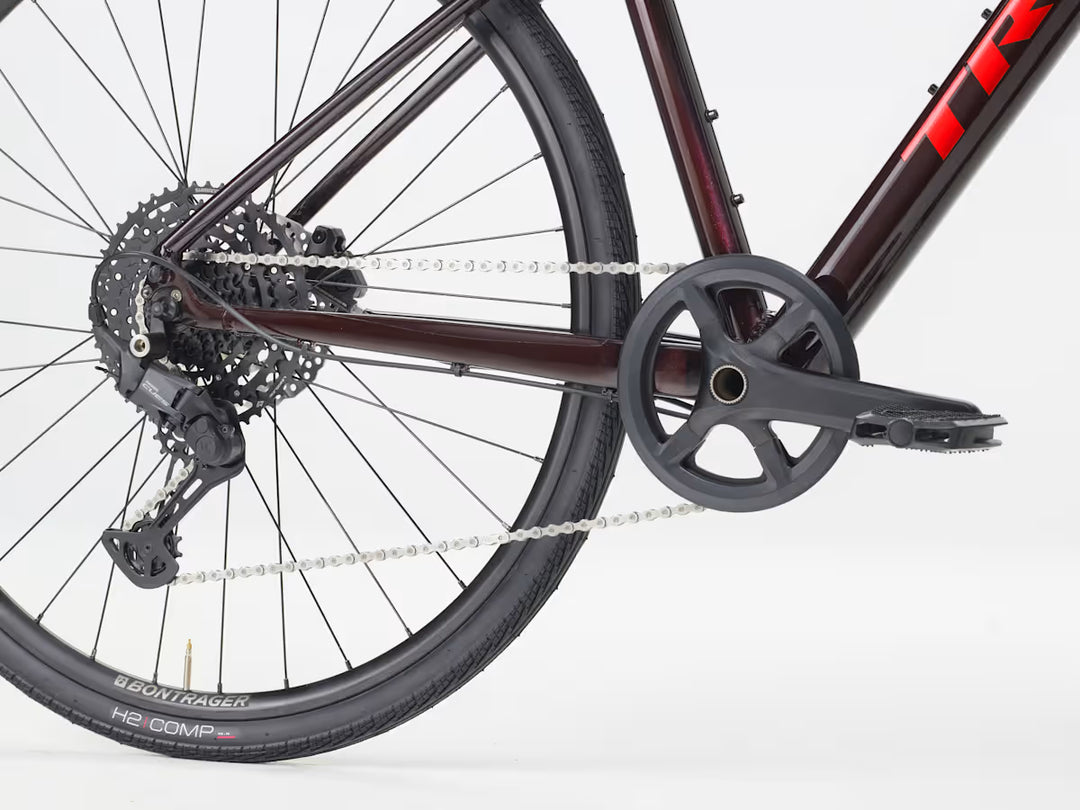

Drivetrain
| Shifter |
Shimano CUES U6000 w/optical gear display, 10-speed
|
|---|---|
| Derailleur |
Shimano CUES U6000 GS |
| Crank | |
| Bottom bracket | Sealed cartridge, 68 mm |
| Cassette | Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed |
| Chain | Shimano LG500 |
| Pedal | Bontrager City pedals |
Components
| Saddle | Bontrager H1 |
|---|---|
| *Seatpost |
Size: S, XS, M Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
|
|
Size: XL, L Bontrager alloy, 27.2 mm, 12 mm offset, 400 mm length
|
|

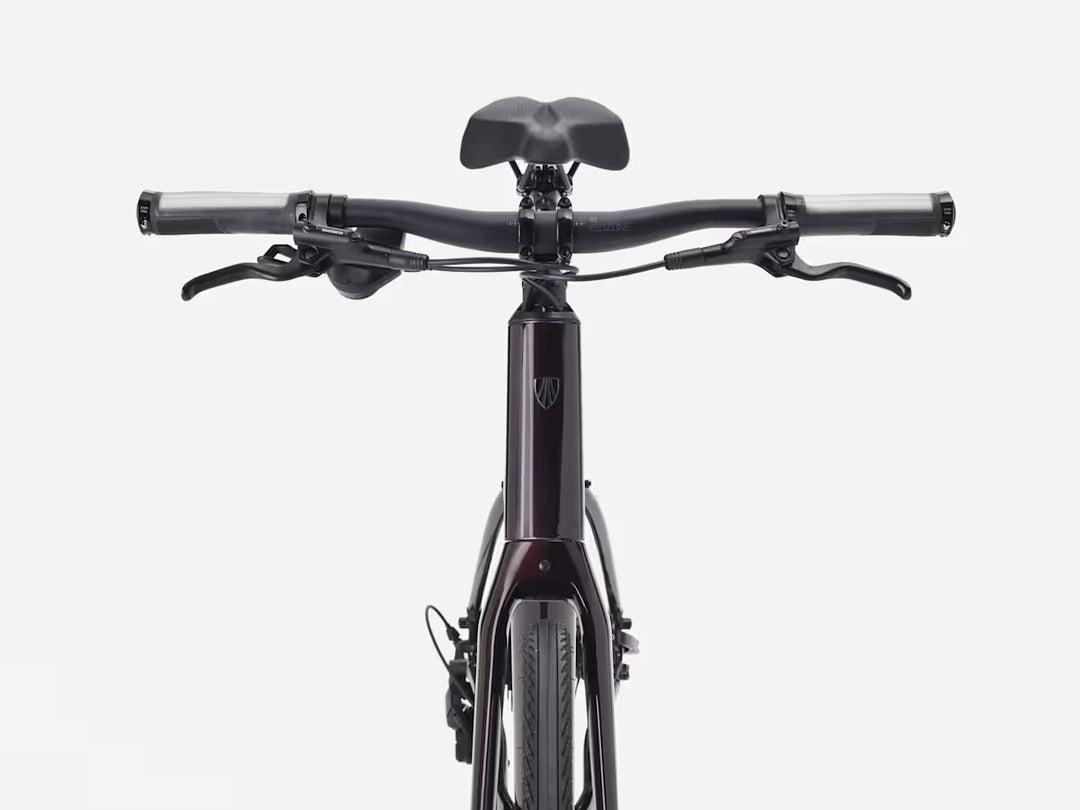

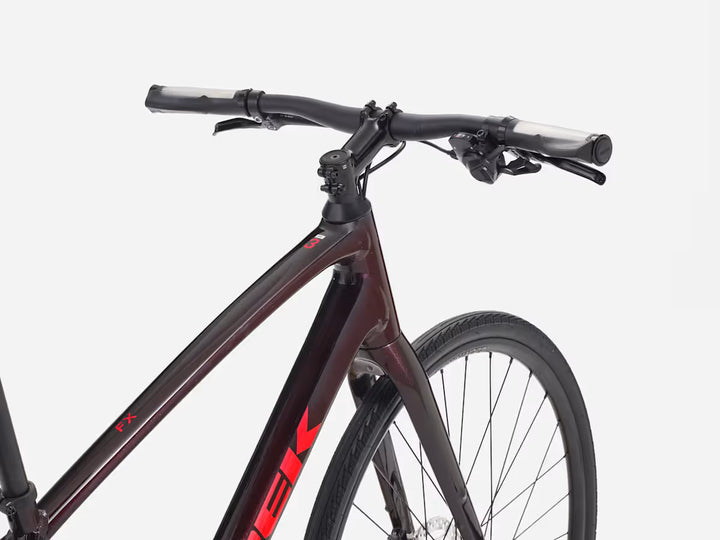

| *Handlebar |
Size: S, XS, M Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 600 mm width
|
|
Size: XL, L Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 660 mm width
|
|
| Grips | Trek Line Ergonomic Pro, lock-on |
| *Stem | |
|
Size: XL, L, M Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length |
|
| Brake rotor | Shimano hydraulic disc, MT201 lever, UR300 calliper |
| Brake Set | Shimano RT26, 6-bolt, 160 mm |
| Weight | M - 11.65 kg / 25.69 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
