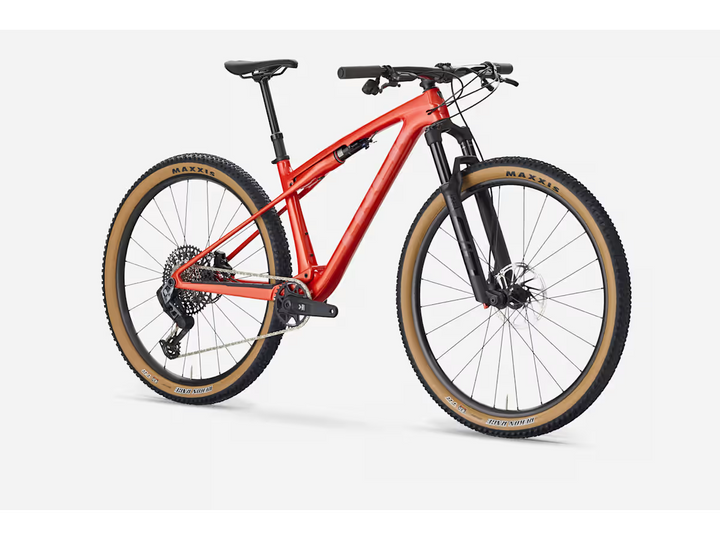

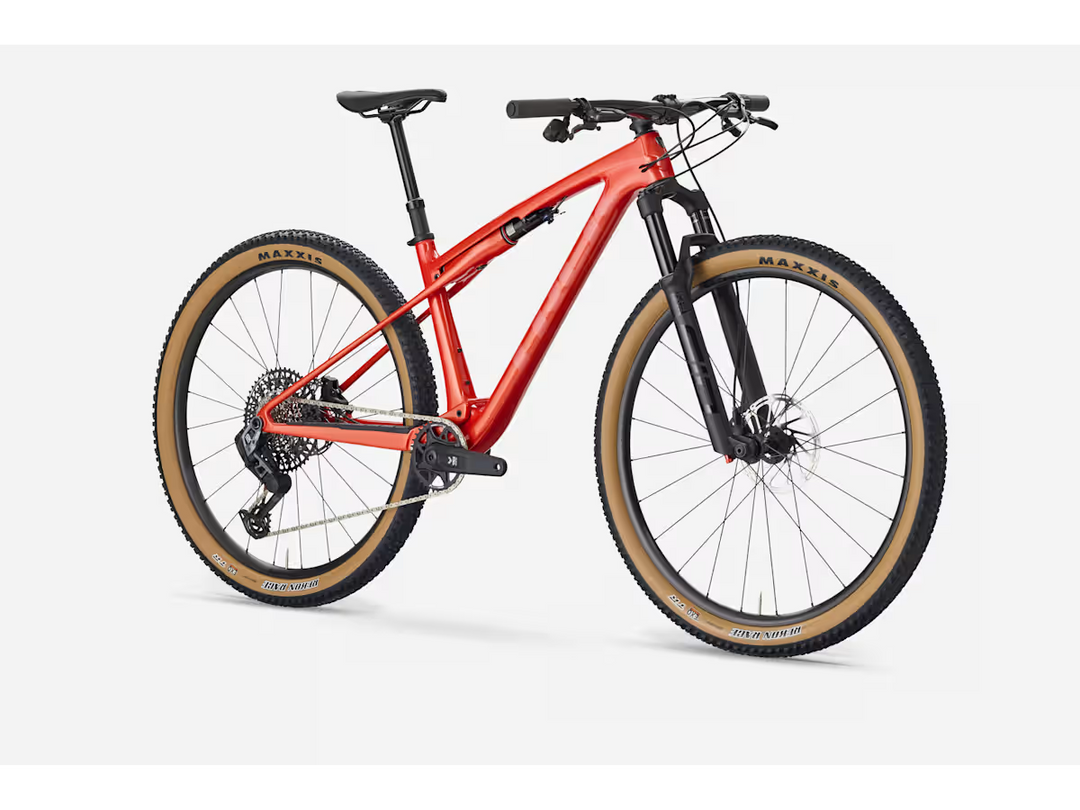

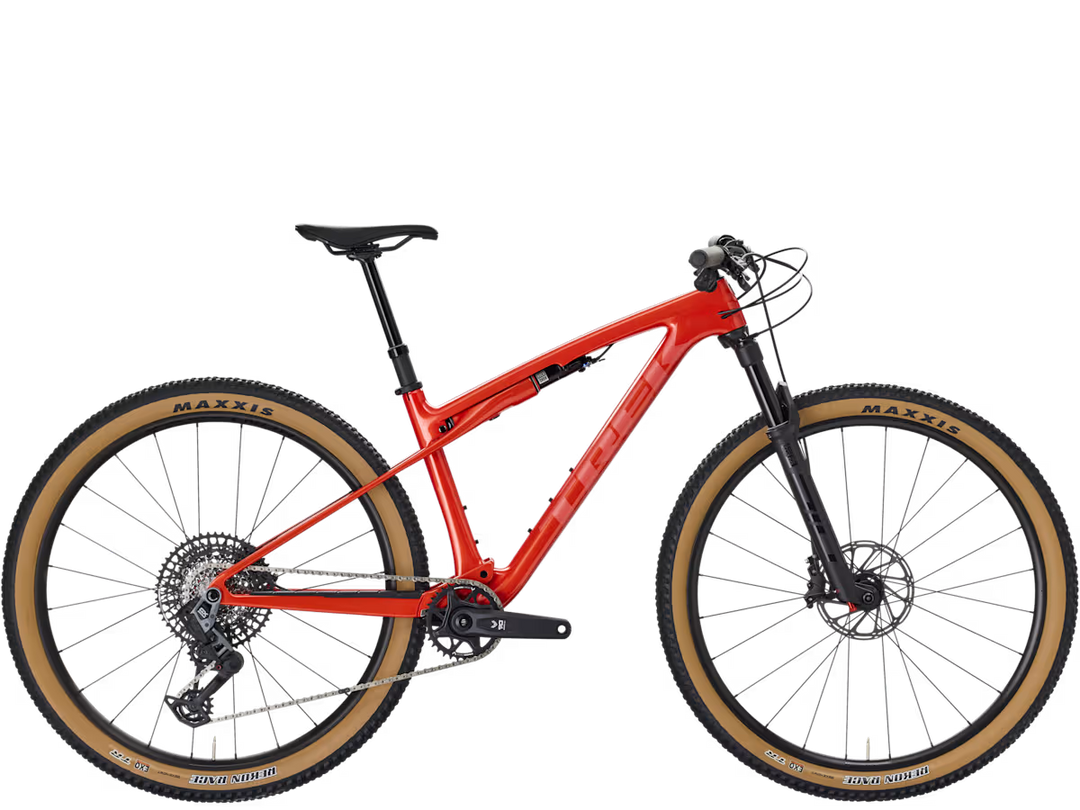

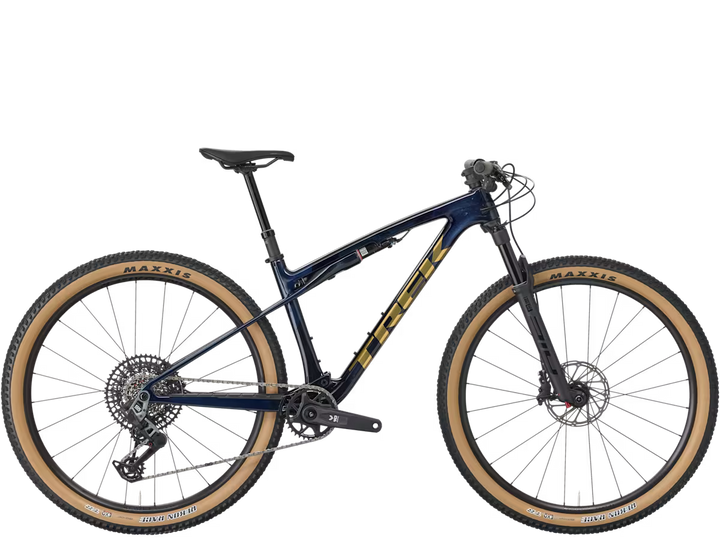

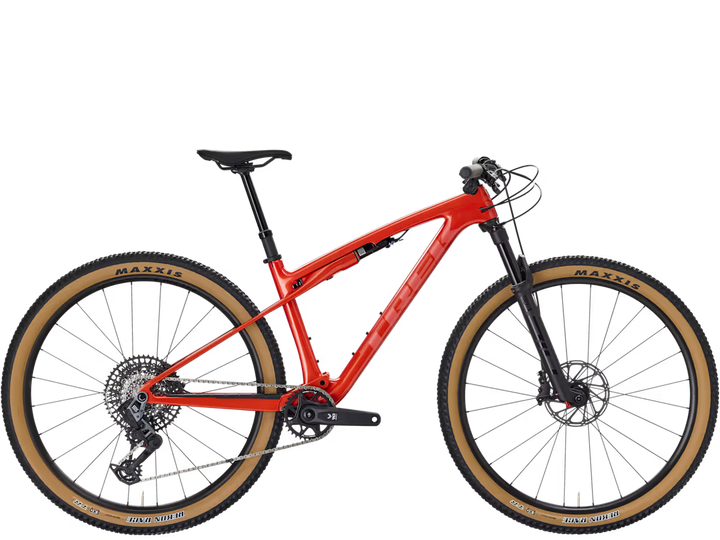

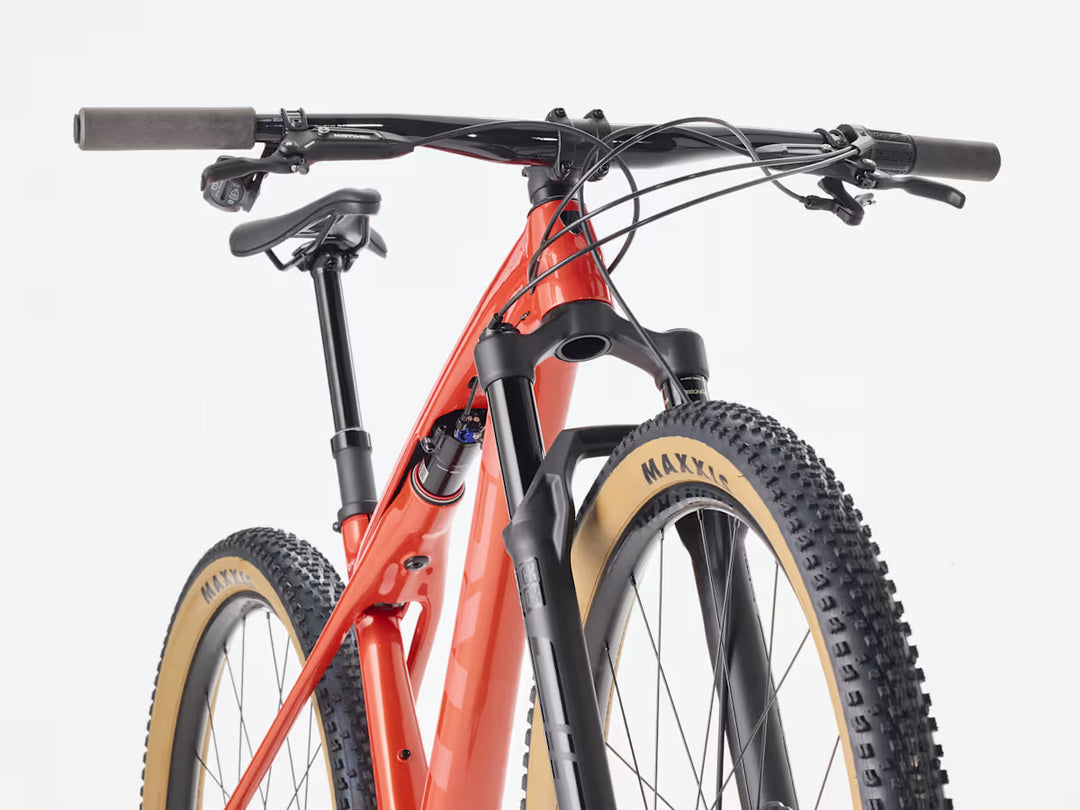

The Supercaliber SL 9.7 GX AXS is an ultralight carbon XC mountain bike that's ready to lay down rubber on race day. Its SL OCLV Mountain Carbon frame is as light as it is meticulous, with a high modulus lay-up that gives you all the stiffness you crave, and none of the weight. XC courses get rowdier every year, so it's equipped with a 110 mm fork and 80 mm of IsoStrut rear suspension to smooth your roll without kicking pedalling efficiency to the wind. It's all topped off with a carbon cockpit and SRAM's wireless GX AXS Transmission.
| Frame | SL OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel |
|---|---|
| Fork | RockShox SID, DebonAir spring, Rush RL damper, remote lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 110 mm travel |

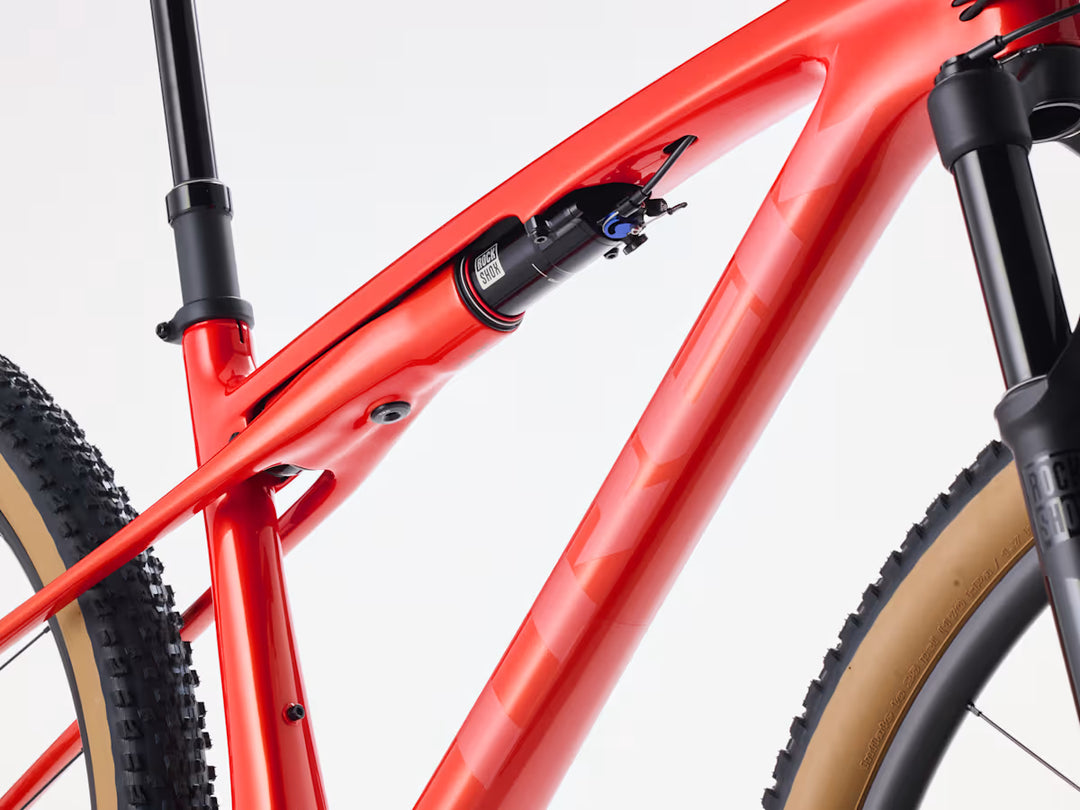

| Shock | |
| Max compatible fork travel | 120 mm (533 mm axle-to-crown) |
Wheels
| Wheel front | Bontrager Kovee Comp 25, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" |
|---|---|
| Wheel rear | Bontrager Kovee Comp 25, Tubeless-Ready, Rapid Drive 108, Boost148, 12 mm thru axle, 29" |
| Tyre | Maxxis Rekon Race, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.40" |
| Max tyre size | Frame: 29x2.40", Fork: See manufacturer |

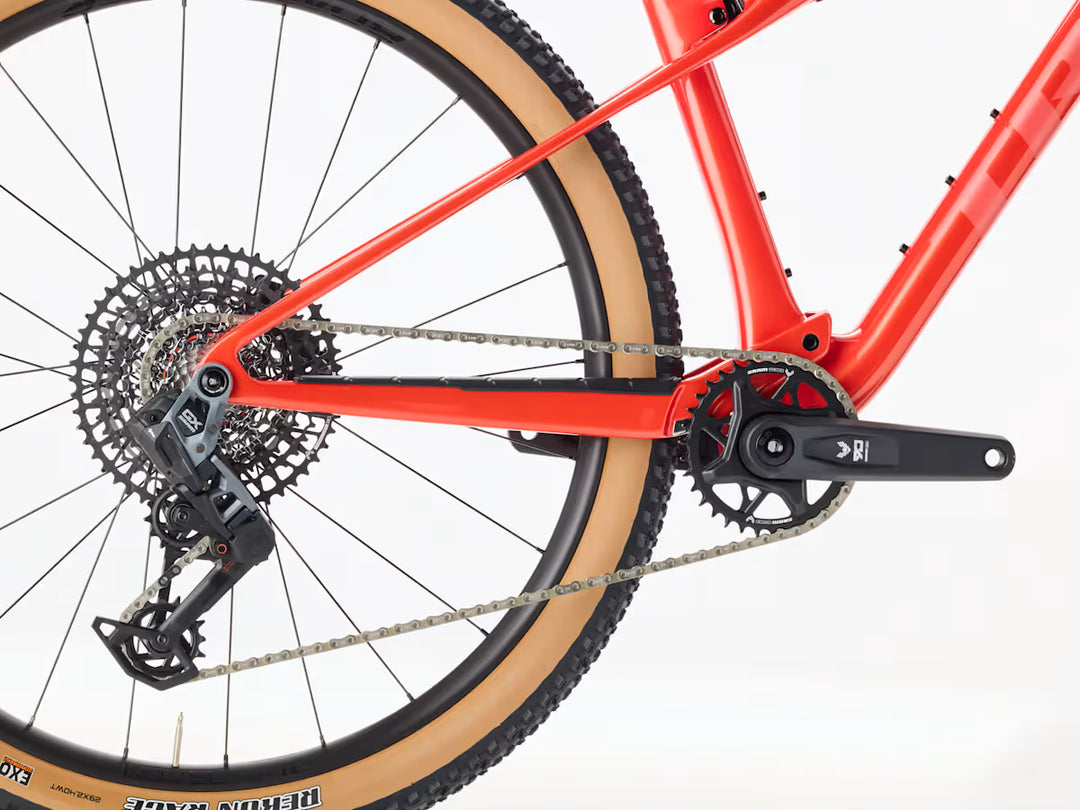

Drivetrain
| Shifter | SRAM AXS pod |
|---|---|
| Rear derailleur | SRAM GX Eagle AXS, T-Type |
| Bottom bracket | SRAM DUB, 92 mm, PressFit |
| Cassette | SRAM Eagle XS-1275, T-Type, 10-52, 12-speed |
| Chain | SRAM GX Eagle, T-Type, 12-speed |
| Crank |
Size: S, M, ML
Sram Eagle 90, T-Type, DUB, 34T, 55 mm chainline, 170 mm length
Size: XL, L
Sram Eagle 90, T-Type, DUB, 34T, 55 mm chainline, 175 mm length
1x: 38T, min 30T |
Components
| Saddle | Verse Short Elite, hollow magnesium rails, 145 mm width |
|---|---|
| *Seatpost |
Size: S Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length
|
|
Size: L, M, ML Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length
|
|
|
Size: XL Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length
|
|

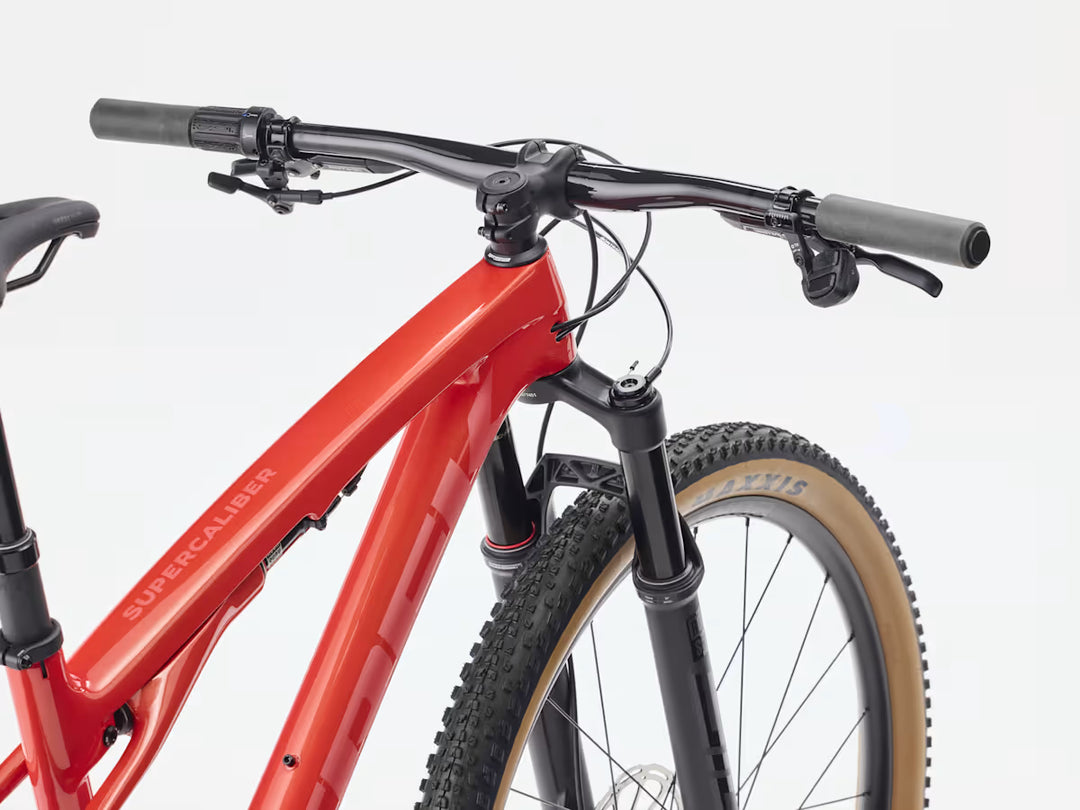

| *Handlebar |
Size: S Bontrager Kovee Pro, OCLV Carbon, 35 mm, 5 mm rise, 720 mm width |
|
Size: XL, L, M, ML Bontrager Line Pro, OCLV Carbon, 35 mm, 15 mm rise, 750 mm width |
|
| Grips | Trek Line Comp, nylon lock-on |
| *Stem |
Size: S, M Bontrager Elite, 35 mm, 13-degree, 60 mm length |
|
Size: ML Bontrager Elite, 35 mm, 13-degree, 70 mm length |
|
|
Size: L Bontrager Elite, 35 mm, 13-degree, 80 mm length |
|
|
Size: XL Bontrager Elite, 35 mm, 13-degree, 90 mm length |
|
| Head set | FSA IS-2, 1-1/8" top, 1.5" bottom |
| Brake | SRAM Motive Bronze Stealth 4-Piston hydraulic disc |
| Rotor |
Size: S, XL, L, M, ML
SRAM CenterLine, 6-bolt, round-edge, 160 mm
Size: S, XL, L, M, ML
SRAM CentreLine, 6-bolt, round-edge, 180 mm
Max brake rotor sizes: 160mm front & rear |
Weight
| Weight | M - 12.18 kg / 26.86 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
