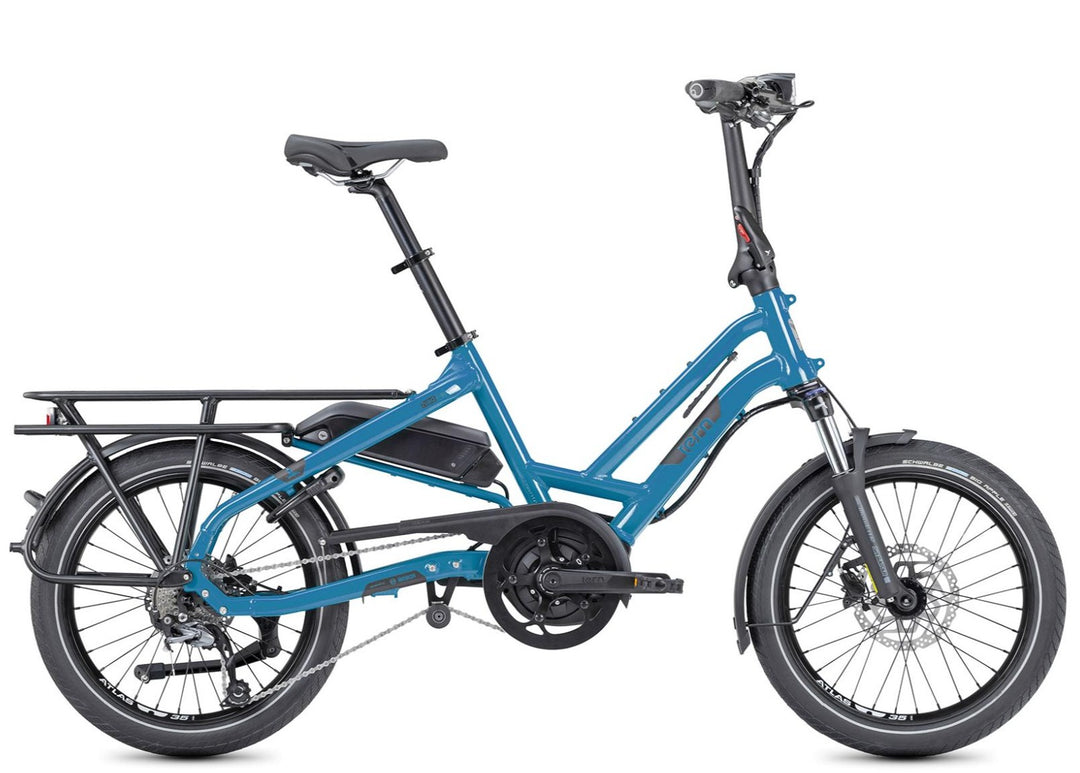

Tern HSD P9 E-Bike
Regular price £3,700.00
/
- Bosch® Active Line Plus motor with Purion display
- 400 Wh battery for a range of up to 110 km (69 mi)
- Custom Suntour suspension fork
- 9-speed Shimano® Alivio Shadow RD derailleur
- Shimano hydraulic disc brakes
- Abus® keyed-alike frame lock
- Fits riders from 150 to 195 cm (4’11” – 6’5”)
- Fits one Thule® Yepp Maxi, Yepp Nexxt Maxi, or Bobike® GO Maxi child seat—no adapters needed.
SPECIFICATIONS
GENERAL INFO
SPEEDS: 1 x 9
WEIGHT: 25.7 kg (56.7 lb)
GEAR INCHES: 33" - 97" (2.65 - 7.72 m)
FOLDING SIZE: 163 × 40.5 × 86 cm (64.2 × 15.9 × 33.9 in)
FOLDING TIME: 5 sec
FRAME SIZES: One size
DISTANCE: SEATPOST TO HANDLEBAR: 49 - 59 cm (19.3 - 23.2 in)
DISTANCE: SADDLE TO PEDAL: 69 - 105 cm (27.2 - 41.3 in)
SUGGESTED RIDER HEIGHT: 150 - 195 cm (59.1 - 76.8 in)
MAX GROSS VEHICLE WEIGHT: 170 kg (374.8 lb)
MAX RIDER WEIGHT: 120 kg (264.6 lb)
FRAME
FRAME: Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 170 kg
FORK: Suntour custom for Tern, Chromoly steerer, 32 mm stanchions, Thru-axle, EFBE tested for 170 kg
COCKPIT
HANDLEPOST: Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 290 mm
STEM: Tern Andros (G2), adjustable, forged construction, patented technology
HEADSET: Tern Flux, cartridge bearings, Physis integrated
HANDLEBAR: Tern Sweep, 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE: Ergon
SADDLE: Tern HSD
SEATPOST: Tern Telescope, 34.9/30.9 mm, 2014-AL
SEATPOST CLAMP: Tern Collar, 6061-AL, 2pc
BRAKES
FRONT BRAKE: Shimano, hydraulic disc, 180 mm rotor
REAR BRAKE: Shimano, hydraulic disc, 160 mm rotor
BRAKE LEVERS: Shimano, hydraulic disc
BRAKE CABLE & HOUSING: Shimano, hydraulic disc
WHEELS
FRONT WHEEL: Tern Atlas H, cargo wheel
REAR WHEEL: Tern Atlas H, cargo wheel
FRONT HUB: Novatec, Thru-axle, sealed bearings
REAR HUB: Shimano disc
SPOKES AND NIPPLES: Stainless steel
RIMS: Tern Atlas H, wide 35 mm
TYRES: Schwalbe Big Apple, 55-406, puncture protection, Reflex
TRANSMISSION
SHIFTER(S): Shimano Alivio, 1 x 9 spd, trigger
REAR DERAILLEUR: Shimano Alivio Shadow
CRANKSET: Tern HSD custom
CASSETTE/FREEWHEEL: Shimano 11-32T, 9 spd
BOTTOM BRACKET: Motor integrated
CHAIN: 9 spd, DHT for eBike, GST corrosion resistant coating
PEDALS: Urban with non-slip surface
SHIFTER CABLE & HOUSING: Jagwire LEX-SL, slick treatment, alloy ferrules
E-SYSTEM
MOTOR: Bosch Active Line Plus (Gen 3), max speed 25 kph (EU); max speed 20 mph (US)
BATTERY: Bosch PowerPack 400
DISPLAY: Bosch Purion, 4 mode selectable, walk assist
RANGE: 42 -110 km (26-69 mi)
CHARGER: Bosch Compact Charger
BELLS & WHISTLES
BELL: Aluminum
CHAINGUARD: SKS Chainblade
KICKSTAND: Ursus, rear mount
LUGGAGE SOCKET: Tern Valo Direct, 45 lux/190 lumens
FRONT LIGHT: Tern Valo Direct, 45 lux/190 lumens
REAR LIGHT: Herrmans H-Trace, for eBike
FENDERS: SKS, stainless hardware
RACK(S): Atlas H Rack™, Atlas Rack Mount, 6 point mounting; Max load weight: 60 kg (132 lb)
ACCESSORY: ABUS 5650L, keyed-alike with Bosch battery
