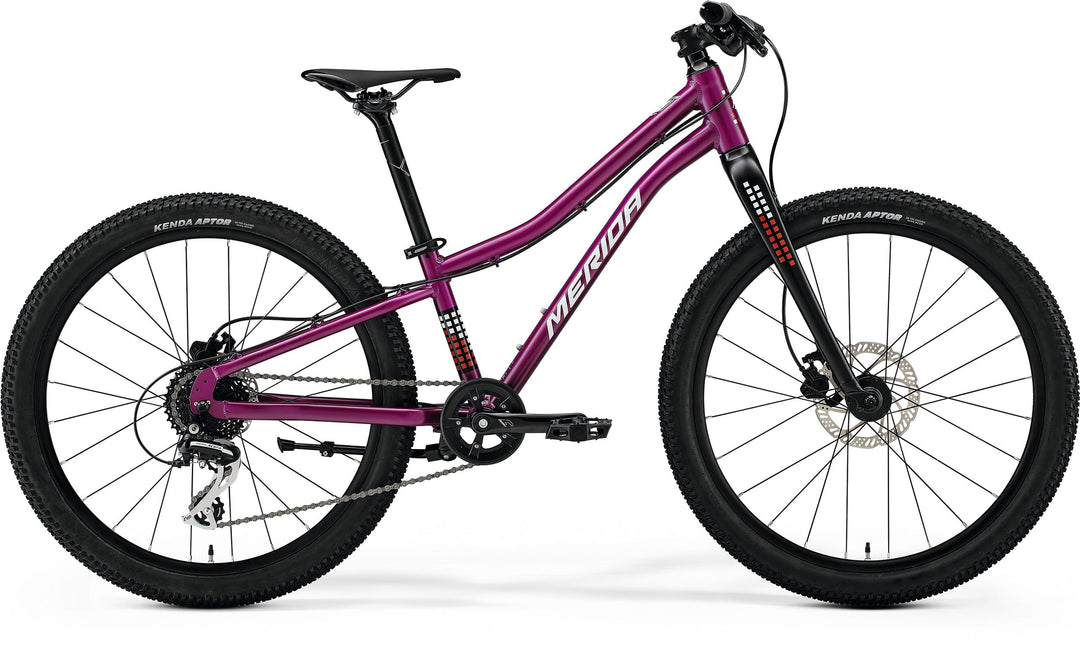

The MATTS J24 Plus is a fat-tyred monster truck that offers the control and grip of chunky 24" oversize tyres, paired to a rigid fork that keeps excess weight to the absolute minimum. Add in our kids specific finishing kit, powerful hydraulic disc brakes and a smooth Shimano drivetrain and you’ve got an awful lot of fun without the fat. Suits heights from approx. 129-137 cm.
Our MATTS J range is designed for the heroes of tomorrow, which is why we put all the know-how gained from years of making adult bikes into lightweight, high-quality machines for kids to enjoy. High-quality components chosen specifically for the needs of children are married to our aluminium frames that are created with the same painstaking attention to detail and quality of finish as the rest of our bikes. That’s the only way to guarantee that young riders get the same enjoyment of cycling, safe in the knowledge that their bike will never let them down. Whatever your age, your level of ability or your size, we have the perfect first MERIDA ready for you. See you on the start line!
Highlights:
- Lightweight package
- Focussed on simplicity
- Oversize tyres
- 8 trigger operated gears
- Hydraulic disc brakes
| Specification | Detail |
|---|---|
| Frame | TFS - 6061 aluminium tubing, double butted and technoformed. BSA BB standard, 9mm QR axle standard. Replaceable dropout. Max tyre size 24" x 2.4" |
| Fork | Merida Matts J. 24+; aluminium. Max tyre size: 24" x 2.4" |
| Headset | FSA NO.10P Neck15 |
| Stem | Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Length - 60 mm |
| Handlebar | Merida Expert JR; aluminium; 620mm wide; 0mm rise |
| Grip | Merida Expert JR |
| Brake Type | Hydraulic disc |
| Brake Lever | Tektro M275 |
| Front Brake | Tektro M275; hydraulic disc brake caliper with Tektro TR160; 160mm rotor |
| Rear Brake | Tektro M275; hydraulic disc brake caliper with Tektro TR140; 140mm rotor |
| Front Tyre | K1153 24" x 2.35"; wire bead |
| Rear Tyre | K1153 24" x 2.35" |
| Wheel Size | 24" |
| Rim | Merida Jr. 24+; aluminium |
| Spokes | Black steel |
| Front Hub | KT-K68F; 100 x 9mm; 24 spoke |
| Rear Hub | KT-K68R-8/9/10S; 135 x 9mm; 24 spoke |
| Speeds | 8 |
| Rear Derailleur | Shimano RD-M302-8; SGS |
| Shift Levers | Shimano SL-M315-8 |
| Chain | KMC Z8.3 |
| Cassette | Sunrace CSM558AU; 11-32 teeth; 8 speed |
| Chainset | Merida Expert JR; 28 tooth chainset; Aluminium; Crank length - 140mm |
| Bottom Bracket | FSA TH-7420ST, 68-118 |
| Pedals | Marwi SP-202 |
| Saddle | Merida Expert Jr. |
| Seat Post | Merida Comp CC; 27.2mm diameter; 0mm layback; Aluminium |
