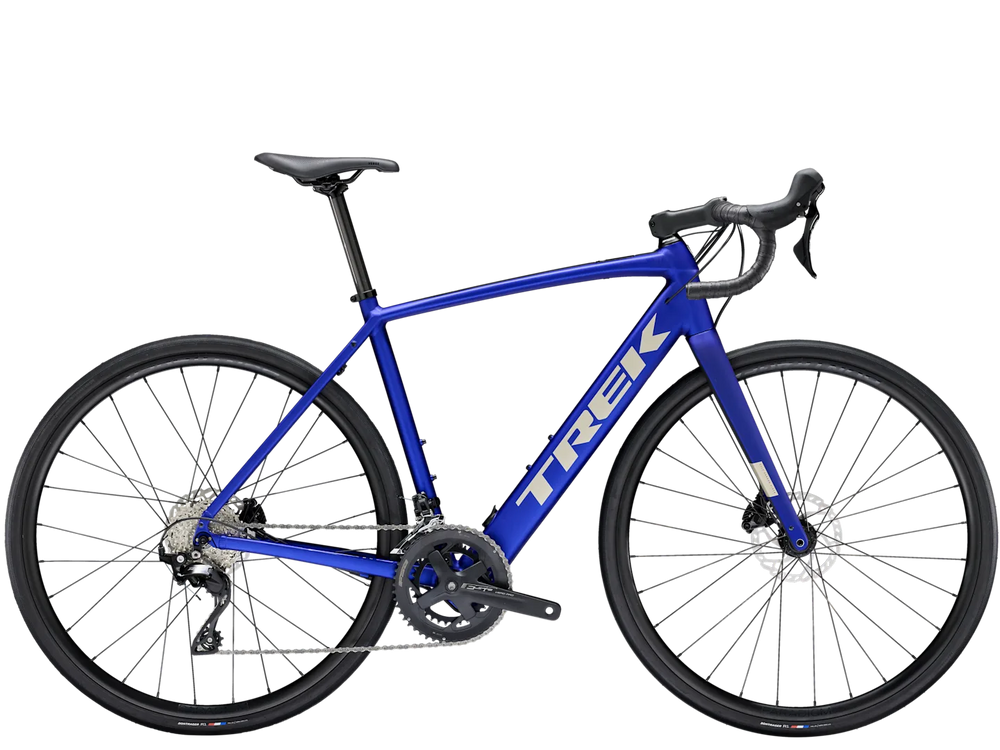

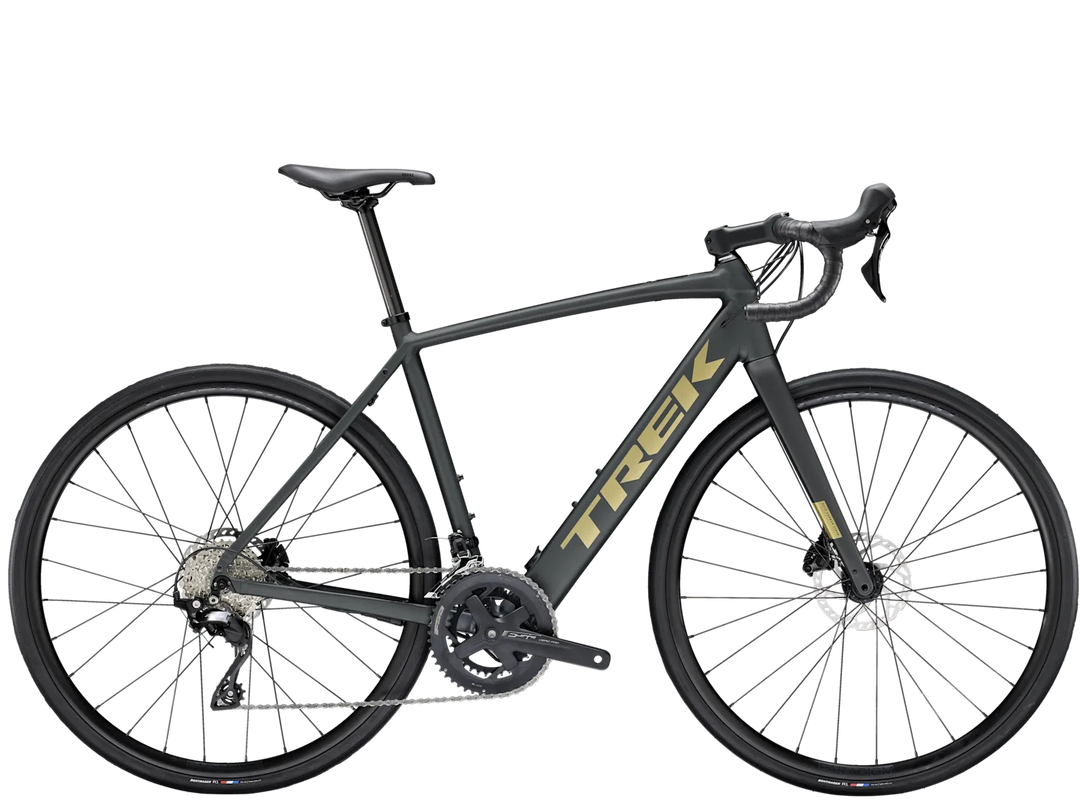

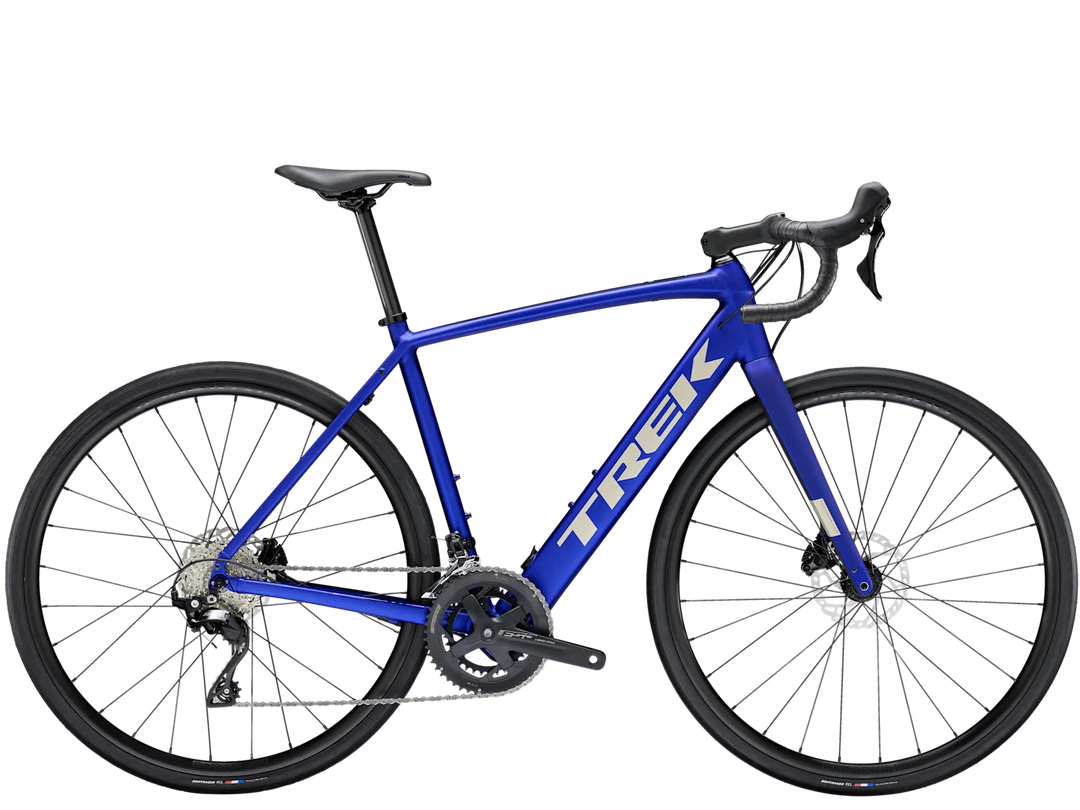

Trek Domane + AL 5 2025
5323404
Regular price £3,100.00The Domane+ AL 5 is a lightweight alloy e-road bike that delivers an authentic road bike feel with the benefit of an electric boost. The intuitive and natural-feeling HyDrive pedal assist system lets you keep pace with friends, crush hilly terrain or push yourself harder on training rides.
It's right for you if...
You want a high-value e-road bike that looks and rides like a traditional road bike. You’re looking for a natural-feeling boost that adds extra capability to training rides and club rides.
The tech you get
A lightweight aluminium frame and fork, a natural-feeling HyDrive hub motor (250 W, 40 Nm) that assists up to 32 km/h with a 250 Wh battery for a range of up to 88 miles per charge when ridden in eco mode. Plus a workhorse Shimano 105 2x12 drivetrain, tubeless-ready wheels and vibration-absorbing Elite IsoZone handlebars.
The final word
The Domane+ AL’s streamlined and discreet drive system lets you get more out of every ride. You get true road bike feel with the benefit of an extra boost when you want it.
Specifications
Frame | 100 Series Alpha Aluminium, hub drive system, tapered head tube, internal routing, flat-mount disc, rack and mudguard mounts |
---|---|
Fork | Domane+ carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
Weight | 56 - 14.10 kg / 31.09 lbs |
---|---|
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
Battery | 250 Wh, integrated in down tube |
---|---|
Charger | 2A, 42V output, 100V–240V AC input |

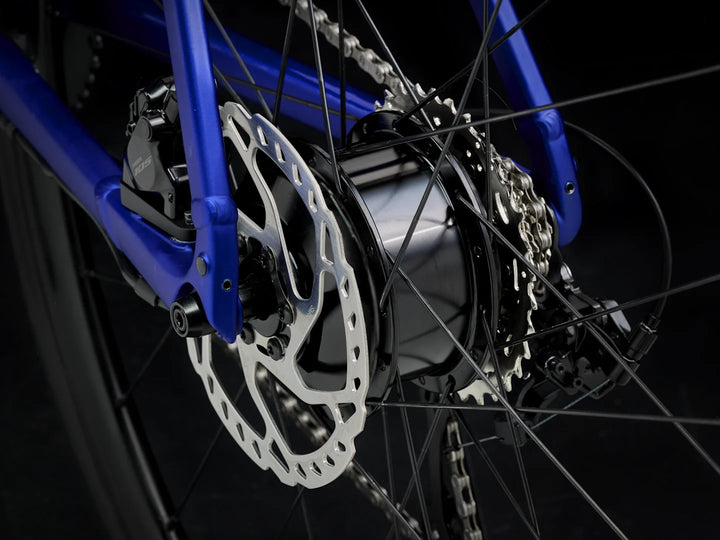

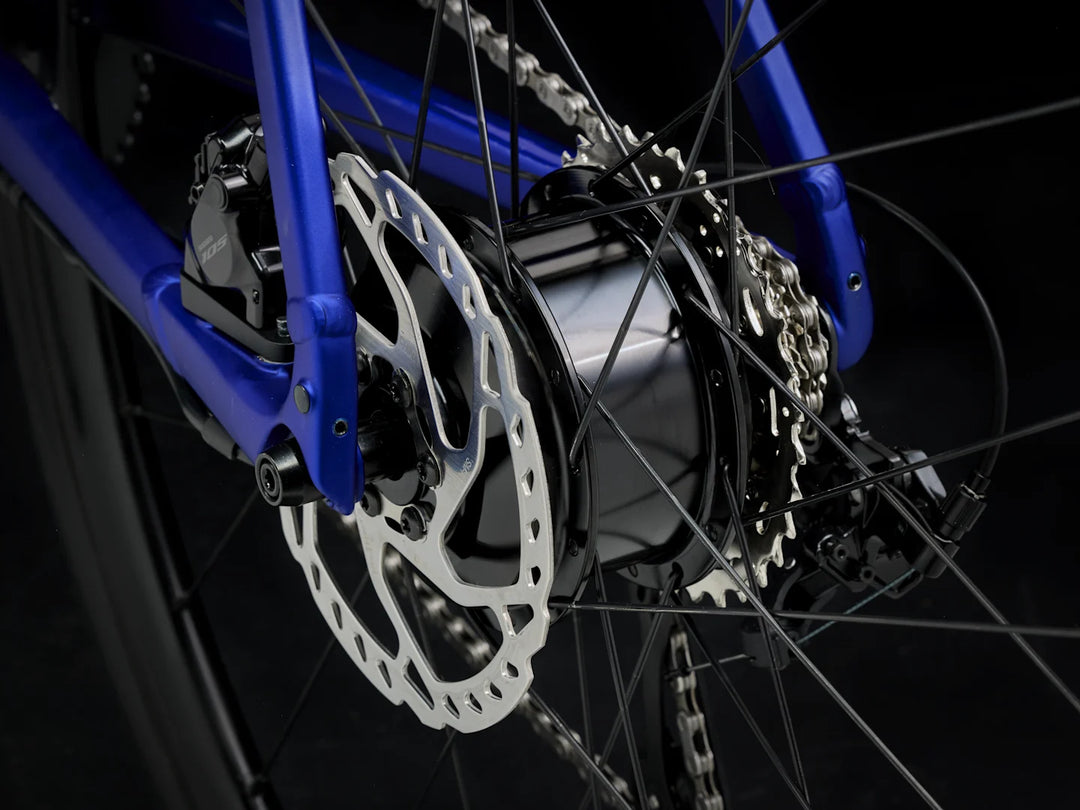

Motor | Hyena hub drive motor, 40Nm, 250W |
Shifter | Shimano 105 R7120, 12-speed |
---|---|
Front derailleur | Shimano 105 R7100, 31.8 mm clamp, down swing |
Rear derailleur | Shimano 105 R7100, 36T max cog |
*Crank |
Size: 49 FSA Vero Pro, 50/34, 165 mm length |
Size: 52 FSA Vero Pro, 50/34, 170 mm length |
|
Size: 54, 56 FSA Vero Pro, 50/34, 172.5 mm length |
|
Size: 58, 61 FSA Vero Pro, 50/34, 175 mm length |
|
Bottom bracket | Torque sensor, threaded, 110 mm spindle |
Cassette | Shimano 105 7101, 11-34, 12-speed |
Chain | Shimano SLX M7100, 12-speed |
Max. chainring size | 2x: 50/34 |
Hub front | Formula RX-812 alloy, sealed bearing, 6-bolt, 100x12 mm thru axle |
---|---|
Skewer front | Bontrager Switch thru axle, removable lever |
Rim | Bontrager Paradigm, Tubeless Ready, 28-hole, 21 mm width, Presta valve |
Tyre | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm |
Max tyre size | 38mm without mudguards, 32mm with mudguards |
*Saddle |
Size: 49, 52 Verse Short Comp, steel rails, 155 mm width |
---|---|
Size: 54, 56, 58, 61 Verse Short Comp, steel rails, 145 mm width |
|
Seatpost | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |
*Handlebar |
Size: 49 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 38 cm width |
Size: 52 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 40 cm width |
|
Size: 54, 56 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 42 cm width |
|
Size: 58, 61 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 44 cm width |
|
Handlebar tape | Bontrager Supertack Perf tape |
Head set | FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
Brake rotor | Shimano RT66, 6-bolt, 160 mm |
Rotor size | Max brake rotor sizes: 160 mm front and rear |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
