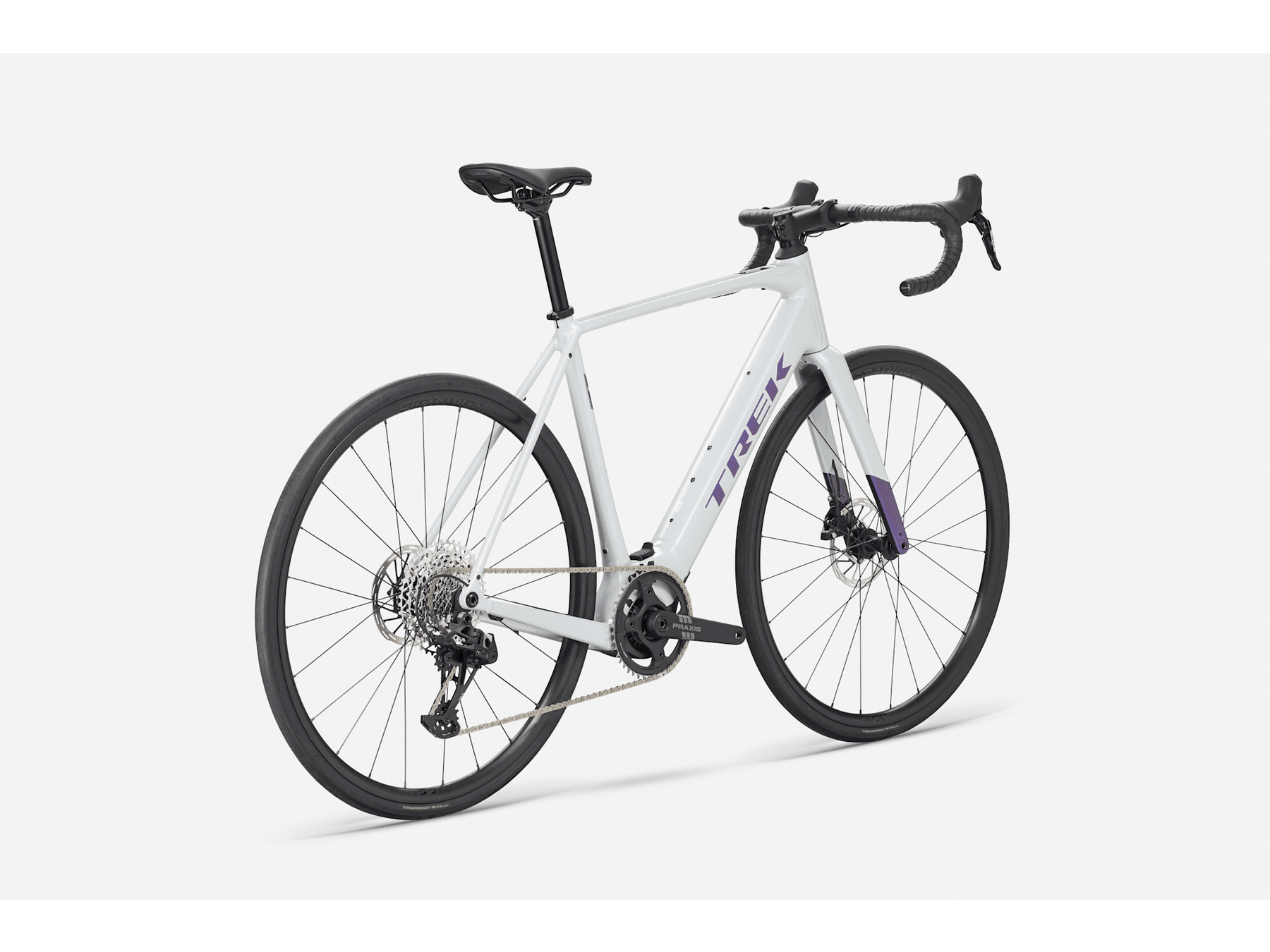

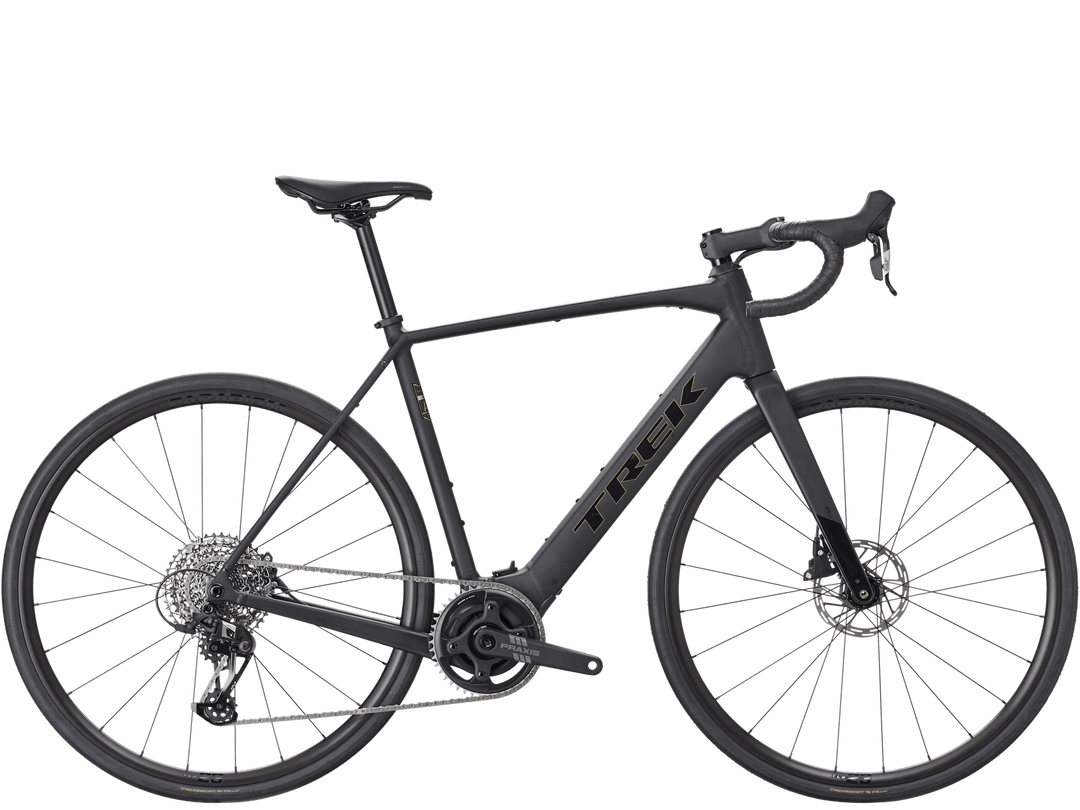

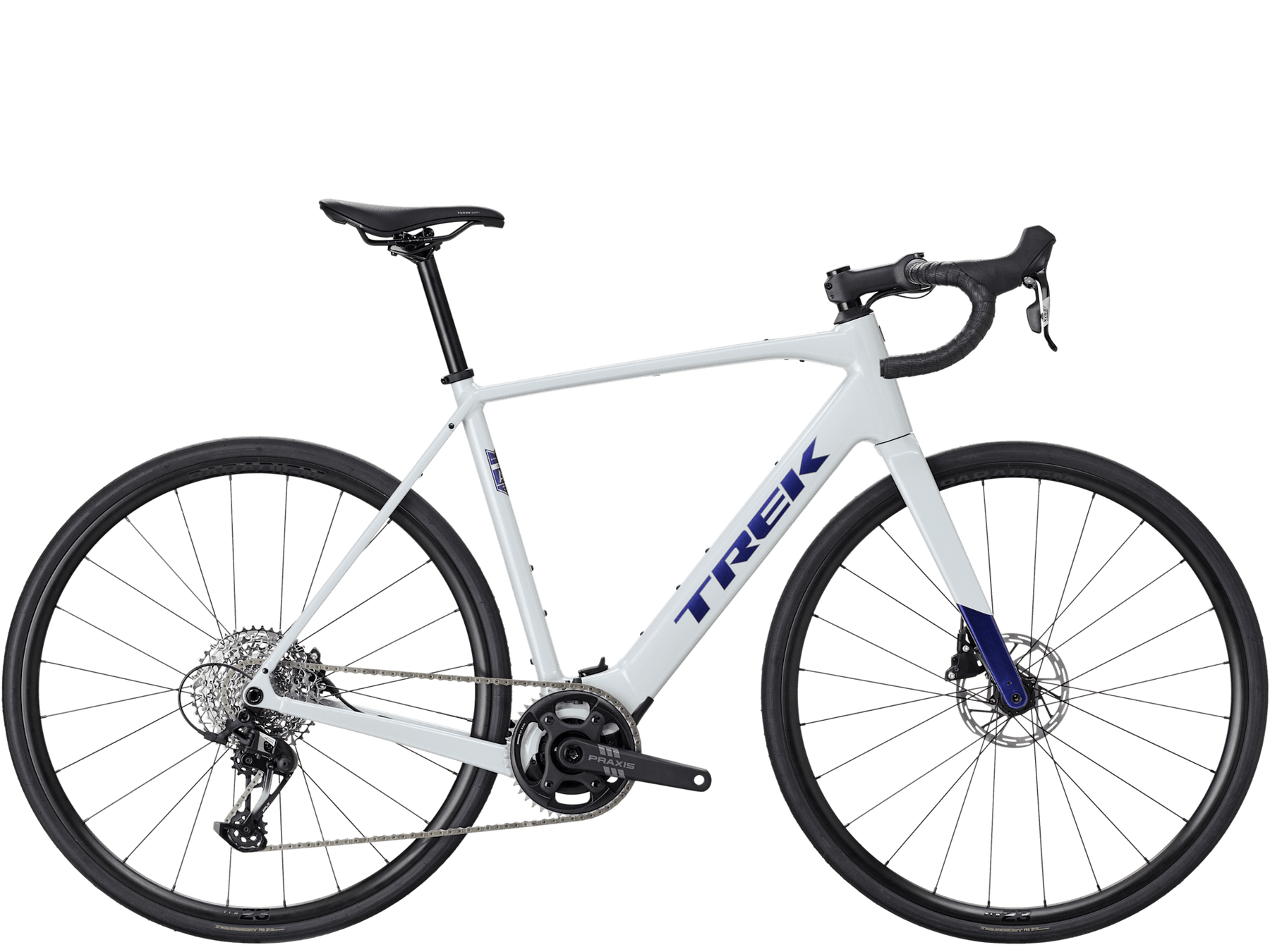

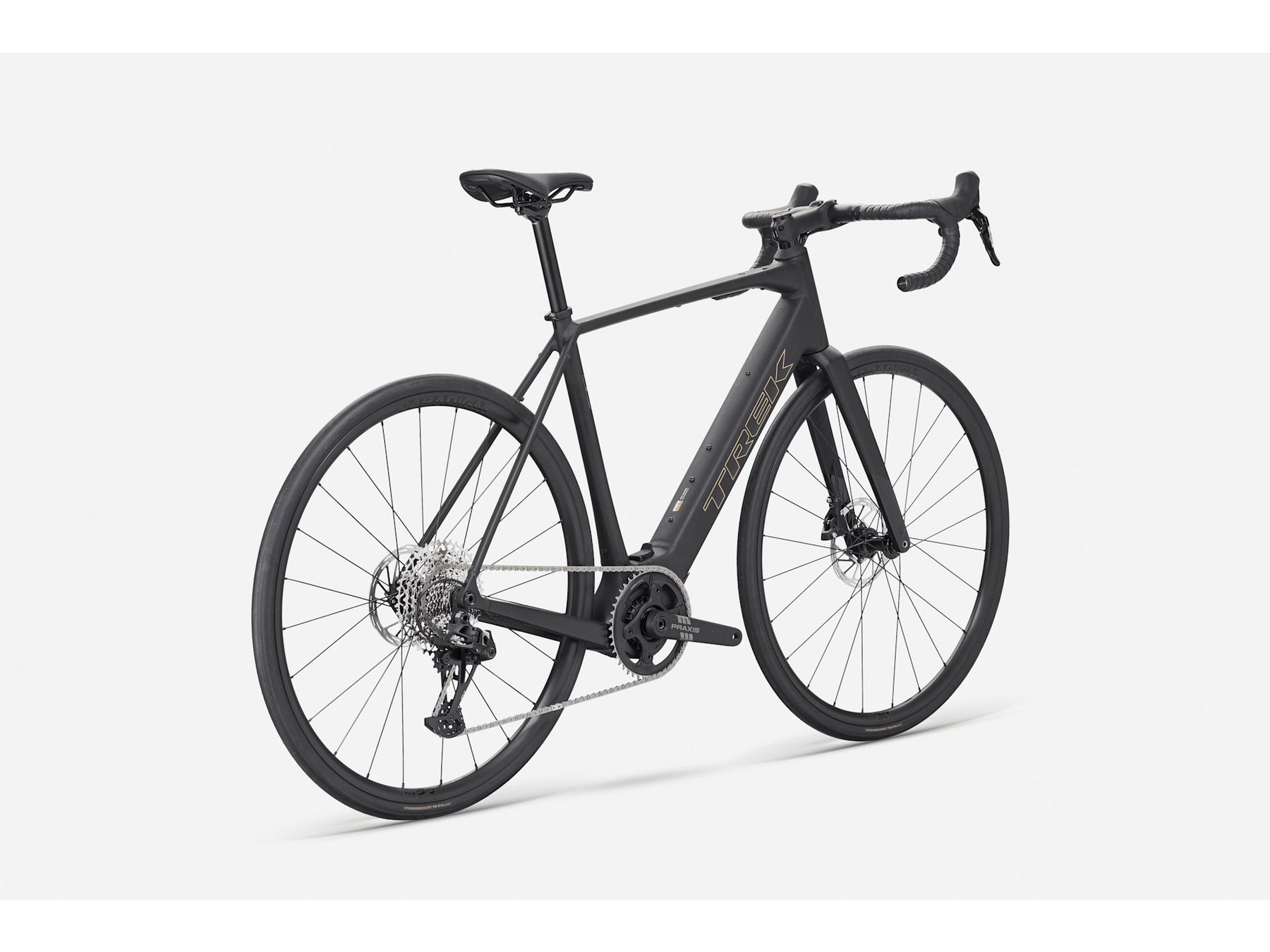

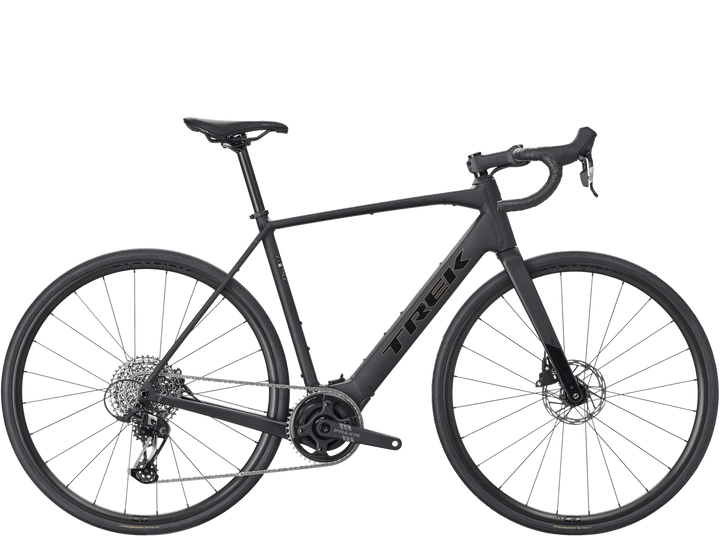

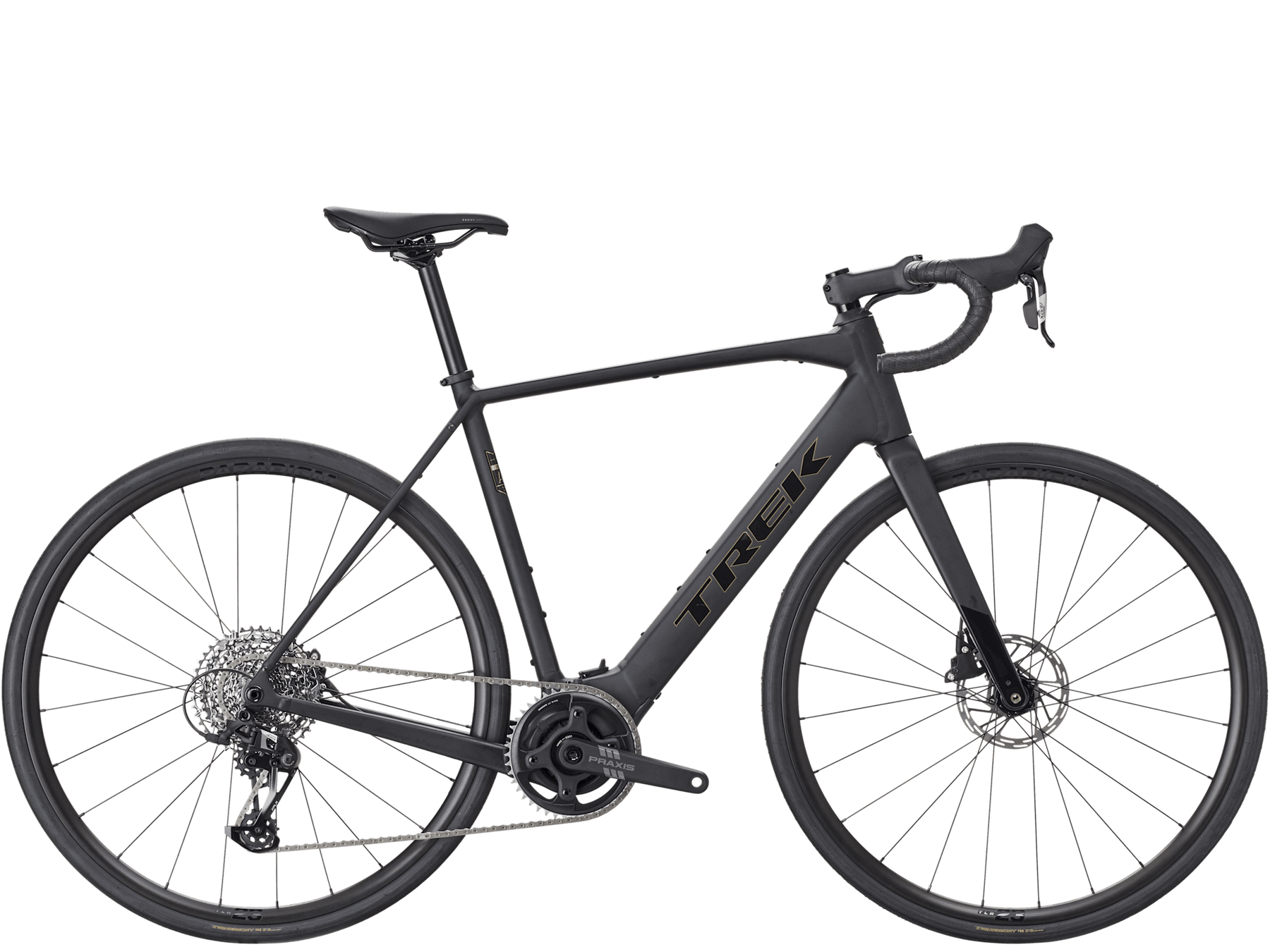

The Domane+ ALR 5 is an aluminium electric road bike with a smooth, quiet and natural-feeling boost. Its TQ HPR60 motor gives you plenty of support for long rides and big climbs, and pairs with a SRAM Apex 12-speed drivetrain for clean, consistent shifts.
Specifications
| Frame | 300 Series Alpha Aluminium, TQ drive system, hidden mudguard mounts, rack mounts, integrated frame bag mounts, internal cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle |
|---|---|
| Fork | Domane+ carbon, tapered carbon steerer, mudguard mounts, flat mount disc, 12x100 mm thru axle |
Weight
| Weight | ML - 14.39 kg / 31.73 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
E-system
| Battery | TQ 360Wh |
|---|---|
| Charger | TQ 4A charger |
| Computer | TQ LED display with Bluetooth & ANT+ connectivity |

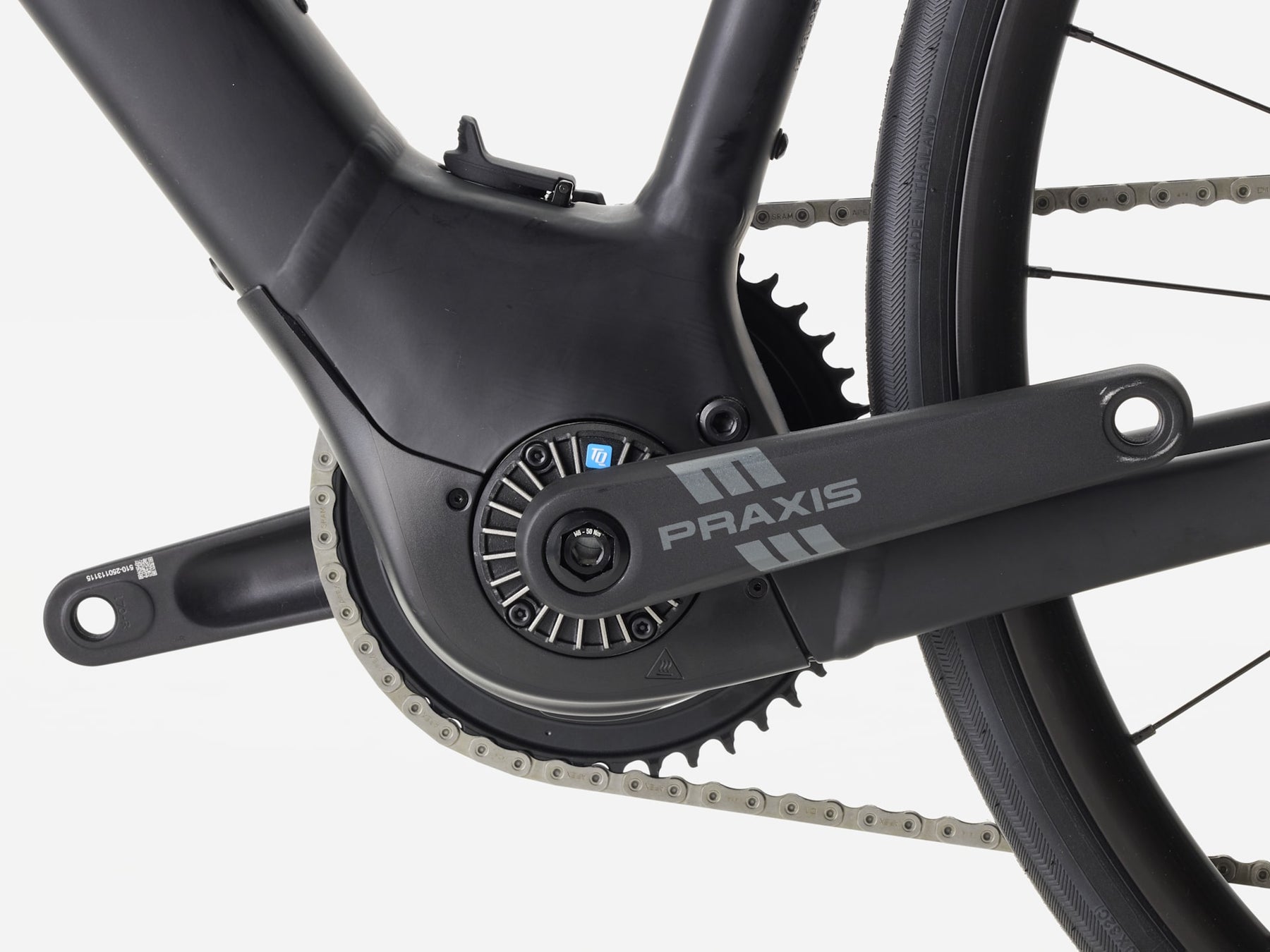

| Motor | TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power |

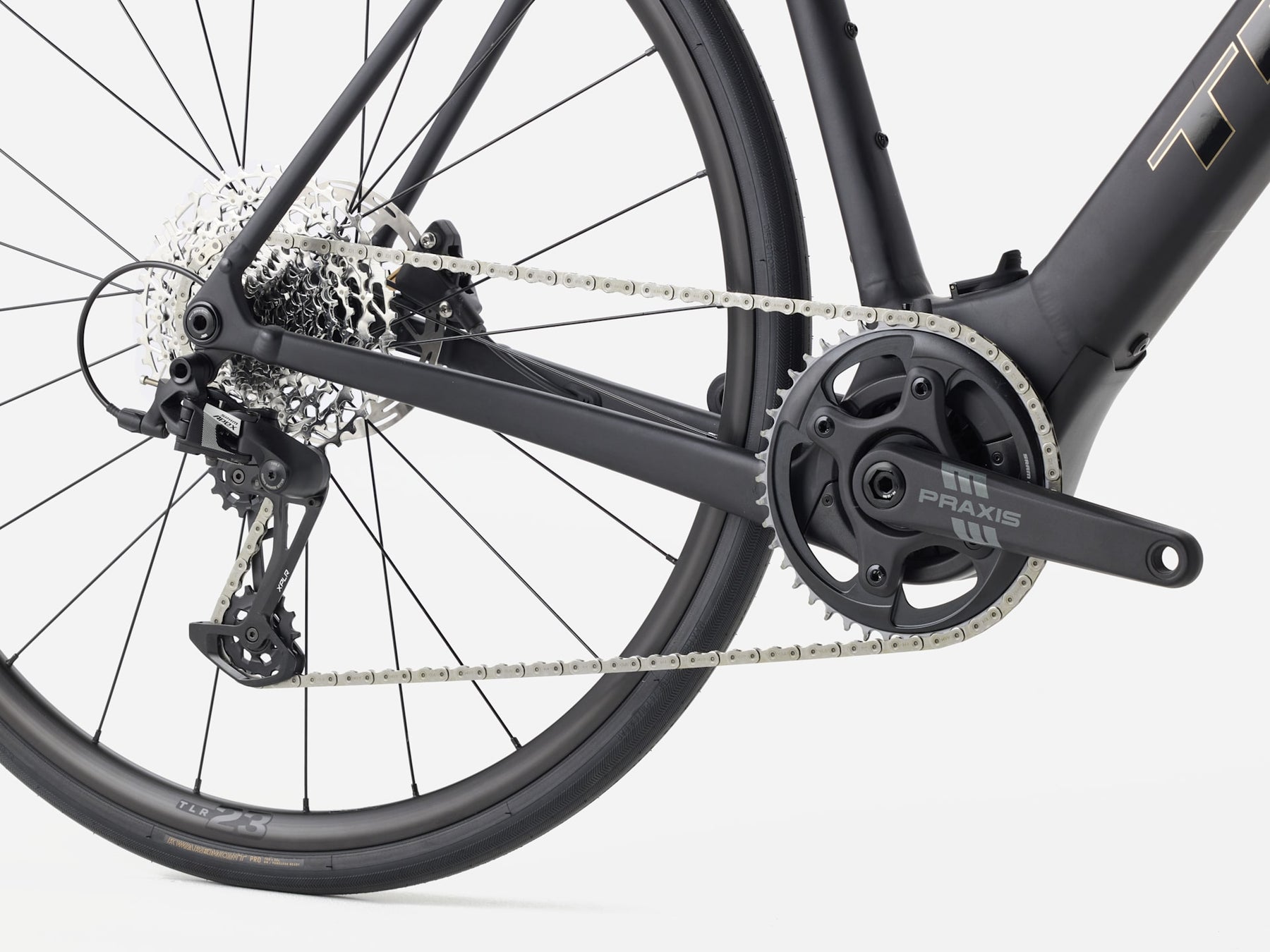

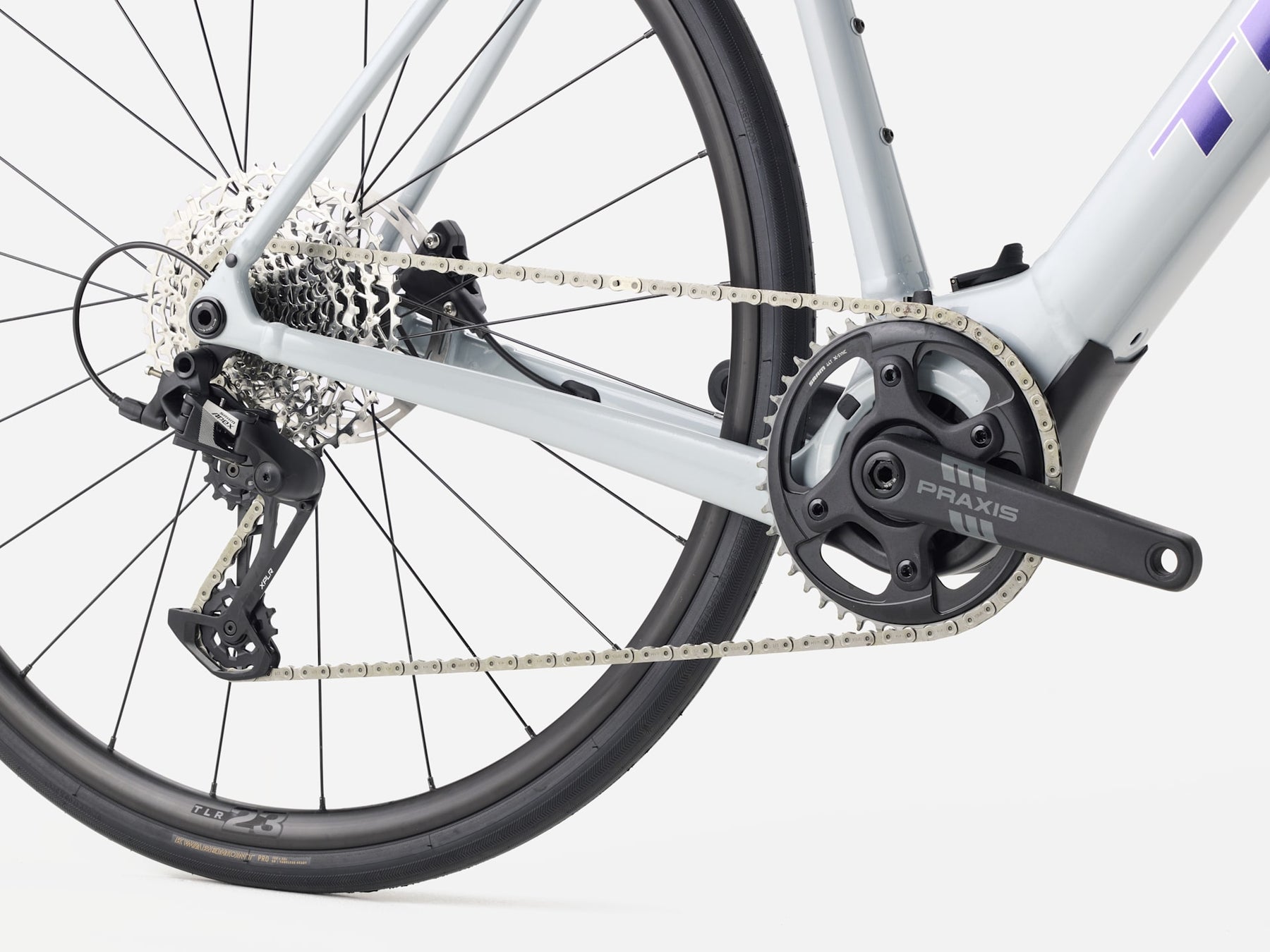

Drivetrain
| Shifter | SRAM Apex, 12-speed |
|---|---|
| Front derailleur | N/A |
| Rear derailleur | SRAM Apex XPLR, 44T max cog |
| *Crank |

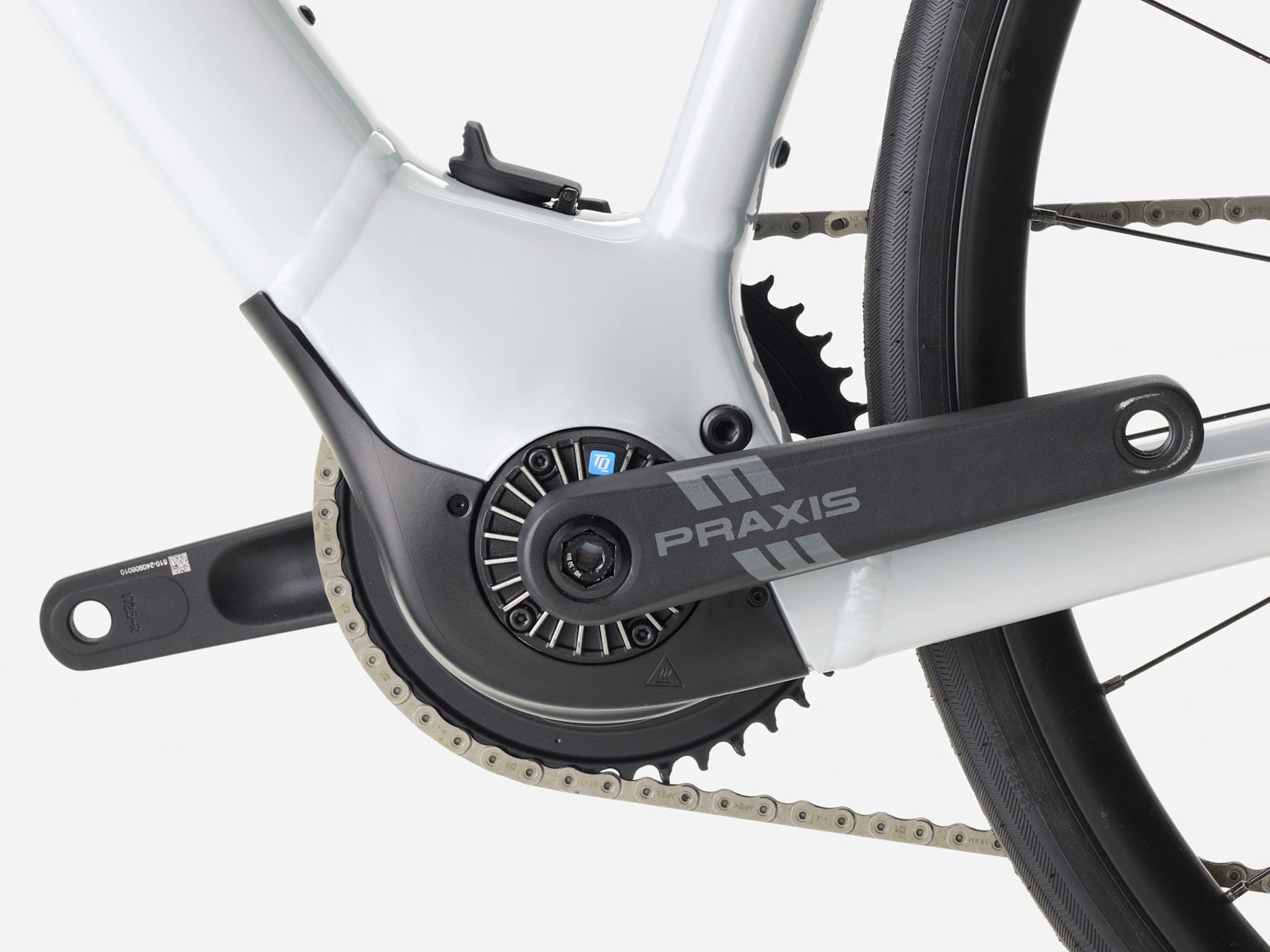

Size: S, XS Praxis Alloy, 165 mm length
|
|
Size: M, ML Praxis Alloy, 170 mm length
|
|
|
Size: XL, L Praxis Alloy, 172.5 mm length
|
|
| Bottom bracket | N/A |
| Cassette | SRAM XPLR PG-1231, 11-44, 12-speed |
| Chain | SRAM Apex, 12-speed |
| Max. chainring size | 1x: 46T |
Wheels
| Hub Front | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle |
|---|---|
| Hub Rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Rim | Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve |
| Tyre | Bontrager Kwaremont Pro TLR, tubeless ready, folding bead, Race Dual-Compound, 120 tpi, 700x32 mm |
| Max tyre size | 40 mm without mudguards, 35 mm with mudguards |
Components
| *Saddle | Verse Short Comp, steel rails, 145 mm width |
|---|---|
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |

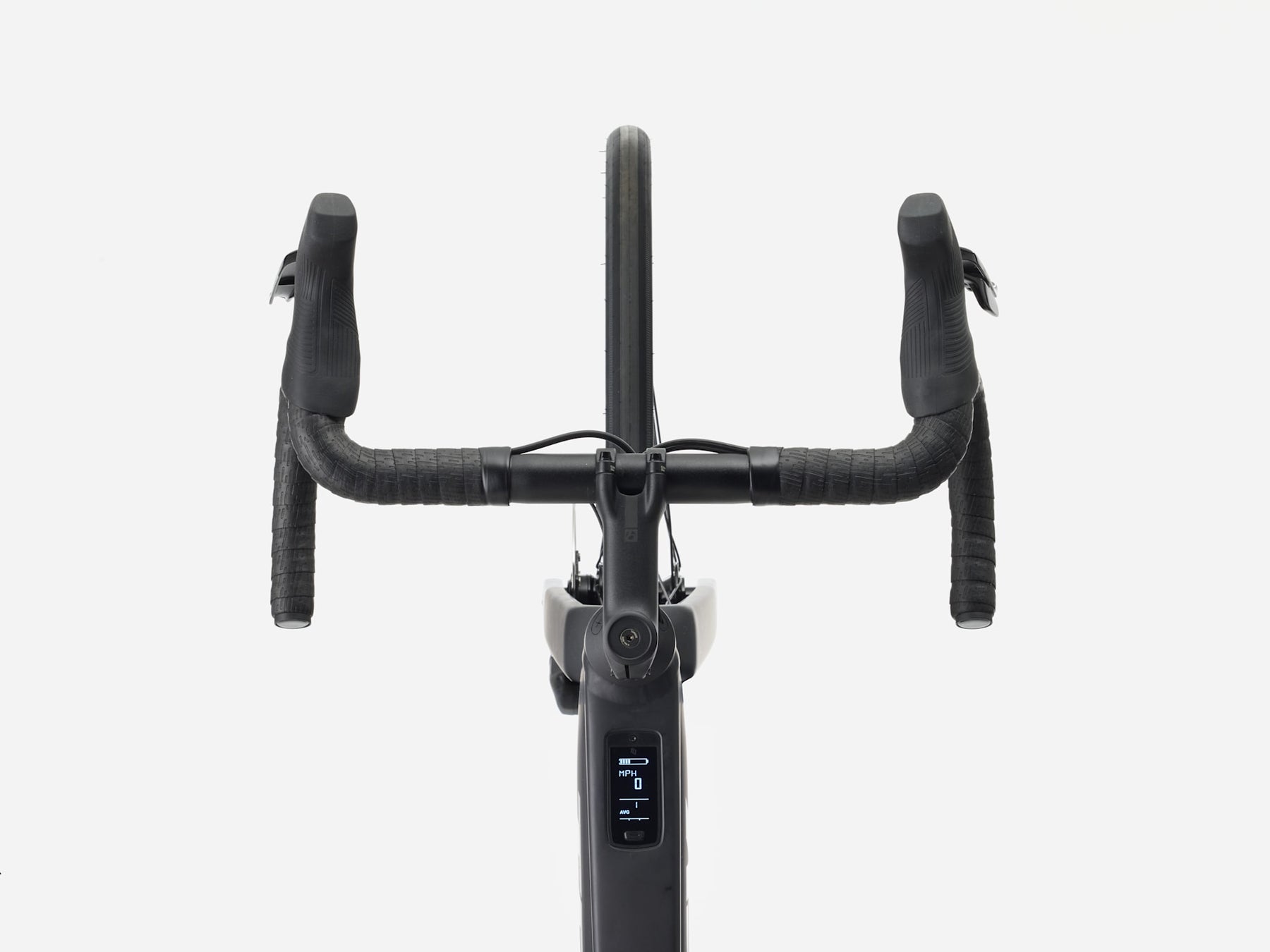

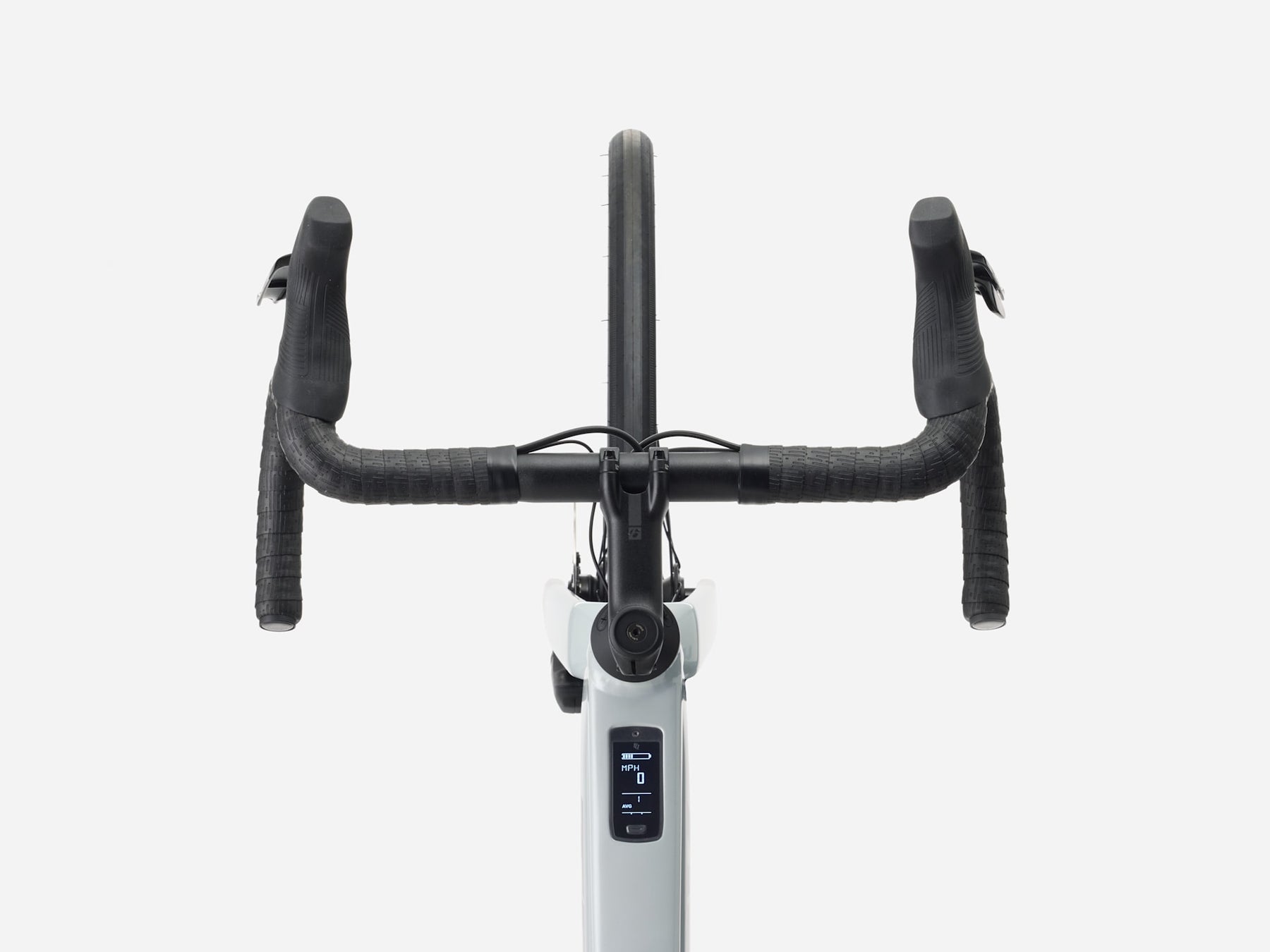

| *Handlebar |
Size: XS Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width |
|
Size: S Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width |
|
|
Size: M, ML Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width |
|
|
Size: XL, L Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width |
|
| Handlebar Tape | Trek EcoTack |
| Stem |
Size: XL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110mm length
|
| Brake | SRAM Apex D1 hydraulic disc, flat mount |
| Rotor | SRAM Paceline, rounded, CentreLock, 160 mm Max brake rotor sizes: 160 mm front and rear |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
