5302277

Regular price £6,700.00 Sale price £4,675.00 Save 30%
/

Only 4 available!

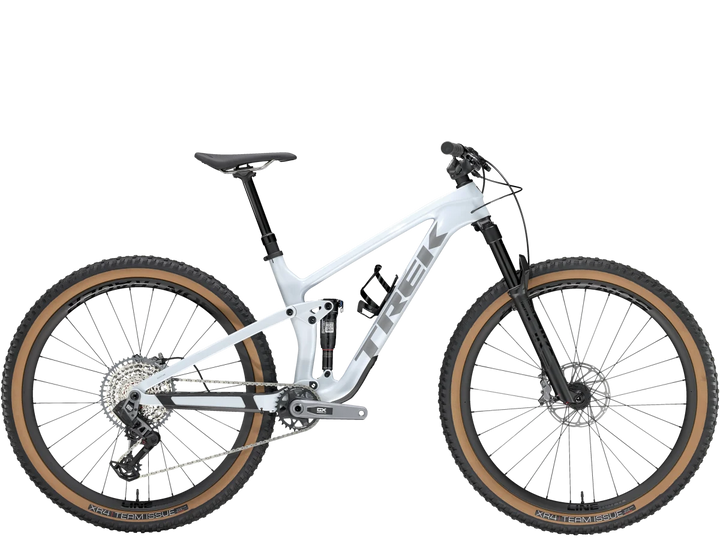

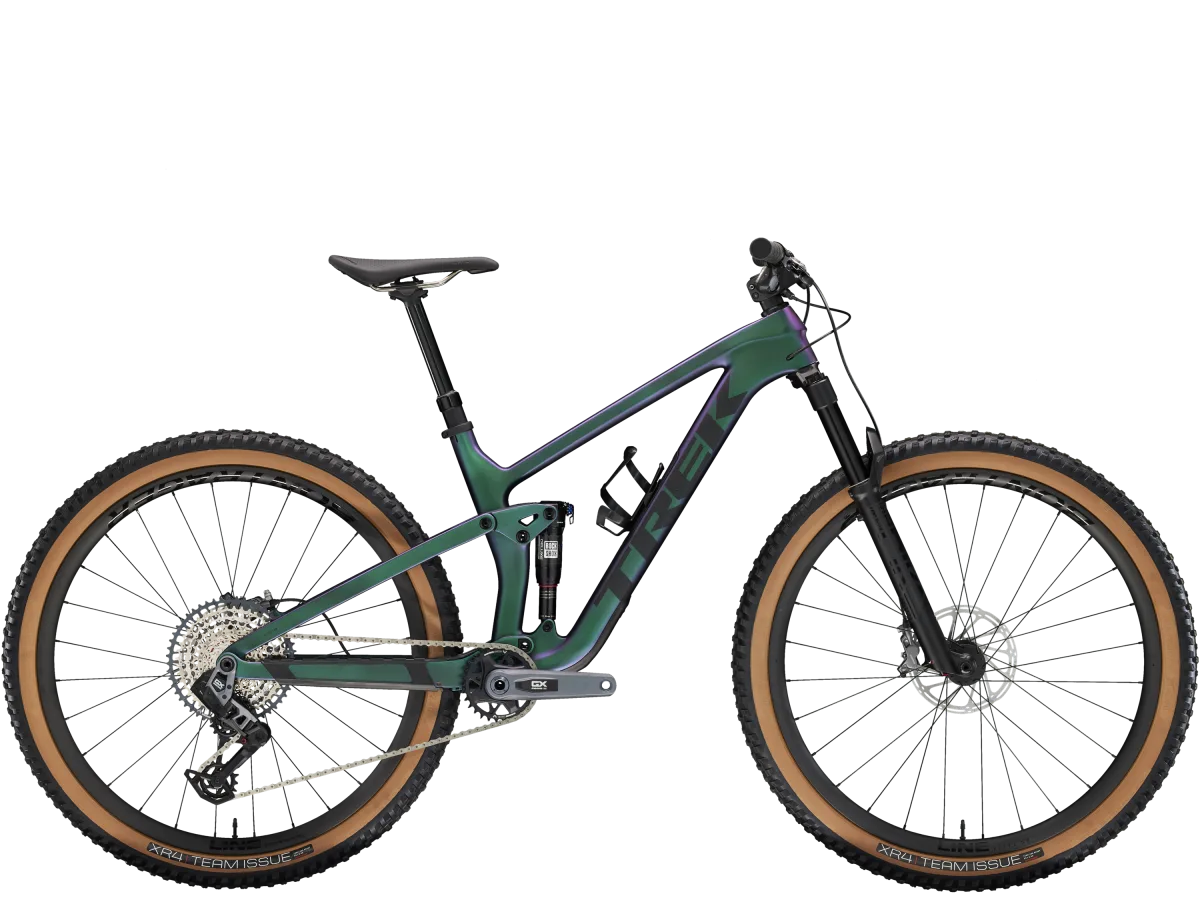

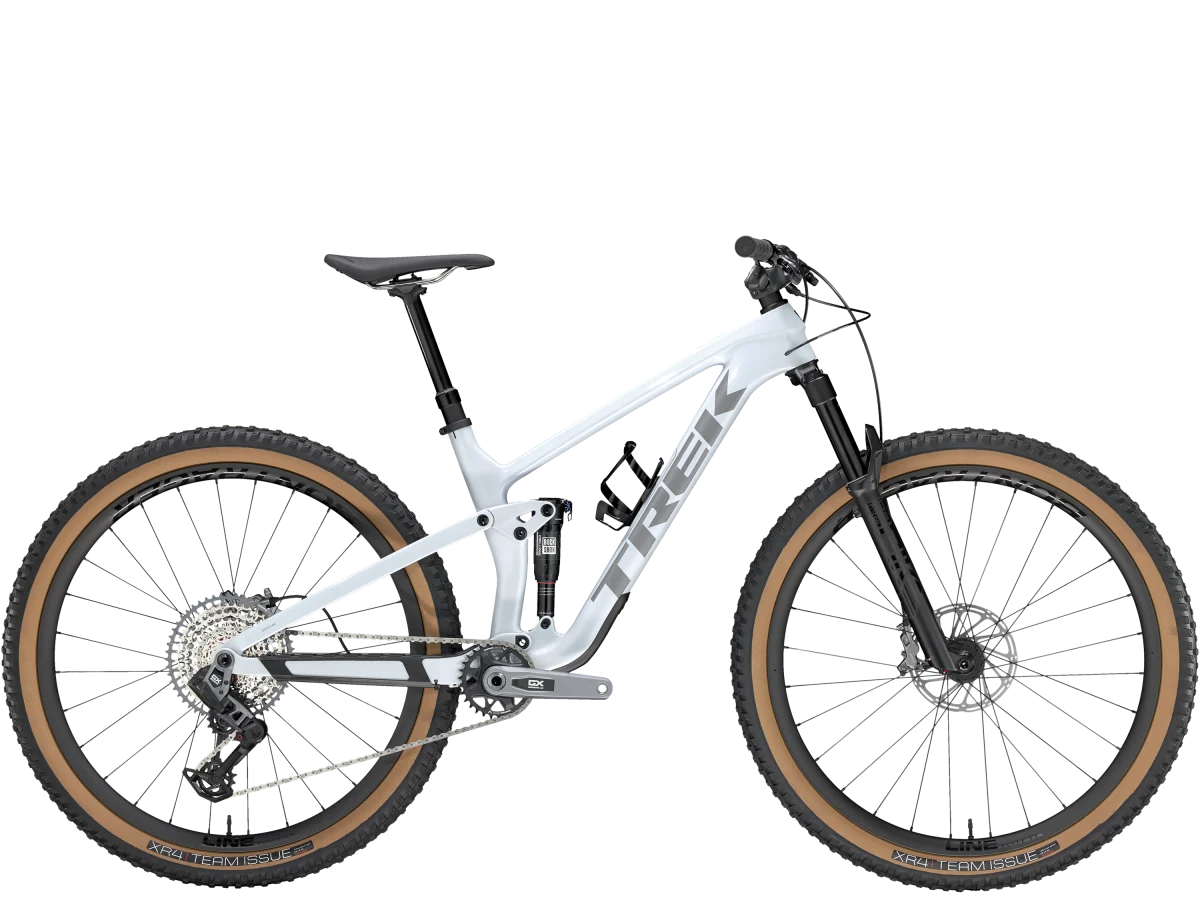

Top Fuel 9.8 is a full suspension carbon mountain bike for riders who don't settle. Not for parts nor for one style of riding. It combines a high-end components package – including a SRAM GX Eagle AXS wireless electronic transmission – with a low-weight carbon frame for one unbelievably fun rig that's fast on flow and fun to ride on techy singletrack.

It's right for you if...

You’re looking for a do-it-all full-suspension mountain bike that's efficient and fast, but doesn't shy away from some bigger stuff. You want the added stiffness and weight savings of a carbon frame, and want blazing-fast wireless electronic shifting.

The tech you get

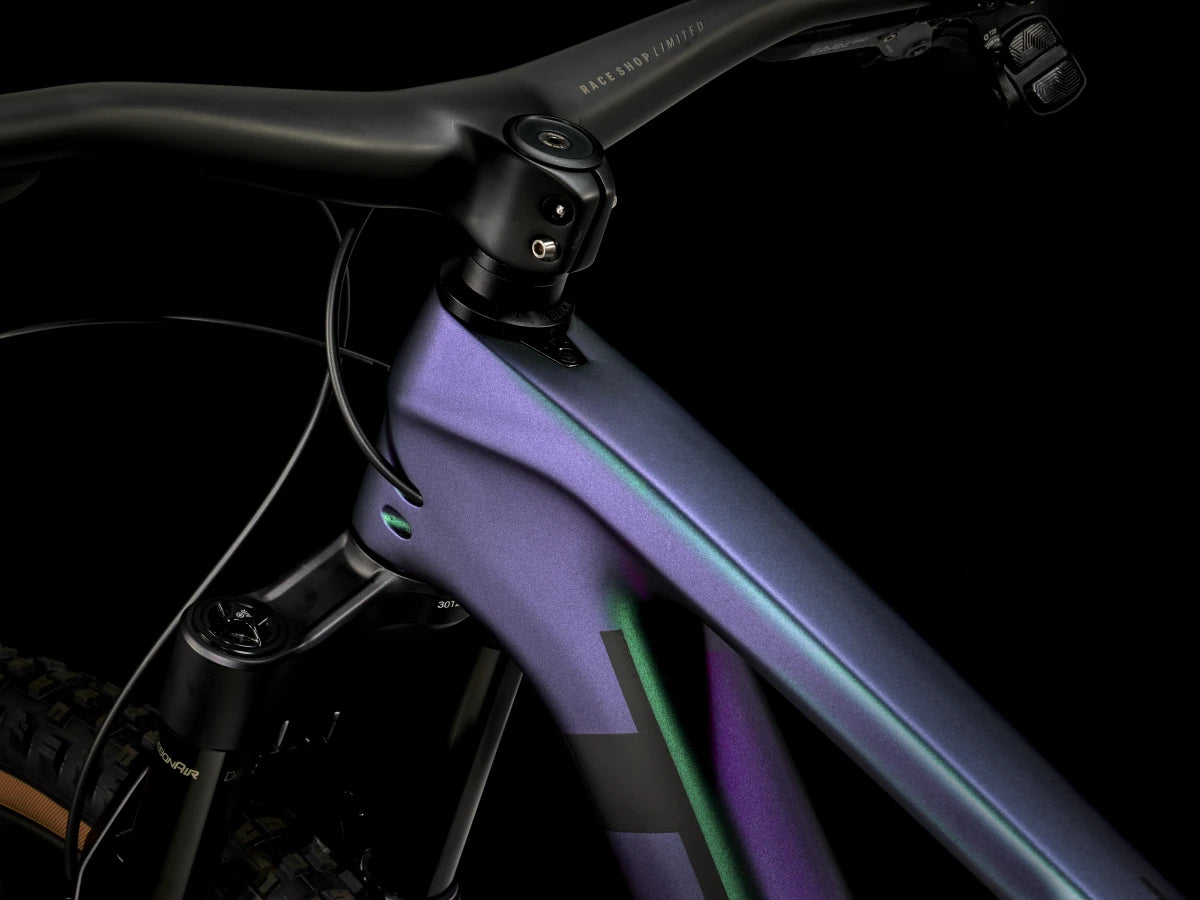

A light and stiff full carbon frame, 130 mm RockShox Pike Select+ fork, 120 mm of rear travel with a RockShox Deluxe Ultimate RCT shock and a SRAM GX Eagle AXS wireless electronic transmission with an extra-low 52-tooth climbing gear. Plus, wide Bontrager Line Elite 30 carbon wheels with a 108-tooth Rapid Drive hub for instant engagement, Bontrager Line Elite Dropper and Bontrager RSL integrated carbon bar/stem combo.

The final word

The Top Fuel 9.8 is a ridiculously fun carbon down-country bike with upgraded parts that give you big benefits on the trail, like more speed from the carbon wheels, more grip from the ultra-smooth suspension, and faster, more precise shifts from the AXS transmission.

Specifications

*spec applies to all sizes unless otherwise noted

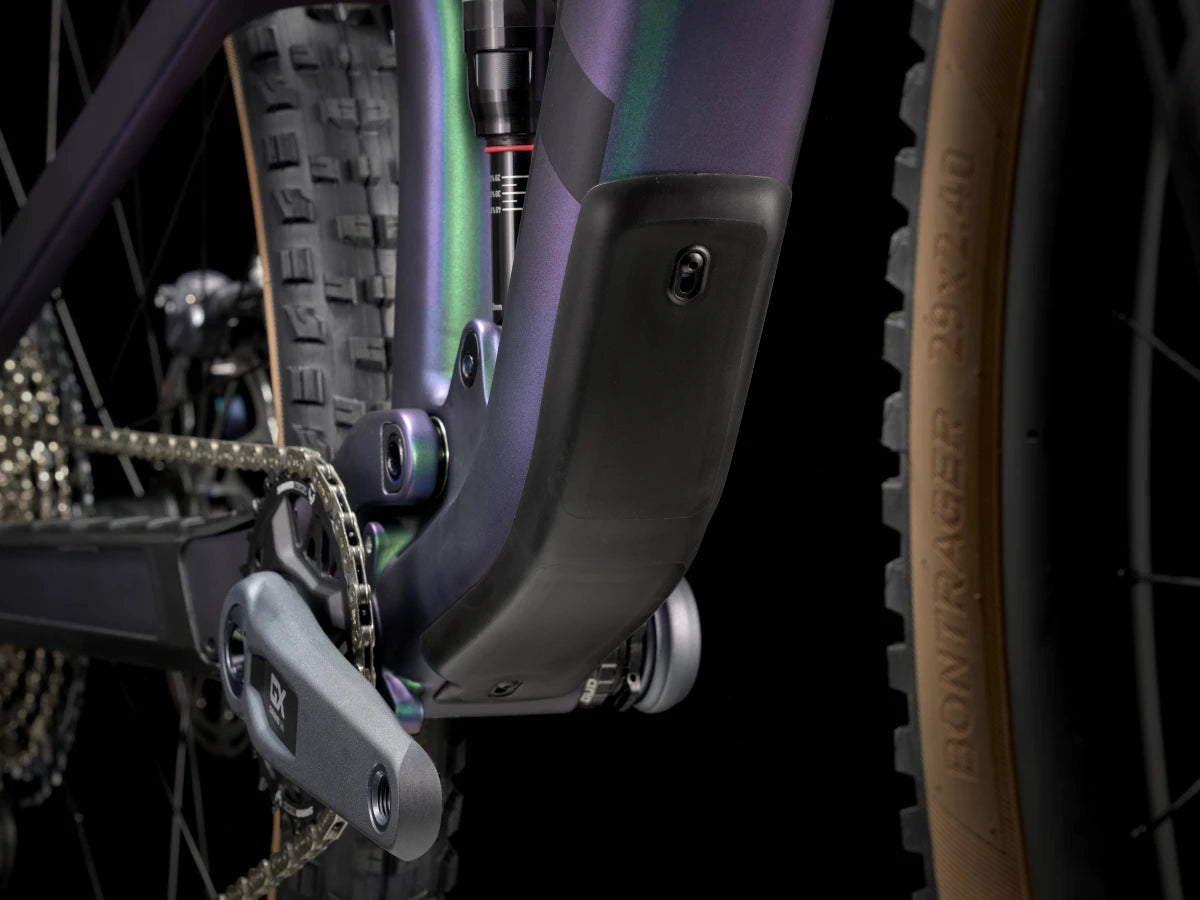

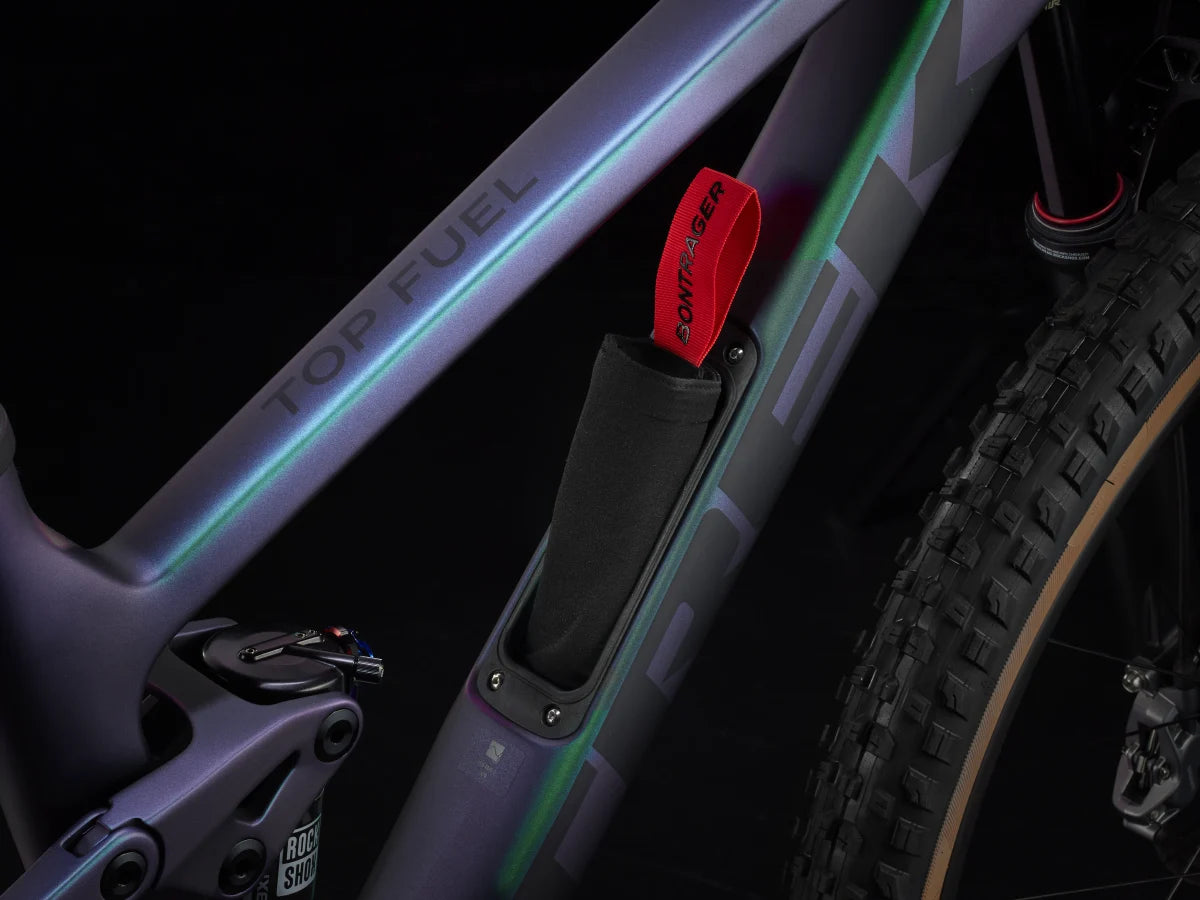

Frame OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel
Fork RockShox Pike Select+, DebonAir spring, Charger 3 RC2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 130 mm travel

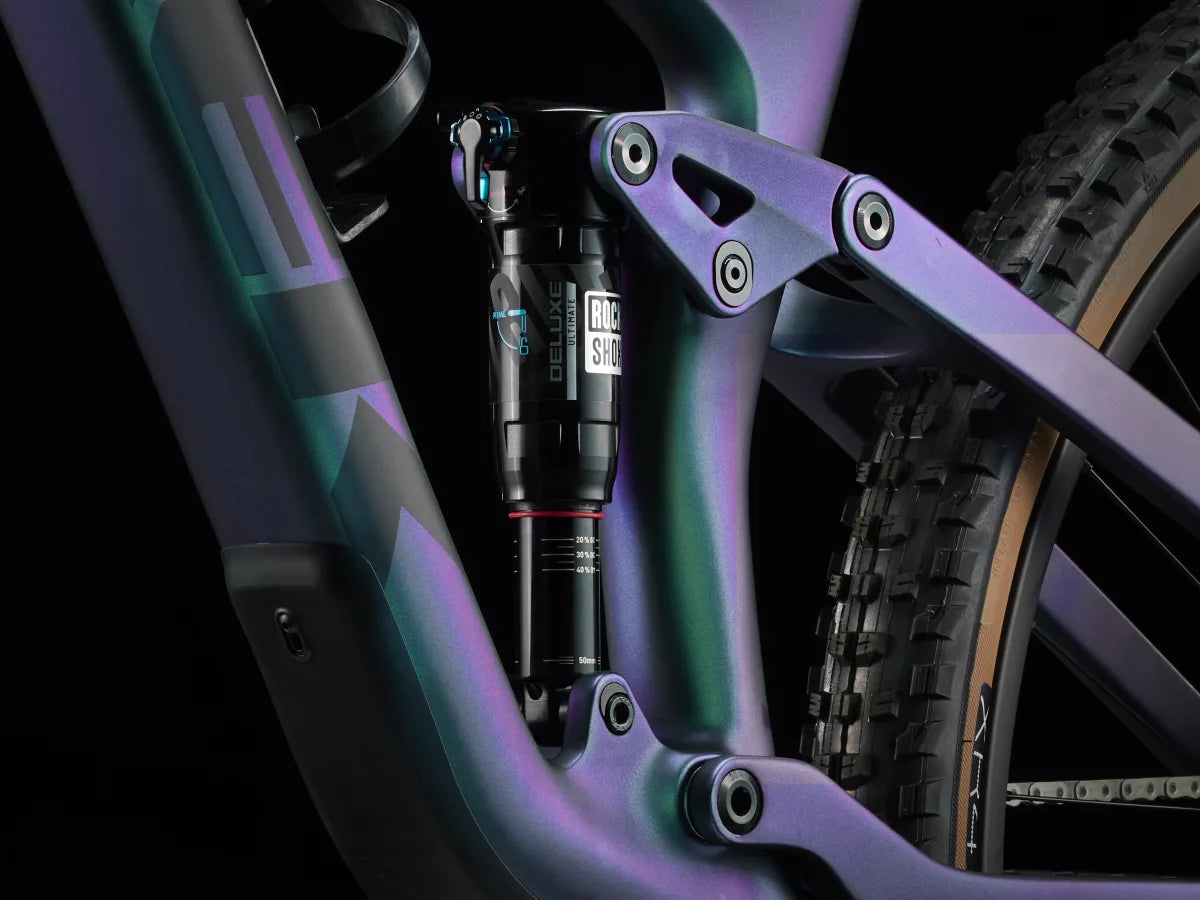

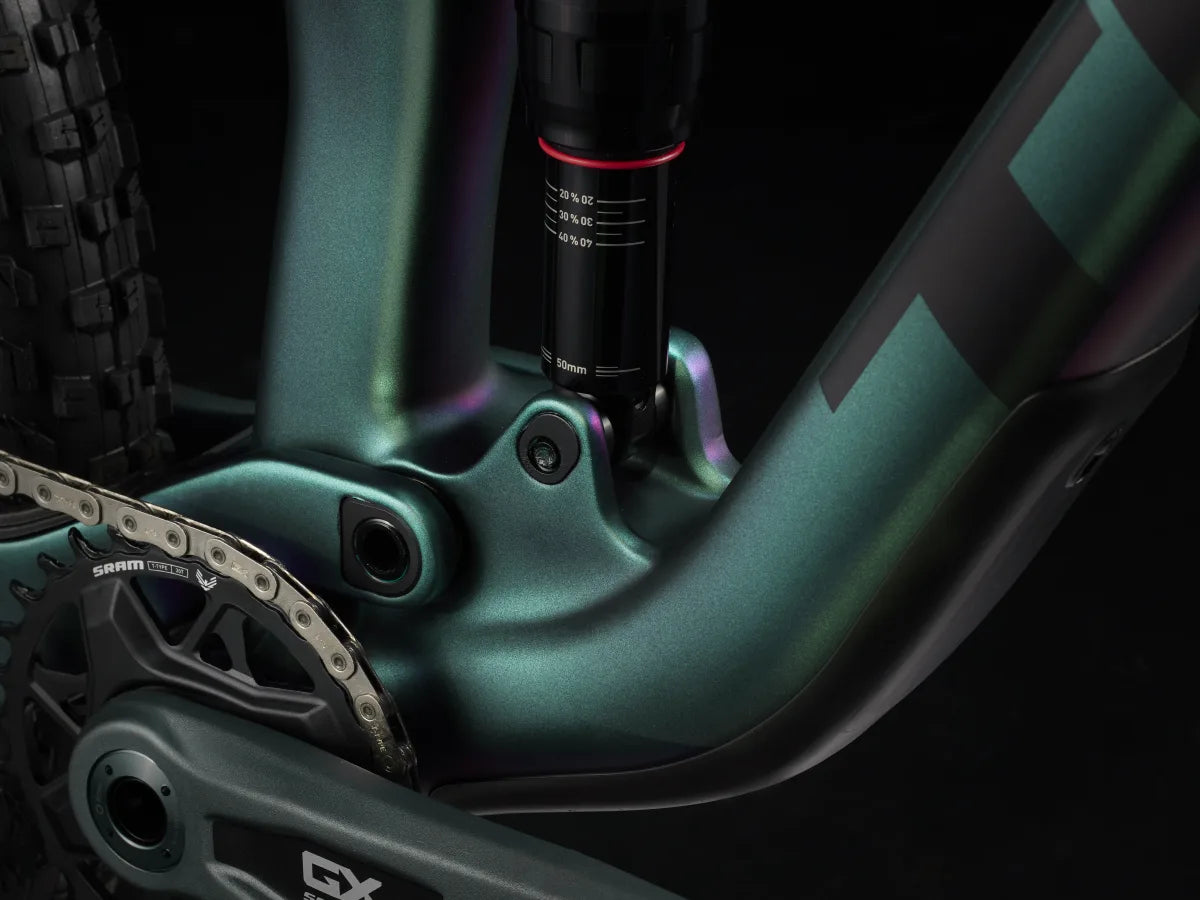

Shock RockShox Deluxe Ultimate RCT, 185 mm x 50 mm
Max compatible fork travel 130mm (541mm axle-to-crown)
Wheels
Wheel front Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle

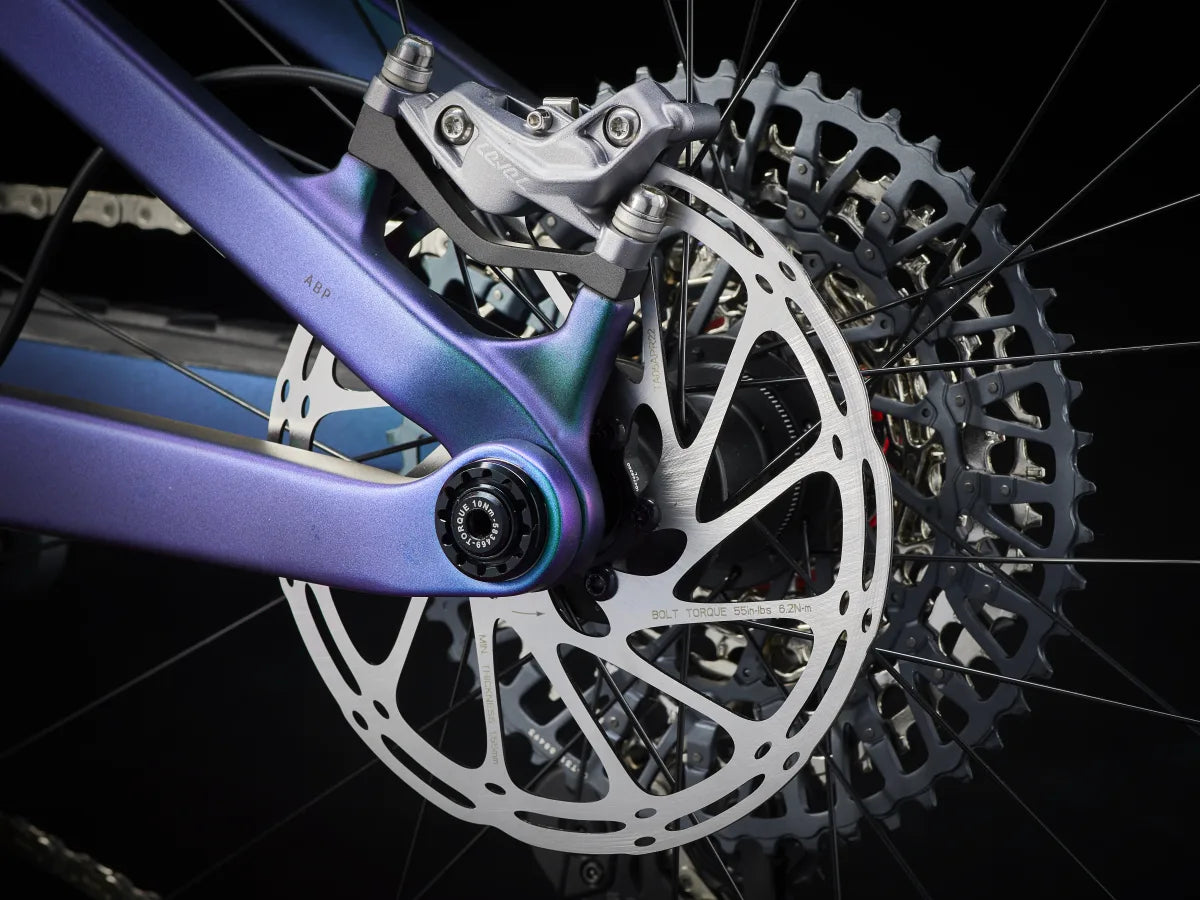

Wheel rear Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle
*Tyre Size: XS
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.40''
Size: S, M, M/L, L, XL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.40"
Tyre part Bontrager TLR sealant, 180 ml/6 oz
Sealant Bontrager TLR sealant, 180 ml/6 oz
Rim strip Bontrager TLR
Max tyre size Frame: 29x2.50", Fork: See manufacturer
Drivetrain
Shifter SRAM Eagle AXS POD

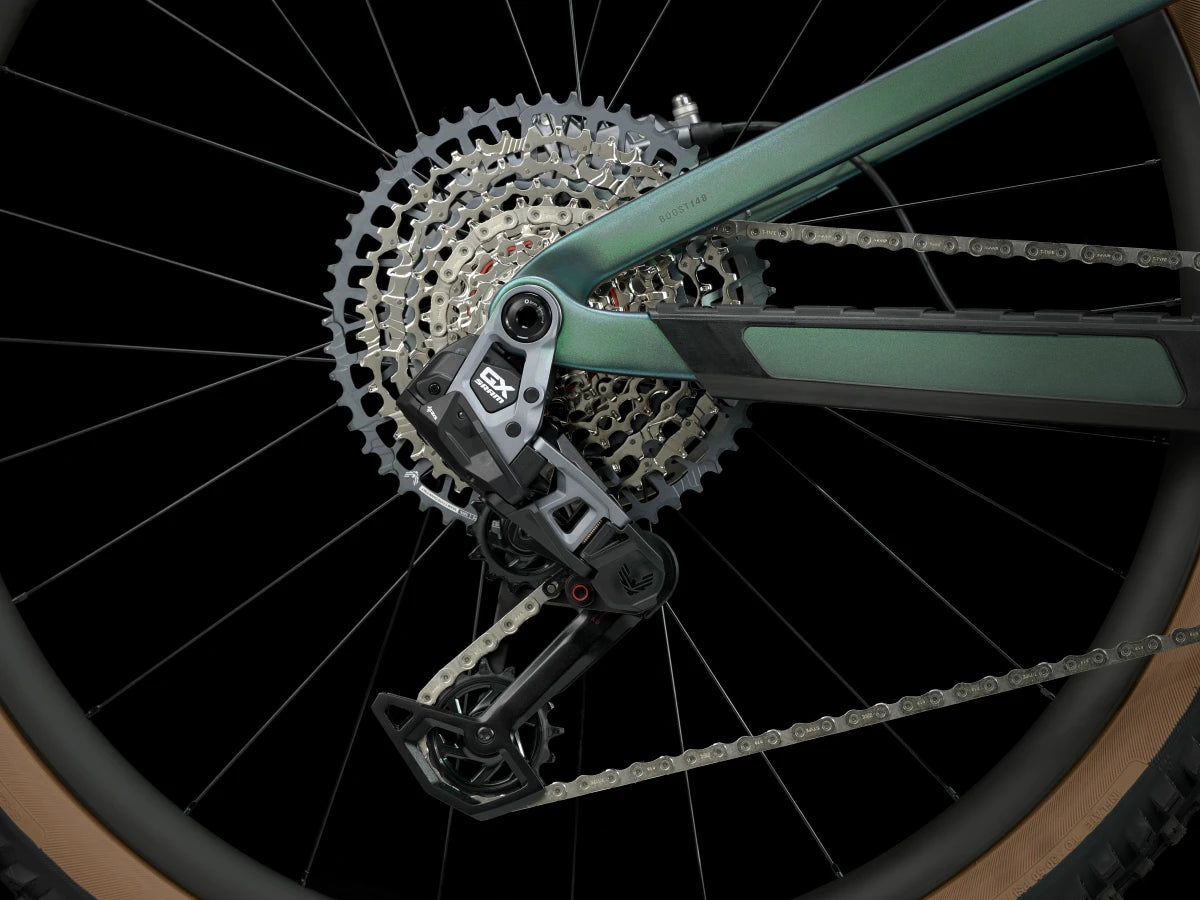

Rear derailleur SRAM GX Eagle AXS, T-Type

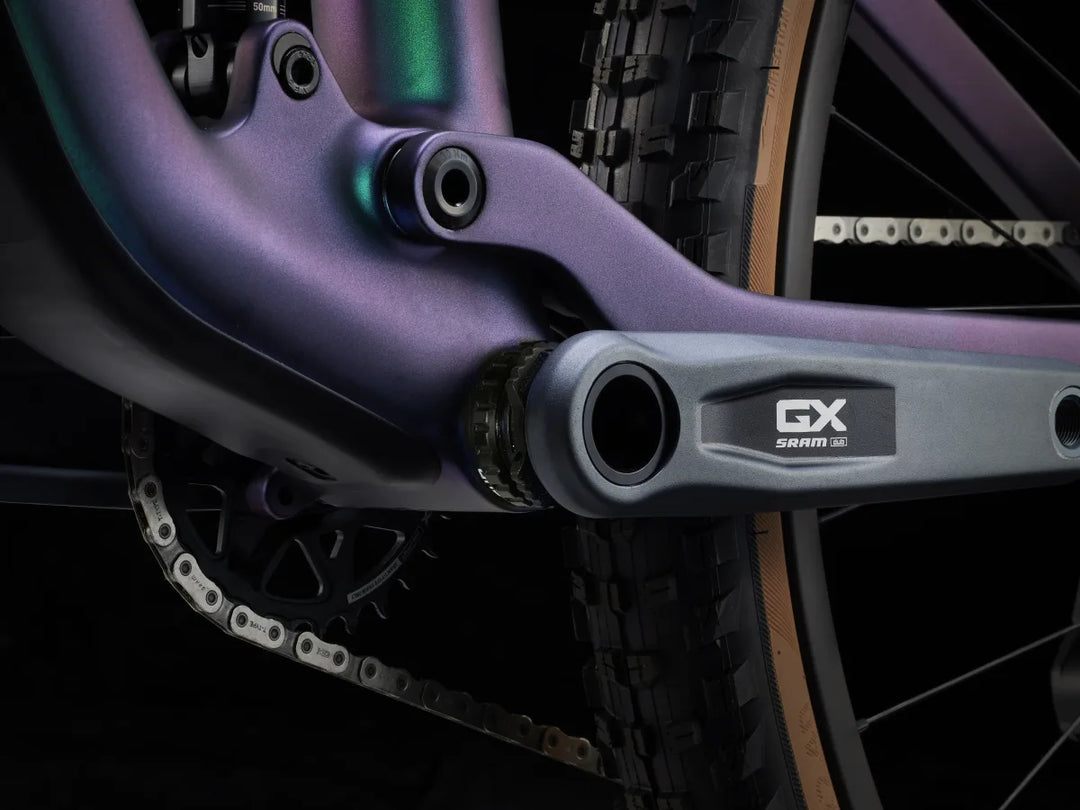

Crank SRAM GX Eagle, T-Type, DUB, 30T, 55 mm chain line, 170 mm length
Bottom bracket SRAM DUB MTB Wide, 73 m, BSA threaded
Cassette SRAM Eagle XS-1275, T-Type,10-52, 12-speed
Chain SRAM GX Eagle, T-Type, 12 speed
Max. chainring size 1x: 36T round, 34T oval, min 28T
Accessories
Battery SRAM eTap battery pack (with charger)
Weight
Weight M – 12.80 kg / 28.22 lb (with TLR sealant, no tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
