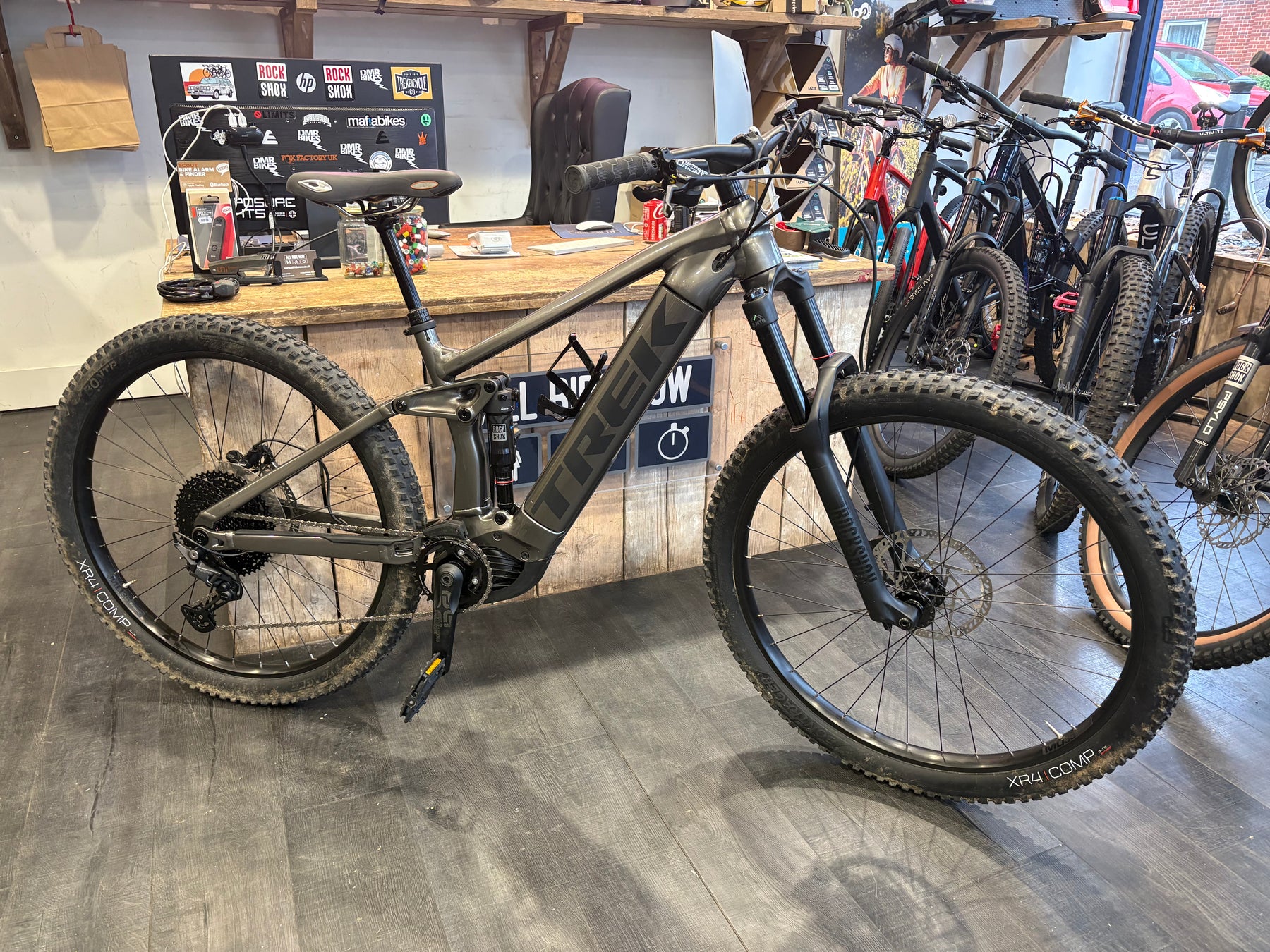

Trek Rail 5 2023 in grey

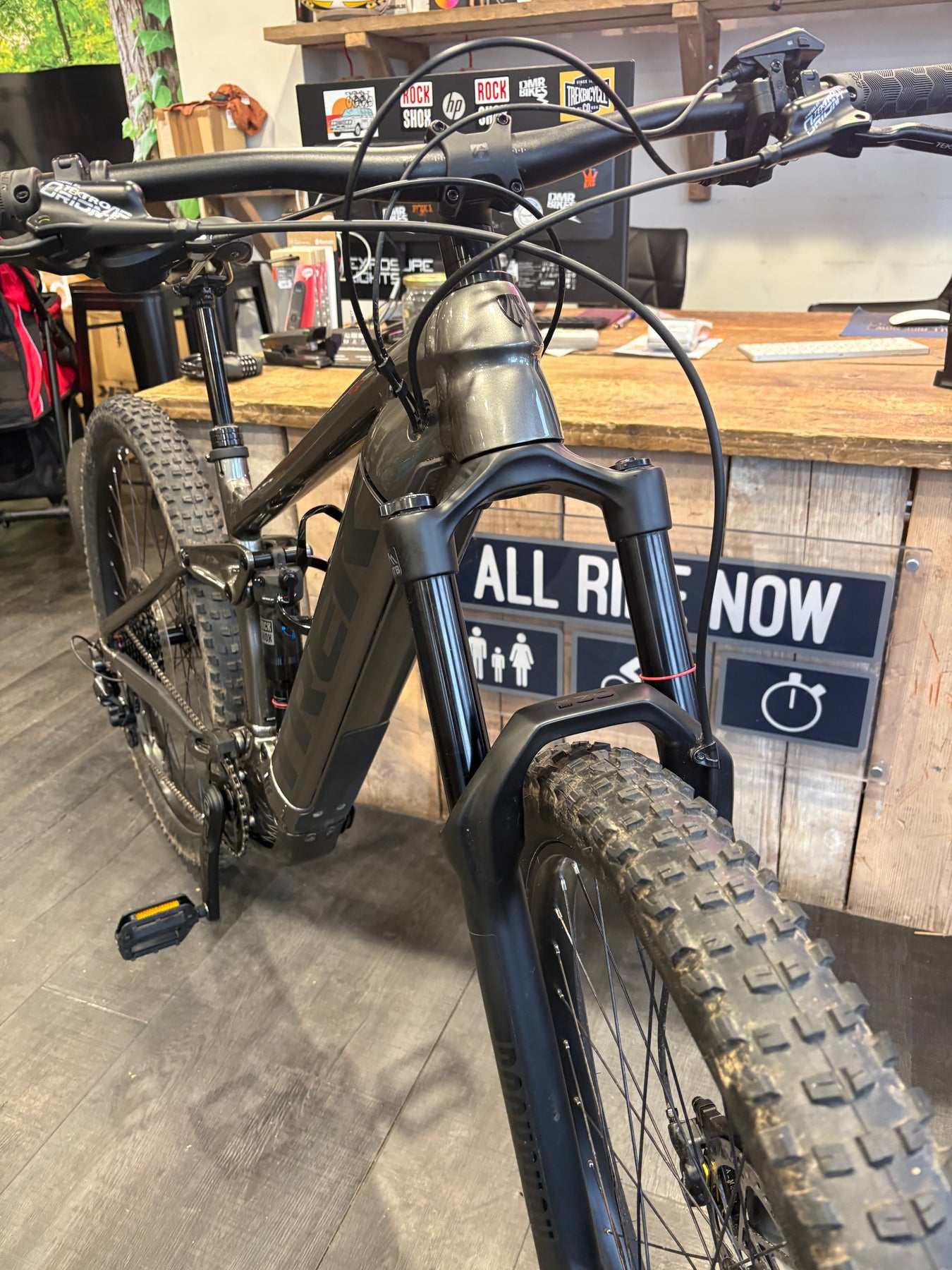

Trek Rail 5 2023 in grey riders view

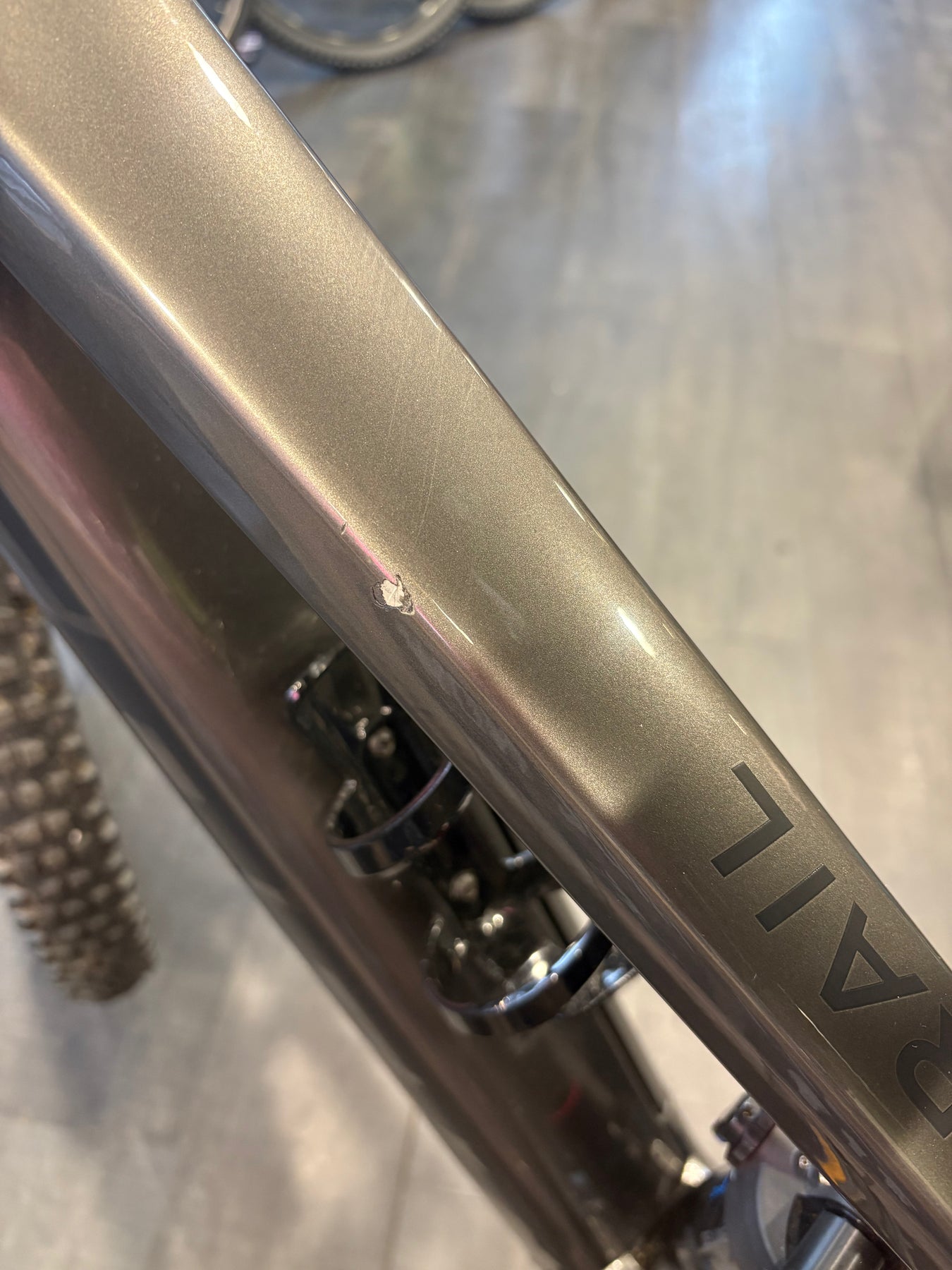

Trek Rail 5 2023 in grey paint chip on top tube
Trek Rail 5 2023 in grey 45 degrees

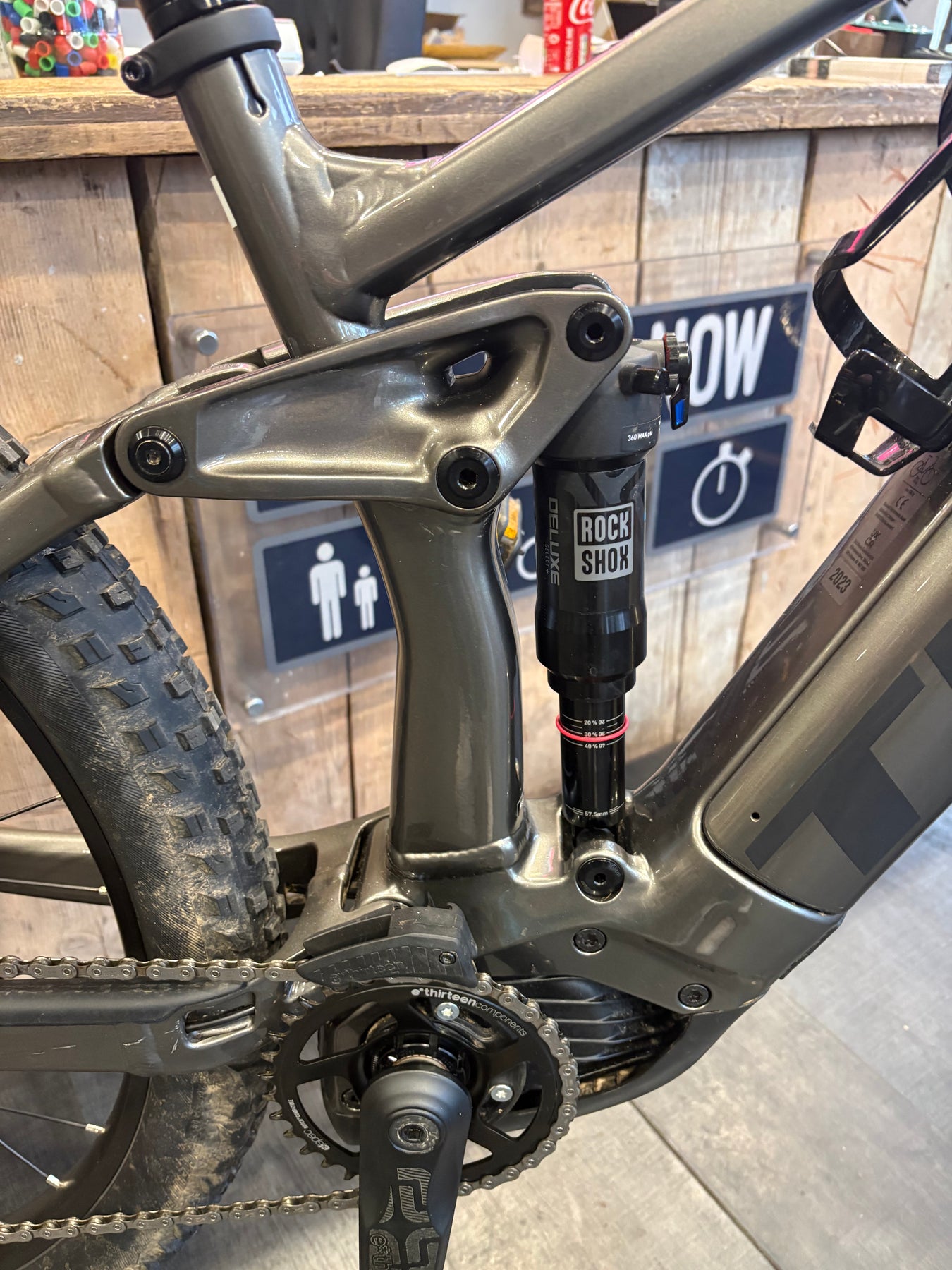

Trek Rail 5 2023 in grey suspension view

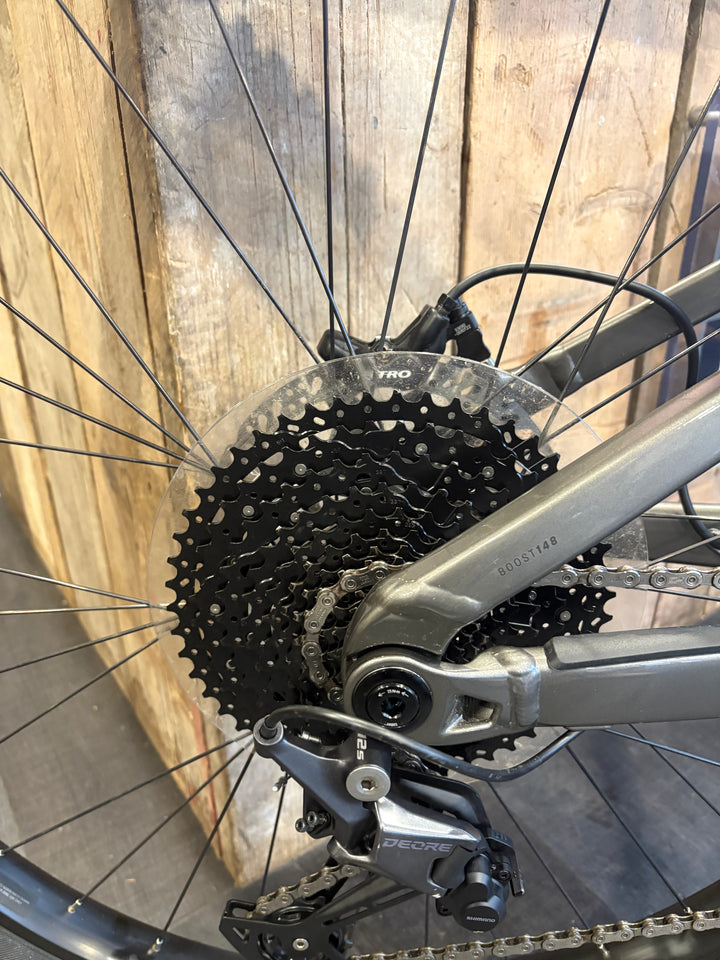

Trek Rail 5 2023 in grey gears

Approved Used Trek Rail 5 625W Gen 3 2024 Size M

  • Built & checked by our Trek-trained workshop
  • Ready-to-ride delivery or free in-store collection
  • UK warranty support from a real local bike shop
  • Expert advice before & after purchase — no call centres
Regular price £5,100.00 Sale price£2,695.00 Save 47%
/

Found a better deal? Click here for our Price Match Promise.

View our shipping information Here.

Not sure what Motor suits your E-Bike needs? Click Here to see our in-depth, yet easy to understand guide to help you figure out which motor is the best for you!

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Approved Used Details

MakeTrek
ModelRail 5 625W Gen 3
SizeMedium
Year2024
Mileage51 miles
Approved Used Grade A – Excellent
What does this mean?
Accessories Included
  • Side Entry Bottle Cage
Upgrades
  • None
Service Work Carried Out See Inspection Report
Original RRP£5,100
Approved Used Grade — what it means

A — Excellent: Minimal cosmetic marks. Fully checked, serviced and ready to ride.

B — Very Good: Normal signs of use. Mechanically spot-on after inspection.

C — Good: Visible cosmetic wear, but fully serviced and Approved Used.

All grades: Known history • workshop-checked • warranty-backed.

Inspection report
Overall Approved Used Grade
A - Excellent
Frame condition
Minor cosmetic marks
Drivetrain condition
Excellent
Chain wear checked
Yes
Wheels true
Yes
Tyre condition
Good
Brake performance
Excellent
Bearing condition
Excellent
Suspension serviced
No
Motor diagnostic passed
Yes
Battery health
Excellent
Service work carried out
Fully serviced.
Parts replaced: Gear Cable.
Inspected by
Jono
Inspection date
23 January 2026

Approved Used Promise

Known history · Fully checked · 3-month / 1,000-mile warranty

Why Approved Used beats private sales →

This Approved Used Trek Rail 5 625W Gen 3 2024 Size M is a powerful, trail-ready electric mountain bike built for riders who want confident performance on demanding terrain. With Trek’s robust Gen 3 e-MTB platform and a high-capacity 625Wh battery, the Rail 5 delivers smooth, consistent pedal assistance that helps you climb steep trails and extend your off-road adventures with ease.

Engineered for aggressive trail riding and all-day performance, the Rail’s capable geometry and reliable components provide traction, control and comfort across challenging singletrack, rock gardens and technical descents. Fully inspected and prepared through our All Ride Now Approved Used process, this Trek is workshop-checked and ready to ride, giving you high-performance e-MTB capability backed by the reassurance of a trusted local bike shop.

Specification Detail
Frame Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Rear Shock RockShox Deluxe Select+ RT, 230 mm x 57.5 mm
Fork RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel
Headset FSA
Stem Bontrager Rhythm Comp, 31.8 mm, 0-degree, 50 mm length
Handlebar Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grip Bontrager XR Trail Comp, nylon lock-on
Brake Rotors Tektro
Brake Lever Tektro HD-M745
Front Brake Tektro HD-M745 4-piston hydraulic disc
Rear Brake Tektro HD-M745 4-piston hydraulic disc
Front Tyre Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
Rear Tyre Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
Wheel Size 29"
Rim Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
Spokes Black stainless
Front Hub Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Rear Hub Bontrager alloy, sealed bearing, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru axle
Speeds 12
Rear Derailleur Shimano Deore M6100, long cage
Shift Levers Shimano Deore M6100, 12-speed
Chain Shimano Deore M6100, 12-speed
Cassette SunRace CSMZ800 11-51, 12-speed
Chainset E*thirteen E*spec Plus, 165 mm length
Bottom Bracket N/A
Pedals VP-536 nylon platform
Saddle Selle Royal Lookin Athletic Saddle
Seat Post TranzX JD-YSP18, 130 mm travel, internal routing, 31.6 mm, 425 mm length
Motor Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
Battery Bosch PowerTube 625Wh, smart system
eBike Display Bosch LED remote, smart system

Personalised Bike Consultation

Not sure which model is perfect for you? Our expert team at All Ride Now in Midhurst, West Sussex is here to help you choose with confidence.

  • Will you be riding mainly on or off-road?
  • Do you prefer an upright or sportier riding position?
  • Are you looking for longer range, lighter weight, or a more comfortable feel?

Through a friendly consultation – in-store, by phone, live chat or email – we’ll help you narrow down your options and find the bike that best fits your needs.
