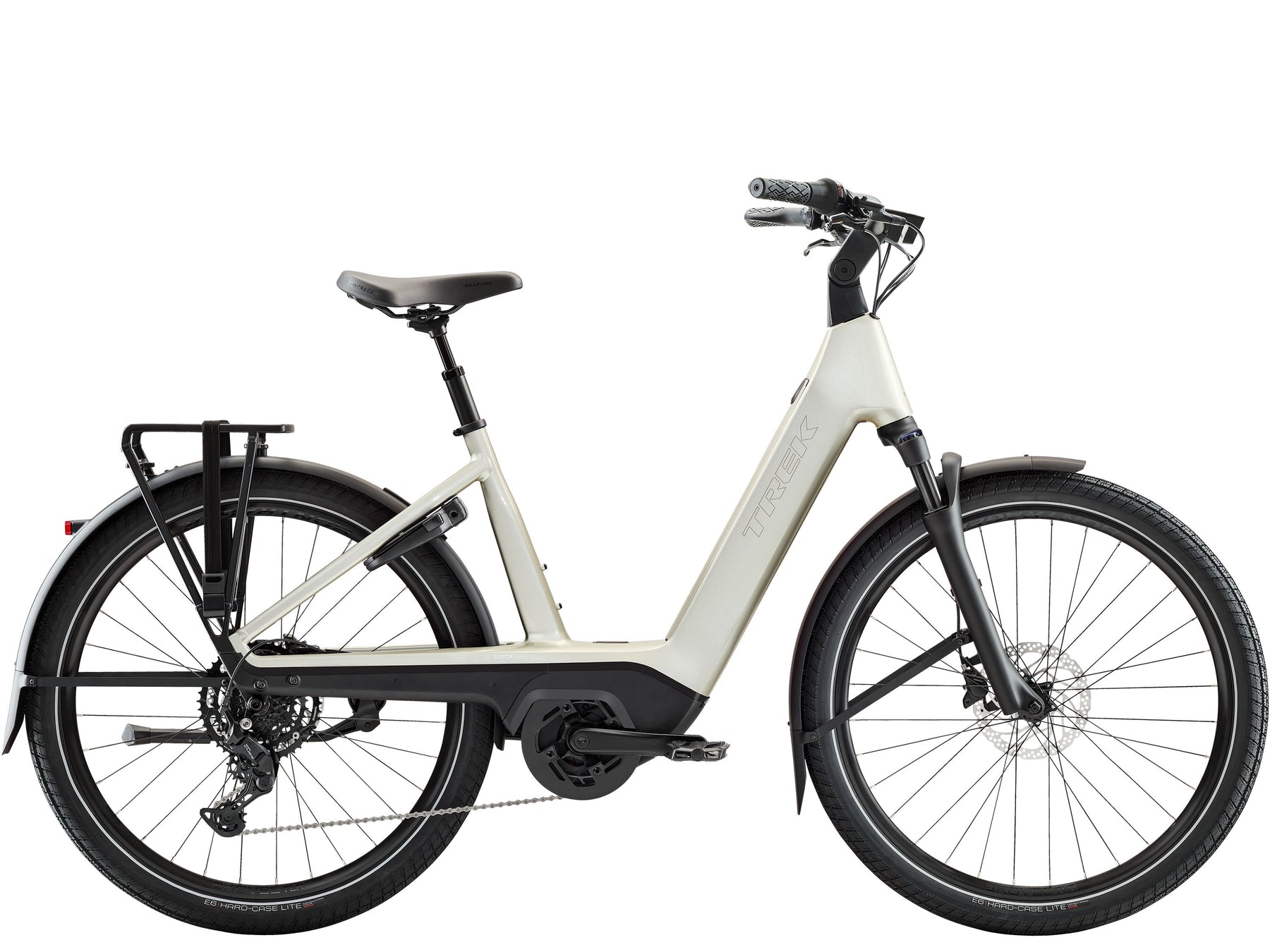

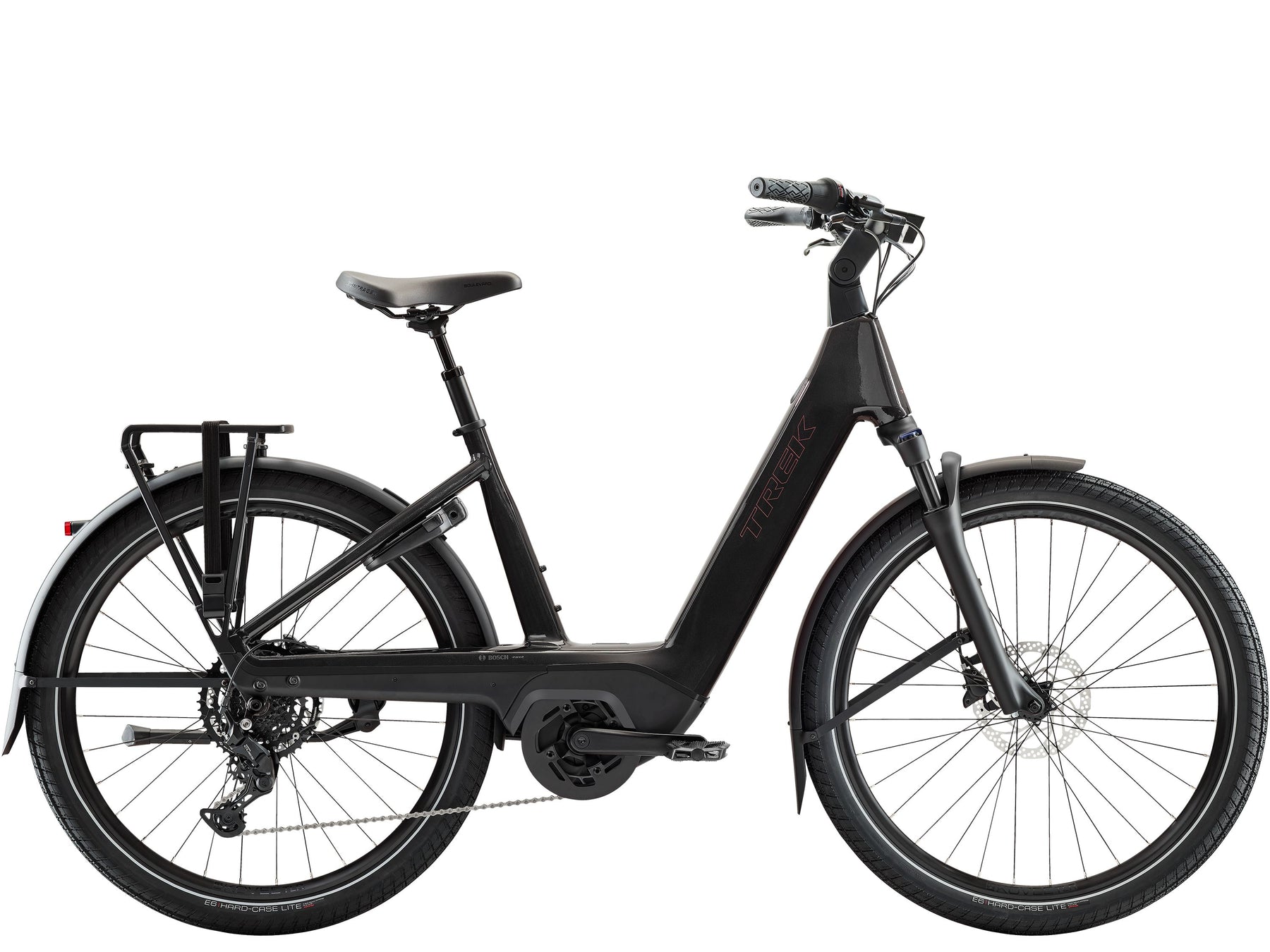

The Trek Charter+ 4 R9 800 Wh Lowstep 2026 is a capable, long-range city e-bike built around a 800Wh Bosch battery and Bosch Performance Line motor delivering 75Nm of assistance. Whether you're commuting daily, running errands or heading further afield, this bike is built to handle real-world riding without compromise.
WHO THIS BIKE SUITS
You want a reliable, long-range e-bike with exceptional range — fewer charging stops and more riding.
The lowstep frame matters to you, whether that's ease of mounting and dismounting or simply a more accessible, confidence-inspiring riding position.
You want a bike that's ready for daily use — practical, dependable and built to last.
You want an honest, practical e-bike at a sensible price — strong Bosch assistance without premium component cost.
IF YOU'RE LOOKING FOR SOMETHING DIFFERENT
If you want more off-road capability, the Charter+ Trail models may be the better direction.
WHERE IT SITS IN THE RANGE
The Charter+ R9 sits at the entry point of the Charter+ family — giving you the core ingredients that matter most without moving into higher-spec territory.
HOW IT RIDES
Motor and assistance
The Bosch Performance Line motor delivers smooth, consistent assistance that makes light work of hills and longer distances.
Range
The 800Wh battery removes the daily charging routine for most riders — real-world range that suits commuting, errands and weekend rides alike.
Handling and comfort
The SR Suntour SF25-NVX32 takes the edge off road surfaces without adding unnecessary weight or complexity.
Practicality
Integrated lights, mudguards and a MIK rear rack come as standard — ready to ride from day one.
THE FINAL WORD
The Trek Charter+ 4 R9 800 Wh Lowstep 2026 gets the fundamentals right. If you're weighing up Charter+ models or comparing against other city e-bikes, our team at ARN can walk you through the differences in plain English.
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
Frame: Premium Alpha Platinum Aluminum frame, top-load PowerPack, integrated cockpit routing, 135x5mm QR
Fork: SR Suntour SF25-NVX32, coil spring, preload adjuster, 5mm ThruSkew, 63mm travel
Motor: Bosch Performance Line, 250W, 75Nm, 20mph
Battery: Bosch PowerTube 800Wh, smart system
Display: Bosch Purion 200
Shifter: Shimano U4000, 9 speed
Cassette: Shimano LINKGLIDE LG300, 11-46, 9-speed
Chain: Shimano LG500, 9/10/11-speed
Crankset: ProWheel alloy, 170 mm length
Brake set: Shimano MT200 hydraulic disc
Rotors: Shimano EM300, CentreLock, 180 mm
Front hub: Shimano Tourney HB-QC300, centerlock
Rear hub: Shimano TC500-HM
Rims: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve // Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve
Tyres: Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40"
Handlebar: Alloy, 31.8 mm clamp, 25 mm rise, 630 mm width
Stem: Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible, 80mm length
Grips: Trek Ergonomic Comp, lock-on
Saddle: Bontrager Boulevard
Seatpost: Alloy, suspension, 31.6 mm, 300 mm length
Kickstand: Pletscher Comp Flex 40
